2006 Peugeot 307 SW Dag Owner's Manual

4

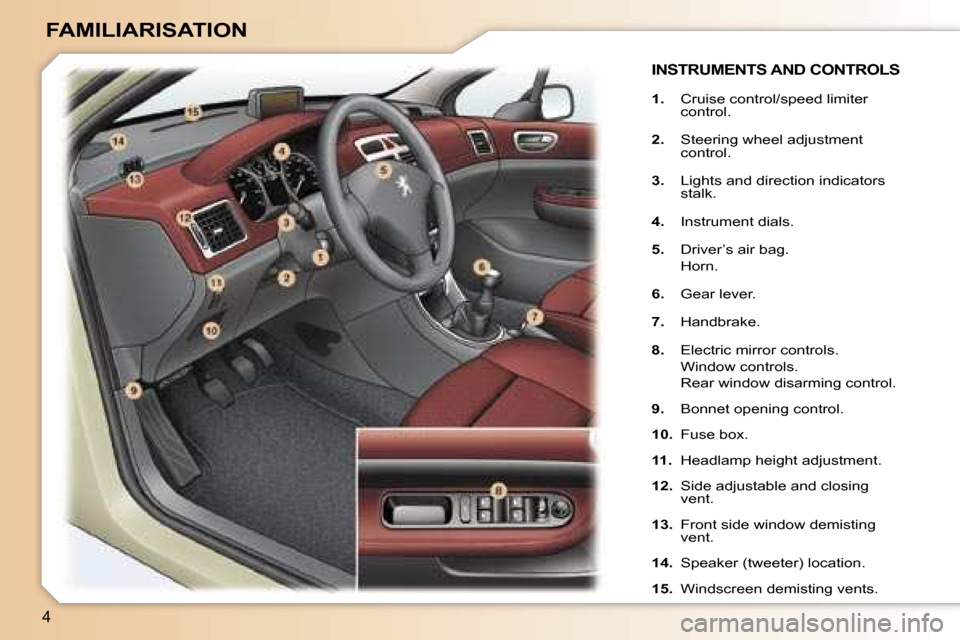

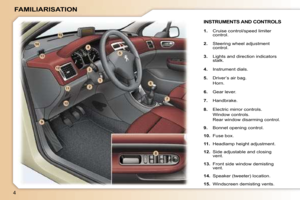

1. Cruise control/speed limiter
control.
2. Steering wheel adjustment
control.
3. Lights and direction indicators
stalk.
4. Instrument dials.
5. Driver’s air bag.
Horn.
6. Gear lever.
7. Handbrake.
8. Electric mirror controls.
Window controls.
Rear window disarming control.
9. Bonnet opening control.
10. Fuse box.
11. Headlamp height adjustment.
12. Side adjustable and closing
vent.
13. Front side window demisting
vent.
14. Speaker (tweeter) location.
15. Windscreen demisting vents.
INSTRUMENTS AND CONTROLS
FAMILIARISATION

5
FAMILIARISATION

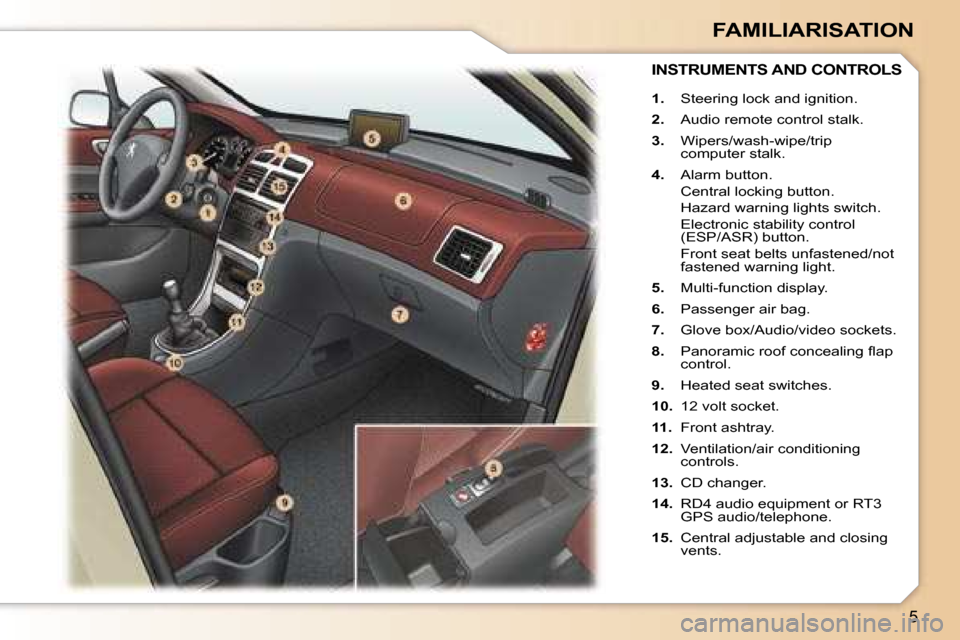

1. Steering lock and ignition.
2. Audio remote control stalk.
3. Wipers/wash-wipe/trip
computer stalk.
4. Alarm button.
Central locking button.
Hazard warning lights switch.
Electronic stability control (ESP/ASR) button.
Front seat belts unfastened/not fastened warning light.
5. Multi-function display.
6. Passenger air bag.
7. Glove box/Audio/video sockets.
8. Panoramic roof concealing flap
control.
9. Heated seat switches.
10. 12 volt socket.
11. Front ashtray.
12. Ventilation/air conditioning
controls.
13. CD changer.
14. RD4 audio equipment or RT3
GPS audio/telephone.
15. Central adjustable and closing
vents.
INSTRUMENTS AND CONTROLS

6
FAMILIARISATION

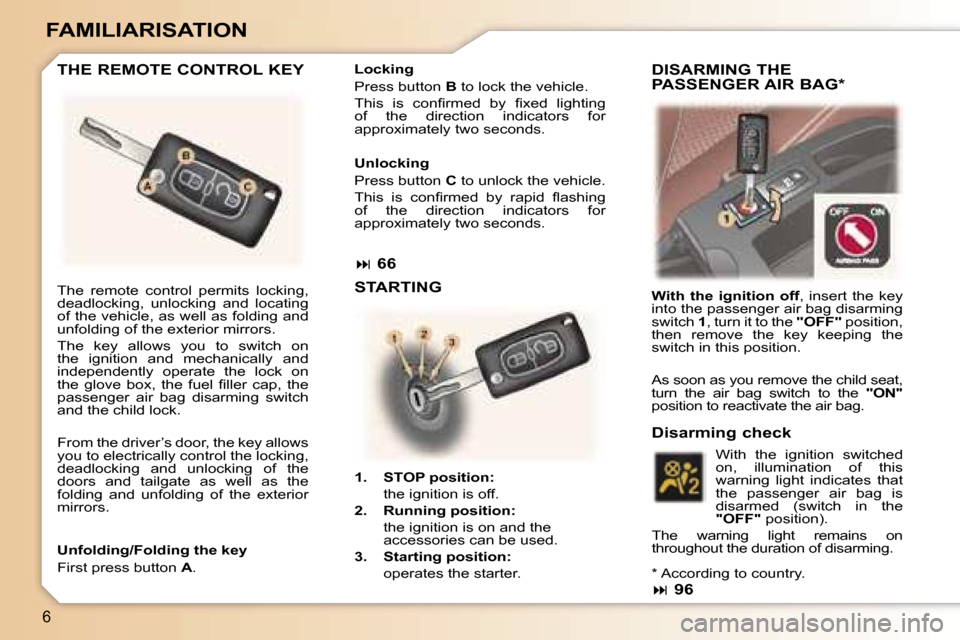

The remote control permits locking,
deadlocking, unlocking and locating
of the vehicle, as well as folding and
unfolding of the exterior mirrors.
The key allows you to switch on
the ignition and mechanically and
independently operate the lock on
the glove box, the fuel filler cap, the
passenger air bag disarming switch
and the child lock.
From the driver’s door, the key allows
you to electrically control the locking,
deadlocking and unlocking of the
doors and tailgate as well as the
folding and unfolding of the exterior
mirrors.Locking
Press button
B to lock the vehicle.
This is confirmed by fixed lighting
of the direction indicators for
approximately two seconds.
 66
1. STOP position:
the ignition is off.
2. Running position:
the ignition is on and the
accessories can be used.
3. Starting position:
operates the starter. With the ignition off
, insert the key
into the passenger air bag disarming
switch 1, turn it to the "OFF" position,
then remove the key keeping the
switch in this position.
As soon as you remove the child seat,
turn the air bag switch to the "ON"
position to reactivate the air bag.
With the ignition switched
on, illumination of this
warning light indicates that
the passenger air bag is
disarmed (switch in the
"OFF" position).
The warning light remains on
throughout the duration of disarming.
Disarming check
* According to country.
 96
THE REMOTE CONTROL KEY
STARTINGDISARMING THE
PASSENGER AIR BAG*
Unlocking
Press button
C to unlock the vehicle.
This is confirmed by rapid flashing
of the direction indicators for
approximately two seconds.
Unfolding/Folding the key
First press button A.

7
FAMILIARISATION

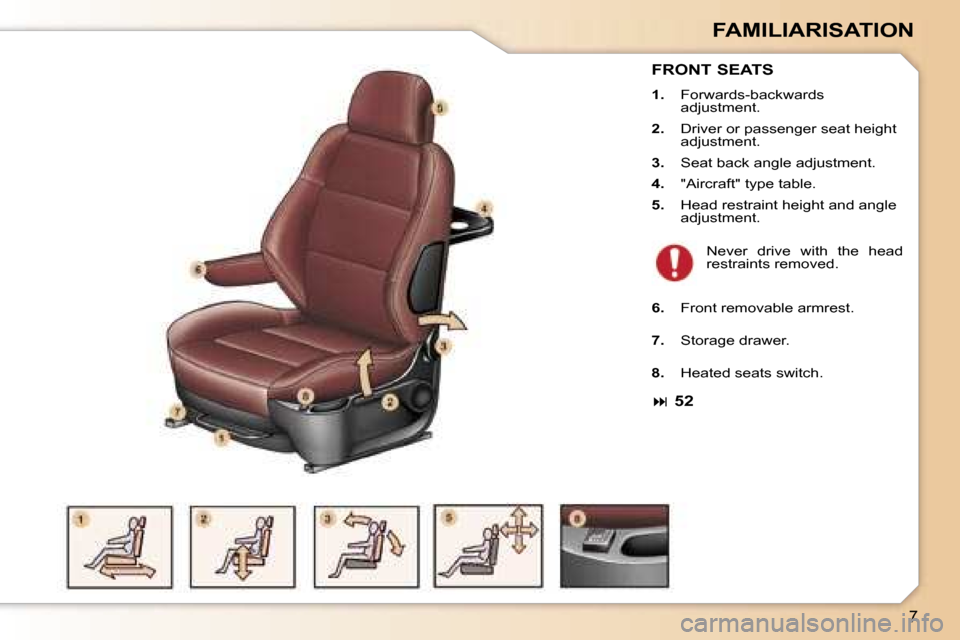

FRONT SEATS
1. Forwards-backwards
adjustment.
2. Driver or passenger seat height
adjustment.
3. Seat back angle adjustment.
4. "Aircraft" type table.
5. Head restraint height and angle
adjustment.
Never drive with the head
restraints removed.
6. Front removable armrest.
7. Storage drawer.
8. Heated seats switch.
 52

–
8
FAMILIARISATION

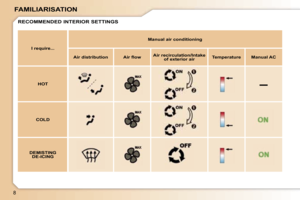

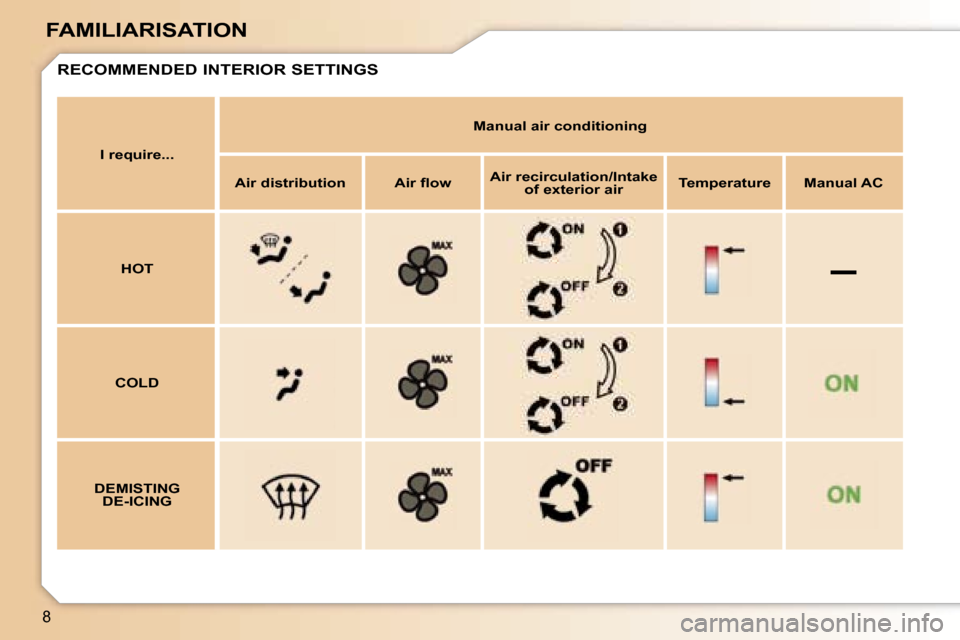

I require...Manual air conditioning
Air distribution Air flow Air recirculation/Intake
of exterior air Temperature Manual AC
HOT
COLD
DEMISTING DE-ICING
RECOMMENDED INTERIOR SETTINGS

9
FAMILIARISATION
 48
1. Automatic comfort
programme.

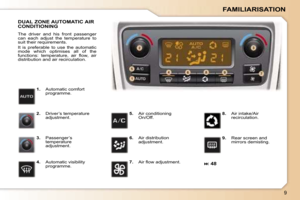

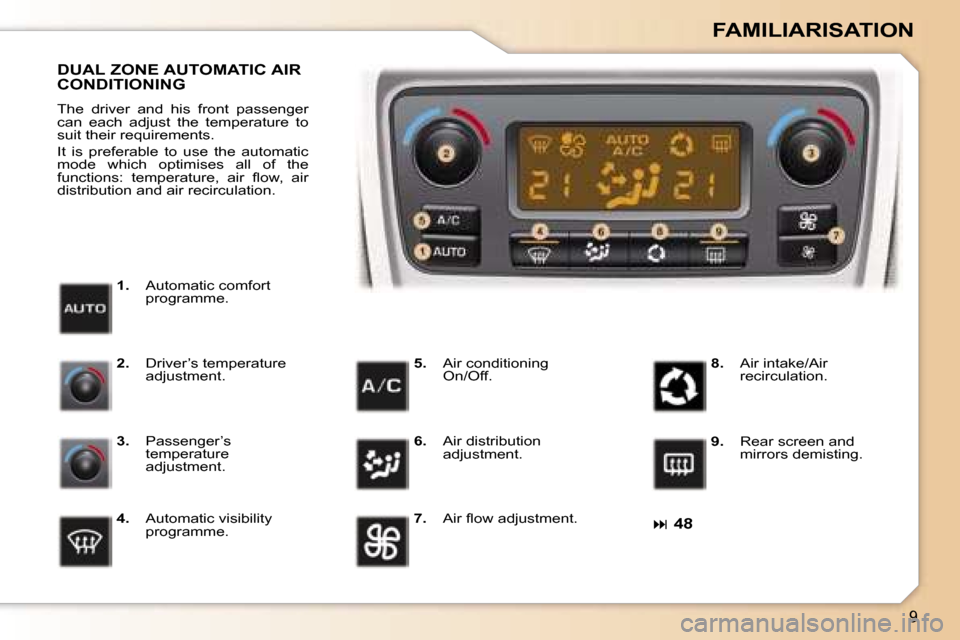

DUAL ZONE AUTOMATIC AIR
CONDITIONING
The driver and his front passenger
can each adjust the temperature to
suit their requirements.
It is preferable to use the automatic
mode which optimises all of the
functions: temperature, air flow, air
distribution and air recirculation.
2. Driver’s temperature
adjustment.
3. Passenger’s
temperature
adjustment.
4. Automatic visibility
programme. 5.
Air conditioning
On/Off.
6. Air distribution
adjustment.
7. Air flow adjustment. 8.
Air intake/Air
recirculation.
9. Rear screen and
mirrors demisting.

10
FAMILIARISATION

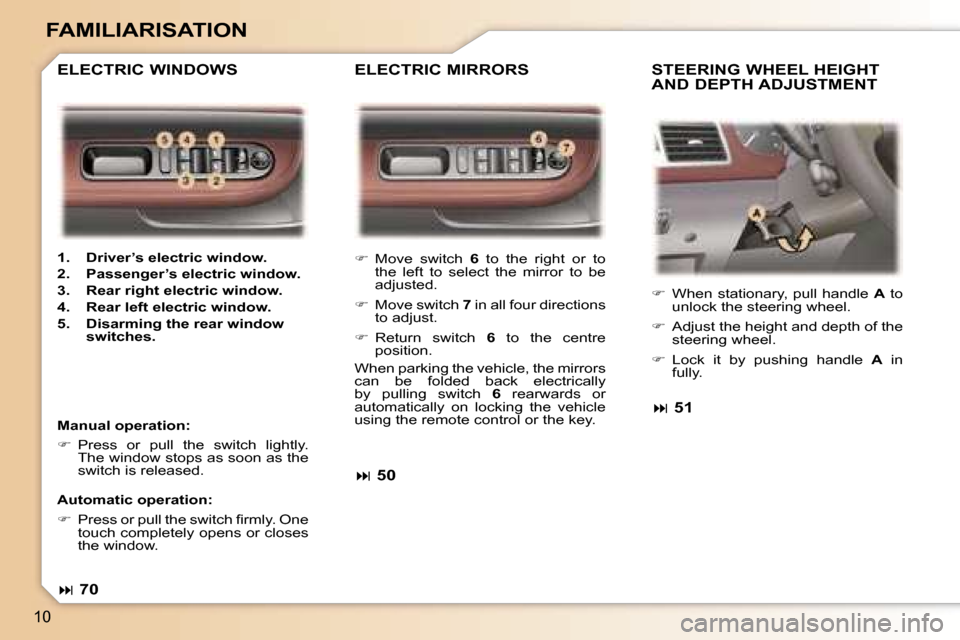

 Move switch 6 to the right or to
the left to select the mirror to be
adjusted.
 Move switch 7 in all four directions
to adjust.
 Return switch 6 to the centre
position.
When parking the vehicle, the mirrors
can be folded back electrically
by pulling switch 6 rearwards or
automatically on locking the vehicle
using the remote control or the key. 
When stationary, pull handle A to
unlock the steering wheel.
 Adjust the height and depth of the
steering wheel.
 Lock it by pushing handle A in
fully.
 51
1. Driver’s electric window.
2. Passenger’s electric window.
3. Rear right electric window.
4. Rear left electric window.
5. Disarming the rear window
switches.
 70 
50
Manual operation:
 Press or pull the switch lightly.
The window stops as soon as the
switch is released.
ELECTRIC WINDOWS ELECTRIC MIRRORS STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
Automatic operation:
 Press or pull the switch firmly. One
touch completely opens or closes
the window.

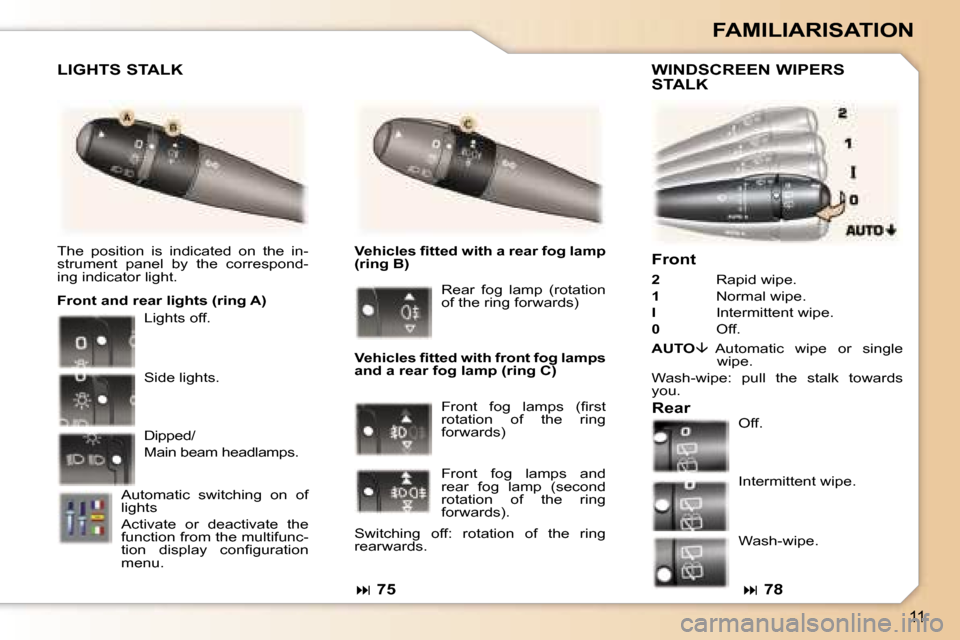

11
FAMILIARISATION
Front
2 Rapid wipe.
1 Normal wipe.
I Intermittent wipe.
0 Off.
AUTO  Automatic wipe or single
wipe.
Wash-wipe: pull the stalk towards
you.
The position is indicated on the in-
strument panel by the correspond-
ing indicator light.

75
Front and rear lights (ring A)
Lights off.
Side lights.
Dipped/
Main beam headlamps. Rear fog lamp (rotation
of the ring forwards)
Front fog lamps (first
rotation of the ring
forwards)
Front fog lamps and
rear fog lamp (second
rotation of the ring
forwards).
Switching off: rotation of the ring
rearwards.
Automatic switching on of
lights
Activate or deactivate the
function from the multifunc-
tion display configuration
menu. Vehicles fitted with a rear fog lamp
(ring B)
Vehicles fitted with front fog lamps
and a rear fog lamp (ring C)
RearOff.
Intermittent wipe.
Wash-wipe.

78
LIGHTS STALK WINDSCREEN WIPERS
STALK
