Symptom List:
ANTI-LOCK BRAKE MODULE INTERNAL
CAB INTERNAL
Test Note: All symptoms listed above are diagnosed using the same tests.
The title for the tests will be ANTI-LOCK BRAKE MODULE
INTERNAL.
When Monitored and Set Condition:
ANTI-LOCK BRAKE MODULE INTERNAL
When Monitored: Ignition On - Continuously.
Set Condition: When there is a deviation from the expected result of a CAB internal self
check.
CAB INTERNAL
When Monitored: Ignition On - Continuously.
Set Condition: When there is a deviation from the expected result of a CAB internal self
check.
POSSIBLE CAUSES
INTERMITTENT CAB INTERNAL DTC
DAMAGED CAB/CAB HARNESS CONNECTOR
FUSED OPTIONAL EQUIPMENT RELAY OUTPUT CIRCUIT OPEN
FUSED B(+) CIRCUIT OPEN
GROUND CIRCUIT OPEN
ANTI-LOCK BRAKE CONTROLLER
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRBIIIt, read DTCs.
With the DRBIIIt, erase DTCs.
Turn the ignition off.
Turn the ignition on.
With the DRBIIIt, read DTCs.
Does this DTC reset?All
Ye s!Go To 2
No!Go To 6
10
BRAKES (CAB)

TEST ACTION APPLICABILITY
2 Turn the ignition off.
Disconnect the CAB harness connector.
Inspect the CAB/CAB harness connector for damage.
Is there any broken, bent, pushed out, corroded or spread terminals?All
Ye s!Repair as necessary.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 3
3 Turn the ignition off.
Disconnect the CAB harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the Fused Optional Equipment
Relay Output circuit at the CAB harness connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s!Go To 4
No!Repair the Fused Optional Equipment Relay Output circuit for an
open.
Perform ABS VERIFICATION TEST - VER 1.
4 Turn the ignition off.
Disconnect the CAB harness connector.
Using a 12-volt test light connected to ground, check both Fused B(+) circuits at the
CAB harness connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s!Go To 5
No!Repair the Fused B(+) circuit for an open.
Perform ABS VERIFICATION TEST - VER 1.
5 Turn the ignition off.
Disconnect the CAB harness connector.
Using a 12-volt test light connected to 12-volts, check the CAB harness connector
Ground circuits.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s!Replace the Controller Antilock Brake in accordance with the
Service Information.
Perform ABS VERIFICATION TEST - VER 1.
No!Repair the Ground circuit for an open.
Perform ABS VERIFICATION TEST - VER 1.
11
BRAKES (CAB)
ANTI-LOCK BRAKE MODULE INTERNAL ÐContinued

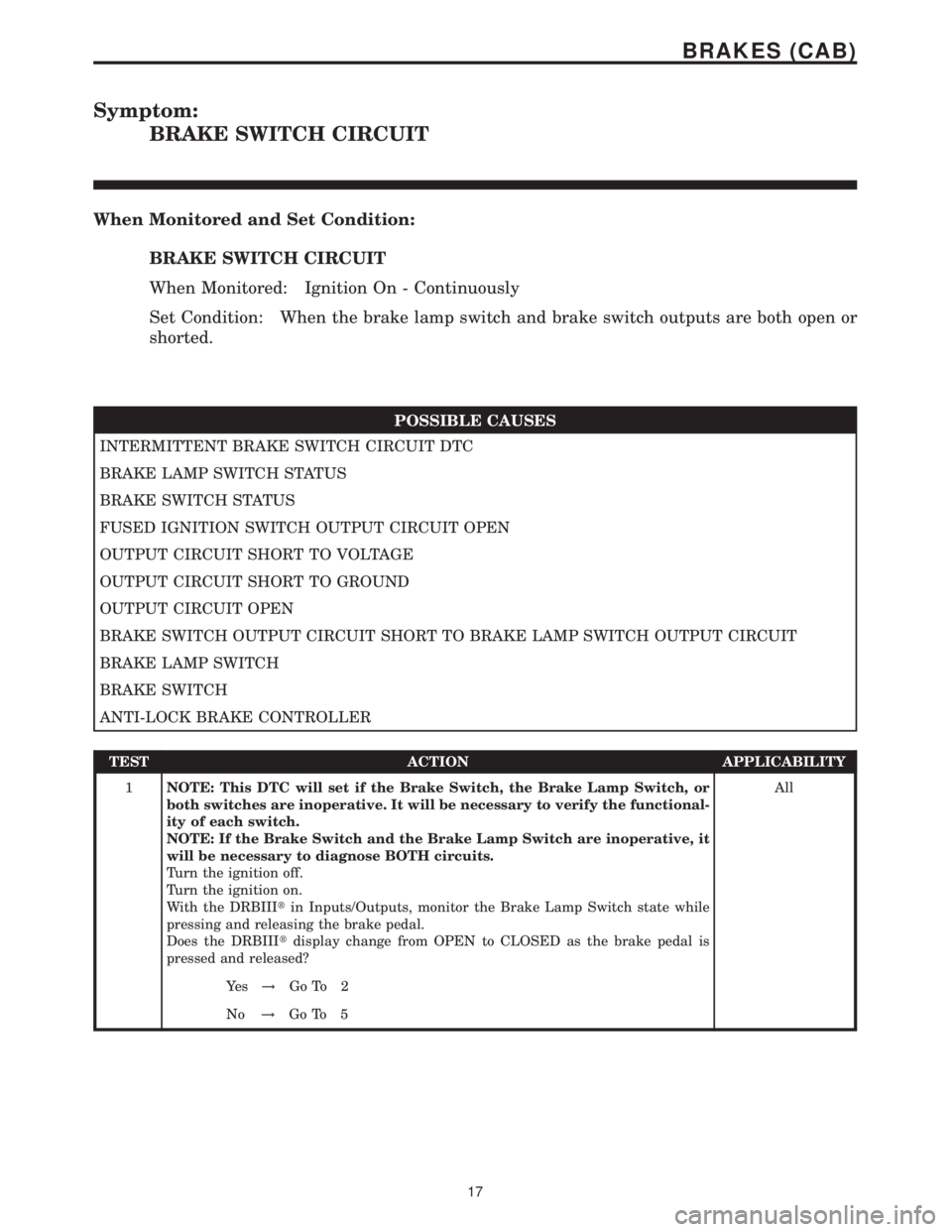

Symptom:
BRAKE SWITCH CIRCUIT
When Monitored and Set Condition:
BRAKE SWITCH CIRCUIT
When Monitored: Ignition On - Continuously
Set Condition: When the brake lamp switch and brake switch outputs are both open or
shorted.
POSSIBLE CAUSES
INTERMITTENT BRAKE SWITCH CIRCUIT DTC
BRAKE LAMP SWITCH STATUS
BRAKE SWITCH STATUS
FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN
OUTPUT CIRCUIT SHORT TO VOLTAGE
OUTPUT CIRCUIT SHORT TO GROUND
OUTPUT CIRCUIT OPEN
BRAKE SWITCH OUTPUT CIRCUIT SHORT TO BRAKE LAMP SWITCH OUTPUT CIRCUIT
BRAKE LAMP SWITCH
BRAKE SWITCH
ANTI-LOCK BRAKE CONTROLLER
TEST ACTION APPLICABILITY
1NOTE: This DTC will set if the Brake Switch, the Brake Lamp Switch, or
both switches are inoperative. It will be necessary to verify the functional-
ity of each switch.
NOTE: If the Brake Switch and the Brake Lamp Switch are inoperative, it
will be necessary to diagnose BOTH circuits.
Turn the ignition off.
Turn the ignition on.
With the DRBIIItin Inputs/Outputs, monitor the Brake Lamp Switch state while
pressing and releasing the brake pedal.
Does the DRBIIItdisplay change from OPEN to CLOSED as the brake pedal is
pressed and released?All
Ye s!Go To 2
No!Go To 5
17
BRAKES (CAB)

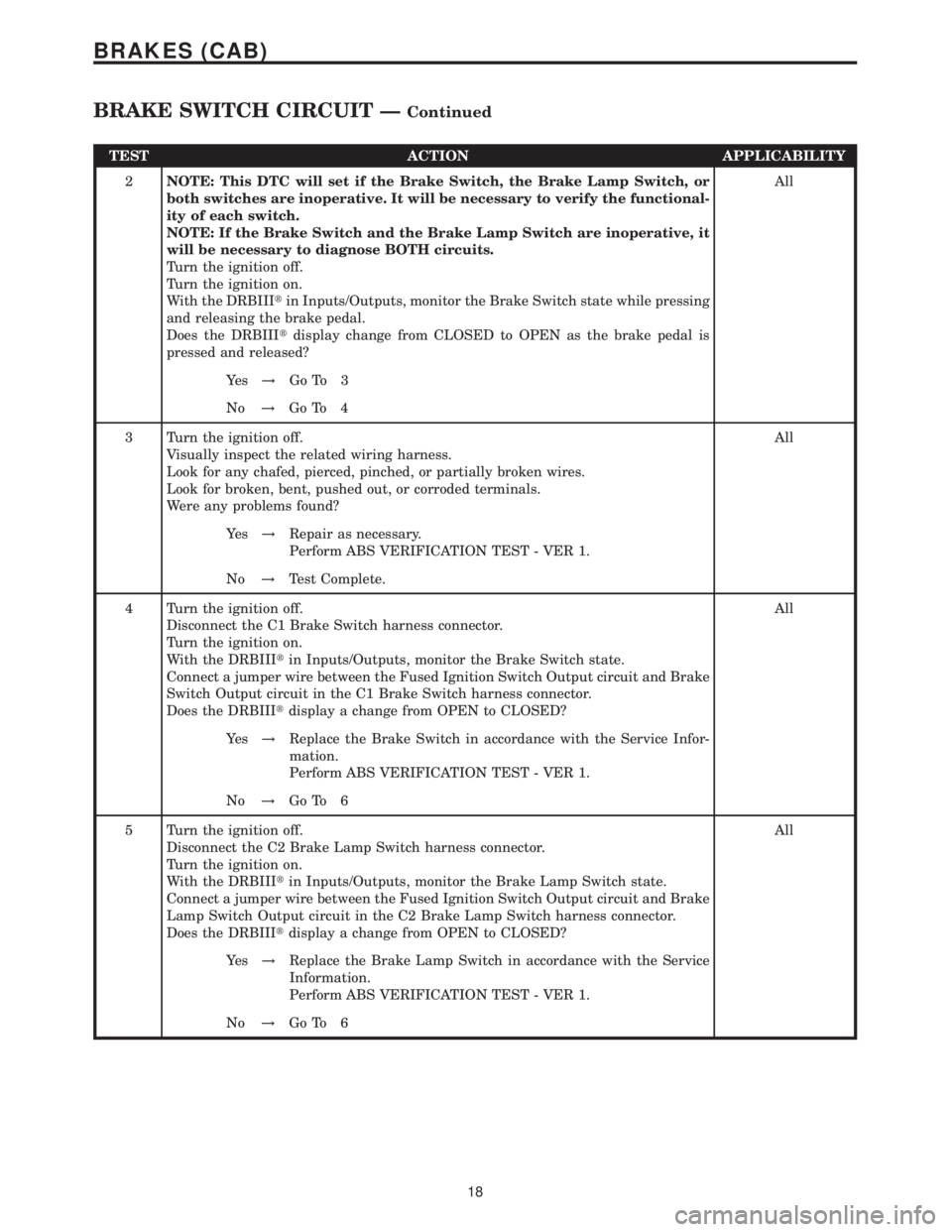

TEST ACTION APPLICABILITY
2NOTE: This DTC will set if the Brake Switch, the Brake Lamp Switch, or
both switches are inoperative. It will be necessary to verify the functional-
ity of each switch.
NOTE: If the Brake Switch and the Brake Lamp Switch are inoperative, it
will be necessary to diagnose BOTH circuits.
Turn the ignition off.
Turn the ignition on.
With the DRBIIItin Inputs/Outputs, monitor the Brake Switch state while pressing
and releasing the brake pedal.
Does the DRBIIItdisplay change from CLOSED to OPEN as the brake pedal is
pressed and released?All
Ye s!Go To 3
No!Go To 4
3 Turn the ignition off.
Visually inspect the related wiring harness.
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out, or corroded terminals.
Were any problems found?All
Ye s!Repair as necessary.
Perform ABS VERIFICATION TEST - VER 1.
No!Test Complete.
4 Turn the ignition off.
Disconnect the C1 Brake Switch harness connector.
Turn the ignition on.
With the DRBIIItin Inputs/Outputs, monitor the Brake Switch state.
Connect a jumper wire between the Fused Ignition Switch Output circuit and Brake
Switch Output circuit in the C1 Brake Switch harness connector.
Does the DRBIIItdisplay a change from OPEN to CLOSED?All
Ye s!Replace the Brake Switch in accordance with the Service Infor-
mation.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 6
5 Turn the ignition off.
Disconnect the C2 Brake Lamp Switch harness connector.
Turn the ignition on.
With the DRBIIItin Inputs/Outputs, monitor the Brake Lamp Switch state.
Connect a jumper wire between the Fused Ignition Switch Output circuit and Brake
Lamp Switch Output circuit in the C2 Brake Lamp Switch harness connector.
Does the DRBIIItdisplay a change from OPEN to CLOSED?All
Ye s!Replace the Brake Lamp Switch in accordance with the Service
Information.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 6
18
BRAKES (CAB)
BRAKE SWITCH CIRCUIT ÐContinued

TEST ACTION APPLICABILITY
6 Turn the ignition off.
Disconnect the appropriate brake switch harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the Fused Ignition Switch
Output circuit at the harness connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Is the test light illuminated and bright?All
Ye s!Go To 7
No!Repair the Fused Ignition Switch Output circuit for an open.
Perform ABS VERIFICATION TEST - VER 1.
7 Turn the ignition off.
Disconnect the CAB harness connector.
Disconnect the appropriate brake switch harness connector.
Turn the ignition on.
Measure the voltage of the output circuit at the brake switch harness connector.
NOTE: Measurement is taken at the Brake Switch Output circuit or the
Brake Lamp Output circuit as determined by the previously performed
switch test.
Is there any voltage present?All
Ye s!Repair the affected circuit for a short to voltage.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 8
8 Turn the ignition off.
Disconnect the CAB harness connector.
Disconnect the appropriate brake switch harness connector.
Measure the resistance between ground and switch output circuit at the switch
connector.
NOTE: Measurement is taken at the Brake Switch Output circuit or the
Brake Lamp Output circuit as determined by the previously performed
switch test.
Is the resistance below 5.0 ohms?All
Ye s!Repair the affected circuit for a short to ground.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 9
9 Turn the ignition off.
Disconnect the CAB harness connector.
Disconnect the appropriate brake switch harness connector.
Measure the resistance of the output circuit between the switch harness connector
and the CAB harness connector.
NOTE: Measurement is taken at the Brake Switch Output circuit or the
Brake Lamp Output circuit as determined by the previously performed
switch test.
Is the resistance above 5.0 ohms?All
Ye s!Repair the affected circuit for an open.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 10
19
BRAKES (CAB)
BRAKE SWITCH CIRCUIT ÐContinued

Symptom:
CAB CHECK SUM
When Monitored and Set Condition:
CAB CHECK SUM
When Monitored: Ignition On - Once
Set Condition: When the sum of all storage bytes are not equal to the original sum stored.
POSSIBLE CAUSES
INTERMITTENT CAB CHECK SUM DTC
DAMAGED CAB/CAB HARNESS CONNECTOR
FUSED OPTIONAL EQUIPMENT RELAY OUTPUT CIRCUIT OPEN
FUSED B(+) CIRCUIT OPEN
GROUND CIRCUIT OPEN
ANTI-LOCK BRAKE CONTROLLER
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRBIIIt, read DTCs.
With the DRBIIIt, erase DTCs.
Turn the ignition off.
Turn the ignition on.
With the DRBIIIt, read DTCs.
Does the DRBIIItdisplay CAB CHECK SUM?All
Ye s!Go To 2
No!Go To 6
2 Turn the ignition off.
Disconnect the CAB harness connector.
Inspect the CAB/CAB harness connector for damage.
Is there any broken, bent, pushed out, corroded or spread terminals?All
Ye s!Repair as necessary.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 3
21
BRAKES (CAB)

TEST ACTION APPLICABILITY
3 Turn the ignition off.
Disconnect the CAB harness connector.
Turn the ignition on.
Using a 12-volt test light connected to ground, check the Fused Optional Equipment
Relay Output circuit at the CAB harness connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s!Go To 4
No!Repair the Fused Optional Equipment Relay Output circuit for an
open.
Perform ABS VERIFICATION TEST - VER 1.
4 Turn the ignition off.
Disconnect the CAB harness connector.
Using a 12-volt test light connected to ground, check both Fused B(+) circuits at the
CAB harness connector.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s!Go To 5
No!Repair the Fused B(+) circuit for an open.
Perform ABS VERIFICATION TEST - VER 1.
5 Turn the ignition off.
Disconnect the CAB harness connector.
Using a 12-volt test light connected to 12-volts, check the CAB harness connector
Ground circuits.
NOTE: The test light must illuminate brightly. Compare the brightness to
that of a direct connection to the battery.
Does the test light illuminate brightly?All
Ye s!Replace the Controller Antilock Brake in accordance with the
Service Information.
Perform ABS VERIFICATION TEST - VER 1.
No!Repair the Ground circuit for an open.
Perform ABS VERIFICATION TEST - VER 1.
6 Turn the ignition off.
Visually inspect the related wiring harness.
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out, or corroded terminals.
Were any problems found?All
Ye s!Repair as necessary.
Perform ABS VERIFICATION TEST - VER 1.
No!Test Complete.
22
BRAKES (CAB)
CAB CHECK SUM ÐContinued

Symptom:
CAB OPTION
When Monitored and Set Condition:
CAB OPTION
When Monitored: Ignition On - Once
Set Condition: When the vehicle line information transmitted does not match the
expected values.
POSSIBLE CAUSES
INTERMITTENT CAB OPTION DTC
DAMAGED CAB/CAB HARNESS CONNECTOR
FUSED OPTIONAL EQUIPMENT RELAY OUTPUT CIRCUIT OPEN
FUSED B(+) CIRCUIT OPEN
GROUND CIRCUIT OPEN
ANTI-LOCK BRAKE CONTROLLER
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRBIIIt, read DTCs.
With the DRBIIIt, erase DTCs.
Turn the ignition off.
Turn the ignition on.
With the DRBIIIt, read DTCs.
Does the DRBIIItdisplay CAB OPTION?All
Ye s!Go To 2
No!Go To 6
2 Turn the ignition off.
Disconnect the CAB harness connector.
Inspect the CAB/CAB harness connector for damage.
Is there any broken, bent, pushed out, corroded or spread terminals?All
Ye s!Repair as necessary.
Perform ABS VERIFICATION TEST - VER 1.
No!Go To 3
23
BRAKES (CAB)
