416 Practical hintsFusesFuses are designed to protect the electri-
cal circuits in your vehicle from a short cir-
cuit. If a fuse is blown, the component(s)
and systems controlled by that fuse will
stop working.
The following aids are available to help you
replace fuses (
page 416):


Fuse chart


Spare fuses


Special fuse extractorYour vehicle’s electrical fuses are located
in various fuse boxes:


In the dashboard on the passenger side
(page 417)


In the rear passenger compartment un-
der the right rear seat (
page 417)


In the engine compartment on the driv-
er’s side (
page 418)


In the engine compartment on the pas-
senger side (
page 418)
Aids for replacing fuses
Fuse chart
A chart explaining fuse allocation and fuse
amperages can be found in the vehicle tool
kit in the trunk (
page 384).
Spare fuses
Spare fuses are found in the vehicle tool kit
in the trunk (
page 384).
Fuse extractor
The fuse extractor is found in the vehicle
tool kit in the trunk (
page 384).
Warning!
G
Only use fuses approved by Mercedes-Benz
and which have the specified amperage. Us-
ing other fuses may cause an overload and
lead to a fire, or cause damage to electrical
components and/or systems.
!Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.

417 Practical hintsFuses
Fuse boxes in passenger compartment
There are two fuse boxes in the in passen-
ger compartment. One fuse box is located
in the dashboard. An additional fuse box is
located in the rear passenger compart-
ment.
Fuse box in dashboard
The fuse box is located in the dashboard
on the front passenger side.
1Recess in the cover
2CoverOpening

Open the front passenger door.

Insert flat, blunt object as a lever in
recess1 on the edge of cover2.

Loosen cover2 from the dashboard
using lever.

Using your hands, pull cover2 in the
direction of the arrow and remove.
Closing

Hook cover2 into the opening at the
front.

Press cover2 back on until it engag-
es.Fuse box in the rear passenger
compartment
The fuse box is located in the footwell be-
low the right rear seat.
1Cover
Opening

Pull cover1 a w a y f r o m f u s e b o x i n t h e
direction of arrow.

Remove cover rearward.
Closing

Press cover back on until it engages.
!Do not use sharp objects such as a
screw driver to open the fuse box
cover2 in the dashboard, as this
could damage it.

418 Practical hintsFusesFuse boxes in engine compartment
There are three fuse boxes located in the
engine compartment in front of the firewall
(dividing wall between engine compart-
ment and passenger compartment):

one box on the driver’s side


two boxes on the front passenger side
Fuse box, driver’s side1Cover
2Slide
Fuse box, front passenger side1Cover
2Slide
To open, push slides2 to
symbolΠand remove cover1.

To close, replace cover1 and press it
down and push both slides2 to
symbol‹.
Additional fuse box, front passenger side3Tabs
4Cover
To open, press tabs3 together and
remove cover4.

To close, place cover4 and push it
down until it engages.
!The cover1 must fit properly and the
slides2 must be positioned at
symbol‹, as otherwise moisture or
dirt may impair the functionality of the
fuses.
!The cover4 must fit properly, as oth-
erwise moisture or dirt may impair the
functionality of the fuses.

419 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions and weights
Fuels, coolants, lubricants, etc.

420 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.

421 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your autho-
rized Mercedes-Benz Center will exchange
or repair any defective parts originally in-
stalled on the vehicle in accordance with
the terms of the following warranties:

New Vehicle Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any authorized
Mercedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

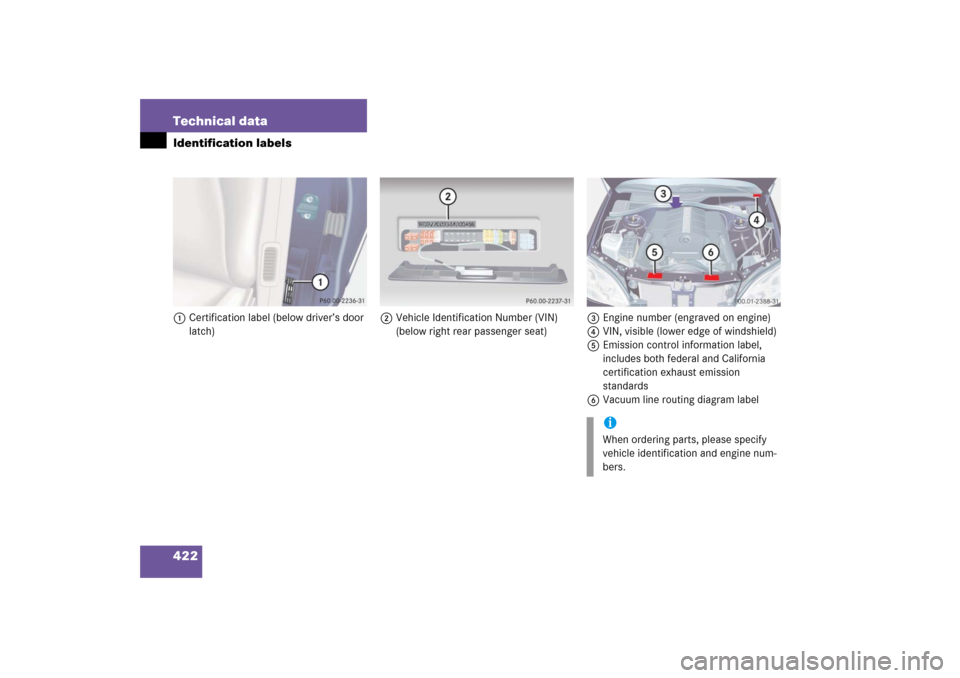

422 Technical dataIdentification labels1Certification label (below driver’s door
latch)2Vehicle Identification Number (VIN)
(below right rear passenger seat)3Engine number (engraved on engine)
4VIN, visible (lower edge of windshield)
5Emission control information label,
includes both federal and California
certification exhaust emission
standards
6Vacuum line routing diagram label
iWhen ordering parts, please specify
vehicle identification and engine num-
bers.

423 Technical data

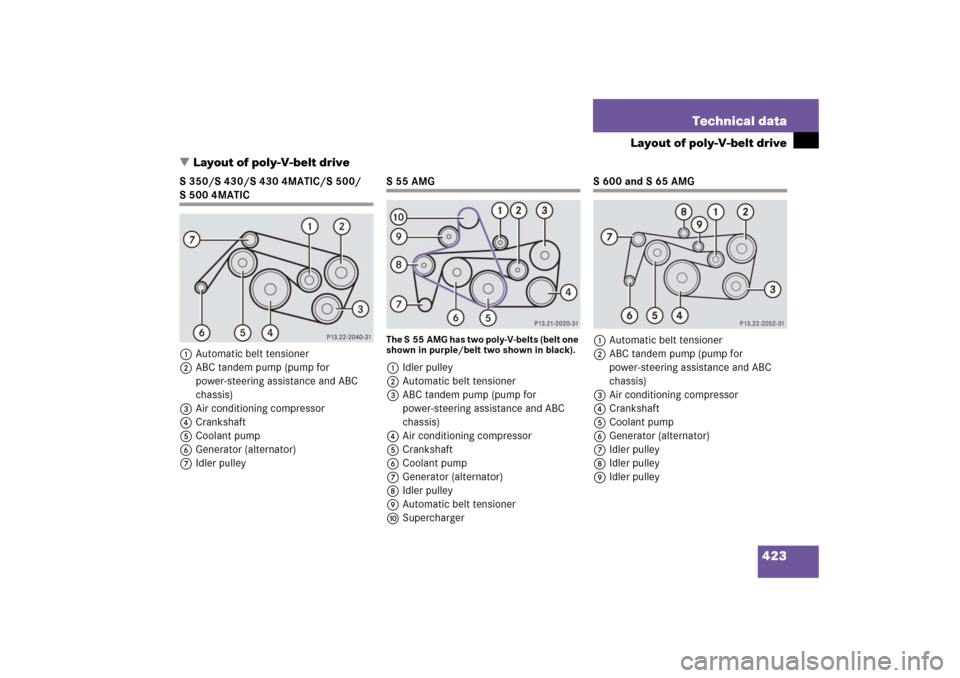

Layout of poly-V-belt drive
Layout of poly-V-belt drive
S 350/S 430/S 430 4MATIC/S 500/ S500 4MATIC
1Automatic belt tensioner
2ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
S55AMGThe S 55 AMG has two poly-V-belts (belt one
shown in purple/belt two shown in black). 1Idler pulley
2Automatic belt tensioner
3ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
4Air conditioning compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
8Idler pulley
9Automatic belt tensioner
aSupercharger
S600 and S 65 AMG
1Automatic belt tensioner
2ABC tandem pump (pump for
power-steering assistance and ABC
chassis)
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
8Idler pulley
9Idler pulley
