424 Technical dataEngineModel
S 350 (220.067)
1
S 430 (220.070, 220.170)
1
S 430 4MATIC (220.183)
1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
S 500 (220.175)
1
S 500 4MATIC (220.184)
1
Engine
112
113
113
Mode of operation
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
No. of cylinders
6
8
8
Bore
3.82 in (97.00 mm)
3.54 in (89.90 mm)
3.82 in (97.00 mm)
Stroke
3.31 in (84.00 mm)
3.31 in (84.00 mm)
3.31 in (84.00 mm)
Total piston displacement
227.3 cu in (3724 cm
3)
260.3 cu in (4266 cm
3)
303.0 cu in (4966 cm
3)
Compression ratio
10:1
10:1
10:1
Output acc. to SAE J 1349
241 hp/5700 rpm
2
(180 kW/5700 rpm)
275 hp/5750 rpm
2
(205 kW/5750 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
302 hp/5600 rpm
2
(225 kW/5600 rpm)
Maximum torque
acc. to SAE J 1349
258 lb-ft/3000 - 4500 rpm
(350 Nm/3000 - 4500 rpm)
295 lb-ft/3000 - 4400 rpm
(400 Nm/3000 - 4400 rpm)
339 lb-ft/2700 - 4250 rpm
(460 Nm/2700 - 4250 rpm)
Maximum engine speed
6000 rpm
6000 rpm
6000 rpm
Firing order
1-4-3-6-2-5
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
2380 mm
2380 mm
2380 mm

425 Technical data
Engine
Model
S 55 AMG (220.174)
1
S 600 (220.176)
1
S 65 AMG (220.179)
1
Engine
113
275
275
Mode of operation
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
4-stroke engine, gasoline injec-
tion
No. of cylinders
8
12
12
Bore
3.82 in (97.00 mm)
3.23 in (82.00 mm)
3.25 in (82.60 mm)
Stroke
3.62 in (92.00 mm)
3.43 in (87.00 mm)
3.66 in (93.00 mm)
Total piston displacement
331.8 cu in (5439 cm
3)
336.4 cu in (5513 cm
3)
364.9 cu in (5980 cm
3)
Compression ratio
9:1
9:1
9:1
Output acc. to SAE J 1349
493 hp/6100 rpm
2
(368 kW/6100 rpm)
493 hp/5000 rpm
2
(368 kW/5000 rpm)
603 hp/4800 - 5100 rpm
2
(450 kW/4800 - 5100 rpm)
Maximum torque
acc. to SAE J 1349
516 lb-ft/2750 - 4000 rpm
(700 Nm/2750 - 4000 rpm)
590 lb-ft/1800 - 3500 rpm
(800 Nm/1800 - 3500 rpm)
738 lb-ft/2000 - 4000 rpm
(1000 Nm/2000 - 4000 rpm)
Maximum engine speed
6500 rpm
5950 rpm
5950 rpm
Firing order
1-5-4-2-6-3-7-8
1-12-5-8-3-10-6-7-2-11-4-9
1-12-5-8-3-10-6-7-2-11-4-9
Poly-V-belt
Belt one: 1289 mm
Belt two: 2462 mm
2335 mm
2335 mm
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.2Premium fuel required. Performance may vary with fuel octane rating.

426 Technical dataRims and tires
!
Only use tires which have been specifi-
cally developed for your vehicle and
tested and approved by
Mercedes-Benz. Tires approved by
Mercedes-Benz are developed to pro-
vide best possible performance in con-
junction with the driving safety
systems on your vehicle such as ABS or
ESP
®. Tires specially developed for
your vehicle and tested and approved
by Mercedes-Benz can be identified by
finding the following on the tire’s side-
wall:


MO = M
ercedes-Benz O
riginal
equipment tires
Using tires other than those approved
by Mercedes-Benz may result in dam-
age that is not covered by the
Mercedes-Benz Limited Warranty.
!Using tires other than those approved
by Mercedes-Benz can have detrimen-
tal effects, such as

poor handling characteristics


increased noise


increased fuel consumption
Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and dif-
ferent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A placard with
the recommended tire inflation pres-
sures is located on the driver’s door
B-pillar (
page 300). Some vehicles
may have supplemental tire inflation
pressure information for driving at high
speeds (page 307) or for vehicle
loads less than the maximum loaded
vehicle condition (
page 313). If such
information is provided, it can be found
on the placard located on the inside of
the fuel filler flap. The tire inflation
pressure should be checked regularly
and should only be adjusted on cold
tires. Follow tire manufacturer’s main-
tenance recommendation included
with vehicle.

427 Technical data
Rims and tires
iThe following pages also list the ap-
proved wheel rim and tire sizes for
equipping your vehicles with winter
tires. Winter tires are not available as
standard or optional factory equip-
ment, but can be purchased from an
authorized Mercedes-Benz Center.
Depending on vehicle model and the
standard or optional factory-equipped
wheel rim/tire configuration on your
vehicle (Appearance Package, Sport
Package etc.), equipping your vehicle
with winter tires approved for your ve-
hicle model may also require the pur-
chase of two or four wheel rims of the
recommended size for use with these
winter tires. See an authorized
Mercedes-Benz Center for more infor-
mation.

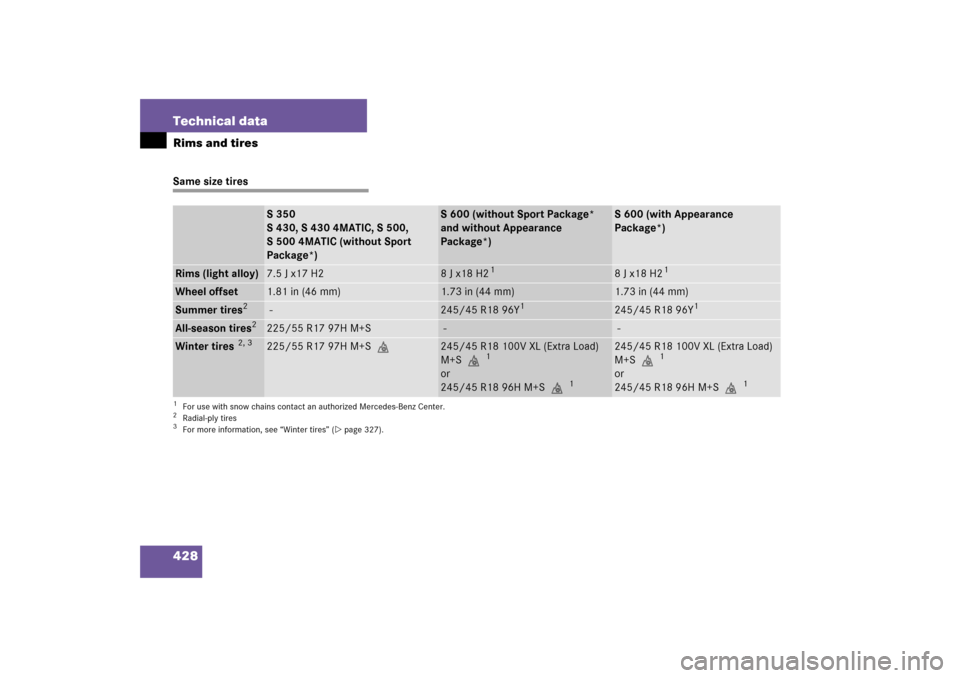

428 Technical dataRims and tiresSame size tires
S350
S 430, S 430 4MATIC, S 500,
S 500 4MATIC (without Sport
Package*)
S 600 (without Sport Package*
and without Appearance
Package*)
S 600 (with Appearance
Package*)
Rims (light alloy)
7.5 J x17 H2
8 J x18 H2
1
1For use with snow chains contact an authorized Mercedes-Benz Center.
8 J x18 H2
1
Wheel offset
1.81 in (46 mm)
1.73 in (44 mm)
1.73 in (44 mm)
Summer tires
2
2Radial-ply tires
-
245/45 R18 96Y
1
245/45 R18 96Y
1
All-season tires
2
225/55 R17 97H M+S
-
-
Winter tires
2, 3
3For more information, see “Winter tires” (page 327).
225/55 R17 97H M+S.
245/45 R18 100V XL (Extra Load)
M+S.
1
or
245/45 R18 96H M+S.
1
245/45 R18 100V XL (Extra Load)
M+S.
1
or
245/45 R18 96H M+S.
1

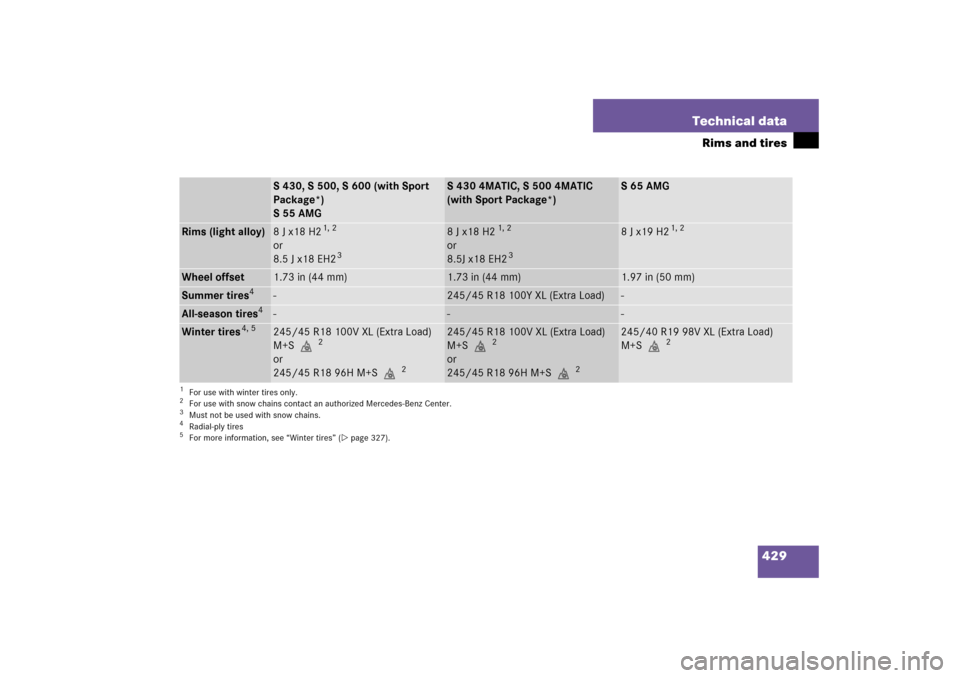

429 Technical data
Rims and tires
S 430, S 500, S 600 (with Sport
Package*)
S55AMG
S 430 4MATIC, S 500 4MATIC
(with Sport Package*)
S65AMG
Rims (light alloy)
8 J x18 H2
1, 2

or
8.5 J x18 EH23
8 J x18 H2
1, 2
or
8.5J x18 EH2
3
1For use with winter tires only.2For use with snow chains contact an authorized Mercedes-Benz Center.3Must not be used with snow chains.
8 J x19 H2
1, 2
Wheel offset
1.73 in (44 mm)
1.73 in (44 mm)
1.97 in (50 mm)
Summer tires
4
4Radial-ply tires
-
245/45 R18 100Y XL (Extra Load)
-
All-season tires
4
-
-
-
Winter tires
4, 5
5For more information, see “Winter tires” (page 327).
245/45 R18 100V XL (Extra Load)
M+S.
2
or
245/45 R18 96H M+S.
2
245/45 R18 100V XL (Extra Load)
M+S.
2
or
245/45 R18 96H M+S.
2
245/40 R19 98V XL (Extra Load)
M+S.
2

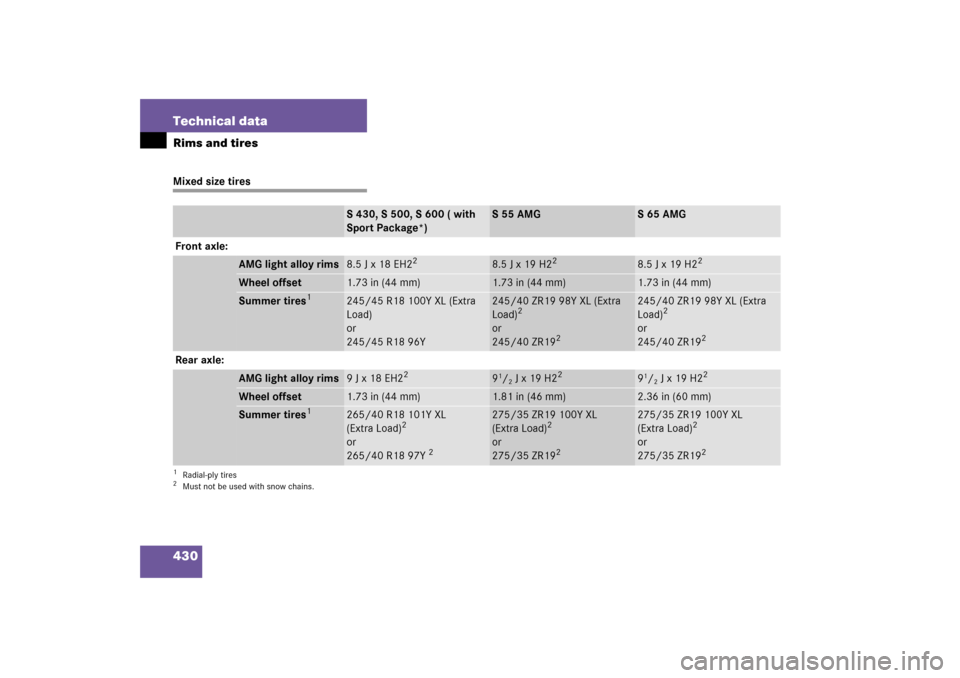

430 Technical dataRims and tiresMixed size tires
S430, S500, S600 ( with
Sport Package*)
S55AMG
S65AMG
Front axle:
AMG light alloy rims
8.5 J x 18 EH2
2
8.5 J x 19 H2
2
8.5 J x 19 H2
2
Wheel offset
1.73 in (44 mm)
1.73 in (44 mm)
1.73 in (44 mm)
Summer tires
1
1Radial-ply tires
245/45 R18 100Y XL (Extra
Load)
or
245/45 R18 96Y
245/40 ZR19 98Y XL (Extra
Load)
2
or
245/40 ZR19
2
245/40 ZR19 98Y XL (Extra
Load)
2
or
245/40 ZR19
2
Rear axle:
AMG light alloy rims
9 J x 18 EH2
2
91/2 J x 19 H2
2
91/2 J x 19 H2
2
Wheel offset
1.73 in (44 mm)
1.81 in (46 mm)
2.36 in (60 mm)
Summer tires
1
265/40 R18 101Y XL
(Extra Load)
2
or
265/40 R18 97Y
2
2Must not be used with snow chains.
275/35 ZR19 100Y XL
(Extra Load)
2
or
275/35 ZR19
2
275/35 ZR19 100Y XL
(Extra Load)
2
or
275/35 ZR19
2

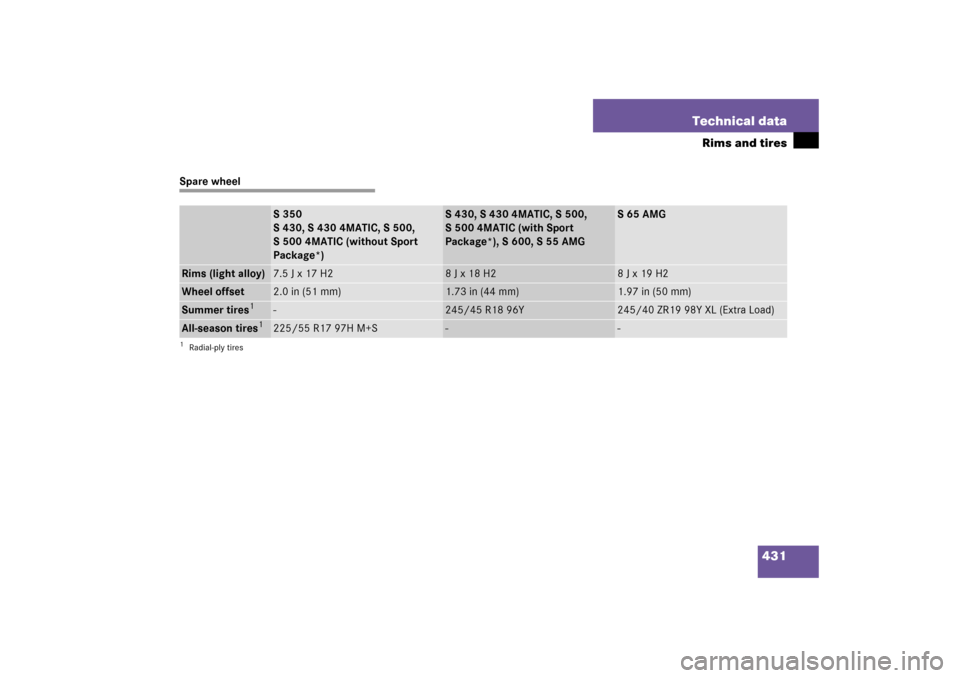

431 Technical data
Rims and tires
Spare wheel
S350
S 430, S 430 4MATIC, S 500,
S 500 4MATIC (without Sport
Package*)
S 430, S 430 4MATIC, S 500,
S 500 4MATIC (with Sport
Package*), S 600, S 55 AMG
S65AMG
Rims (light alloy)
7.5 J x 17 H2
8 J x 18 H2
8Jx19 H2
Wheel offset
2.0 in (51 mm)
1.73 in (44 mm)
1.97 in (50 mm)
Summer tires
1
1Radial-ply tires
-
245/45 R18 96Y
245/40 ZR19 98Y XL (Extra Load)
All-season tires
1
225/55 R17 97H M+S
-
-
