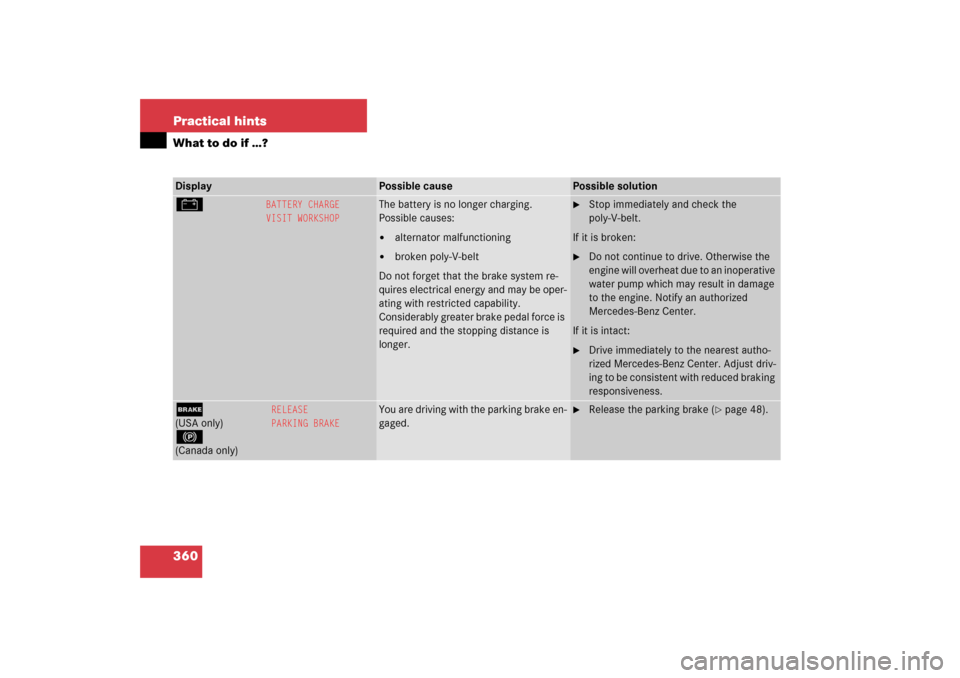

360 Practical hintsWhat to do if …?Display
Possible cause
Possible solution
#
BATTERY CHARGE
VISIT WORKSHOP
The battery is no longer charging.
Possible causes:

alternator malfunctioning


broken poly-V-belt
Do not forget that the brake system re-
quires electrical energy and may be oper-
ating with restricted capability.
Considerably greater brake pedal force is
required and the stopping distance is
longer.

Stop immediately and check the
poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise the
engine will overheat due to an inoperative
water pump which may result in damage
to the engine. Notify an authorized
Mercedes-Benz Center.
If it is intact:

Drive immediately to the nearest autho-
rized Mercedes-Benz Center. Adjust driv-
ing to be consistent with reduced braking
responsiveness.
;(USA only)!(Canada only)
RELEASE
PARKING BRAKE
You are driving with the parking brake en-
gaged.

Release the parking brake (
page 48).

361 Practical hints
What to do if …?
Display
Possible cause
Possible solution
2
BRAKE PAD WEAR
VISIT WORKSHOP
The brake pads have reached their wear
limit.

Have the brake pads replaced as soon as
possible.
;(USA only)3(Canada only)
BRAKE FLUID
VISIT WORKSHOP
There is insufficient brake fluid in the res-
ervoir.

Risk of accident! Stop the vehicle and no-
tify an authorized Mercedes-Benz Center.
Do not add brake fluid! This will not solve
the problem.
Failure to follow these instructions increases
the risk of accident.
Warning!
G
Driving with the message:
BRAKE FLUID
VISIT WORKSHOP
displayed can result in an
accident. Have your brake system checked
immediately. Don not add brake fluid before
checking the brake system. Overfilling the
brake fluid reservoir can result in spilling
brake fluid on hot engine parts and the
brake fluid catching fire. You can be serious-
ly burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.
!Brake pad thickness must be visually
checked by a qualified technician at the
intervals specified in the Maintenance
Booklet.

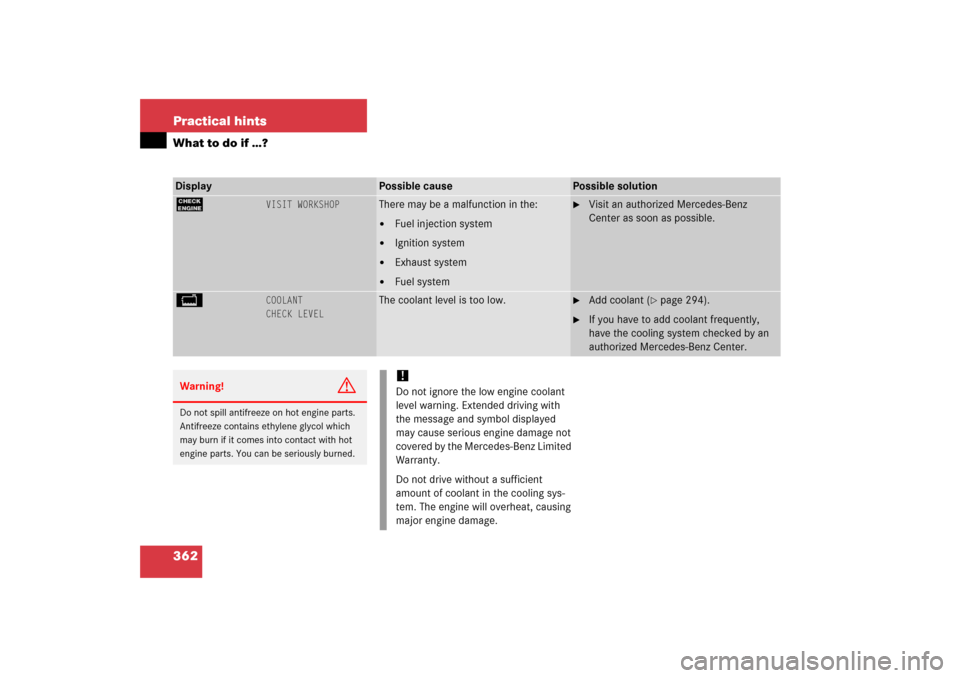

362 Practical hintsWhat to do if …?Display
Possible cause
Possible solution
?
VISIT WORKSHOP
There may be a malfunction in the:

Fuel injection system


Ignition system


Exhaust system


Fuel system

Visit an authorized Mercedes-Benz
Center as soon as possible.
B
COOLANT
CHECK LEVEL
The coolant level is too low.

Add coolant (
page 294).

If you have to add coolant frequently,
have the cooling system checked by an
authorized Mercedes-Benz Center.
Warning!
G
Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which
may burn if it comes into contact with hot
engine parts. You can be seriously burned.
!Do not ignore the low engine coolant
level warning. Extended driving with
the message and symbol displayed
may cause serious engine damage not
covered by the Mercedes-Benz Limited
Warranty.
Do not drive without a sufficient
amount of coolant in the cooling sys-
tem. The engine will overheat, causing
major engine damage.

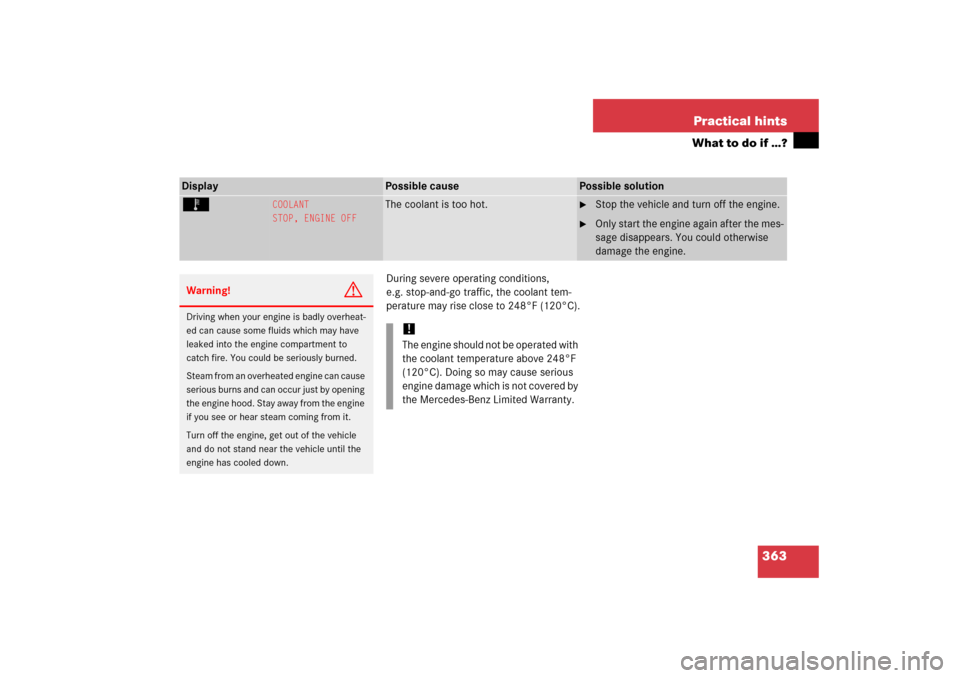

363 Practical hints
What to do if …?
During severe operating conditions,
e.g. stop-and-go traffic, the coolant tem-
perature may rise close to 248°F (120°C).
Display
Possible cause
Possible solution
Ï
COOLANT
STOP, ENGINE OFF
The coolant is too hot.

Stop the vehicle and turn off the engine.

Only start the engine again after the mes-
sage disappears. You could otherwise
damage the engine.
Warning!
G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the engine hood. Stay away from the engine
if you see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.
!The engine should not be operated with
the coolant temperature above 248°F
(120°C). Doing so may cause serious
engine damage which is not covered by
the Mercedes-Benz Limited Warranty.

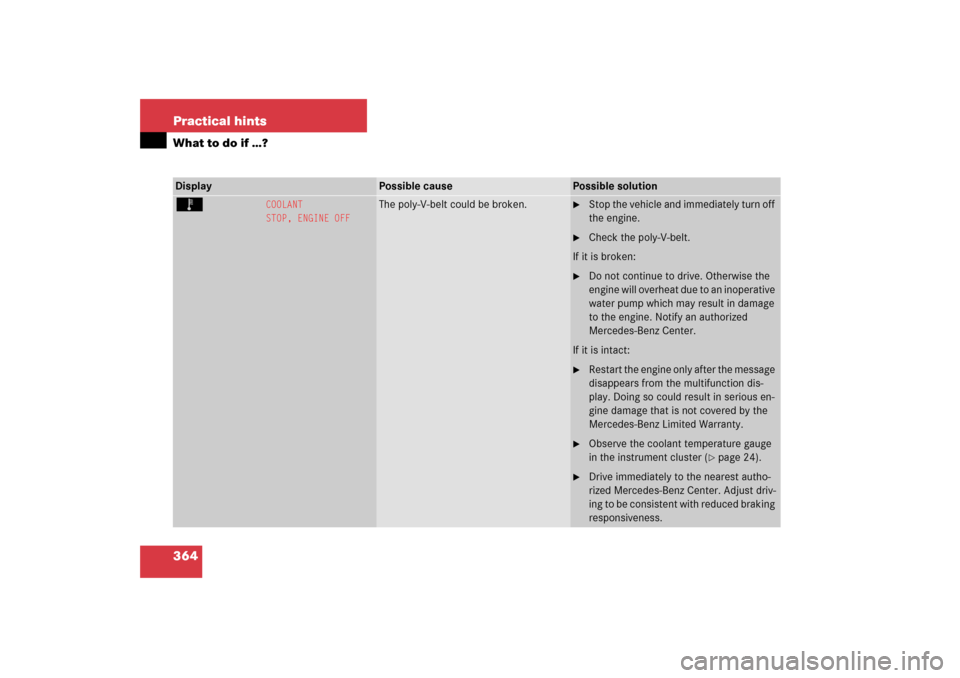

364 Practical hintsWhat to do if …?Display
Possible cause
Possible solution
Ï
COOLANT
STOP, ENGINE OFF
The poly-V-belt could be broken.

Stop the vehicle and immediately turn off
the engine.

Check the poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise the
engine will overheat due to an inoperative
water pump which may result in damage
to the engine. Notify an authorized
Mercedes-Benz Center.
If it is intact:

Restart the engine only after the message
disappears from the multifunction dis-
play. Doing so could result in serious en-
gine damage that is not covered by the
Mercedes-Benz Limited Warranty.

Observe the coolant temperature gauge
in the instrument cluster (
page 24).

Drive immediately to the nearest autho-
rized Mercedes-Benz Center. Adjust driv-
ing to be consistent with reduced braking
responsiveness.

365 Practical hints
What to do if …?
Display
Possible cause
Possible solution
Ï
COOLANT
VISIT WORKSHOP
The cooling fan for the coolant is malfunc-
tioning.

Observe the coolant temperature display.

Have the fan replaced as soon as possi-
ble.
Î
CRUISE CONTROL
DRIVE TO WORKSHOP
Cruise control or Distronic* is malfunc-
tioning.

Have cruise control or Distronic*
checked by an authorized Mercedes-Benz
Center.
G
DISPLAY DEFECTIVE
VISIT WORKSHOP
The instrument cluster display is malfunc-
tioning.

Continue driving with added caution.

Visit an authorized Mercedes-Benz Cen-
ter as soon as possible.
±
DISPLAY DEFECTIVE
VISIT WORKSHOP
Certain electronic systems are unable to
relay information to the control system.
The following systems may have failed:

Coolant temperature display


Tachometer


Cruise control display

Have the electronic systems checked by
an authorized Mercedes-Benz Center.
J
DOOR OPEN
You are attempting to drive with one or
more doors open.

Close the doors.

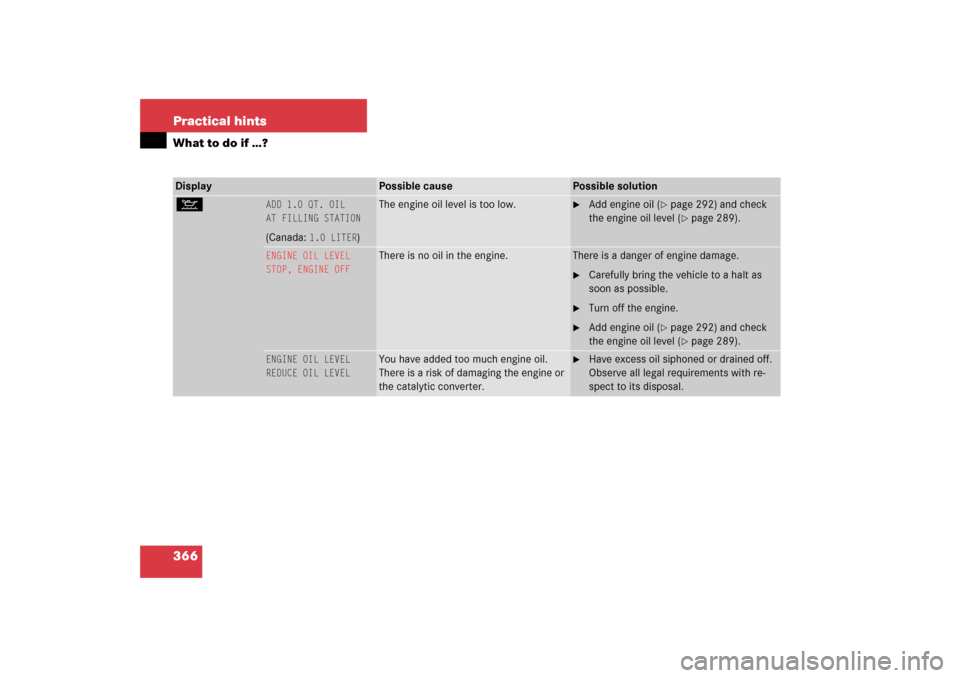

366 Practical hintsWhat to do if …?Display
Possible cause
Possible solution
:
ADD 1.0 QT. OIL
AT FILLING STATION(Canada:
1.0 LITER
)
The engine oil level is too low.

Add engine oil (
page 292) and check
the engine oil level (page 289).
ENGINE OIL LEVEL
STOP, ENGINE OFF
There is no oil in the engine.
There is a danger of engine damage.
Carefully bring the vehicle to a halt as
soon as possible.

Turn off the engine.

Add engine oil (
page 292) and check
the engine oil level (page 289).
ENGINE OIL LEVEL
REDUCE OIL LEVEL
You have added too much engine oil.
There is a risk of damaging the engine or
the catalytic converter.

Have excess oil siphoned or drained off.
Observe all legal requirements with re-
spect to its disposal.

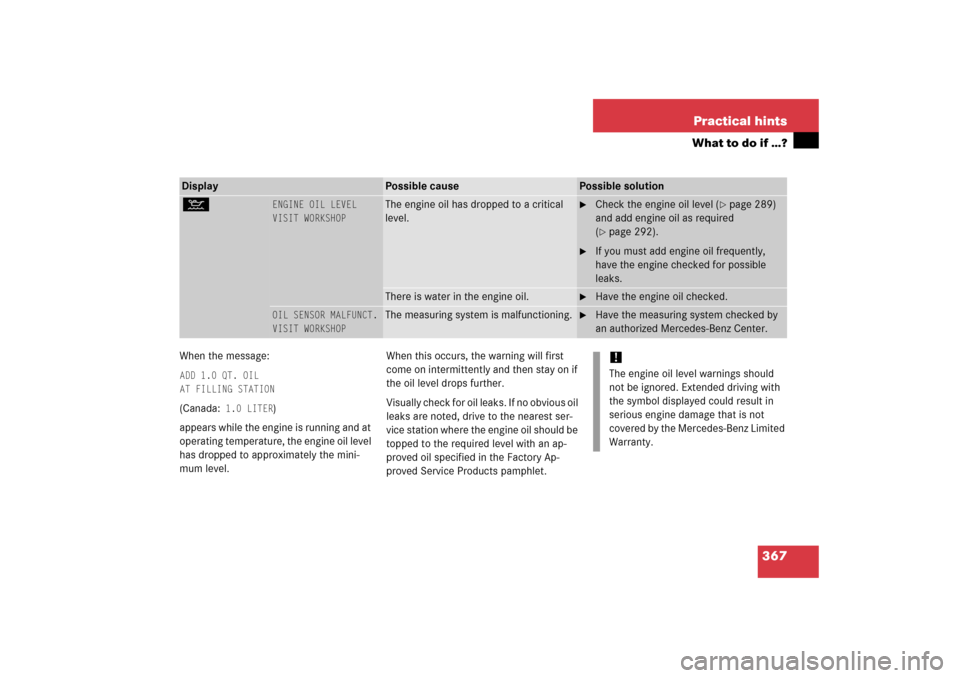

367 Practical hints
What to do if …?
When the message:ADD 1.0 QT. OIL
AT FILLING STATION(Canada:
1.0 LITER
)
appears while the engine is running and at
operating temperature, the engine oil level
has dropped to approximately the mini-
mum level. When this occurs, the warning will first
come on intermittently and then stay on if
the oil level drops further.
Visually check for oil leaks. If no obvious oil
leaks are noted, drive to the nearest ser-
vice station where the engine oil should be
topped to the required level with an ap-
proved oil specified in the Factory Ap-
proved Service Products pamphlet.
Display
Possible cause
Possible solution
:
ENGINE OIL LEVEL
VISIT WORKSHOP
The engine oil has dropped to a critical
level.

Check the engine oil level (
page 289)
and add engine oil as required
(
page 292).

If you must add engine oil frequently,
have the engine checked for possible
leaks.
There is water in the engine oil.

Have the engine oil checked.
OIL SENSOR MALFUNCT.
VISIT WORKSHOP
The measuring system is malfunctioning.

Have the measuring system checked by
an authorized Mercedes-Benz Center.
!The engine oil level warnings should
not be ignored. Extended driving with
the symbol displayed could result in
serious engine damage that is not
covered by the Mercedes-Benz Limited
Warranty.
