2006 MERCEDES-BENZ CL65AMG Owner's Manual

56 Getting startedDrivingProblems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.The coolant temperature is above
248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle in a safe location as
soon as possible and turn off the en-
gine. Allow engine and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 280).In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.
iExcessive coolant temperature triggers
a warning message in the multifunction
display (
page 348).

57 Getting started
Parking and locking
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows:Warning!
G
With the engine not running, there is no
power assistance for the brake and the
steering systems. In this case, it is impor-
tant to keep in mind that a considerably
higher degree of effort is necessary to brake
and steer the vehicle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the gear selector lever to
positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheels towards the road curb.


Turn the SmartKey to starter switch
position0 and remove, or press
KEYLESS-GO* start/stop button
(page 35).


Take the SmartKey or the SmartKey with
KEYLESS-GO* with you and lock vehicle
when leaving.

58 Getting startedParking and lockingParking brake
1Parking brake pedal
2Release handle
Step firmly on parking brake1.
When the engine is running, the indica-
tor lamp ; (USA only) or
3(Canada only) in the instrument
cluster will be illuminated.
Switching off headlamps
Turn the exterior lamp switch toM
(page 52).
For more information, see “Exterior lamp
switch” (page 125).
Turning off the engine
Place the gear selector lever in
positionP.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Children could release the
parking brake and/or move the gear selec-
tor lever to positionP, either of which could
result in an accident and/or serious injury.Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP (
page 48).
When parked on an incline, turn front wheels
towards the road curb.iAlways set the parking brake in addi-
tion to shifting to position P.
On slopes, turn the front wheels to-
wards the curb.

59 Getting started
Parking and locking
Turning off with the SmartKey
Turn the SmartKey in the starter switch
(page 34) to position0 and remove
it.
The immobilizer is activated.Turning off the engine with
KEYLESS-GO*

Place the gear selector lever in
positionP.

Press the KEYLESS-GO start/stop but-
ton (
page 35) to shut off the engine.
With the driver’s door closed, the start-
er switch is now in position1. With the
driver’s door opened, the starter switch
is set to position0, same as SmartKey
removed from starter switch
(
page 34).
Releasing seat belts
Press the seat belt release button
(page 47).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.iWith the SmartKey removed and the
driver’s door open, a warning sounds if
the vehicle’s exterior lamps are not
switched off.
iIf you hear a warning signal, you have
either

forgotten to turn off the lights be-
fore opening the driver’s door
or


tried to turn off the engine while the
gear selector lever is not inP.
Turn off the lights or place the gear
selector lever inP.
!Make sure the seat belt retracts fully so
that the seat belt and/or latch plate
cannot get caught or pinched in the
door or in the seat mechanism. This
can damage the seat belt and impair
the effectiveness of the seat belt,
and/or cause damage to the door
and/or door trim panel. Such damage
is not covered by the Mercedes-Benz
Limited Warranty.
Damaged seat belts must be replaced.
Contact an authorized Mercedes-Benz
Center.

60 Getting startedParking and lockingLocking
Locking with the SmartKey

After exiting the vehicle, press the lock
button‹ on the SmartKey
(page 32).
With the trunk and all doors closed, all
turn signal lamps flash three times. The
locking knobs in the doors move down.
The anti-theft alarm system is armed.
For more information, see “Locking and
unlocking” (
page 90).Locking with KEYLESS-GO*
1Lock button

After exiting the vehicle, take the
SmartKey with KEYLESS-GO with you
and press lock button1 on an outside
door handle or on the trunk lid
(page 99).
With the trunk and all doors closed, all
turn signal lamps flash three times. The
locking knobs in the doors move down.
The anti-theft alarm system is armed.
For more information, see “Locking and
unlocking” (
page 94).
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
iOpening a door causes the windows on
that side of the car to open slightly.
They will return to the up position when
the door is closed.

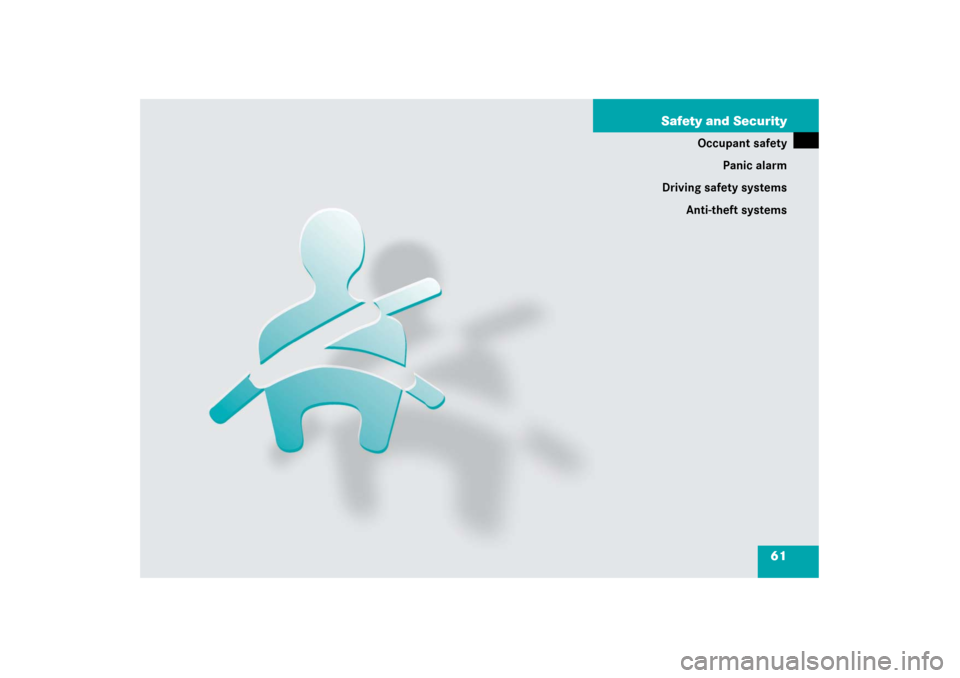

61 Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Anti-theft systems

62 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are:

Seat belts


Emergency tensioning device


Air bags


Child seats


Child seat recognition


Lower anchors and tethers for children
(LATCH)
As independent systems, their protective
effects work in conjunction with each
other.The 1 indicator lamp in the instrument
cluster comes on


for about 4 seconds when you turn the
SmartKey in the starter switch to
position1 or press the KEYLESS-GO*
start/stop button (
page 35) once. It
then goes out briefly, comes on again
and remains lit until you start the en-
gine.


for about 4 seconds when you start the
engine by turning the SmartKey or
pressing the KEYLESS-GO* start/stop
button.The restraint systems are fully operational
if the 1 indicator lamp is not lit when
the engine is running.
A malfunction in the system has been de-
tected if the 1 indicator lamp:


fails to extinguish after approximately
4 seconds


does not come on at all


comes on after the engine was started


comes on while driving
For safety reasons, we strongly recom-
mend that you visit an authorized
Mercedes-Benz Center immediately to
have the system checked.
For more information, see “Practical hints”
(
page 335).
iFor information on infants and children
traveling with you in the vehicle and re-
straint systems for infants and chil-
dren, see “Children in the vehicle”
(page 72).
iThe 1 indicator lamp remains lit if
the SmartKey is turned to position2
and left there or the KEYLESS-GO*
start/stop button is pressed twice. The
indicator lamp will go out when you
start the engine.

63 Safety and Security
Occupant safety
Air bags
Warning!
G
In the event that the 1 indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not be activated when needed in an acci-
dent, which could result in serious or fatal
injury, or it might deploy unexpectedly and
unnecessarily which could also result in
injury.
In addition, improper repair work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Center.
Warning!
G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal im-
pacts (front air bags), side impacts (side
impact air bags and head protection window
curtain air bags) or rollovers (head protec-
tion window curtain airbags). However, no
system available today can totally eliminate
injuries and fatalities.
The activation of the air bags temporarily re-
leases a small amount of dust from the
air bags. This dust, however, is neither inju-
rious to your health, nor does it indicate a
fire in the vehicle. The dust might cause
some temporary breathing difficulty for peo-
ple with asthma or other breathing trouble.
To avoid this, you may wish to get out of the
vehicle as soon as it is safe to do so. If you
have any breathing difficulty but cannot get
out of the vehicle after the air bag inflates,
then get fresh air by opening a window or
door.
Warning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear your
seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the seat backrest.
Fasten your seat belt and make sure it is
properly positioned on your body.
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag. Oc-
cupants who are unbelted, out of position or
too close to the air bag can be seriously in-
jured or killed by an air bag as it inflates with
great force in the blink of an eye:

Sit properly belted in a nearly upright
position with your back against the seat
backrest.
