2006 MERCEDES-BENZ CL65AMG Owner's Manual

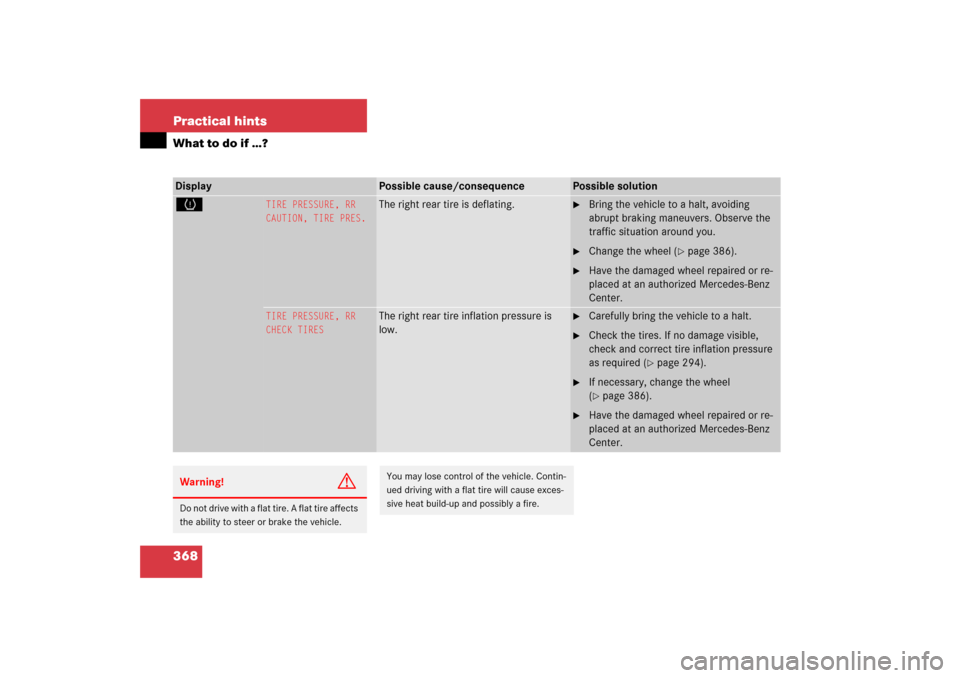

368 Practical hintsWhat to do if …?Display
Possible cause/consequence
Possible solution
H
TIRE PRESSURE, RR
CAUTION, TIRE PRES.
The right rear tire is deflating.

Bring the vehicle to a halt, avoiding
abrupt braking maneuvers. Observe the
traffic situation around you.

Change the wheel (
page 386).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
TIRE PRESSURE, RR
CHECK TIRES
The right rear tire inflation pressure is
low.

Carefully bring the vehicle to a halt.

Check the tires. If no damage visible,
check and correct tire inflation pressure
as required (
page 294).

If necessary, change the wheel
(page 386).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz
Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

369 Practical hints
Where will I find ...?
Where will I find ...?
First aid kit
The first aid kit is located in the storage
compartment under the front passenger
seat.
1Lid
2ButtonsRemoving the first aid kit

Press buttons2 together and fold
lid1 down.

Remove first aid kit.Storing the first aid kit

Place first aid kit in the storage com-
partments.

Close lid1 until both buttons2 of
lock engage.iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.

370 Practical hintsWhere will I find ...?Vehicle jack, vehicle tool kit, luggage bowl, spare wheel
The spare wheel, the vehicle tool kit and
the luggage bowl are stored in the com-
partment underneath the trunk floor.
1Vehicle jack
2Vehicle tool kit
3Luggage bowl
4Spare wheel
Lift up trunk floor cover and engage
trunk floor handle in upper edge of
trunk.
You can now remove the tools and ac-
cessories.The vehicle tool kit includes:


One interchangeable slot/Phillips
screwdriver


One towing eye bolt


One wheel bolt wrench with socket
wrench


One alignment bolt


One pair of gloves


One fuse extractor


One fuse chart for the main fuse box


Spare fusesVehicle jack
To prepare the vehicle jack for use

Remove the vehicle jack from the spare
wheel well under the trunk floor.

Push the crank handle up.

Turn the crank handle clockwise until it
engages (operational position).
!To prevent damage, always disengage
trunk floor handle from trunk edge and
lower trunk floor before closing the
trunk.

371 Practical hints
Where will I find ...?
Storing the vehicle jack in the trunk
Retract the vehicle jack arm to the
base of the vehicle jack.

Push the crank handle up.

Turn the crank handle counterclock-
wise to the end of the stop (storage po-
sition).Spare wheel
Removing the spare wheel

Take out vehicle tool kit tray 2.

Turn the luggage bowl 3 counter-
clockwise.

Remove the spare wheel 4.
Storing the spare wheel

Place spare wheel 4 in wheel well and
secure it with luggage bowl 3.

Turn the luggage bowl 3 clockwise to
its stop.

Place vehicle tool kit tray 2 in luggage
bowl 3.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket. Al-
ways lower the vehicle onto sufficient ca-
pacity jackstands before working under the
vehicle.

372 Practical hintsUnlocking/locking in an emergencyUnlocking the vehicle
If you are unable to unlock the vehicle with
the SmartKey or KEYLESS-GO*, open the
driver’s door and the trunk using the me-
chanical key. Removing the mechanical key
1Mechanical key locking tab
2Mechanical key

Move locking tab1 in the direction of
arrow.

Slide the mechanical key2 out of the
housing.Unlocking the driver’s door
1Unlocking

Insert the mechanical key into the driv-
er’s door lock until it stops.

Turn the mechanical key counterclock-
wise to position1.
The driver’s door is unlocked.
iUnlocking and opening the driver’s
door and/or the trunk with the me-
chanical key will trigger the anti-theft
alarm system.
To cancel the alarm, insert the
SmartKey or SmartKey with
KEYLESS-GO* in the starter switch.

373 Practical hints
Unlocking/locking in an emergency
Unlocking the trunk
A minimum height clearance of 6.3 ft
(1.90 m) is required to open the trunk lid.
The trunk lid lock is located next to the
handle above the rear license plate recess.
1Unlocking and opening
2Trunk lid lock
Insert the mechanical key into the
trunk lid lock until it stops.

Turn the mechanical key counterclock-
wise to position1.
The trunk opens.

Turn the mechanical key back and re-
move it from the trunk lid lock.
Locking the vehicle
If you cannot lock the vehicle with the
SmartKey or the SmartKey with
KEYLESS-GO*, do the following:
Close the passenger door and the
trunk.

Press the central locking switch in the
center console (
page 111).

Check to see whether the locking knob
on the passenger door has moved
down.

If necessary, push it down manually.
Except for the driver’s door, the vehicle
should now be locked.
1Locking

Remove the mechanical key out of the
SmartKey (
page 372).

Insert the mechanical key into the driv-
er’s door lock until it stops.

Turn the mechanical key clockwise to
position1.
The driver’s door is locked.
!The trunk lid swings open upwards au-
tomatically. Always make sure that
there is sufficient overhead clearance.

374 Practical hintsUnlocking/locking in an emergencyFuel filler flap
In case the central locking system does
not release the fuel filler flap, you can open
it manually.
1Release knob
Open the trunk.

Remove the battery cover and the trim
inside the trunk on the right-hand side.

Pull release knob 1 in the direction of
arrow.
The fuel filler flap can be opened.

375 Practical hints
Opening/closing in an emergency
Opening/closing in an emergency
Tilt/sliding sunroof
You can open or close the tilt/sliding sun-
roof manually should an electrical malfunc-
tion occur.
The tilt/sliding sunroof drive is located be-
hind the lens of the interior overhead light.
1Lens

Pry off lens1 using a flat blade screw-
driver (
page 370).

Switch on the ignition (
page 34).

Take the crank from the operator’s
manual pouch.
2Crank

Insert crank2 through hole.

Turn crank2 clockwise to:

slide sunroof closed


raise roof at the rear

Turn crank2 counterclockwise to:

slide sunroof open


lower roof at the rear
iTurn crank2 slowly and smoothly.
The tilt/sliding sunroof must be syn-
chronized after being operated manual-
ly (
page 204).
