2006 MERCEDES-BENZ CL65AMG Owner's Manual

104 Controls in detailLocking and unlockingClosing the trunk from the outside
manually
1Handle
Lower trunk lid by pulling firmly on
handle1.

Push the trunk lid closed from the out-
side with hands placed flat on trunk lid.
The power closing assist automatically en-
sures that the lid is pulled closed com-
pletely (
page 110).
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the trunk
lid opening when closing the trunk. Be espe-
cially careful when small children are
around.
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.Warning!
G
Only drive with the trunk closed as, among
other dangers such as blocked visibility, ex-
haust fumes may enter the vehicle interior.
iDo not place the SmartKey in the open
trunk. You may lock yourself out.
Vehicles with KEYLESS-GO*:
To prevent a possible inadvertent lock-
out, the trunk will open automatically if
a SmartKey with KEYLESS-GO is recog-
nized inside the vehicle or in the trunk.iIf the vehicle was previously centrally
locked, the trunk will lock automatical-
ly after closing it. All turn signal lamps
flash three times to confirm locking.

105 Controls in detail
Locking and unlocking
Closing the trunk from the outside
(vehicles without KEYLESS-GO*)
In vehicles with trunk opening/closing sys-
tem* you can close the trunk separately.
1Trunk closing switch

Press switch1 briefly.
The trunk closes.
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high), the closing procedure
is stopped and the trunk reopens slightly.iYou can also close the trunk by hand
(page 104).
Warning!
G
Monitor the closing procedure carefully to
make sure no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the trunk opening when closing the trunk.
Be especially careful when small children
are around. To stop the closing procedure,
do one of the following:

press trunk closing switch1


press the Š button on the SmartKey


press the remote trunk opening/clos-
ing* switch (on the driver’s door)
Even with the SmartKey removed from the
starter switch, the trunk closing switch can
be operated. Therefore, do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and/or serious personal injury.


106 Controls in detailLocking and unlocking
Closing the trunk from the outside
(vehicles with KEYLESS-GO*)
In vehicles with trunk opening/closing sys-
tem* you can close the trunk separately.
1Trunk closing switch
Make sure you have the SmartKey with
KEYLESS-GO with you.

Press switch1 briefly.
The trunk closes. If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high), the closing procedure
is stopped and the trunk reopens slightly.
Warning!
G
Only drive with the trunk closed as, among
other dangers such as blocked visibility, ex-
haust fumes may enter the vehicle interior.iDo not place the SmartKey in the open
trunk. You may lock yourself out.iIf the vehicle was previously centrally
locked, the trunk will lock automatical-
ly after closing it. All turn signal lamps
flash three times to confirm locking.
iYou can also close the trunk by hand
(page 104).
iTo prevent a possible inadvertent lock-
out, the trunk will open automatically if
a SmartKey with KEYLESS-GO is recog-
nized inside the vehicle or in the trunk.

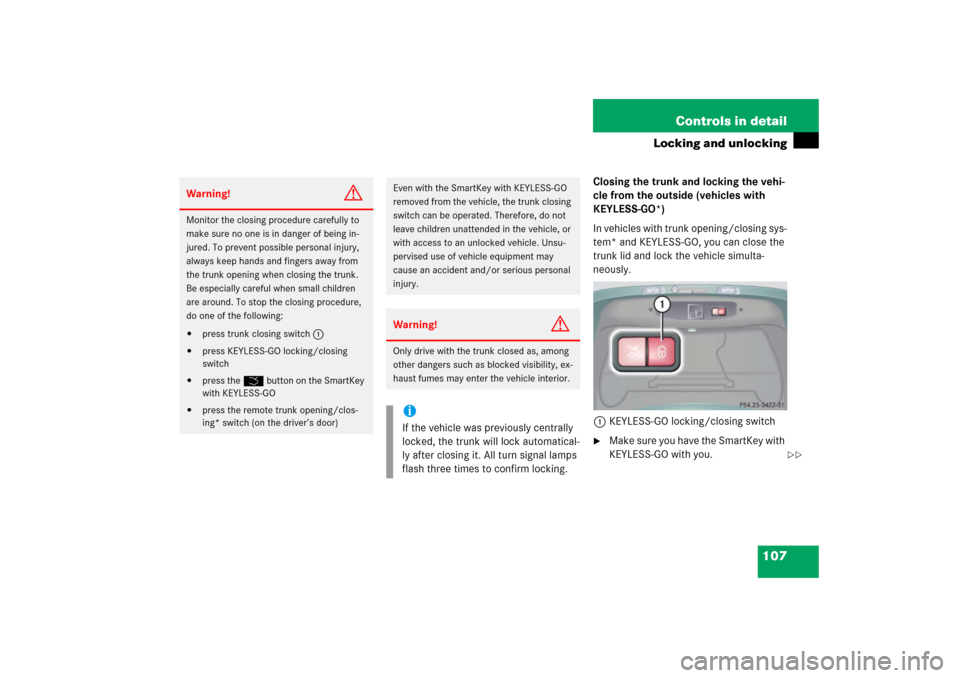

107 Controls in detail
Locking and unlocking
Closing the trunk and locking the vehi-
cle from the outside (vehicles with
KEYLESS-GO*)
In vehicles with trunk opening/closing sys-
tem* and KEYLESS-GO, you can close the
trunk lid and lock the vehicle simulta-
neously.
1KEYLESS-GO locking/closing switch
Make sure you have the SmartKey with
KEYLESS-GO with you.
Warning!
G
Monitor the closing procedure carefully to
make sure no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the trunk opening when closing the trunk.
Be especially careful when small children
are around. To stop the closing procedure,
do one of the following:

press trunk closing switch1


press KEYLESS-GO locking/closing
switch


press the Š button on the SmartKey
with KEYLESS-GO


press the remote trunk opening/clos-
ing* switch (on the driver’s door)
Even with the SmartKey with KEYLESS-GO
removed from the vehicle, the trunk closing
switch can be operated. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury. Warning!
G
Only drive with the trunk closed as, among
other dangers such as blocked visibility, ex-
haust fumes may enter the vehicle interior.iIf the vehicle was previously centrally
locked, the trunk will lock automatical-
ly after closing it. All turn signal lamps
flash three times to confirm locking.


108 Controls in detailLocking and unlocking
Press switch1 briefly.
The vehicle is locked and the trunk
closes automatically.
With the hood and all doors closed, All
turn signal lamps flash three times to
confirm locking. The locking knobs in
the doors move down. The anti-theft
alarm system is activated.
If the trunk lid comes into contact with an
object while closing (e.g. luggage that has
been piled too high), the closing procedure
is stopped and the trunk reopens slightly.iYou can also close the trunk by hand
(page 104).
iTo prevent a possible inadvertent lock-
out, the trunk will open automatically if
a SmartKey with KEYLESS-GO is recog-
nized inside the vehicle or in the trunk.
Warning!
G
Monitor the closing procedure carefully to
make sure no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the trunk opening when closing the trunk.
Be especially careful when small children
are around. To stop the closing procedure,
do one of the following:

press KEYLESS-GO locking/closing
switch1


press trunk closing switch


press the Š button on the SmartKey
with KEYLESS-GO


press the remote trunk opening/clos-
ing* switch (on the driver’s door)
Even with the SmartKey with KEYLESS-GO
removed from the vehicle, the KEYLESS-GO
locking/closing switch can be operated.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury. Warning!
G
Only drive with the trunk closed as, among
other dangers such as blocked visibility, ex-
haust fumes may enter the vehicle interior.


109 Controls in detail
Locking and unlocking
Trunk emergency release
With the emergency release button, the
trunk can be opened from inside the trunk.
The emergency release button is located
on the inside of the trunk lid.
1Emergency release button
Briefly press emergency release
button1.
The trunk opens.Illumination of the emergency release but-
ton:


The button will flash for 30 minutes af-
ter opening the trunk.


The button will flash for 60 minutes af-
ter closing the trunk.iThe emergency release button unlocks
and opens the trunk while the vehicle is
standing still or in motion.iThe emergency release button does
not open the trunk if the vehicle battery
is discharged or disconnected.
iIf the vehicle has previously been
locked using the SmartKey or
KEYLESS-GO*, opening the trunk from
the inside using the emergency release
button will trigger the anti-theft alarm
system.
To cancel the alarm, do one of the fol-
lowing:

Insert the SmartKey in the starter
switch.


Press button Œ or ‹ on the
SmartKey.
In vehicles with KEYLESS-GO*:


Grasp an outside door handle.
The SmartKey with KEYLESS-GO
must be within 3 ft. (1 m) of the ve-
hicle.


Press the KEYLESS-GO* start/stop
button (
page 35).
The SmartKey with KEYLESS-GO
must be inside the vehicle.

110 Controls in detailLocking and unlockingPower closing assist for doors and trunk lid
It is not necessary to slam the door or
trunk lid closed. A pneumatic power-as-
sisted mechanism draws doors and trunk
lid closed quietly and automatically once
door and trunk lid has been latched. When
the pneumatic power-assisted mechanism
has stopped, doors and/or trunk can be
re-opened.Power closing assist for doors

Press the doors gently past the initial
engage position into the lock.
The doors close automatically.
Power closing assist for trunk lid

Press the trunk lid gently into its lock.
The trunk closes automatically.
Automatic central locking
The doors and the trunk automatically lock
when the ignition is switched on and the
wheels are turning at speeds of approxi-
mately 9mph (15km/h) or more.
You can open a locked door from the in-
side. Open door only when conditions are
safe to do so.
You can deactivate the automatic locking
using the control system (
page 162).
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
or trunk opening when closing a door or the
trunk. Be especially careful when small chil-
dren are around.
In case of danger, pull the inside or outside
door handle, or press the trunk lid lock.
To prevent personal injury, never actuate
the closing assist mechanism by tampering
with the door or trunk lid latch.
Warning!
G
Only drive with the doors closed. Otherwise,
one or more of the doors could open while
the vehicle is in motion, putting you and/or
others at risk.Warning!
G
Only drive with the trunk closed as, among
other dangers such as blocked visibility, ex-
haust fumes may enter the vehicle interior.
iThe doors unlock automatically after an
accident if the force of the impact ex-
ceeds a preset threshold. The vehicle
locks automatically when the ignition is
switched on and the wheels are turning
at vehicle speeds of approximately
9 mph (15 km/h) or more. You could
therefore lock yourself out when the
vehicle

is pushed or towed


is on a test stand

111 Controls in detail
Locking and unlocking
Locking and unlocking from the inside
You can lock or unlock the doors and the
trunk from inside using the central locking
or unlocking switch. This can be useful, for
example, if you want to lock the vehicle be-
fore starting to drive.
The fuel filler flap cannot be locked or un-
locked with the central locking or unlock-
ing switch, respectively.The switches are located on the upper part
of the front center console.
Central locking/unlocking switches1Central locking switch
2Central unlocking switch
Locking
Press central locking switch 1.
If both doors are closed, the vehicle
locks.
Unlocking

Press central unlocking switch 2.
The vehicle unlocks.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you,
take the SmartKey with KEYLESS-GO* with
you and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment may cause an ac-
cident and/or serious personal injury.
iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
If the vehicle was previously centrally
locked with the SmartKey or the
SmartKey with KEYLESS-GO*, it will
not unlock using the central unlocking
switch2.
If the vehicle was previously locked
with the central locking switch1:

While in the global remote control
mode, the vehicle is unlocked com-
pletely when a door is opened from
the inside.


While in the selective remote con-
trol mode, only the door opened
from inside is unlocked.
