2006 MAZDA MODEL 6 Owners Manual (in English)

Black plate (33,1)
Seat Belt (Except Center-
Rear Position)
NOTE
When using the center-rear seat belt,
refer to“Center-Rear Position Seat
Belt”(page 2-23).
qFastening the Seat Belts
1. Grasp the tongue.
2. Slowly pull out the lap/shoulder belt.
TongueBelt
3. Insert the tongue into the buckle until
you hear a click.
BuckleTongue
WARNING
Positioning the Shoulder Portion ofthe Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
4. Make sure the shoulder belt is snugly
fitted against your body.
Keep low on
hip bone
Too high Take up slack
WARNING
Positioning the Lap Portion of theSeat Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
Essential Safety Equipment
Seat Belt Systems
2-19
Mazda6_8U66-EA-05F_Edition1 Page33
Friday, June 3 2005 8:45 AM
Form No.8U66-EA-05F

Black plate (34,1)
qUnfastening the Seat Belts
Depress the button on the buckle.
Button
NOTE
If a belt does not fully retract, inspect it
for kinks and twists. If it is still not
retracting properly, have it inspected at
an Authorized Mazda Dealer.
qShoulder Belt Adjuster
Adjust the height of the shoulder belt if
the seat belt touches your neck, or if it
crosses your arm instead of your shoulder.
To raise the shoulder belt adjuster, push
the adjuster up. To lower the shoulder belt
adjuster, pull the button and slide it down.
Make sure the adjuster is locked.
WARNING
Positioning the Shoulder Portion ofthe Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
2-20
Essential Safety Equipment
Seat Belt Systems
Mazda6_8U66-EA-05F_Edition1 Page34
Friday, June 3 2005 8:45 AM
Form No.8U66-EA-05F

Black plate (35,1)
Front Seat Belt Pretensioner
and Load Limiting Systems
For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems.
In moderate or greater frontal or near-
frontal accidents, the front air bag and
pretensioner systems deploy
simultaneously. The pretensioners take up
slack in the front seat belts as the air bags
are expanding. The seat belt pretensioner
system cannot provide adequate
protection in an accident if the seat belt is
not fastened properly. The load limiting
system releases belt webbing in a
controlled manner to reduce belt force on
the occupant's chest.
WARNING
Incorrect Positioning of the Driverand Front Passenger Seat Belts:
Incorrect positioning of the driver and
passenger seat belts is dangerous.
Without proper positioning, the
pretensioner and load limiting systems
cannot provide adequate protection in
an accident and this could result in
serious injury. Wear seat belts only as
recommended in this owner's manual
(page 2-19).
WARNING
Expended Seat Belt Pretensioners:
One or both front air bags may deploy,
and the corresponding pretensioner(s)
will also deploy at the same time. Use
of front seat belts with the
pretensioner system expended is
dangerous. Like the air bags, the seat
belt pretensioners will only function
once. After they are expended, they
will not function again and must be
replaced immediately. If the seat belt
pretensioners are not replaced, the
risk of injury in a collision will
increase. Always have an Authorized
Mazda Dealer inspect the seat belt
pretensioners and air bags after any
collision. Expended seat belt
pretensioners and air bags must be
replaced after any collision which
caused them to deploy. Additionally,
the load limiter will only limit loads on
the chest once in a collision and is
another reason to have the front seat
belts inspected.
Modification or Testing of thePretensioner System:
Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable which
would prevent it from activating in an
accident. The occupants or repairers
could be seriously injured. Never
modify the components or wiring, or
use electronic testing devices on the
pretensioner system.
Essential Safety Equipment
Seat Belt Systems
2-21
Mazda6_8U66-EA-05F_Edition1 Page35
Friday, June 3 2005 8:45 AM
Form No.8U66-EA-05F

Black plate (36,1)
WARNING
Pretensioner System Disposal:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap a
pretensioner-equipped vehicle.
NOTE
lThe pretensioner system will only
activate in a moderate or greater
frontal or near-frontal collision. It
will not activate in most rollovers,
side or rear impacts.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally has
no effect on occupants, however,
those with sensitive skin may
experience light skin irritation. If
residue from the deployment of the
air bags or the front pretensioner
system gets on the skin or in the
eyes, wash it off as soon as possible.
qAir Bag/Front Seat Belt Pretensioner
Systems Warning Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds
it goes out.
A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Self-Servicing the Air Bag/Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
2-22
Essential Safety Equipment
Seat Belt Systems
Mazda6_8U66-EA-05F_Edition1 Page36
Friday, June 3 2005 8:45 AM
Form No.8U66-EA-05F

Black plate (37,1)
Center-Rear Position Seat
Belt
Before using the center-rear lap/shoulder
belt make sure tongue (A) and anchor
buckle (B) are fastened.
(A)
(B)
qFastening the Seat Belt
1. Grasp the tongue (C).
2. Slowly pull out the lap/shoulder belt.
3. Insert the tongue (C) into the buckle
(D) until you hear a click.
(C)
(D)(B) (A)
WARNING
Fastening the Center-Rear Seat Beltwith Only One Buckle:
Fastening the center-rear seat belt
with only one buckle is dangerous. If
only one pair of seat belt tongue and
buckle, either tongue (A) and anchor
buckle (B) or tongue (C) and anchor
buckle (D), is fastened, the seat belt
cannot provide full protection. In a
sudden stop or collision, the user
could slide under the belt and suffer
serious injuries. Always make sure
that both pairs of seat belt tongues and
buckles are fastened properly.
Positioning the Shoulder Portion ofthe Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.
4. Make sure the shoulder belt is snugly
fitted against your body.
WARNING
Positioning the Lap Portion of theSeat Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
Essential Safety Equipment
Seat Belt Systems
2-23
Mazda6_8U66-EA-05F_Edition1 Page37
Friday, June 3 2005 8:45 AM
Form No.8U66-EA-05F

Black plate (38,1)
qUnfastening the Seat Belt
Depress the button on the buckle.
Button
qUnfastening the Lap Portion of
the Seat Belt
Insert a small object such as a key in the
anchor buckle (B) slot.
(B)
(A)
CAUTION
Always unfasten the lap portion of the
belt before folding the left-rear
seatback. Leaving the lap portion of the
belt fastened could cause damage to the
seat belt, buckle and seatback.
NOTE
To encourage rear seat passengers to
wear their seat belts, we suggest leaving
the center-rear lap position of the belt
fastened at all times except when
folding the rear seat forward.
qFastening the Lap Portion of the
Seat Belt
Grasp tongue (A) and insert it into the
anchor buckle (B) until you hear a click. It
is now secure for passenger use.
NOTE
After returning the left-rear seatback to
its upright position, fasten the lap
portion of the belt.
qStowing and pulling out the
Center-Rear Position Seat Belt
The center-rear position seat belt can be
stowed using the following procedure.
CAUTION
When stowing the seat belt, make sure
the belt is locked securely into the
recess. If the seat belt is not locked
securely, it could fall down suddenly
and cause injury.
Sedan/5-Door
To stow the seat belt, retract the belt, put
tongues (A) and (C) together and insert
them into the recess.
2-24
Essential Safety Equipment
Seat Belt Systems
Mazda6_8U66-EA-05F_Edition1 Page38
Friday, June 3 2005 8:45 AM
Form No.8U66-EA-05F

Black plate (39,1)
Sedan (Behind head restraint on left
side)
5-Door (Left side of luggage
compartment)
To pull out the seat belt, slide tongues
with your finger, and slowly pull out the
seat belt from the recess.
Sport Wagon
To stow the seat belt, retract the belt, put
tongues (A) and (C) together and insert
them into the ceiling recess.
(A)
(C) Ceiling recess
To pull out the seat belt, slide tongue (A)
with your finger while moving it
downward, and slowly pull out the seat
belt from the ceiling recess.
Essential Safety Equipment
Seat Belt Systems
2-25
Mazda6_8U66-EA-05F_Edition1 Page39
Friday, June 3 2005 8:45 AM
Form No.8U66-EA-05F

Black plate (40,1)

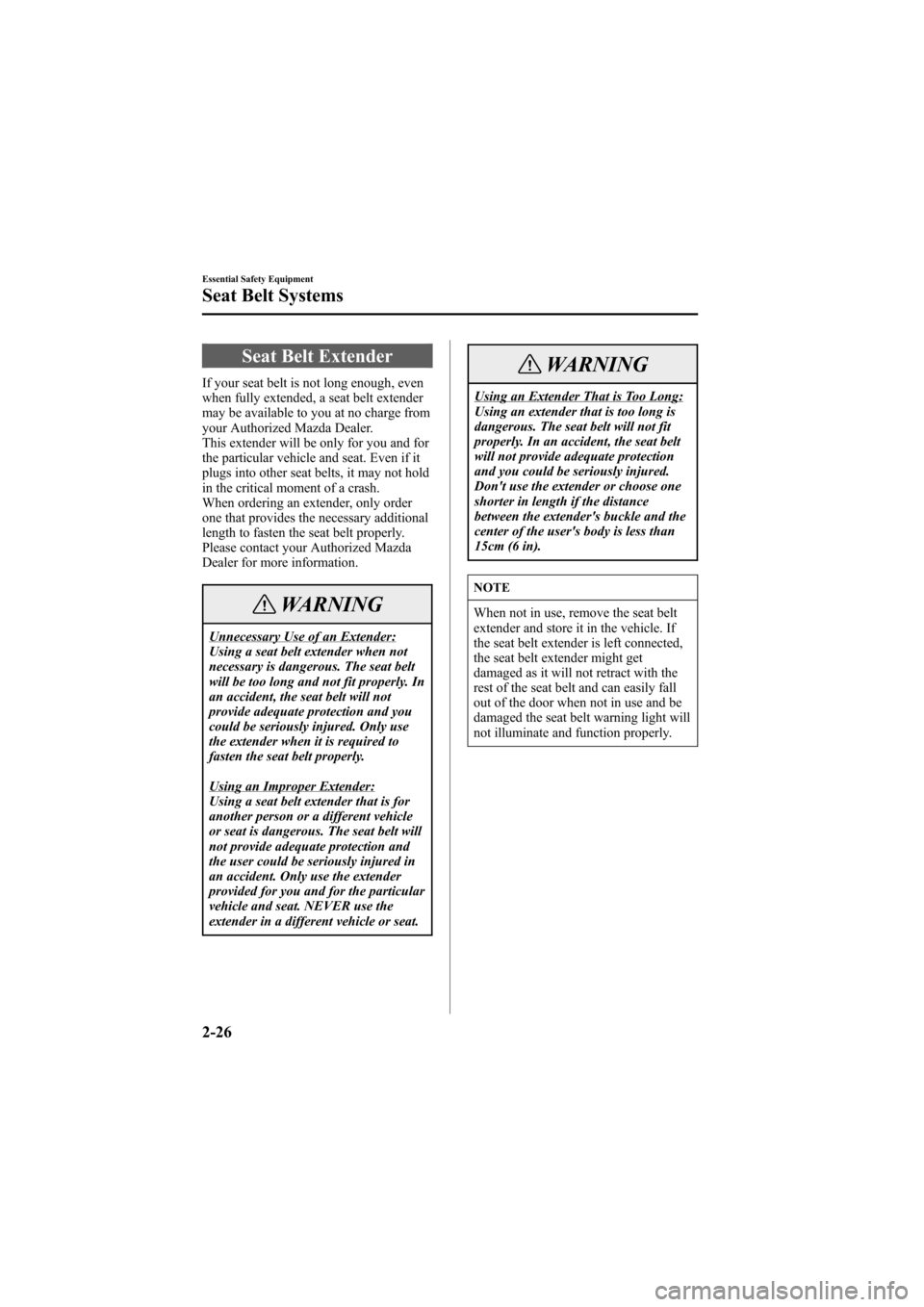

Seat Belt Extender
If your seat belt is not long enough, even
when fully extended, a seat belt extender
may be available to you at no charge from
your Authorized Mazda Dealer.
This extender will be only for you and for
the particular vehicle and seat. Even if it
plugs into other seat belts, it may not hold
in the critical moment of a crash.
When ordering an extender, only order
one that provides the necessary additional
length to fasten the seat belt properly.
Please contact your Authorized Mazda
Dealer for more information.
WARNING
Unnecessary Use of an Extender:
Using a seat belt extender when not
necessary is dangerous. The seat belt
will be too long and not fit properly. In
an accident, the seat belt will not
provide adequate protection and you
could be seriously injured. Only use
the extender when it is required to
fasten the seat belt properly.
Using an Improper Extender:
Using a seat belt extender that is for
another person or a different vehicle
or seat is dangerous. The seat belt will
not provide adequate protection and
the user could be seriously injured in
an accident. Only use the extender
provided for you and for the particular
vehicle and seat. NEVER use the
extender in a different vehicle or seat.
WARNING
Using an Extender That is Too Long:
Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accident, the seat belt
will not provide adequate protection
and you could be seriously injured.
Don't use the extender or choose one
shorter in length if the distance
between the extender's buckle and the
center of the user's body is less than
15cm (6 in).
NOTE
When not in use, remove the seat belt
extender and store it in the vehicle. If
the seat belt extender is left connected,
the seat belt extender might get
damaged as it will not retract with the
rest of the seat belt and can easily fall
out of the door when not in use and be
damaged the seat belt warning light will
not illuminate and function properly.
2-26
Essential Safety Equipment
Seat Belt Systems
Mazda6_8U66-EA-05F_Edition1 Page40
Friday, June 3 2005 8:45 AM
Form No.8U66-EA-05F
