2006 MAZDA MODEL 6 Owners Manual (in English)

Black plate (185,1)
qReprogramming the HomeLink
system
To program a device to HomeLink using a
HomeLink button previously trained,
follow these steps:
1. Press and hold the desired HomeLink
button.DO NOTrelease the button.
2. The indicator light will begin to flash
after 20 seconds. Without releasing the
HomeLink button, proceed with
“Programming”- step 2.
qErasing Programmed HomeLink
Buttons
To erase the existing programming from
all three operating channels, press and
hold the two outside buttons (
,)
on the auto-dimming mirror until the
HomeLink indicator light begins to flash
after approximately 20 seconds.
Verify that the programming has been
erased when you resell the vehicle.
Driving Your Mazda
Switches and Controls
5-51
Mazda6_8U66-EA-05F_Edition1 Page185
Friday, June 3 2005 8:47 AM
Form No.8U66-EA-05F

Black plate (186,1)
5-52
Mazda6_8U66-EA-05F_Edition1 Page186
Friday, June 3 2005 8:47 AM
Form No.8U66-EA-05F

Black plate (187,1)

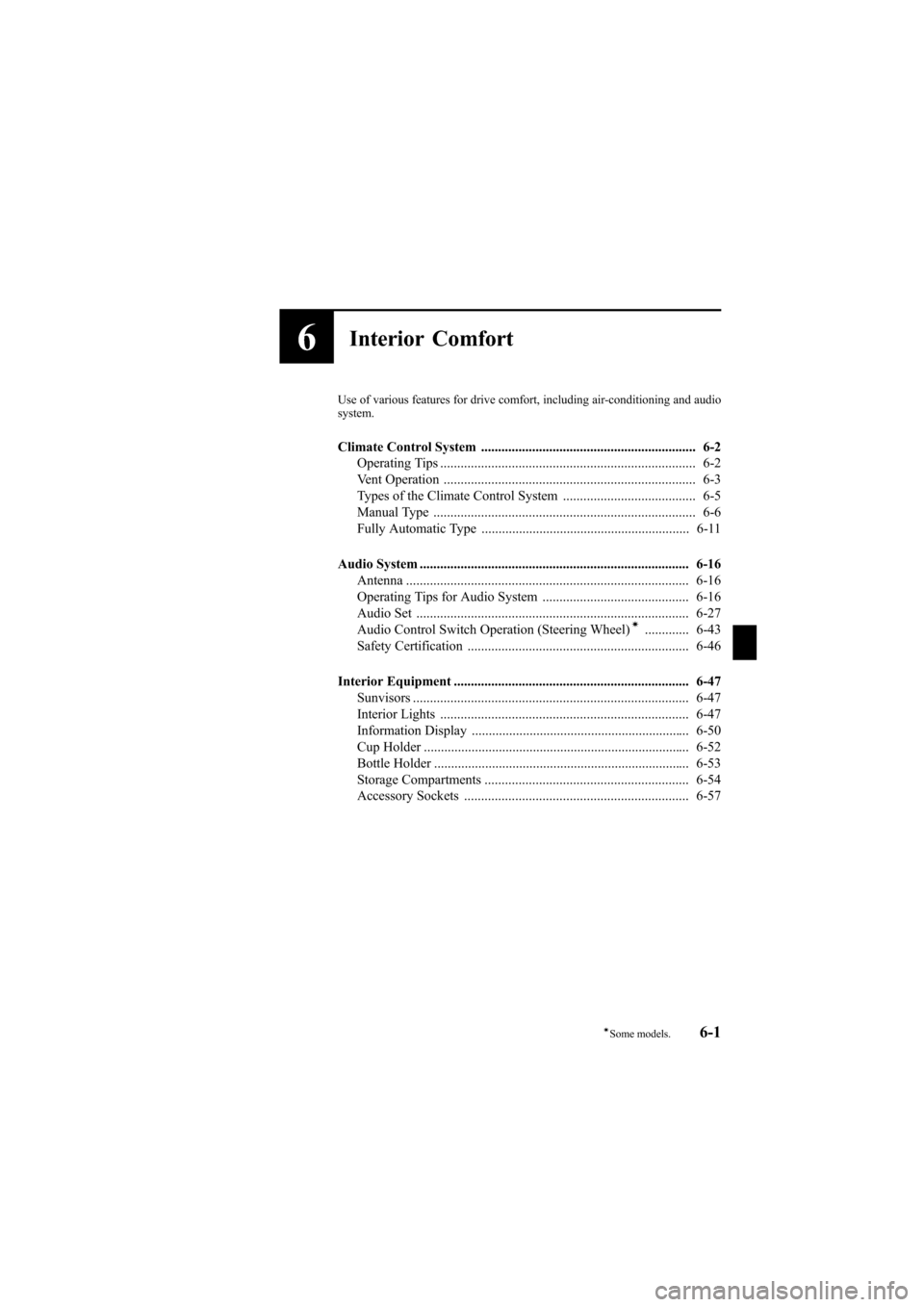

6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2
Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Types of the Climate Control System ....................................... 6-5
Manual Type ............................................................................. 6-6
Fully Automatic Type ............................................................. 6-11
Audio System ............................................................................... 6-16
Antenna ................................................................................... 6-16
Operating Tips for Audio System ........................................... 6-16
Audio Set ................................................................................ 6-27
Audio Control Switch Operation (Steering Wheel)
í............. 6-43
Safety Certification ................................................................. 6-46
Interior Equipment ..................................................................... 6-47
Sunvisors ................................................................................. 6-47
Interior Lights ......................................................................... 6-47
Information Display ................................................................ 6-50
Cup Holder .............................................................................. 6-52
Bottle Holder ........................................................................... 6-53
Storage Compartments ............................................................ 6-54
Accessory Sockets .................................................................. 6-57
6-1íSome models.
Mazda6_8U66-EA-05F_Edition1 Page187
Friday, June 3 2005 8:47 AM
Form No.8U66-EA-05F

Black plate (188,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with
the ignition switch in the ACC position
when the engine is not running.
qClearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along
with the heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
6-2
Interior Comfort
Climate Control System
Mazda6_8U66-EA-05F_Edition1 Page188
Friday, June 3 2005 8:47 AM
Form No.8U66-EA-05F

Black plate (189,1)
Vent Operation
qAdjusting the Vents
Directing airflow
1. Press the upper part of the air vent to
open it.
2. Rotate the air vent left and right to
adjust the direction of airflow.
NOTE
When using the air conditioner, mist
may come out from the vents. This is
not a sign of trouble but a result of
humid air being suddenly cooled.
Interior Comfort
Climate Control System
6-3
Mazda6_8U66-EA-05F_Edition1 Page189
Friday, June 3 2005 8:47 AM
Form No.8U66-EA-05F

Black plate (190,1)
qSelecting the Airflow Mode
Defroster and Floor Vents Dashboard Vents
Floor VentsDefroster Vents Dashboard and Floor Vents
6-4
Interior Comfort
Climate Control System
Mazda6_8U66-EA-05F_Edition1 Page190
Friday, June 3 2005 8:47 AM
Form No.8U66-EA-05F

Black plate (191,1)
Types of the Climate Control System
Manual type and fully automatic type climate control systems are explained separately.
Check your vehicle's climate control type and read the appropriate pages.
Climate control information is displayed on the information display.
Manual Type ............................................................................................................ page 6-6
Fully Automatic Type ............................................................................................. page 6-11
Interior Comfort
Climate Control System
6-5
Mazda6_8U66-EA-05F_Edition1 Page191
Friday, June 3 2005 8:47 AM
Form No.8U66-EA-05F

Black plate (192,1)
Manual Type
A/C SwitchAir intake selector
Mode selector dial Fan control dial Temperature control dial
qControl Switches
Temperature control dial
Hot Cold
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
This dial allows variable fan speeds.
0―Fan off
1―Low speed
2―Medium low speed
3―Medium high speed
4―High speed
6-6
Interior Comfort
Climate Control System
Mazda6_8U66-EA-05F_Edition1 Page192
Friday, June 3 2005 8:47 AM
Form No.8U66-EA-05F
