4. Slide the retainer bar in the direction
indicated in the figure, and engage the
anchors into the seatback retainers.
Retainer bar
5. Slowly pull out the net in the upward
direction, insert the left and right net
anchors into the ceiling retainers, and
slide them to the position indicated in
the figure.
Net
anchor
Net
To remove the net:
1. Lift the net slightly and disengage the
net anchors from the ceiling retainers.
2. Slowly lower and support the net as it
rolls up into the retainer bar.
3. Remove the retainer bar in the reverse
order of installation.
CAUTION
When disengaging the net anchors, hold
the top of the net firmly in your hand. If
you lose control of the net, it will
automatically roll up in an uncontrolled
manner and could cause injury.
Knowing Your Mazda
Doors and Locks
3-19
Mazda6_8U66-EA-05F_Edition1 Page97
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (98,1)
Trunk Lid (Sedan)
WARNING
Open Trunk and Exhaust Gas:
Exhaust gas in the cabin of a vehicle
is dangerous. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous. If
inhaled, it can cause loss of
consciousness and death. Because
exhaust gas can get into the cabin
through an open trunk, keep the trunk
closed when driving.
qOpening and Closing the Trunk Lid
WARNING
Trunk Access and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid, lock the
rear seatbacks and do not allow
children to play inside the vehicle.
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don't leave your children
or pets alone in a car at any time.
Don't leave the car, the rear folding
seats or the trunk unlocked. Always
keep the car from being a tempting
place to play by locking rear seats,
doors and the trunk, and keeping the
keys where children can not play with
them.
CAUTION
For vehicles equipped with a rear
spoiler, do not lift the trunk lid by the
spoiler. Lifting up the trunk lid by the
rear spoiler could cause damage to the
rear spoiler and the trunk lid.
3-20
Knowing Your Mazda
Doors and Locks
Mazda6_8U66-EA-05F_Edition1 Page98
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (99,1)
Opening the trunk lid with the key
Insert the key into the slot and turn it
clockwise.
Open
Opening the trunk lid with thetransmitter
The trunk lid can be opened by operating
the keyless entry system transmitter, refer
to Keyless Entry System (page 3-3).
Opening the trunk lid with the remoterelease button
Push the release button.
Closing the trunk lid
Use both hands to push the trunk lid down
until the lock snaps shut. Do not slam it.
Pull up on the trunk lid to make sure it is
secure.
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
Knowing Your Mazda
Doors and Locks
3-21
Mazda6_8U66-EA-05F_Edition1 Page99
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (100,1)
Inside Trunk Release
Lever (Sedan)
Your vehicle is equipped with an inside
trunk release lever that provides a means
of escape for children and adults in the
event they become locked inside the
trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release lever
so that all children can be told about it in
an appropriate way, keeping in mind that
most vehicles don't have such levers.
WARNING
Trunk Access and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid, lock the
rear seatbacks and do not allow
children to play inside the vehicle.
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don't leave your children
or pets alone in a car at any time.
Don't leave the car, the rear folding
seats or the trunk unlocked. Always
keep the car from being a tempting
place to play by locking rear seats,
doors and the trunk, and keeping the
keys where children can not play with
them.
3-22
Knowing Your Mazda
Doors and Locks
Mazda6_8U66-EA-05F_Edition1 Page100
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (101,1)

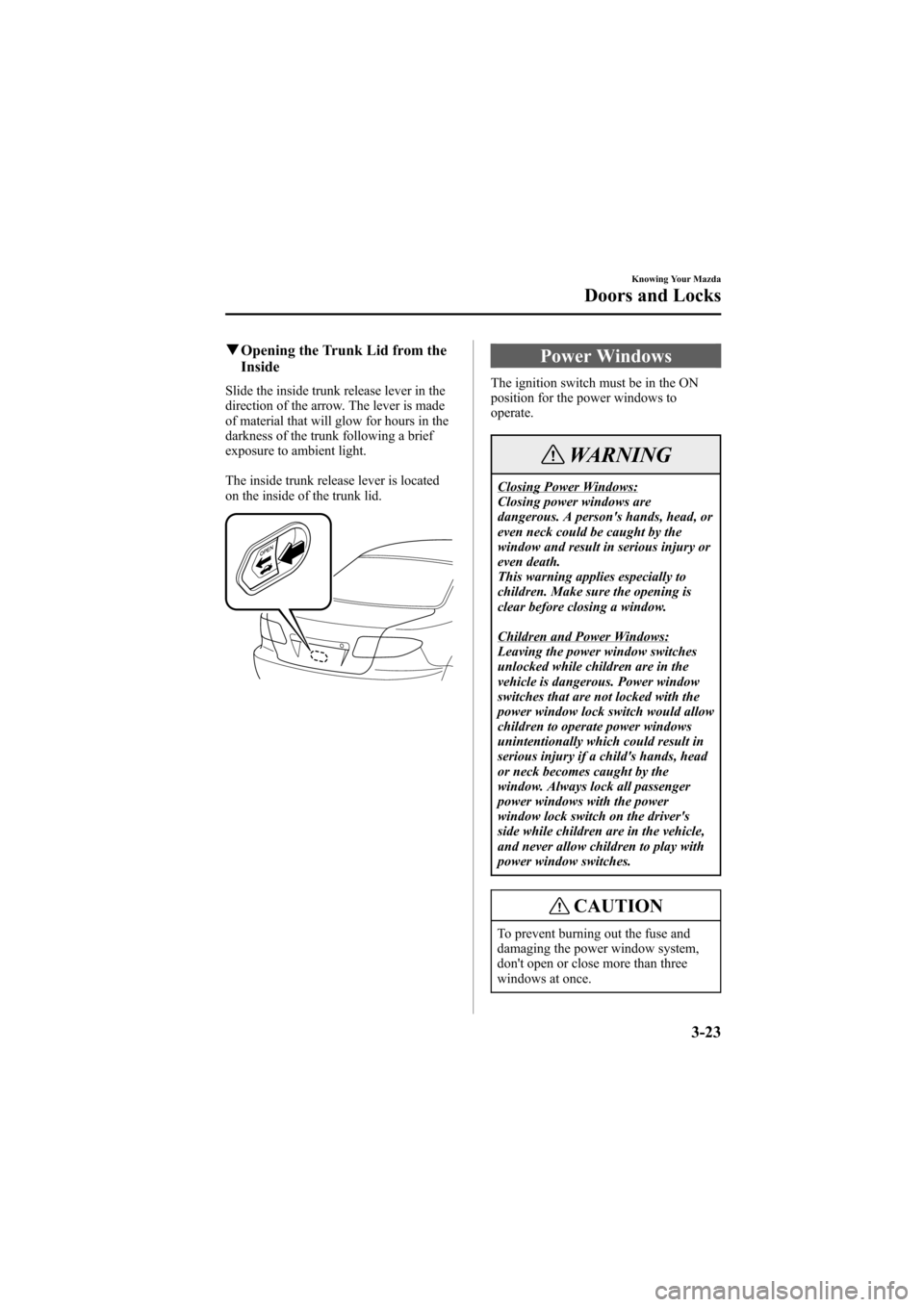

qOpening the Trunk Lid from the
Inside
Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.
The inside trunk release lever is located
on the inside of the trunk lid.
Power Windows
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Closing Power Windows:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
Children and Power Windows:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would allow
children to operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window. Always lock all passenger
power windows with the power
window lock switch on the driver's
side while children are in the vehicle,
and never allow children to play with
power window switches.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
don't open or close more than three
windows at once.
Knowing Your Mazda
Doors and Locks
3-23
Mazda6_8U66-EA-05F_Edition1 Page101
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (102,1)
qOperating the Front Power Windows
NOTE
lEach passenger power window can
be operated with each door switch
when the power window lock switch
on the driver's door is in the
unlocked position (page 3-27).
lEach passenger power window can
also be operated by the power
window master control switches on
the driver's door.
Master control switchesLeft front window
Left rear window
Right front window
Right rear window
lThe following functions can be
performed for the front power
windows using the power window
master control switches on the
driver's door or front passenger's
door switch.
lManual opening/closinglAuto-opening/closinglTwo-step down function
Manual opening/closing
To open a power window to the desired
position, lightly hold down the switch.
To close the power window to the desired
position, lightly pull up the switch.
Open Close
Master control switches
Left front
window
Right front
window
Open Close
Front passenger switch
Auto-opening/closing
To fully open a power window
automatically, press the switch completely
down.
To fully close the power window
automatically, pull the switch completely
up.
To stop the power window partway, pull
or press the switch in the opposite
direction and then release it.
3-24
Knowing Your Mazda
Doors and Locks
Mazda6_8U66-EA-05F_Edition1 Page102
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (103,1)
NOTE
If the battery had been disconnected
during vehicle maintenance or for other
reasons, the power windows will not
fully open and close automatically. Re-
initialization of the automatic function
on the front passenger's power window
cannot be performed using the master
control switches. Carry out the
following procedure on each door
switch to resume operation:
1. Turn the ignition switch to the ON
position.
2. Press the switch and fully open the
power window.
3. Pull up the switch to fully close the
power window and continue holding
the switch for about 2 seconds after
the window fully closed.
After the system has been re-initialized,
the front passenger's power window can
be fully opened or closed automatically
using the master control switches.
Two-step down function
With the power window completely
closed, press the switch lightly and it will
open and stop about 3 cm (1 in) from the
top.
If you continue to press and hold the
switch, the window will resume opening
all the way.
NOTE
Pressing the power window switch once
when the window is fully closed will
only open it about 3 cm (1 in) to allow
convenient ventilation of the cabin.Canceling the two-step down function
To cancel the two-step down function for
the front power windows, carry out the
following procedure using the master
control switches.
1. Turn the ignition switch to the ON
position and complete the following
procedure within 5 seconds:
Press the power window switch 2 times
firmly, then pull it 2 times firmly.
Right front
window
Master control switches
Left front
window
2. Turn the ignition switch to the LOCK
position.
3. With the ignition switch in the LOCK
position, and within 40 seconds, turn
the ignition switch to the ON position
and complete the following procedure
within 5 seconds:
Press the power window switch 2 times
firmly, then pull 2 times firmly.
Knowing Your Mazda
Doors and Locks
3-25
Mazda6_8U66-EA-05F_Edition1 Page103
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F

Black plate (104,1)
NOTE
lThe two-step down function cannot
be canceled if the procedure is not
completed within the specified times,
or the procedure is changed along
the way. To redo the procedure, first
turn the ignition switch to the LOCK
position and proceed from the
beginning.
lIf you are unable to cancel the
function despite doing the
cancellation procedure, consult an
Authorized Mazda Dealer.
Restoring the two-step down function
With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.
NOTE
If you are unable to restore the function
despite doing the restore procedure,
consult an Authorized Mazda Dealer.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Blocking the Power Window:
Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
stopping. If fingers are caught, serious
injuries could occur. Make sure
nothing blocks the window just before
it reaches the fully closed position or
while fully holding up the power
window switch.
NOTE
Depending on driving conditions, a
closing power window could stop and
start opening when the window feels a
shock that is similar to something
blocking it.
In the event the jam-safe function
activates and the power window cannot
be closed automatically using the auto-
opening method, pull and hold the
switch fully and the window will close.
Engine-off power window operation
The power window can be operated about
40 seconds after the ignition switch is
turned from the ON position to the ACC
or LOCK position with all doors closed. If
either front door is opened, the power
window will be inoperable.
3-26
Knowing Your Mazda
Doors and Locks
Mazda6_8U66-EA-05F_Edition1 Page104
Friday, June 3 2005 8:46 AM
Form No.8U66-EA-05F
