During MP3 CD playback
To change the disc, press the DISC button
(
or) for 1.5 seconds or
more during playback.
Folder search (during MP3 CDplayback)
To change to the previous folder, press the
folder down button (
) for less than
1.5 seconds, or press the folder up button
(
) for less than 1.5 seconds to
advance to the next folder.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button (
,) during
play to start scan play operation (the track
number will flash).
Press the scan button (
,) once again
to cancel scan play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
Repeat play
During music CD playback
1. Press the repeat button (
) during
playback to play the current track
repeatedly.“RPT”is displayed.
2. Press the button again to cancel the
repeat play.During MP3 CD playback
(Track repeat)
1. Press the repeat button (
) during
playback to play the current track
repeatedly.“RPT”is displayed.
2. To cancel the repeat play, press the
button again after 3 seconds.
(Folder repeat)
1. Press the repeat button (
) during
playback, and then press the button
again within 3 seconds to play the
tracks in the current folder repeatedly.
“RPT”is displayed.
2. Press the button again to cancel the
repeat play.
Random play
Tracks are randomly selected and played.
During music CD playback
1. Press the random button (
) during
playback to play the tracks in the CD
randomly.“RDM”is displayed.
2. Press the button again to cancel the
random play.
During MP3 CD playback
(Folder random)
1. Press the random button (
) during
playback to play the tracks in the folder
randomly.“RDM”is displayed.
2. To cancel the random play, press the
button again after 3 seconds.
Interior Comfort
Audio System
6-39
Mazda6_8U66-EA-05F_Edition1 Page225
Friday, June 3 2005 8:48 AM
Form No.8U66-EA-05F

Black plate (226,1)
(CD random)
1. Press the random button (
) during
playback, and then press the button
again within 3 seconds to play the
tracks in the CD randomly.“RDM”is
displayed.
2. Press the button again to cancel the
random play.
Switching the display(Music CD/MP3CD player)
Each time the display button (
)is
pressed during playback, the display will
switch in the following order.
Music CD
File name display
Album name display
Artist name display Track number/Elapsed
time display
Disc tray number
MP3 CD
Disc tray number
Track name (ID3 Tag)
Folder name (ID3 Tag)
Album name (ID3 Tag)
Song name (ID3 Tag)
Artist name (ID3 Tag)Disc number/File
number/Elapsed time
Folder number/Track
number
NOTE
(MP3 CD)
l“NO TITLE”will be displayed when
the display is switched for a file
without a file, track or other name
input.
lThis unit can only read English
(including numerals) one-byte
characters. If any other character is
included,“NO TITLE”will be
displayed. Depending on the CD
writing software used, proper display
may not be possible.
6-40
Interior Comfort
Audio System
Mazda6_8U66-EA-05F_Edition1 Page226
Friday, June 3 2005 8:48 AM
Form No.8U66-EA-05F

Black plate (227,1)
Display scroll(Music CD/MP3 CDplayer)
Only 12 characters can be displayed at
one time. To display the rest of the
characters of a long title, turn the display
feed dial (
) to the right. Hidden
titles can be scrolled into the display one
character at a time.
NOTE
The displayable number of characters is
limited. If the number of characters,
including the file extension (.mp3),
exceeds 32 characters, it may not be
fully displayed.
Message display
If“CHECK CD”is displayed, it means
that there is some CD malfunction. Check
for damage, dirt, or smudges on the CD,
and then properly reinsert. If the message
appears again, take the unit to an
Authorized Mazda Dealer for service.
Interior Comfort
Audio System
6-41
Mazda6_8U66-EA-05F_Edition1 Page227
Friday, June 3 2005 8:48 AM
Form No.8U66-EA-05F

Black plate (228,1)
qError Indications
If you see an error indication on the display, find the cause in the chart. If you cannot clear
the error indication, take the vehicle to an Authorized Mazda Dealer.
Indication Cause Solution
CHECK CDCD is inserted upside downInsert the CD properly. If the error indication
does not disappear, consult an Authorized Mazda
Dealer
CD is defectiveInsert another CD properly. If the error indication
does not disappear, consult an Authorized Mazda
Dealer
6-42
Interior Comfort
Audio System
Mazda6_8U66-EA-05F_Edition1 Page228
Friday, June 3 2005 8:48 AM
Form No.8U66-EA-05F

Black plate (229,1)

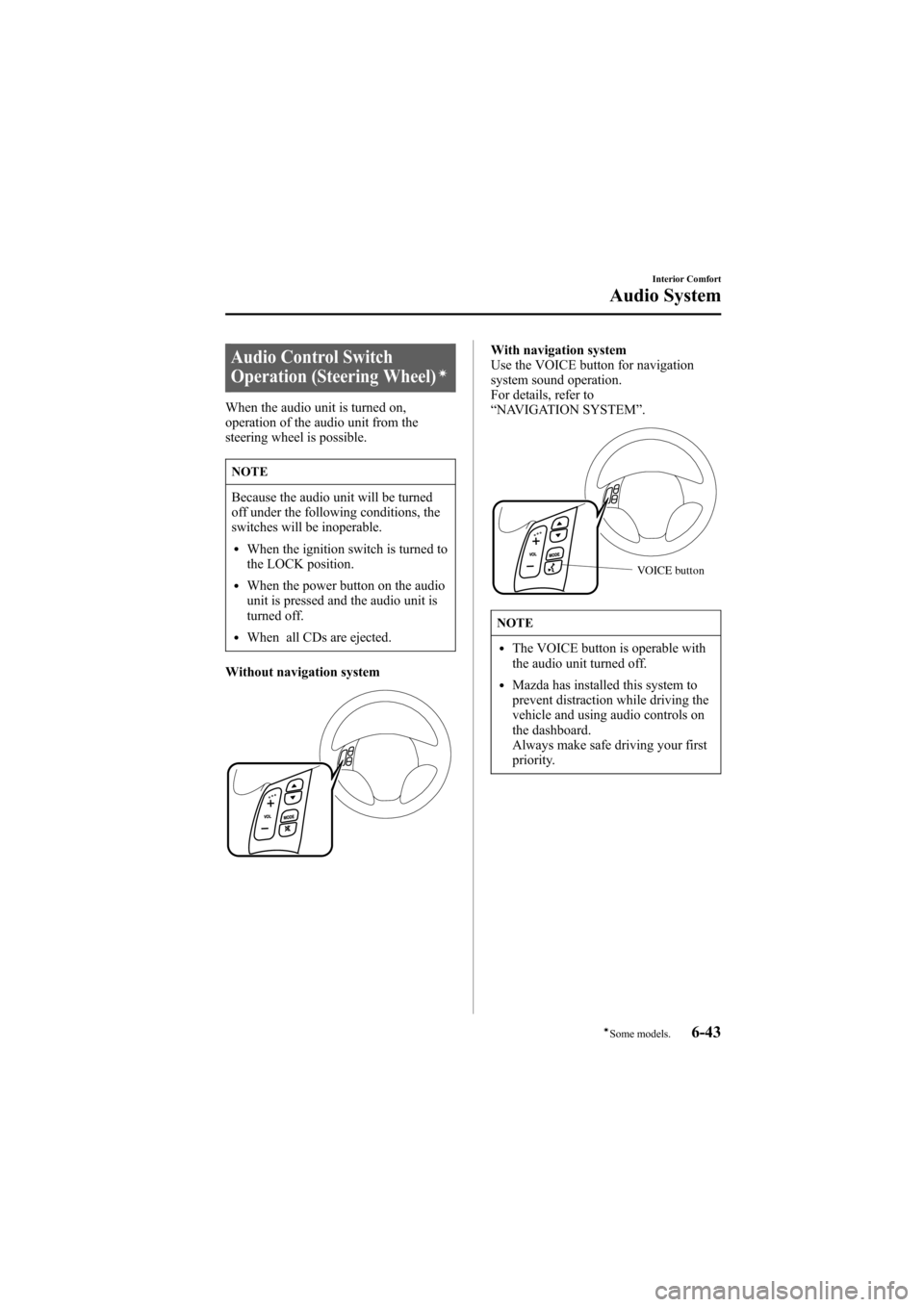

Audio Control Switch
Operation (Steering Wheel)í
When the audio unit is turned on,
operation of the audio unit from the
steering wheel is possible.
NOTE
Because the audio unit will be turned
off under the following conditions, the
switches will be inoperable.
lWhen the ignition switch is turned to
the LOCK position.
lWhen the power button on the audio
unit is pressed and the audio unit is
turned off.
lWhen all CDs are ejected.
Without navigation system
With navigation system
Use the VOICE button for navigation
system sound operation.
For details, refer to
“NAVIGATION SYSTEM”.
VOICE button
NOTE
lThe VOICE button is operable with
the audio unit turned off.
lMazda has installed this system to
prevent distraction while driving the
vehicle and using audio controls on
the dashboard.
Always make safe driving your first
priority.
Interior Comfort
Audio System
6-43íSome models. Mazda6_8U66-EA-05F_Edition1 Page229
Friday, June 3 2005 8:48 AM
Form No.8U66-EA-05F

Black plate (230,1)
qAdjusting the Volume
To increase the volume, press the volume
button ().
To decrease the volume, press the volume
button (
).
qChanging the Source
Press the mode switch () to change
the audio source (FM1 radio> FM2 radio>
AM radio> CD player or CD changer>
Cassette tape player> SIRIUS1>
SIRIUS2> SIRIUS3> cyclical).
NOTE
Cassette tape, CD changer and SIRIUS
digital satellite radio modes cannot be
selected in the following cases:
lA cassette deck, CD changer, or
SIRIUS digital satellite radio unit is
not equipped on the audio system.
lA cassette tape, or CD has not been
inserted.
qSeek Switch
When listening to the radio
Press the seek switch (
,), the radio
switches to the next/previous stored
station in the order that it was stored
(1―6).
Press the seek switch (
,) for about 2
seconds until a beep sound is heard to
seek all usable stations at a higher or
lower frequency whether programmed or
not.
When playing a cassette tape
Press the seek switch (
), release, and it
will advance to the next selection.
Press the seek switch (
), release, and it
will repeat the selection being played.
6-44
Interior Comfort
Audio System
Mazda6_8U66-EA-05F_Edition1 Page230
Friday, June 3 2005 8:48 AM
Form No.8U66-EA-05F

Black plate (231,1)
When playing a CD
Press the seek switch (
) to skip to the
next track.
Press the seek switch (
) to repeat the
current track.
qMute Switch
Press the mute switch () once to mute
audio, press it again to resume audio
output.
NOTE
If the ignition switch is turned to the
LOCK position with the audio muted,
the mute will be canceled.
Therefore, when the engine is restarted,
the audio is not muted. To mute the
audio again, press the mute switch (
).
Interior Comfort
Audio System
6-45
Mazda6_8U66-EA-05F_Edition1 Page231
Friday, June 3 2005 8:48 AM
Form No.8U66-EA-05F

Black plate (232,1)
Safety Certification
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
CAUTION
lThis CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.
lUse of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.
lChanges or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
