2006 LEXUS LX470 display

AUDIO
240(c) Selecting a desired CD
21X565
Push the “” or “”button to select the CD number.
Push the button several times until the desired CD number
appears on the display. When you release the button, the
player will start playing the selected CD from the first track. (d) Searching for a desired track or CD
21X566
Searching for a desired track:
Push the “SCAN” button briefly. “
” will appear on the
display. The CD player will play the next track for 10 seconds,
then scan again. To select a track, push the “SCAN” button a
second time. If the player reaches the end of the CD, it will
continue scanning at track 1.
After all the tracks are scanned in one pass, normal play
resumes.
Searching for a desired CD:
Push the “SCAN” button until you hear a beep. With “
”
on the display, the program at the beginning of each CD will be
played for 10 seconds. To continue listening to the program of
your choice, push the “SCAN” button a second time.
After all the CDs in the player are scanned in one pass, the
scan function is cancelled.

AUDIO
241
(e) Selecting a desired track
21X567a
“TRACK” button: Use for direct access to a desired track.
Push
either side of the “TRACK” button several times until the
desired track number appears on the display. As you release
the button, the player will start playing the selected track from
the beginning.
“Fast forward” button.
Push the “ ” button and hold it to fast forward the CD. When
you release the button, the CD player will resume playing from
that position.
“Reverse” button.
Push the “ ” button and hold it to reverse the CD. When you
release the button, the CD player will resume playing. (f) Repeating a track or a CD
21X568
“RPT”
button: There are 2 repeat features — you can either
replay a CD track or a whole CD.
Repeating a track: Push the “
” button briefly while the
track is playing. “
” will appear on the display. When the
track ends, it will automatically be replayed. This process will
be continued until you push the button again to turn off the
repeat feature.
Repeating a CD: Push the “
” button until you hear a beep.
“
” will appear on the display. The player will repeat all
the tracks on the CD you are listening to. When the CD ends,
the player will automatically go back to the first track on the CD
and replay. This process will be continued until you push the
button again to turn off the repeat feature.

AUDIO
242(g) Random playing
21X569
“RAND” button: There are 2 random features — you can
either
listen to the tracks on all the CDs in the player in random
order, or only listen to the tracks on a specific CD in random
order.
Random playing for the tracks on a CD: Push the “
”
button briefly. “
” will appear on the display and play
the CD you are listening to in random order.
Random playing for all the tacks in the magazine: Push the
“
” button until you hear a beep. “” will appear
on the display and the player will perform all the tracks on all
the CDs in the magazine in random order. To turn off the
random feature, push “
” a second time.
When a track is skipped or the system is inoperative, push the
button to reset. (h) CD text
21x586
When you push the “TEXT” button while the CD with CD
text display function (the logo “CD TEXT” marked on the
CD) is being played, the track number, elapsed time, CD
title and then track title appear on the display.
When you push this button if the CD does not have a text
display function, “NO TITLE” appears on the display.
The display can show up to 12 letters at once. If the CD title
or music title is longer than 12 letters, hold down the button for
longer
than 1 second. The letters after the 12th one are shown.
However, 24 letters at maximum can be shown on the display.
When you push this button for longer than 1 second or play no
operation for about 6 seconds with the letters after the 13th one
on the display, the display returns and shows the first 12 letters.
Even if the CD title or music title is longer than 24 letters, the
display can show up to 24 letters.

AUDIO
243
(i) If the player malfunctions
If the player or another unit equipped with the player
malfunctions,
your audio system will display the following error
messages.
If “WAIT” appears on the display: It indicates that the inside
of the player unit may be too hot due to the very high ambient
temperature. Remove the CD from the player and allow the
player to cool down.
If “ERROR 1” appears on the display: It indicates that the
CD is dirty, damaged, or it was inserted upside down. Clean
the CD or insert it correctly.
If “ERROR 3” or “ERROR 4” appears on the display: It
indicates there is trouble inside the system. Eject the CD.
If the malfunction is not rectified: Take your vehicle to your
Lexus dealer.
Audio remote controls (steering switches)
21x570
The switches are installed on the left side of the steering wheel.
“MODE” switch: Use this switch to change the mode. If a tape
or CD is not inserted, the “TAPE” or “CD” mode is skipped.
When you push the switch with the audio system turned off, the
audio system turns on.
“
” switches: Use these switches to adjust the volume.
Push “+” to increase the volu me and “–” to decrease the
volume. The volume continues to increase or decrease while
the switch is being pressed.

STARTING AND DRIVING
260
The shift position is displayed on the instrument
cluster.
P: Parking, engine starting and key removal position
R: Reverse position
N: Neutral position
D: Normal driving position (Shifting into overdrive
possible)
4: Position for engine braking (Shifting into overdrive not
possible)
When the cruise control is being used, even if you
downshift from “D” to “4”, engine braking will not be
enabled because the cruise control is not cancelled. For
the operation to decrease the vehicle speed, see page
278.
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking Correct use of the automatic transmission is explained in
the following parts.
(a) Normal driving
(b) Using engine braking
(c) Using the “3”, “2” and “L” positions
(d) Backing up
(e) Parking
(f) Good driving practice
(g) Driving in “2nd STRT” (second start) mode
(h) If you cannot shift the selector lever

STARTING AND DRIVING
269
REAR VIEW MONITOR SYSTEM
The rear view monitor system assists the driver by
displaying an image of the rear of the vehicle while
backing up. The displayed image on the screen is a
horizontally reversed mirror image of the inside rear view
mirror.
To display the rear view image on the screen, place the
selector lever in the “R” position when the ignition switch
is in the “ON” position.
If you move the selector lever out of the “R” position, the screen
returns to the previous screen. Operating another function of
the navigation system will display another screen.
The rear view monitor system is a supplemental device
intended to assist back up. When backing up, be sure to check
behind and all around the vehicle visually.
CAUTION
 Never depend on the rear view monitor system
entirely when backing up. Always make sure your
intended path is clear.
Use caution just as you would when backing up any
vehicle.
Never back up while looking only at the screen. The
image on the screen is different from actual
conditions. Depicted distances between objects and
flat surfaces will differ from actual distances. If you
back up while looking only at the screen, you may hit
a vehicle, a person or an object. When backing up, be
sure to check behind and all around the vehicle
visually and with mirrors before proceeding.
 Do not use the system when the back door is not
completely closed.
 If the back of the vehicle is hit, the position and
mounting angle of the camera may change. Be sure
to have the camera’s position and mounting angle
checked at your Lexus dealer.
 If the temperature changes rapidly , such as when hot
water is poured on the vehicle in cold weather, the
system may not operate normally.
 If the camera lens becomes dirty, it cannot transmit
a clear image. If water droplets, snow, or mud adhere
to the lens, rinse with water and wipe with a soft cloth.
If the lens is extremely dirty, wash it with a mild
cleanser and rinse.
 Use your own eyes to confirm the vehicle’s
surroundings, as the displayed image may become
faint or dark, and mov ing images will be distorted or
not entirely visible when outside temperature is low.
When backing up, be sure to check behind and all
around the vehicle visually and with mirror before
proceeding.

STARTING AND DRIVING
270AREA DISPLAYED ON SCREEN
Image is displayed approximately level on screen.
31x601a
Check surroundings for safety.

Corners of bumper
The area covered by the camera is limited. Objects
which are close to either corner of the bumper or under
the bumper cannot be seen on the screen.
 The area displayed on the screen may vary according
to vehicle orientation or road conditions.

STARTING AND DRIVING
272

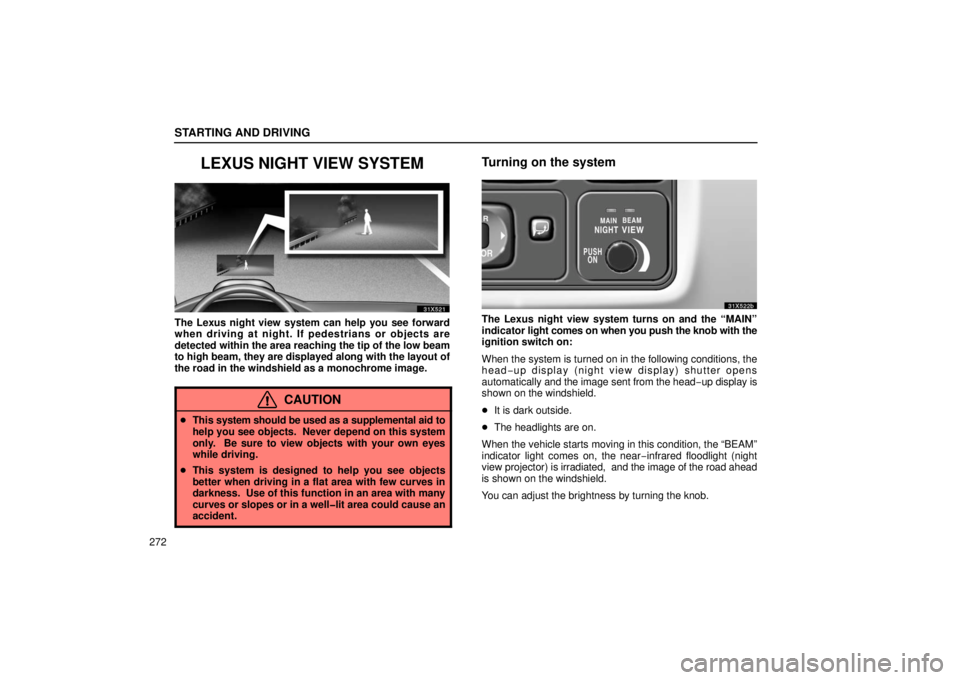

LEXUS NIGHT VIEW SYSTEM
31X521
The Lexus night view system can help you see forward
when driving at night. If pedestrians or objects are
detected within the area reaching the tip of the low beam
to high beam, they are displayed along with the layout of
the road in the windshield as a monochrome image.
CAUTION
 This system should be used as a supplemental aid to
help you see objects. Never depend on this system
only. Be sure to view objects with your own eyes
while driving.
 This system is designed to help you see objects
better when driving in a flat area with few curves in
darkness. Use of this function in an area with many
curves or slopes or in a welllit area could cause an
accident.
Turning on the system
31x522b
The Lexus night view system turns on and the “MAIN”
indicator light comes on when you push the knob with the
ignition switch on:
When the system is turned on in the following conditions, the
head− up display (night view display) shutter opens
automatically and the image sent from the head −up display is
shown on the windshield.
 It is dark outside.
 The headlights are on.
When the vehicle starts moving in this condition, the “BEAM”
indicator light comes on, the near −infrared floodlight (night
view projector) is irradiated, and the image of the road ahead
is shown on the windshield.
You can adjust the brightness by turning the knob.
