For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
xiiPage
1
Power window switches 39
. . . . . . . . . . . . . . . . . . . . . .
2 Power door lock switch 21
. . . . . . . . . . . . . . . . . . . . . .
3 Window lock switch 40
. . . . . . . . . . . . . . . . . . . . . . . . . .
4 Driving position memory switch 189
. . . . . . . . . . . . . .
5 Power quarter window switches 42
. . . . . . . . . . . . . .
6 Power rear view mirror control switches 194 . . . . . .
7 Roll sensing of curtain shield airbags off
switch 45, 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Headlight and turn signal switch 30
. . . . . . . . . . . . . .
9 Windshield wiper and washer switch 33
. . . . . . . . . .
10 Center differential lock switch 266
. . . . . . . . . . . . . . .
11 Power antenna switch 222
. . . . . . . . . . . . . . . . . . . . . . .
12 Emergency flasher switch 43
. . . . . . . . . . . . . . . . . . . .
13 Security indicator light 25
. . . . . . . . . . . . . . . . . . . . . . .
14 Outside temperature display 72
. . . . . . . . . . . . . . . . . .
15 Clock 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
16 Navigation system including air conditioning
controls (See the separate “Navigation System
Owner’s Manual”.)
17 Front passenger occupant classification
indicator light 157 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18 Front passenger’s seat belt reminder light 55 . . . . .
19 Audio system 218
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20 Glove box 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page
21 Tire pressure warning select switch
307
. . . . . . . . . .
22 Outside rear view mirror defogger switch 38 . . . . . .
23 Rear air conditioning switch 210
. . . . . . . . . . . . . . . . .
24 Power outlet 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25 Cigarette lighter 72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26 Fourwheel drive control lever 266
. . . . . . . . . . . . . . .
27 Seat heater switches 44
. . . . . . . . . . . . . . . . . . . . . . . . .
28 Rear window defogger switch 37
. . . . . . . . . . . . . . . . .
29 Ashtray 72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
30 Automatic transmission selector lever 259 . . . . . . . .
31 Damping mode select switch 287
. . . . . . . . . . . . . . . .
32 Active height control switch 279
. . . . . . . . . . . . . . . . .
33 Driving pattern selector switch 261
. . . . . . . . . . . . . . .
34 Second start mode selector switch 266
. . . . . . . . . . .
35 Cruise control switch 275
. . . . . . . . . . . . . . . . . . . . . . .
36 Telephone switches and speech command switch
(See the separate “Navigation System Owner’s
Manual”.)
37 Audio remote controls (Steering switches) 243 . . . .
38 Lexus night view system onoff knob 272
. . . . . . . .
39 Hood lock release lever 92
. . . . . . . . . . . . . . . . . . . . . .
40 Fuel filler door opener 93
. . . . . . . . . . . . . . . . . . . . . . . .
41 Tire pressure warning reset switch 305
. . . . . . . . . . .

For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
xivPage
1
Power window switches 39
. . . . . . . . . . . . . . . . . . . . . .
2 Power door lock switch 21
. . . . . . . . . . . . . . . . . . . . . .
3 Window lock switch 40
. . . . . . . . . . . . . . . . . . . . . . . . . .
4 Driving position memory switch 189
. . . . . . . . . . . . . .
5 Power quarter window switches 42
. . . . . . . . . . . . . .
6 Power rear view mirror control switches 194 . . . . . .
7 Roll sensing of curtain shield
airbags off switch 45, 146
. . . . . . . . . . . . . . . . . . . . . . . .
8 Headlight and turn signal switch 30
. . . . . . . . . . . . . .
9 Windshield wiper and washer switch 33
. . . . . . . . . .
10 Center differential lock switch 266
. . . . . . . . . . . . . . .
11 Power antenna switch 222
. . . . . . . . . . . . . . . . . . . . . . .
12 Emergency flasher switch 43
. . . . . . . . . . . . . . . . . . . .
13 Trip information display 63
. . . . . . . . . . . . . . . . . . . . . .
14 Clock 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
15 Outside temperature display 72
. . . . . . . . . . . . . . . . . .
16 Security indicator light 25
. . . . . . . . . . . . . . . . . . . . . . .
17 Audio system 218
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18 Front passenger occupant classification
indicator light 157 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19 Front passenger’s seat belt reminder light 55 . . . . .
20 Automatic air conditioning controls 202
. . . . . . . . . . Page
21 Glove box
76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22 Tire pressure warning select switch 307
. . . . . . . . . .
23 Outside rear view mirror defogger switch 38 . . . . . .
24 Rear air conditioning switch 210
. . . . . . . . . . . . . . . . .
25 Power outlet 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26 Cigarette lighter 72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27 Fourwheel drive control lever 266
. . . . . . . . . . . . . . .
28 Seat heater switches 44
. . . . . . . . . . . . . . . . . . . . . . . . .
29 Rear window defogger switch 37
. . . . . . . . . . . . . . . . .
30 Ashtray 72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
31 Automatic transmission selector lever 259 . . . . . . . .
32 Damping mode select switch 287
. . . . . . . . . . . . . . . .
33 Active height control switch 279
. . . . . . . . . . . . . . . . .
34 Driving pattern selector switch 261
. . . . . . . . . . . . . . .
35 Second start mode selector switch 266
. . . . . . . . . . .
36 Cruise control switch 275
. . . . . . . . . . . . . . . . . . . . . . .
37 Audio remote controls (Steering switches) 243 . . . .
38 Lexus night view system onoff knob 272
. . . . . . . .
39 Hood lock release lever 92
. . . . . . . . . . . . . . . . . . . . . .
40 Fuel filler door opener 93
. . . . . . . . . . . . . . . . . . . . . . . .
41 Tire pressure warning reset switch 305
. . . . . . . . . . .

px603a
PICTORIAL INDEX
xx

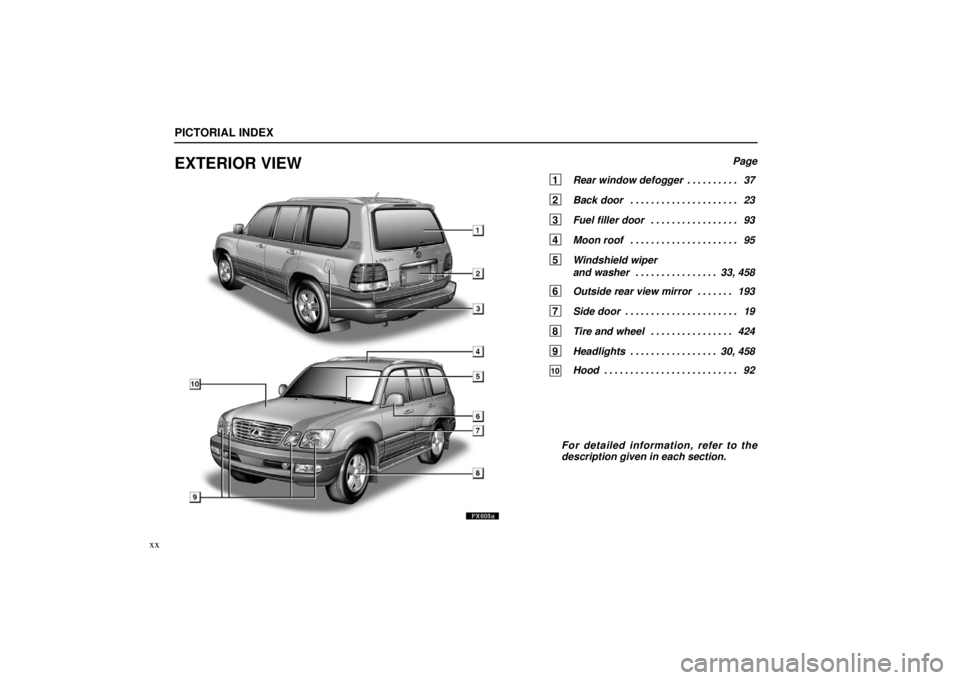

EXTERIOR VIEWPage
1 Rear window defogger 37
. . . . . . . . . .
2 Back door 23
. . . . . . . . . . . . . . . . . . . . .
3 Fuel filler door 93
. . . . . . . . . . . . . . . . .
4 Moon roof 95
. . . . . . . . . . . . . . . . . . . . .
5 Windshield wiper
and washer 33, 458
. . . . . . . . . . . . . . . .
6 Outside rear view mirror 193 . . . . . . .
7 Side door 19
. . . . . . . . . . . . . . . . . . . . . .
8 Tire and wheel 424
. . . . . . . . . . . . . . . .
9 Headlights 30, 458
. . . . . . . . . . . . . . . . .
10 Hood 92
. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each section.

SECTION 1 – 2
29
INSTRUMENTS AND CONTROLS
Switches
Headlight switch30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Headlight dimmer and turn signal switch 32
. . . . . . . . . . . . . . . . . . . . .
Fog light switch 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Windshield wiper and washer switch 33
. . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer switch 36
. . . . . . . . . . . . . . . . . . . . . . .
Headlight cleaner switch 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger switch 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirror defogger switch 38
. . . . . . . . . . . . . . . . . . . . .
Power window switches 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power quarter window switch 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Roll sensing of curtain shield airbags off switch 45
. . . . . . . . . . . . . . .

SWITCHES
35
To make the washer squirt, pull the lever toward you and
release it.
If the wiper lever is in the “OFF” position, the wipers will
automatically make 3 wipes and then a single wipe later to
sweep the windshield completely.* The interval between the
3 wipes and the last wipe will depend on the vehicle speed.
The last sweep does not happen if the vehicle speed exceeds
about 170 km/h (106 mph).
NOTE: *The last single wipe can be deactivated. Ask your
Lexus dealer for details.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes very low.
For information on adding washer fluid, see “Adding washer
fluid” on page 458.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
The rear window and outside rear view mirror defogger
automatically turns on when you operate the wipers.
NOTICE
Do not operate the wipers if the windshield is dry. It may
scratch the glass.
When waxing your vehicle, make sure the washer nozzles do
not become blocked. If a nozzle becomes blocked, contact
your Lexus dealer to have the vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not try to clear it with
a pin or other object. The nozzle will be damaged.

SWITCHES
38
NOTICE
When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires or
connectors.
 To prevent the battery from being discharged, turn
the switch off when the engine is not running.
OUTSIDE REAR VIEW MIRROR
DEFOGGER SWITCH
12X500a
To turn the electric outside rear view mirror defogger on,
push the switch.
The ignition key must be in the “ON” position.
The thin heater wires on the heater panels in the outside rear
view mirrors will quickly clear the surface. Keep your hands off
the mirror faces when the switch is on. An indicator light will
illuminate to indicate the defogger is operating.
The system will automatically shut off when the defogger has
operated about 15 minutes.

SWITCHES
39
CAUTION
Since the mirror surfaces can get hot, do not touch them
when the switch is on.
If further defrosting or defogging is desired, simply actuate the
switch again. When the surface has cleared, push the switch
once again to turn the defogger off. Continuous use may cause
the battery to discharge, especially during stop− and−go
driving. The defogger is not designed to dry rain water or to
melt snow.
If the outside rear view mirrors are heavily coated with ice, use
a spray de −icer before operating the switch.
NOTICE
To prevent the battery from being discharged, turn the
switch off when the engine is not running.
POWER WINDOW SWITCHES
12X006f
 1
For driver’s window
2For front passenger’s window
3For left rear window
4For right rear window
To raise or lower the windows, use the switch on each
door. The passengers’ windows can also be controlled by
the switches on the driver’s door.
The power windows work when the ignition key is in the “ON”
position.
Retained accessory power: Even if the ignition key is turned
to the “ACC” or “LOCK” position with all the doors closed, t\
he
window can be operated until either of the front doors is
opened (or for about 45 seconds).

OCCUPANT RESTRAINT SYSTEMS
189
DRIVING POSITION MEMORYSYSTEM
A microcomputer will memorize the position of the driver’s
seat, and the positions of the tilt and telescopic steering, and
outside rear view mirrors. Two different driving position
profiles can be entered into the computer’s memory.
Recording the driving position in the computer’s memory can
only be done when the ignition key is in the “ON” position and
the selector lever is in the “P” position.
Setting the driving position
16X162
1. Adjust the driver’s seat, tilt and telescopic steering and
outside rear view mirrors to the desired position.
2. While pushing the “SET” button, push button “1” or “2”
until the signal beeps. The beep sound means that the positions are recorded in the
computer’s memory.
By repeating these two steps
and pressing the remaining
button, the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
16X163
When you push button “1” or “2”, the driving position will
be automatically adjusted to the position recorded for that
button.
