GI-18
HOW TO USE THIS MANUAL
Revision: November 20092006 QX56

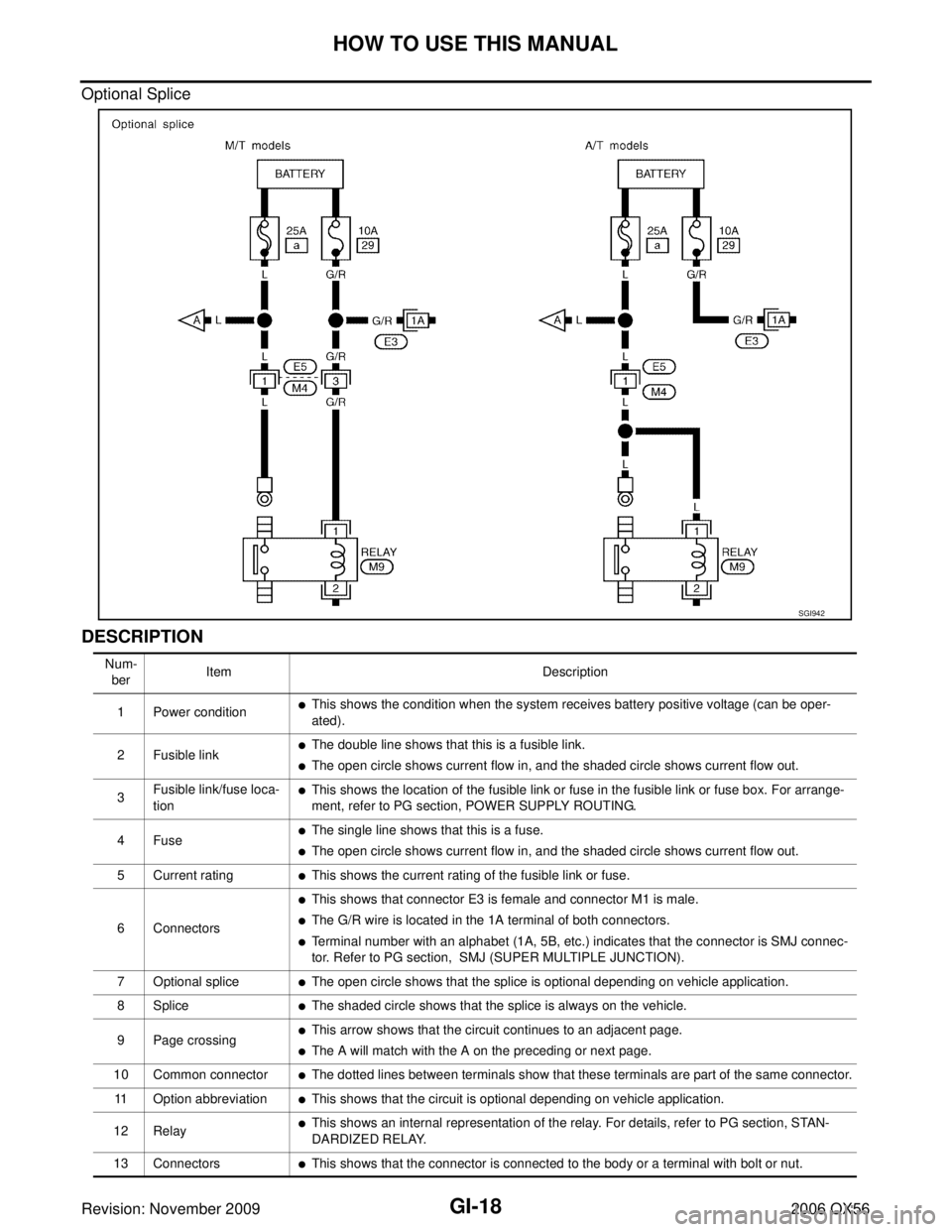

Optional Splice
DESCRIPTION
SGI942
Num-
ber Item
Description
1 Power condition

This shows the condition when the system receives battery positive voltage (can be oper-
ated).
2 Fusible link

The double line shows that this is a fusible link.

The open circle shows current flow in, and the shaded circle shows current flow out.
3 Fusible link/fuse loca-
tion

This shows the location of the fusible link or fuse in the fusible link or fuse box. For arrange-
ment, refer to PG section, POWER SUPPLY ROUTING.
4Fuse

The single line shows that this is a fuse.

The open circle shows current flow in, and the shaded circle shows current flow out.
5 Current rating

This shows the current rating of the fusible link or fuse.
6 Connectors

This shows that connector E3 is female and connector M1 is male.

The G/R wire is located in the 1A terminal of both connectors.

Terminal number with an alphabet (1A, 5B, etc.) indicates that the connector is SMJ connec-
tor. Refer to PG section, SMJ (SUPER MULTIPLE JUNCTION).
7 Optional splice

The open circle shows that the splice is optional depending on vehicle application.
8 Splice

The shaded circle shows that the splice is always on the vehicle.
9 Page crossing

This arrow shows that the circuit continues to an adjacent page.

The A will match with the A on the preceding or next page.
10 Common connector

The dotted lines between terminals show that these terminals are part of the same connector.
11 Option abbreviation

This shows that the circuit is optional depending on vehicle application.
12 Relay

This shows an internal representation of the relay. For details, refer to PG section, STAN-
DARDIZED RELAY.
13 Connectors

This shows that the connector is connected to the body or a terminal with bolt or nut.

HOW TO USE THIS MANUALGI-19
C
DE
F
G H
I
J
K L
M B
GI
Revision: November 2009 2006 QX56
14 Wire color

This shows a code for the color of the wire.
B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green BR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green
When the wire color is striped, the base color is given first, followed by the stripe color as shown
below:
Example: L/W = Blue with White Stripe
15 Option description

This shows a description of the option abbreviation used on the page.
16 Switch

This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-
tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.
17 Assembly parts

Connector terminal in component shows that it is a harness incorporated assembly.
18 Cell code

This identifies each page of the wiring diagram by section, system and wiring diagram page
number.
19 Current flow arrow

Arrow indicates electric current flow, especially where the direction of standard flow (vertically
downward or horizontally from left to right) is difficult to follow.

A double arrow “ ” shows that current can flow in either direction depending on cir-
cuit operation.
20 System branch

This shows that the system branches to another system identified by cell code (section and
system).
21 Page crossing

This arrow shows that the circuit continues to another page identified by cell code.

The C will match with the C on another page within the system other than the next or preced-
ing pages.
22 Shielded line

The line enclosed by broken line circle shows shield wire.
23 Component box in
wave line

This shows that another part of the component is also shown on another page (indicated by
wave line) within the system.
24 Component name

This shows the name of a component.
25 Connector number

This shows the connector number.

The letter shows which harness the connector is located in.

Example: M : main harness. For detail and to locate the connector, refer to PG section "Main
Harness", “Harness Layout ”. A coordinate grid is included for complex harnesses to aid in
locating connectors.
26 Ground (GND)

The line spliced and grounded under wire color shows that ground line is spliced at the
grounded connector.
27 Ground (GND)

This shows the ground connection. For detailed ground distribution information, refer to
"Ground Distribution" in PG section.
28 Connector views

This area shows the connector faces of the components in the wiring diagram on the page.
29 Common component

Connectors enclosed in broken line show that these connectors belong to the same compo-
nent.
30 Connector color

This shows a code for the color of the connector. For code meaning, refer to wire color codes,
Number 14 of this chart.
31 Fusible link and fuse
box

This shows the arrangement of fusible link(s) and fuse(s), used for connector views of
"POWER SUPPLY ROUTING" in PG section.
The open square shows current flow in, and the shaded square shows current flow out.
32 Reference area

This shows that more information on the Super Multiple Junction (SMJ) and Joint Connectors
(J/C) exists on the PG section. Refer to "Reference Area" for details.
Num-
ber Item
Description

POWER WINDOW SYSTEMGW-15
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
POWER WINDOW SYSTEMPFP:25401

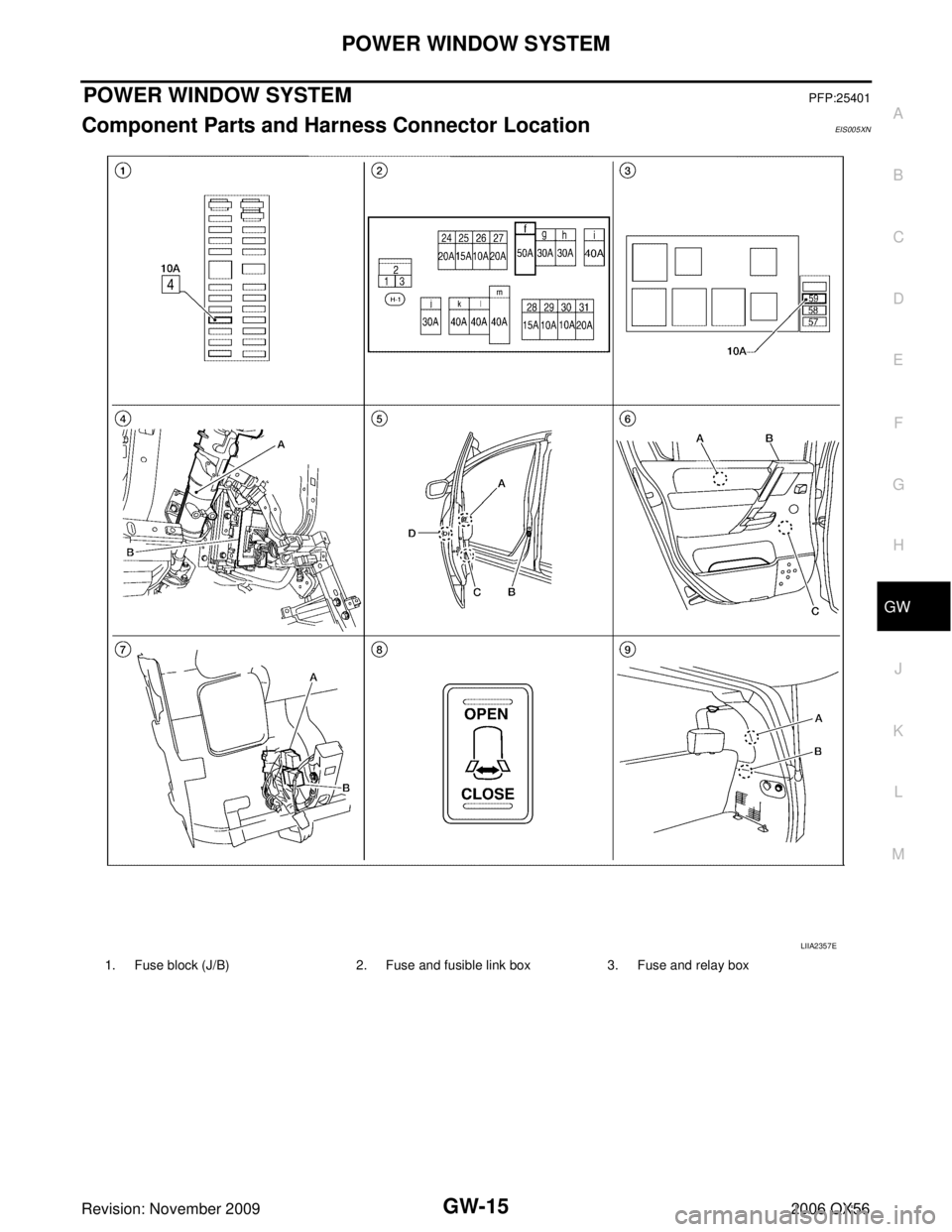

Component Parts and Harness Connector LocationEIS005XN
1. Fuse block (J/B)2. Fuse and fusible link box3. Fuse and relay box
LIIA2357E

GW-16
POWER WINDOW SYSTEM
Revision: November 20092006 QX56
System DescriptionEIS005XO
Power is supplied at all time

from 50A fusible link (letter f , located in the fuse and fusible link box)

to BCM terminal 70

through BCM terminal 69

to main power window and door lock/unlock switch terminal 19

to power window and door lock/unlock switch RH terminal 10.
With ignition switch in ON or START position, power is supplied

through 10A fuse (No. 59, located in the fuse and relay box)

to BCM terminal 38

through BCM terminal 68

to main power window and door lock/unlock switch terminal 10.

to rear power vent window relays (OPEN and CLOSE) terminal 1.
With ignition switch in ON or START position, ground is supplied

to BCM terminal 67

to main power window and door lock/unlock switch terminal 17

to power window and door lock/unlock switch RH terminal 11

through body grounds M57, M61 and M79.
MANUAL OPERATION
Front Door LH
WINDOW UP
When the front LH switch in the main power window and door lock/unlock switch is pressed in the up position,
power is supplied

through main power window and door lock/unlock switch terminal 8

to front power window motor LH terminal 2.
Ground is supplied

through main power window and door lock/unlock switch terminal 11

to front power window motor LH terminal 1.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the front LH switch in the main power window and door lock/unlock switch is pressed in the down posi-
tion, power is supplied

through main power window and door lock/unlock switch terminal 11

to front power window motor LH terminal 1.
Ground is supplied

through main power window and door lock/unlock switch terminal 8

to front power window motor LH terminal 2.
Then, the motor lowers the window until the switch is released.
4. A. Steering column B. BCM M18, M19, M20
(View with instrument panel
removed) 5. A. Main power window and door
lock/unlock switch D7, D8
Power window and door lock/unlock
switch RH D105
B. Front door switch LH B8, RH
B108
C. Front power window motor LH
D9, RH D104
D. Front door lock actuator LH (key
cylinder switch) 6. A. Rear power window switch LH
D203, RH D303
B. Rear power window motor LH
D204, RH D304
7. A. Rear power vent window relay (CLOSE)
B. Rear power vent window relay
(OPEN) 8. Rear power vent window switch
R103 9. A. Rear power vent window motor
LH B52, RH B150
B. Condenser-3 B119
Condenser-4 B120

POWER WINDOW SYSTEMGW-37
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
BCM Power Supply and Ground Circuit CheckEIS005XY
1. CHECK FUSE AND FUSIBLE LINK

Check 10A fuse (No. 4, located in the fuse block (J/B)]

Check 10A fuse (No. 59, located in the fuse and relay box)

Check 50A fusible link (letter f , located in the fuse and fusible link box)
NOTE:
Refer to GW-15, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "PRECAUTIONS" .
2. CHECK BCM POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM.
3. Check voltage between BCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace the harness.
3. CHECK GROUND CIRCUIT
Check continuity between BCM connector M20 terminal 67 and
ground.
OK or NG
OK >> Power supply and ground circuit is OK.
NG >> Repair or replace harness.
Connector Terminals
Power
source Condition Voltage (V)
(Approx.)
(+) (-)
M20 70 Ground Battery
power
supply Ignition
switch
OFF Battery voltage
M18 38 Ground
Ignition
power
supply Ignition
switch
ON or
START Battery voltage
11 Ground ACC
power
supply Ignition
switch
ACC or ON Battery voltage
LIIA0995E
67 - Ground
: Continuity should exist.
LIIA0915E

GW-74
REAR WINDOW DEFOGGER
Revision: November 20092006 QX56
REAR WINDOW DEFOGGERPFP:25350
Component Parts and Harness Connector LocationEIS005YM
1. IPDM E/R fuse layout2. Fuse block (J/B) 3. Fuse and fusible link box
4. Fuse and relay box 5. Data link connector M22 6. BCM M18, M20 (View with instru-
ment panel removed)
7. Front air control M49, M50 8. A. Rear window defogger ground
connector D604
B. Rear window defogger connector
D406 9. IPDM E/R E118, E120, E122, E124
10. Door mirror LH D4 Door mirror RH D107
LIIA2329E

REAR WINDOW DEFOGGERGW-75
C
DE
F
G H
J
K L
M A
B
GW
Revision: November 2009 2006 QX56
System DescriptionEIS005YN
The rear window defogger system is controlled by BCM (body control module) and IPDM E/R (intelligent
power distribution module engine room).
The rear window defogger operates only for approximately 15 minutes.
Power is supplied at all times

through 15A fuses (No. 43, 46, and 47 located in the IPDM E/R)

to rear window defogger relay and heated mirror relay (located in the IPDM E/R)

through 50A fusible link (letter f , located in the fuse and fusible link box)

to BCM terminal 70.
With the ignition switch turned to ON or START position, power is supplied

through ignition switch

to rear window defogger relay (located in the IPDM E/R)

through 10A fuse (No. 59, located in the fuse and relay box)

to BCM terminal 38

through 10A fuse [No. 8, located in the fuse block (J/B)]

to front air control terminal 14.
Ground is supplied

to BCM terminal 67

to front air control terminal 1

through body grounds M57, M61 and M79

to IPDM E/R terminals 38 and 59

through body grounds E9, E15 and E24.
When front air control (rear window defogger switch) is turned to ON, ground is supplied

to BCM terminal 9

through front air control terminal 11

through front air control terminal 1

through body grounds M57, M61 and M79.
Then rear window defogger switch is illuminated.
Then BCM recognizes that rear window defogger switch is turned to ON.
Then it sends rear window defogger switch signals to IPDM E/R and display control unit via CAN communica-
tion (CAN-H, CAN-L).
When display control unit receives rear window defogger switch signals, and displays on the screen.
When IPDM E/R receives rear window defogger switch signals, ground is supplied

to rear window defogger relay (located in the IPDM E/R)

through IPDM E/R terminal 38

through IPDM E/R terminal 59

through body grounds E9, E15 and E24
and then rear window defogger relay is energized.
With power and ground supplied, rear window defogger filaments heat and defog the rear window.
When rear window defogger relay is turned to ON, power is supplied

through heated mirror relay (located in the IPDM E/R)

through IPDM E/R terminal 23

to door mirror defogger (LH and RH) terminal 10.
Door mirror defogger (LH and RH) is grounded through body grounds M57, M61 and M79.
With power and ground supplied, rear window defogger filaments heat and defog the rear window and door
mirror defogger filaments heat and defog the mirror.
CAN Communication System DescriptionEIS005YO
Refer to LAN-26, "CAN COMMUNICATION" .

GW-84
REAR WINDOW DEFOGGER
Revision: November 20092006 QX56
BCM Power Supply and Ground Circuit CheckEIS005YW
1. CHECK FUSES AND FUSIBLE LINK

Check 10A fuse (No. 8, located in the fuse block (J/B)]

Check 10A fuse (No. 59, located in the fuse and relay box)

Check 50A fusible link (letter f , located in the fuse and fusible link box)
NOTE:
Refer to GW-74, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
4, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between BCM connector M18, M20 terminals 38, 70
and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM.
3. Check continuity between BCM connector M20 terminal 67 and ground.
OK or NG
OK >> BCM power supply and ground circuit is OK.
NG >> Repair or replace harness. 70 - Ground
: Battery voltage
38 - Ground : Battery voltage
LIIA0914E
67 - Ground : Continuity should exist.
LIIA0915E
