2006 INFINITI QX56 engine oil

CYLINDER BLOCKEM-79
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56
* Refer to GI-46, "Recommended Chemical Products and Sealants" .
DISASSEMBLY
NOTE:
Explained here is how to disassemble with engine stand supporting transmission surface. When using differ-
ent type of engine stand, some steps may be different.
1. Remove engine assembly and mount to engine stand. Refer to EM-74, "
Removal and Installation" .
CAUTION:
Before removing the hanging chains, make sure engine stand is stable and there is no risk of over-
turning.
2. Drain engine oil. Refer to LU-8, "
Changing Engine Oil" .
3. Drain engine coolant by removing the cylinder block drain plugs “A”, “B ”, “C” and “D ” as shown.
4. Remove the following components and associated parts (the parts referred to in step 1 are not included here).

Oil pan (upper and lower) and oil strainer. Refer to EM-24, "Removal and Installation" .

Crankshaft pulley, front cover and timing chain. Refer to EM-37, "Removal and Installation" .

Camshaft. Refer to EM-46, "Removal and Installation" .

Cylinder head. Refer to EM-64, "Removal and Installation" .
5. Remove knock sensor and sub harness.
CAUTION:
Carefully handle sensor, avoiding shocks.
6. Check connecting rod side clearance. Refer to EM-94, "
CONNECTING ROD SIDE CLEARANCE" .
7. Remove piston and connecting rod assembly as follows.
a. Position the crankshaft pin corresponding to the connecting rod to be removed onto bottom dead center.
1. Knock sensor sub-harness 2. Knock sensor 3. Cylinder block
4. Main bearing upper 5. Top ring 6. Second ring
7. Oil ring 8. Crankshaft key 9. Piston
10. Connecting rod 11. Snap ring 12. Piston pin
13. Connecting rod bearing 14. Connecting rod bearing cap 15. Main bearing cap
16. Thrust bearing lower 17. Main bearing lower 18. Crankshaft
19. Pilot converter 20. Thrust bearing upper 21. Side bolt
22. Drive plate 23. Reinforcement plate 24. Rear oil seal retainer
25. Rear oil seal 26. Transmission 27. O-ring
28. Crankshaft position sensor (POS) 29. Gasket 30. Cylinder block heater
31. Connector cap
WBIA0419E
KBIA2549E

EM-82Revision: November 2009

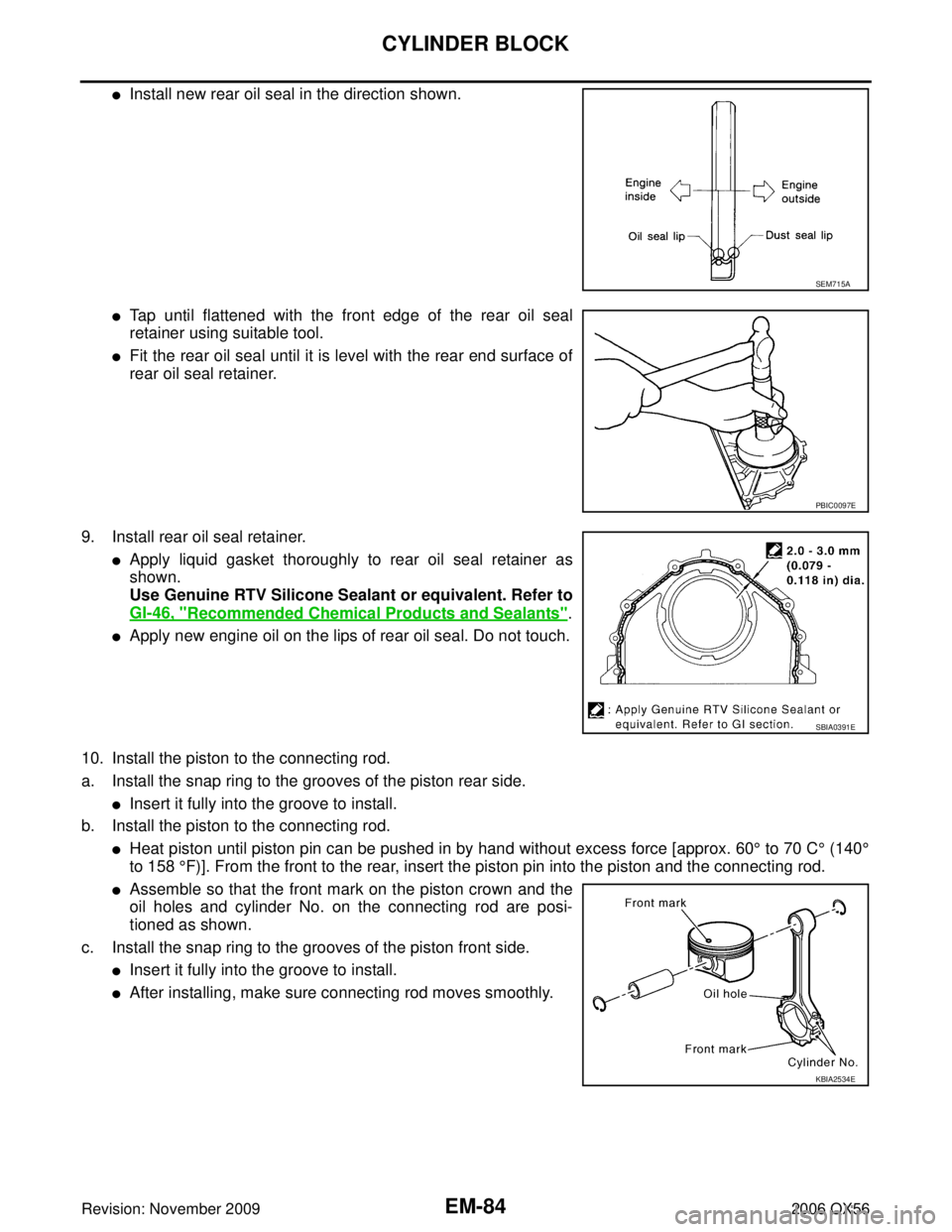

CYLINDER BLOCK
2006 QX56
18. Remove pilot converter using Tool if necessary.
ASSEMBLY
1. Fully air-blow the coolant and oil passages in the cylinder block, cylinder bore, and crankcase to removeany foreign material.
CAUTION:
Use goggles to protect your eyes.
2. Install each plug to the cylinder block (only screw-type plugs are shown).

Apply liquid gasket.
Use Genuine Thread Sealant or equivalent. Refer to GI-
46, "Recommended Chemical Products and Sealants".

Replace copper washers with new ones.

Tighten each plug as specified below.
3. Install main bearings and thrust bearings.
a. Remove any dust, dirt, and oil on the bearing mating surfaces of the cylinder block and main bearing caps.
b. Install thrust bearings to both sides of the No. 3 journal housing on the cylinder block and main bearing caps

Install thrust bearings with the oil groove facing the crankshaft
arm (outside).

Install thrust bearings with a protrusion in the center on the
main bearing caps.
c. Install main bearings paying attention to the direction.

Install the one with oil holes onto the cylinder block and the
one without oil holes onto the main bearing cap.

Before installing bearings, apply engine oil to bearing surface
(inside). Do not apply oil to the back surface, but thoroughly
clean it.

When installing, align the bearing stopper to the notch.

Ensure the oil holes on the cylinder block and those on the
corresponding bearing are aligned. Tool number : ST16610001 (J-23907)
WBIA0596E
Part Washer
Tightening torque
A Yes 53.9 N·m (5.5 kg-m, 40 ft-lb)
BNo 19.6 N ·m (2.0 kg-m, 15 ft-lb)
C Yes 62.7 N·m (6.4 kg-m, 46 ft-lb)
D Yes 62.7 N·m (6.4 kg-m, 46 ft-lb)
WBIA0419E
PBIC0093E
PBIC0094E

CYLINDER BLOCKEM-83
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56
4. Install pilot converter to the crankshaft using suitable tool.
5. Install crankshaft to the cylinder block.

While turning crankshaft by hand, make sure it turns
smoothly.
6. Install main bearing caps.

Align the identification number to the journal position to install.

Install it with the front mark (indicated by the arrow) facing the
front of engine.

Tap caps lightly to seat them in the installation position.
7. Follow the steps below to tighten each main bearing cap bolt.
a. Apply engine oil to threads and seating surfaces of bolts, and tighten all bolts temporarily.
b. Measure tightening angle using Tool. CAUTION:
Measure tightening angle using Tool. Do not measure visu-
ally.

Rotate crankshaft by hand after bolts are tightened. Check if it rotates smoothly.

Check crankshaft side clearance. Refer to EM-94, "CRANKSHAFT END PLAY" .
8. Install rear oil seal to rear oil seal retainer. CAUTION:
Do not damage or scratch outer circumference of oil seal.
EMP0569D
KBIA2533E
Main bearing cap bolts
in order of 1 to 10 : 39.2 N·m (4.0 kg-m, 29 ft.-lb)
Main bearing cap sub
bolts in order of 11 to 20 : 29.4 N·m (3.0 kg-m, 22 ft-lb)
PBIC0090E
Tool number : KV10112100 (BT-8653-A)
Main bearing cap bolts in
order of 1 to 10 : 40
°
Main bearing cap sub
bolts in order of 11 to 20 : 30
°
Side bolts in order of 21 to
30 : 49 N·m (5.0 kg-m, 36 ft-lb)
WBIA0597E

EM-84Revision: November 2009
CYLINDER BLOCK
2006 QX56

Install new rear oil seal in the direction shown.

Tap until flattened with the front edge of the rear oil seal
retainer using suitable tool.

Fit the rear oil seal until it is level with the rear end surface of
rear oil seal retainer.
9. Install rear oil seal retainer.

Apply liquid gasket thoroughly to rear oil seal retainer as
shown.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-46, "
Recommended Chemical Products and Sealants".

Apply new engine oil on the lips of rear oil seal. Do not touch.
10. Install the piston to the connecting rod.
a. Install the snap ring to the grooves of the piston rear side.

Insert it fully into the groove to install.
b. Install the piston to the connecting rod.

Heat piston until piston pin can be pushed in by hand without excess force [approx. 60 ° to 70 C ° (140 °
to 158 ° F)]. From the front to the rear, insert the piston pin into the piston and the connecting rod.

Assemble so that the front mark on the piston crown and the
oil holes and cylinder No. on the connecting rod are posi-
tioned as shown.
c. Install the snap ring to the grooves of the piston front side.

Insert it fully into the groove to install.

After installing, make sure connecting rod moves smoothly.
SEM715A
PBIC0097E
SBIA0391E
KBIA2534E

CYLINDER BLOCKEM-85
C
DE
F
G H
I
J
K L
M A
EM
Revision: November 2009 2006 QX56
11. Install piston rings.
CAUTION:
Do not damage piston.

Position each ring with the gap as shown, referring to the pis-
ton front mark.

Install the second ring with the stamped surface facing
upward.
12. Install the connecting rod bearings to the connecting rod and connecting rod cap.

When installing the connecting rod bearings, apply engine oil
to the bearing surface (inside). Do not apply oil to the back
surface, but thoroughly clean it.

When installing, align the connecting rod bearing stopper pro-
trusion with the cutout of the connecting rod to install.

Check that the oil holes on the connecting rod and those on
the corresponding bearing are aligned.
13. Install the piston and connecting rod assembly to the crankshaft using Tool.

Position the crankshaft pin corresponding to the connecting
rod to be installed onto bottom dead center.

Apply engine oil sufficiently to the cylinder bore, piston, and
crankshaft pin.

Match the cylinder position with the cylinder No. on the con-
necting rod to install.

Install the piston with the front mark on the piston crown fac-
ing the front of the engine.
CAUTION:
Be careful not to damage the crankshaft pin, resulting from an interference of the connecting
rod big end.
14. Install connecting rod cap.

Match the stamped cylinder number marks on the connecting
rod with those on the cylinder cap to install. Stamped mark Second ring : 2N
PBIC0100E
PBIC0266E
Tool number : EM03470000 (J-8037)
WBIA0626E
KBIA2536E

EM-86Revision: November 2009
CYLINDER BLOCK
2006 QX56
15. Tighten connecting rod bolts using Tool.

Apply engine oil to threads and seats of connecting rod bolts.

After tightening bolts, make sure the crankshaft rotates
smoothly.

Check connecting rod side clearance. Refer to EM-94, "CON-
NECTING ROD SIDE CLEARANCE" .
16. Install knock sensors. CAUTION:
If knock sensor is dropped, replace it with a new one.

Make sure that there is no foreign material on the cylinder
block mating surface and the back surface of knock sensor.

Install it with its connector facing the center of the cylinder
block side.

Do not tighten knock sensor bolts while holding connector.

Make sure knock sensor does not interfere with other parts.

Position the sub-harness as shown before installing intake
manifold.
17. Installation of the remaining components is in the reverse order of removal.
18. Remove engine assembly from engine stand.
19. Install drive plate.

Align dowel pin of crankshaft rear end with pin holes of each
part to install. Tool number : KV10112100 (BT-8653-A)
Connecting rod bolts
Step 1
: 19.6 N·m (1.5 kg-m, 11 ft-lb)
Step 2 : 90° clockwise
WBIA0627E
KBIA2493E
KBIA2549E
KBIA2494E

DRIVE SHAFTFAX-7
CE F
G H
I
J
K L
M A
B
FA X
Revision: November 2009 2006 QX56
DRIVE SHAFTPFP:39100
Removal and InstallationEDS003BP
REMOVAL
1. Remove wheel and tire using power tool.
2. Remove engine under cover using power tool.
3. Remove wheel sensor harness from mount on knuckle.
CAUTION:
Do not pull on wheel sensor harness.
4. Without disassembling the hydraulic lines, remove brake caliper using power tool. Reposition it aside with wire. Refer to BR-22, "
Removal and Installation of Brake Caliper and Disc Rotor" .
NOTE:
Avoid depressing brake pedal while brake caliper is removed.
5. Remove coil spring and shock absorber assembly using power tool. Refer to FSU-10, "
Removal and
Installation" .
6. Separate upper link ball joint stud from steering knuckle using To o l .

Support lower link with jack.
7. Remove cotter pin, then remove drive shaft nut.
8. Remove drive shaft mounting bolts from front final drive.
9. Remove drive shaft from wheel hub and bearing assembly. CAUTION:

When removing drive shaft, do not apply an excessive
angle to drive shaft joint. Also be careful not to exces-
sively extend slide joint.
INSPECTION AFTER REMOVAL

Move joint up, down, left, right, and in axial direction. Check for any rough movement or significant loose-
ness.

Check boot for cracks or other damage, and for grease leakage.

If damaged, disassemble drive shaft to verify damage, and
repair or replace as necessary.
1. Cotter pin 2. Drive shaft nut3. Drive shaft
WDIA0329E
Tool number : ST29020001 (J-24319-01)
LEIA0095E
RAA0030D

DIFFERENTIAL GEAR OILFFD-7
CE F
G H
I
J
K L
M A
B
FFD
Revision: November 2009 2006 QX56
DIFFERENTIAL GEAR OILPFP:KLD30
Changing Differential Gear OilEDS00451
DRAINING
1. Stop the engine.
2. Remove the drain plug from the front final drive assembly to drain the differential gear oil.
3. Install the drain plug with sealant applied on the threads to the front final drive assembly. Tighten to the
specified torque. Refer to FFD-14, "
COMPONENTS" .

Use High Performance Thread Sealant or equivalent. Refer to GI-46, "Recommended Chemical Prod-
ucts and Sealants" .
FILLING
1. Remove the filler plug from the front final drive assembly.
2. Fill the front final drive assembly with new differential gear oil
until the level reaches the specified level near the filler plug hole.
3. Install the filler plug with sealant applied on the threads to the front final drive assembly. Tighten to the specified torque. Refer
to FFD-14, "
COMPONENTS" .

Use High Performance Thread Sealant or equivalent. Refer to
GI-46, "
Recommended Chemical Products and Sealants" .
Checking Differential Gear OilEDS00452
DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL
1. Make sure that differential gear oil is not leaking from the front final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as
shown.
CAUTION:
Do not start engine while checking differential gear oil level.
3. Install the filler plug with sealant applied on the threads to the front final drive assembly. Tighten to the specified torque. Refer
to FFD-14, "
COMPONENTS" .

Use High Performance Thread Sealant or equivalent. Refer to
GI-46, "
Recommended Chemical Products and Sealants" .
Differential gear oil
grade and capacity
: Refer to
MA-11, "
Fluids
and Lubricants" .
LDIA0176E
LDIA0176E
