PREPARATION
EM-169
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Commercial Service ToolsNBS004OF
(Kent-Moore No.)
To o l n a m eDescription
(—)
Power toolLoosening nuts and bolts
(—)
Spark plug wrenchRemoving and installing spark plug
(—)
Manual lift table caddyRemoving and installing engine
(—)
1.Compression gauge
2.AdapterChecking compression pressure
(J–24239-01)
Cylinder head bolt wrenchLoosening and tightening cylinder head bolt,
and use with angle wrench [SST:
KV10112100 (BT–8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)
(—)
Valve seat cutter setFinishing valve seat dimensions
(—)
Piston ring expanderRemoving and installing piston ring
PBIC0190E
S-NT047
ZZA1210D
ZZA0008D
NT583
S-NT048
S-NT030

EM-172
[VK45DE]
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
Revision: 2006 January2006 M35/M45
Use the Chart Below to Help You Find the Cause of the Symptom.NBS004OH
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not relatedLocation
of noiseTy p e o f
noiseOperating condition of engine
Source of
noiseCheck itemRefer-
ence page Before
warm-
upAfter
warm-
upWhen
start-
ingWhen
idlingWhen
racingWhile
driving
Top of
engine
Rocker
cover
Cylinder
headTicking or
clickingC A — A B — Tappet noise Valve clearanceEM-222
Rattle C A — A B CCamshaft
bearing noiseCamshaft journal oil
clearance
Camshaft runoutEM-217EM-216
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil panSlap or
knock—A—B B—Piston pin
noisePiston to piston pin oil
clearance
Connecting rod bush-
ing oil clearanceEM-266
EM-268
Slap or
rapA——B B APiston slap
noisePiston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsionEM-270EM-267
EM-267
EM-268
Knock A B C B B BConnecting
rod bearing
noiseConnecting rod bush-
ing oil clearance
Connecting rod bear-
ing oil clearanceEM-268EM-273
Knock A B — A B CMain bearing
noiseMain bearing oil clear-
ance
Crankshaft runoutEM-274EM-272
Front of
engine
front coverTapping or
tickingAA—BBBTiming chain
and chain
tensioner
noiseTiming chain cracks
and wear
Timing chain tensioner
operationEM-208
EM-203
Front of
engineSqueak-
ing or fizz-
ingAB—B—CDrive belts
(Sticking or
slipping)Drive belts deflection
EM-174CreakingA BAB A BDrive belts
(Slipping)Idler pulley bearing
operation
Squall
CreakAB—BABWater pump
noiseWater pump operationCO-53,
"WATER
PUMP"

EM-174
[VK45DE]
DRIVE BELTS
Revision: 2006 January2006 M35/M45
DRIVE BELTSPFP:02117
ComponentsNBS004OK
Checking Drive BeltsNBS004OL

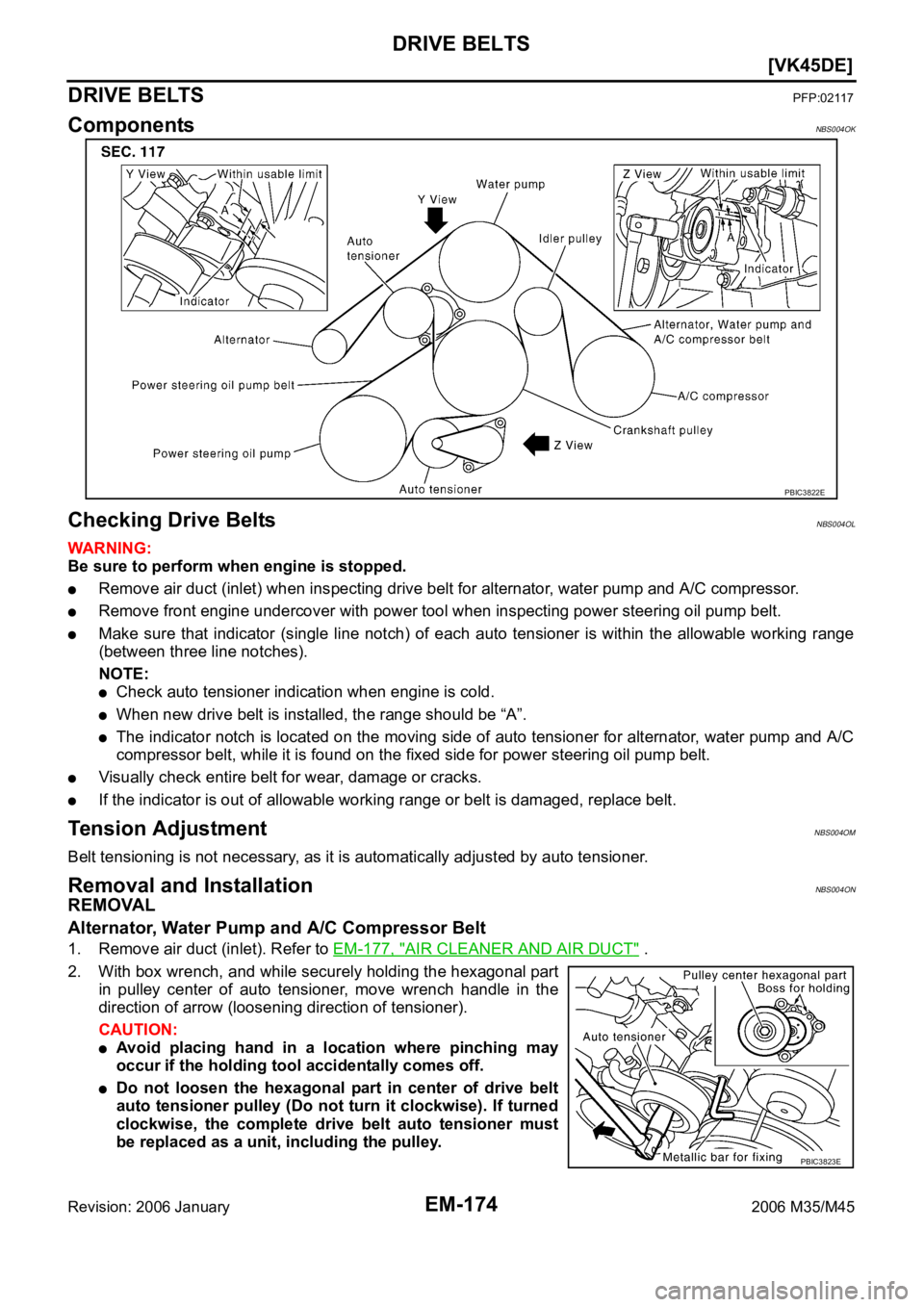

WAR NING :
Be sure to perform when engine is stopped.
Remove air duct (inlet) when inspecting drive belt for alternator, water pump and A/C compressor.
Remove front engine undercover with power tool when inspecting power steering oil pump belt.
Make sure that indicator (single line notch) of each auto tensioner is within the allowable working range
(between three line notches).
NOTE:
Check auto tensioner indication when engine is cold.
When new drive belt is installed, the range should be “A”.
The indicator notch is located on the moving side of auto tensioner for alternator, water pump and A/C
compressor belt, while it is found on the fixed side for power steering oil pump belt.
Visually check entire belt for wear, damage or cracks.
If the indicator is out of allowable working range or belt is damaged, replace belt.
Te n s i o n A d j u s t m e n tNBS004OM
Belt tensioning is not necessary, as it is automatically adjusted by auto tensioner.
Removal and InstallationNBS004ON
REMOVAL
Alternator, Water Pump and A/C Compressor Belt
1. Remove air duct (inlet). Refer to EM-177, "AIR CLEANER AND AIR DUCT" .

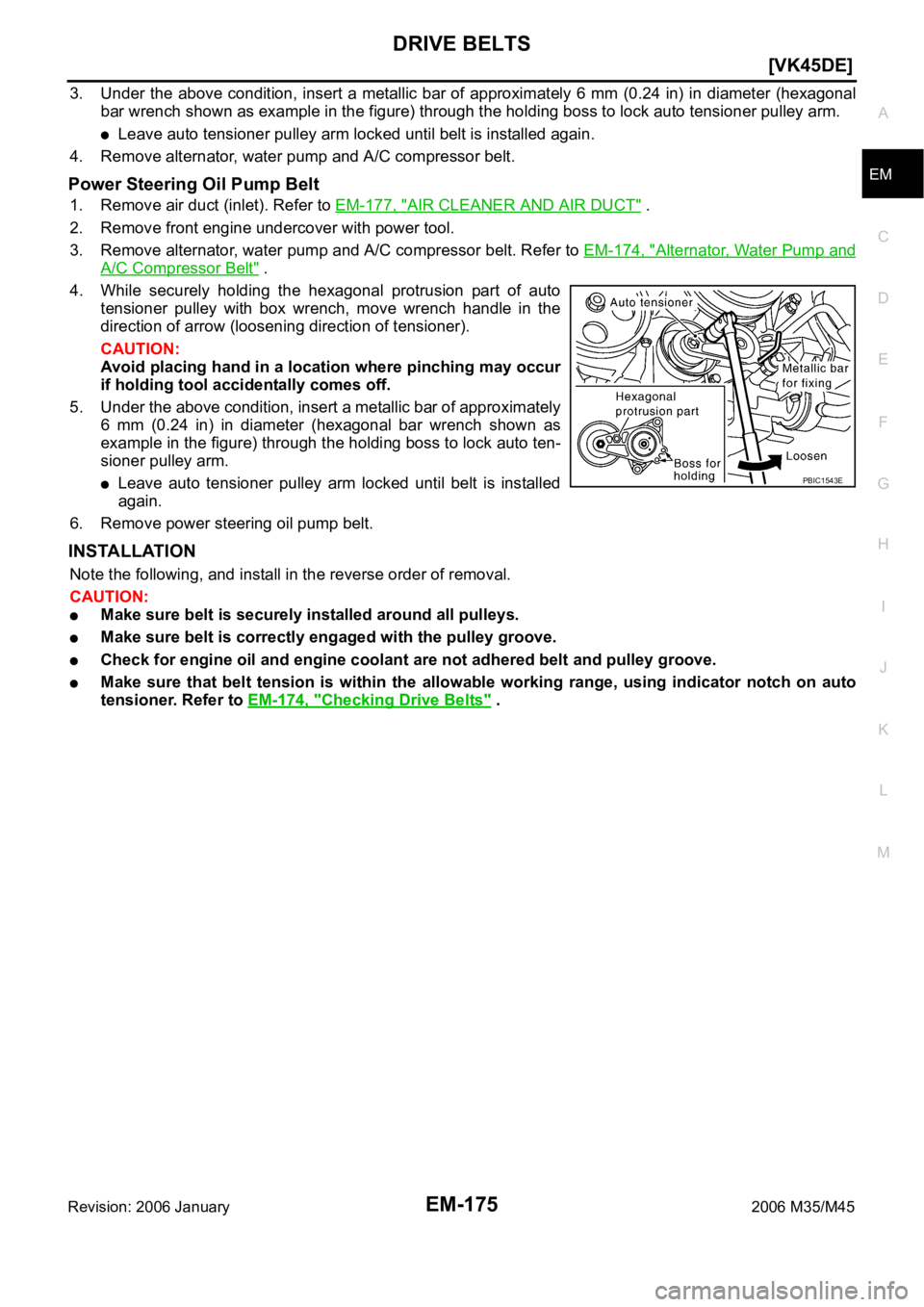

2. With box wrench, and while securely holding the hexagonal part
in pulley center of auto tensioner, move wrench handle in the
direction of arrow (loosening direction of tensioner).
CAUTION:
Avoid placing hand in a location where pinching may
occur if the holding tool accidentally comes off.
Do not loosen the hexagonal part in center of drive belt
auto tensioner pulley (Do not turn it clockwise). If turned
clockwise, the complete drive belt auto tensioner must
be replaced as a unit, including the pulley.
PBIC3822E
PBIC3823E

DRIVE BELTS
EM-175
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
3. Under the above condition, insert a metallic bar of approximately 6 mm (0.24 in) in diameter (hexagonal
bar wrench shown as example in the figure) through the holding boss to lock auto tensioner pulley arm.
Leave auto tensioner pulley arm locked until belt is installed again.
4. Remove alternator, water pump and A/C compressor belt.
Power Steering Oil Pump Belt
1. Remove air duct (inlet). Refer to EM-177, "AIR CLEANER AND AIR DUCT" .
2. Remove front engine undercover with power tool.
3. Remove alternator, water pump and A/C compressor belt. Refer to EM-174, "
Alternator, Water Pump and
A/C Compressor Belt" .
4. While securely holding the hexagonal protrusion part of auto
tensioner pulley with box wrench, move wrench handle in the
direction of arrow (loosening direction of tensioner).
CAUTION:
Avoid placing hand in a location where pinching may occur
if holding tool accidentally comes off.
5. Under the above condition, insert a metallic bar of approximately
6 mm (0.24 in) in diameter (hexagonal bar wrench shown as
example in the figure) through the holding boss to lock auto ten-
sioner pulley arm.
Leave auto tensioner pulley arm locked until belt is installed
again.
6. Remove power steering oil pump belt.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Make sure belt is securely installed around all pulleys.
Make sure belt is correctly engaged with the pulley groove.
Check for engine oil and engine coolant are not adhered belt and pulley groove.
Make sure that belt tension is within the allowable working range, using indicator notch on auto
tensioner. Refer to EM-174, "
Checking Drive Belts" .
PBIC1543E

EM-182
[VK45DE]
INTAKE MANIFOLD
Revision: 2006 January2006 M35/M45
INSPECTION AFTER REMOVAL
Surface Distortion
Check the surface distortion of both the intake manifold (upper
and lower) mating surfaces with straightedge and feeler gauge.
If it exceeds the limit, replace intake manifolds (lower and/or
upper).
INSTALLATION
Note the following, and install in the reverse order of removal.
Intake Manifold (Lower)
Tighten in numerical order as shown in the figure.
There are two types of mounting bolts. Refer to the following for
locating bolts.
Intake Manifold (Upper)
Tighten in numerical order as shown in the figure.
Electric Throttle Control Actuator
Install gasket with its directional protrusion set up/downward.
Tighten mounting bolts of electric throttle control actuator equally and diagonally in several steps.
After installation perform procedure in EM-182, "INSPECTION AFTER INSTALLATION" .
Water Hose
Insert hose by 27 to 32 mm (1.06 to 1.26 in) from connector end.
Vac u u m H ose
Refer to EC-833, "Vacuum Hose Drawing" .
INSPECTION AFTER INSTALLATION
Perform the “Throttle Valve Closed Position Learning” when harness connector of electric throttle control
actuator is disconnected. Refer to EC-806, "
Throttle Valve Closed Position Learning" .
Perform the “Idle Air Volume Learning” and “Throttle Valve Closed Position Learning” when electric throt-
tle control actuator is replaced. Refer to EC-807, "
Idle Air Volume Learning" . Limit : 0.1 mm (0.004 in)
PBIC0016E
: Engine front
M8 90 mm (3.54 in) : 7, 8
M8
35 mm (1.38 in) Except the above
PBIC3298E
: Engine front
PBIC3297E

EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-185
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
b. Remove nuts on bottom of engine mounting insulator (RH), and lift up right side of engine approximately 3
cm (1.18 in) with transmission jack. Refer to EM-244, "
ENGINE ASSEMBLY" .
c. Remove exhaust manifold cover (right bank).
d. Loosen nuts in the reverse order of figure to remove exhaust
manifold and three way catalyst (right bank) with power tool.
NOTE:
Disregard No. 9 to No. 12 when loosening.
12. Remove exhaust manifold gaskets.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
INSPECTION AFTER REMOVAL
Surface Distortion
Check the surface distortion of the each exhaust manifold flange
mating surface with straightedge and feeler gauge.
If it exceeds the limit, replace exhaust manifold and three way
catalyst.
INSTALLATION
Note the following, and install in the reverse order of removal.
A : Left bank
B : Right bank
: Engine front
PBIC3300E
Limit : 0.3 mm (0.012 in)
PBIC1550E

EM-188
[VK45DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
4. Install engine slingers into front of cylinder head (left bank) and
rear of cylinder head (right bank).
5. Remove engine mounting insulators (RH and LH) under side nut with power tool.
6. Lift with hoist and separate engine and transmission assembly from front suspension member.
CAUTION:
Avoid damage to and oil/grease smearing or spills onto engine mounting insulator.
7. Remove harness bracket from oil pan.
8. Remove oil filter. Refer to LU-29, "
OIL FILTER" .
9. Remove oil pan as the follows:
a. Remove rear plate cover.
b. Remove transmission joint bolts which pierce oil pan. Refer to AT-271, "
TRANSMISSION ASSEMBLY" .
c. Loosen mounting bolts with power tool in reverse order as
shown in the figure.
NOTE:
Disregard the numerical order No. 11 and 17 in removal.
d. Insert seal cutter (SST) between oil pan and cylinder block.
Slide seal cutter by tapping on the side of seal cutter with ham-
mer. Remove oil pan.
CAUTION:
Be careful not to damage the mating surfaces.
Do not insert screwdriver, this will damage the mating
surface.
e. Remove O-rings from bottom of oil pump and front cover.
10. Remove oil pressure switch, as necessary. Refer to LU-26, "
OIL PRESSURE CHECK" .
11. Remove oil strainer.
INSPECTION AFTER REMOVAL
Clean oil strainer if any object attached.
INSTALLATION
1. Install oil strainer.
2. Install oil pan as follows:
a. Use scraper to remove old liquid gasket from mating surfaces.
Also remove the old liquid gasket from mating surface of cylinder block.
Remove old liquid gasket from the bolt holes and threads.Slinger bolts:
:33.4 Nꞏm (3.4 kg-m, 25 ft-lb)
PBIC2447E
PBIC0194E
SEM365E

OIL PAN AND OIL STRAINER
EM-189
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
CAUTION:
Do not scratch or damage the mating surfaces when cleaning off old liquid gasket.
b. Install new O-rings to oil pump and front cover side.
c. Apply a continuous bead of liquid gasket with tube presser [SST:
WS39930000 ( — )] to the cylinder block mating surfaces of
oil pan to a limited portion as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS".
CAUTION:
Attaching should be done within 5 minutes after coating.
d. Install oil pan.
CAUTION:
Install avoiding misalignment of O-rings.
Tighten mounting bolts in numerical order as shown in the fig-
ure.
NOTE:
Tighten mounting bolts No. 1 and 2 in two steps. The numeri-
cal order No. 11 and 17 shown second steps.
There are three types of mounting bolts. Refer to the following
for locating bolts.
e. Tighten transmission joint bolts. Refer to AT-271, "
TRANSMISSION ASSEMBLY" .
f. Install rear plate cover.
3. Install oil pan drain plug with new drain plug washer.
Refer to the figure of components of former page for installation direction of drain plug washer. Refer to
EM-187, "
Removal and Installation" .
4. Install in the reverse order of removal after this step.
NOTE:
At least 30 minutes after oil pan is installed, pour engine oil.
INSPECTION AFTER INSTALLATION
1. Check engine oil level and adjust engine oil. Refer to LU-26, "ENGINE OIL" .
2. Start engine, and check there is no leak of engine oil.
3. Stop engine and wait for 15 minutes.
4. Check engine oil level again. Refer to LU-26, "
ENGINE OIL" .
PBIC0195E
M6 30 mm. (1.18 in) : 18, 19
M8
100 mm (3.94 in) : 5, 9
M8
45 mm (1.77 in) : Except the abovePBIC0194E
