SE-154
HEATED SEAT
Revision: 2006 January2006 M35/M45

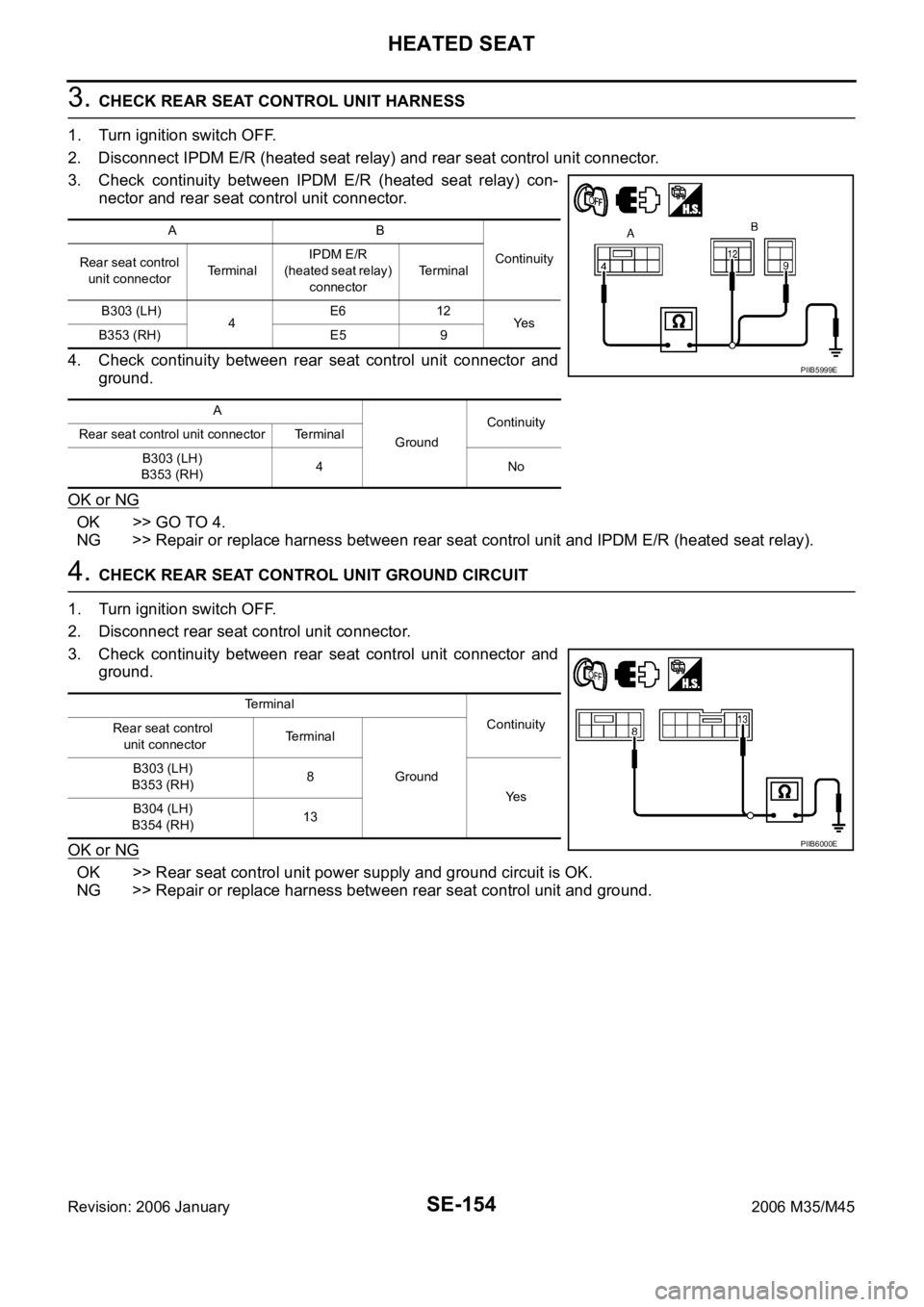

3. CHECK REAR SEAT CONTROL UNIT HARNESS
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R (heated seat relay) and rear seat control unit connector.
3. Check continuity between IPDM E/R (heated seat relay) con-
nector and rear seat control unit connector.
4. Check continuity between rear seat control unit connector and
ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between rear seat control unit and IPDM E/R (heated seat relay).
4. CHECK REAR SEAT CONTROL UNIT GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear seat control unit connector.
3. Check continuity between rear seat control unit connector and
ground.
OK or NG
OK >> Rear seat control unit power supply and ground circuit is OK.
NG >> Repair or replace harness between rear seat control unit and ground.
AB
Continuity
Rear seat control
unit connectorTe r m i n a lIPDM E/R
(heated seat relay)
connectorTerminal
B303 (LH)
4E6 12
Ye s
B353 (RH) E5 9
A
GroundContinuity
Rear seat control unit connector Terminal
B303 (LH)
B353 (RH)4No
PIIB5999E
Te r m i n a l
Continuity
Rear seat control
unit connectorTerminal
Ground B303 (LH)
B353 (RH)8
Ye s
B304 (LH)
B354 (RH)13
PIIB6000E

HEATED SEAT
SE-157
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
Rear Heated Seat Indicator Power Supply Circuit InspectionNIS0028A
1. CHECK REAR HEATED SEAT INDICATOR POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect rear heated seat switch connector.
3. Check voltage between rear heated seat switch connector and
ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. CHECK REAR HEATED SEAT INDICATOR HARNESS
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R (heated seat relay) connector.
3. Check continuity between IPDM E/R (heated seat relay) con-
nector and rear heated seat switch connector.
4. Check continuity between rear heated seat switch connector
and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace or replace harness between IPDM E/R (heated seat relay) and rear heated seat switch.
Te r m i n a l
ConditionVoltage (V)
(Approx.) (+)
(–) Rear heated
seat switch
connectorTerminal
B507 (LH)
B558 (RH)6 GroundIgnition
switchON Battery voltage
OFF 0
PIIB6005E
AB
Continuity
Rear heated seat
switch connectorTerminalIPDM E/R
(heated seat relay)
connectorTerminal
B507 (LH)
6E6 12
Ye s
B558 (RH) E5 9
A
GroundContinuity
Rear heated seat
switch connectorTerminal
B507 (LH)
B558 (RH)6No
PIIB6006E

STC-2Revision: 2006 January2006 M35/M45 Inspection 2: Motor Power Supply System ............. 35
Inspection 3: RAS Motor Output Malfunction ......... 37
Inspection 4: Vehicle Speed Signal ........................ 38
Inspection 5: Steering Angle Signal Malfunction .... 38
Inspection 6: Rear Main Signal and Rear Sub Signal
Malfunction ............................................................. 40
Inspection 7: VDC Malfunction ............................... 42
Inspection 8: Engine Speed Signal Malfunction ..... 43
Inspection 9: CAN Communication System Mal-
function ................................................................... 43Inspection 10: Stop Lamp Switch Harness ............. 44
Inspection 11: RAS Warning Lamp Harness ........... 44
Diagnosis Chart by Symptom 1 .............................. 46
Diagnosis Chart by Symptom 2 .............................. 46
Check RAS Static/Dynamic Characteristics ............ 48
Component Parts Inspection ................................... 49
RAS MOTOR RELAY ........................................... 49
RAS MOTOR ....................................................... 49
REAR WHEEL STEERING ANGLE SENSOR .... 49

TROUBLE DIAGNOSIS
STC-19
[RAS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: 2006 January2006 M35/M45
Component Parts LocationNGS000EC

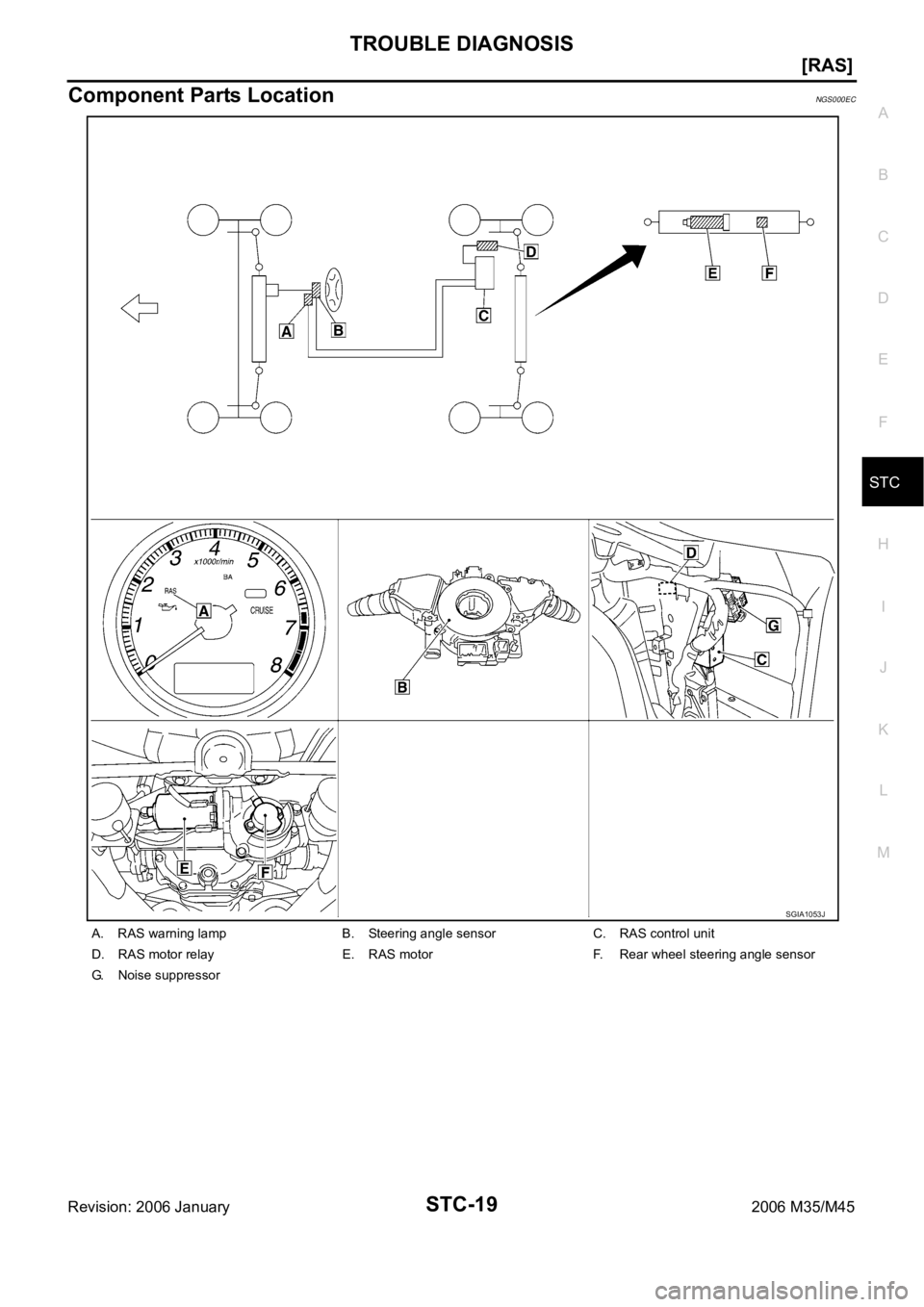

A. RAS warning lamp B. Steering angle sensor C. RAS control unit
D. RAS motor relay E. RAS motor F. Rear wheel steering angle sensor
G. Noise suppressor
SGIA1053J

TROUBLE DIAGNOSIS
STC-27
[RAS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: 2006 January2006 M35/M45
STANDARD BY CONSULT-II
CAUTION:
The output signal indicates the RAS control unit calculation data. The normal values will be displayed
even in the event that the output circuit (harness) is open.
Monitor itemDATA MONITOR
Malfunction inspection
checklist
Condition Reference values
VHCL SPEED SE (km/h)Ignition switch ON or engine
running Almost in accordance with the speed-
ometer display. It is not a malfunction,
through it might not be corresponding
just after ignition switch is turned ON.STC-38, "
Inspection 4:
Vehicle Speed Signal"
STEERING ANG ()Turning steering wheel clock-
wise or counterclockwise.Displays the angle when the steering
wheel turns from the neutral positionSTC-38, "
Inspection 5:
Steering Angle Signal
Malfunction"
ENGINE SPEED (rpm) Engine runningAlmost in accordance with tachometer
displaySTC-43, "
Inspection 8:
Engine Speed Signal
Malfunction"
POWER STR SOL (A)Accelerate the vehicle from 0
to 100 km/h (0 to 62 MPH)0 km/h (0 MPH): Approx. 1.10 A
100 km/h (62 MPH): Approx. 0.54 ASTC-46, "Diagnosis
Chart by Symptom 2"
RR ST ANG-MAI (V)
Perform the ACTIVE TEST
and stroke the actuator (with
tires off the ground)Neutral: Approx. 2.4 V
Turn steering wheel to right for full
stroke: Approx. 4.4 V
Turn steering wheel to left for full
stroke: Approx. 0.4 VSTC-40, "Inspection 6:
Rear Main Signal and
Rear Sub Signal Mal-
function"RR ST ANG- SUB (V)
RR ST ANG-VOL (V)
Ignition switch ON or engine
runningApprox. 5 VSTC-40, "
Inspection 6:
Rear Main Signal and
Rear Sub Signal Mal-
function"
C/U VOLTAGE (V) Battery voltage (Approx. 12 V)STC-35, "
Inspection 1:
RAS Control Unit Mal-
function"
MOTOR VOLTAGE (V) Battery voltage (Approx. 12V)STC-35, "
Inspection 2:
Motor Power Supply
System"
MOTOR CURRENT (A)Perform the ACTIVE TEST
and stroke the actuator.It is normal when there is the current
output at strokeSTC-35, "
Inspection 2:
Motor Power Supply
System"
MTR CRNT OPE (A)Turning steering wheel clock-
wise or counterclockwise
while ignition switch is ON or
running the engineNeutral (Steering force is zero and
straight-ahead position): Approx. 0 A
The value is changed according to
steering left or right STC-37, "
Inspection 3:
RAS Motor Output
Malfunction"
STOP LAMP SWDepressing or releasing brake
pedalBrake pedal depressed: ONSTC-44, "
Inspection
10: Stop Lamp Switch
Harness"Brake pedal not depressed: OFF
RAS RELAY
Ignition switch ON or engine
runningIgnition switch ON: ONSTC-35, "
Inspection 2:
Motor Power Supply
System"
FAIL SAFE Not activatedSelf-diagnosis and
suspect system
inspection on DATA
MONITOR
WARNING LAMP (ON/OFF)RAS warning lamp ON: ON
RAS warning lamp OFF: OFFWarning lamp circuit
inspection

STC-28
[RAS]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
CONSULT-II Function (RAS)NGS000EG
FUNCTION
CONSULT-II can display each self-diagnostic item using the diagnostic test modes shown following.
CONSULT-II SETTING PROCEDURE
Refer to GI-39, "CONSULT-II Start Procedure" .
SELF-DIAG RESULT MODE
Operation Procedure
1. Perform “CONSULT-II Start Procedure”. Refer to GI-39, "CONSULT-II Start Procedure" .
2. Touch “PRINT” to print out the self-diagnostic results if necessary. Check RAS warning lamp if “NO FAIL-
URE” is displayed.
3. Perform the appropriate inspection from the display item list, and repair or replace the malfunctioning
component. Refer to STC-28, "
Display Item List" .
Display Item List
CAUTION:
When malfunctions are detected in several systems, including the “CAN COMM [U1000]” and
“CONTROL_UNIT (CAN) [U1010]”, inspect the CAN communication system.
Mode Function Reference
SELF-DIAG RESULTSReceives self-diagnosis results from RAS control unit and
indicates DTCs.STC-28, "
SELF-DIAG RESULT
MODE"
DATA MONITORReceives input/output signals from RAS control unit and
indicates and stores them to facilitate locating cause of
malfunctions.STC-30, "DATA MONITOR MODE"
CAN DIAG SUPPORT MNTRMonitors transmitting/receiving status of CAN communi-
cation.STC-31, "CAN Communication"
ACTIVE TESTSends command to RAS actuator to change output sig-
nals and check operation of output system.STC-30, "ACTIVE TEST MODE"
ECU PART NUMBER Displays RAS control unit part number.STC-30, "RAS CONTROL UNIT
PART NUMBER"
DTC code Diagnostic item Diagnostic item is detected when... Check items
C1923 STEERING_ANGLE_SEN [NO_CHANGE] (ꞏ a)While driving at 60 km/h (37 MPH)
or more, steering angle does not
change for a while.STC-38
C1924 STEERING_ANGLE_SEN [NO_NEUT_STATE] (ꞏ b)When driving some distance, no
neutral signal (ON signal) is input.STC-38
C1915 RR_ST_ANGLE_SENSOR [MAIN_SIGNAL] (ꞏ a)The main sensor input signal is
malfunctioning for some time
against the sensor power supply
value.STC-40
C1916 RR_ST_ANGLE_SENSOR [SUB_SIGNAL] (ꞏ b)When the main sensor input signal
is 2.4 - 2.6 V, the sub sensor input
signal is malfunctioning for some
time compared to the sensor power
supply value.STC-40
C1917, C1918 RR_ST_ANGLE_SENSOR [OFFSET_SIG1,2] (ꞏ c)An excessive difference has
occurred in the input values of main
sensor and sub sensor.STC-40
C1914 RR_ST_ANGLE_SENSOR [ABNORMAL_VOL] (ꞏ d)Higher or lower value compared to
the standard voltage.STC-40
C1921 MOTOR_OUTPUTNo engine speed is input for a cer-
tain time.STC-43
C1911 MOTOR_VOLTAGE [LOW_VOLTAGE] (ꞏ a)The motor power supply voltage is
lower than ignition power supply
voltage with RAS motor relay ON.STC-35

STC-30
[RAS]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
DATA MONITOR MODE
Operation Procedure
1. Perform “CONSULT-II Start Procedure”. Refer to GI-39, "CONSULT-II Start Procedure" .
2. Touch “DATA MONITOR”.
3. Select from “SELECT MONITOR ITEM”, screen of data monitor is displayed.
NOTE:
When malfunction is detected, CONSULT-II performs REAL-TIME DIAGNOSIS. Also, any malfunction
detected while in this mode will be displayed in real time.
Display Item List
ACTIVE TEST MODE
Operation Procedure
1. Perform “CONSULT-II Start Procedure”. Refer to GI-39, "CONSULT-II Start Procedure" .
2. When turning the steering wheel right or left, the rear wheel turns in the same direction. If the steering
wheel is not turned, the rear wheel turns left and right 5 times.
RAS CONTROL UNIT PART NUMBER
1. Perform “CONSULT-II Start Procedure”. Refer to GI-39, "CONSULT-II Start Procedure" .
2. The part number described on RAS control unit sticker is displayed.
Item (Display or Unit) Remarks
VHCL SPEED SE (km/h) Vehicle speed received via CAN communication is displayed.
STEERING ANG (
) Steering angle received via CAN communication is displayed.
ENGINE SPEED (rpm) Engine speed received via CAN communication is displayed.
POWER STR SOL (A)Power steering solenoid controlling current that RAS control unit outputs is dis-
played.
RR ST ANG_MAI (V) Rear wheel steering angle main sensor output voltage is displayed.
RR ST ANG_SUB (V) Rear wheel angle sub sensor output voltage is displayed.
RR ST ANG_ VOL (V)Voltage supplied from RAS control unit to rear wheel steering angle sensor is
displayed.
C/U VOLTAGE (V) Voltage supplied to RAS control unit is displayed.
MOTOR VOLTAGE (V) Voltage supplied from RAS control unit to RAS motor is displayed.
MOTOR CURRENT (A) RAS motor relay controlling current that RAS control unit outputs is displayed.
MOTOR CRNT OPE (A) Current commanded value to RAS motor is displayed.
RR ANG OPE (
) Angle commanded value to rear wheel steering angle sensor is displayed.
STOP LAMP SW (ON/OFF) Condition of stop lamp switch ON/OFF is displayed.
HICAS RELAY (ON/OFF) RAS motor relay ON/OFF condition is displayed.
FAILSAFE (ON/OFF) Fail-safe ON/OFF condition is displayed.
WARNING LAMP (ON/OFF) RAS warning lamp operating condition is displayed.
STEERING ANG RR ST ANG_MAI RR ST ANG_SUB MOTOR CURRENT
0
(Neutral) 2.4 V 2.4 V No output (Approx. 0 A)
R 90
Approx. 4.4 V Approx. 4.4 V
Output (change)
L 90
Approx. 0.4 V Approx. 0.4 V

TROUBLE DIAGNOSIS
STC-35
[RAS]
C
D
E
F
H
I
J
K
L
MA
B
STC
Revision: 2006 January2006 M35/M45
Inspection 1: RAS Control Unit MalfunctionNGS000EQ
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
With CONSULT-II
Without CONSULT-II
Is above displayed on self-diagnosis display?
YES >> Replace RAS control unit. Perform self-diagnosis again after replacing.
NO >> INSPECTION END
Inspection 2: Motor Power Supply SystemNGS000ER
1. CHECK RAS CONTROL UNIT CONNECTOR
1. Turn ignition switch OFF, disconnect RAS control unit harness connector and motor connector, and check
terminal for deformation, disconnection, looseness, etc.
2. Reconnect harness connector securely, and perform self-diagnosis.
With CONSULT-II
Without CONSULT-II
Is above displayed on self-diagnosis display?
YES >> GO TO 2.
NO >> Connector terminal connection is loose, damaged, open, or shorted. Repair or replace the termi-
nal.
2. CHECK RAS MOTOR RELAY BATTERY CIRCUIT
1. Turn ignition switch OFF, and disconnect RAS motor relay harness connector B126.
2. Check voltage between RAS motor relay harness connector
B126 and ground.
OK or NG
OK >> GO TO 3.
NG >> RAS motor relay power supply circuit open or shorted.
Repair or replace power supply circuit and fuse.
Self-diagnostic results
CONTROL_UNIT [ABNORMAL1 - 9]
DTC (warning lamp blinks)
11
Self-diagnosis results
MOTOR_VOLTAGE [LOW_VOLTAGE] (ꞏ a)
MOTOR_VOLTAGE [BAD_OBSTRCT] (ꞏ b)
DTC (warning lamp blinks)
12
Terminal 3 – Ground : Battery voltage (Approx. 12 V)
SGIA1246E
