FRONT WIPER AND WASHER SYSTEM
WW-31
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
7. CHECK IPDM E/R
With CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Install front wiper reverse relay.
3. Select “IPDM E/R” on CONSULT-II. Select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
5. Touch “LO” or “HI” screen.
6. Check voltage between IPDM E/R harness connector and
ground while front wiper (HI, LO) is operating.
Without CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Install front wiper reverse relay.
3. Start up auto active test. Refer to PG-24, "
Auto Active Test" .
4. Check voltage between IPDM E/R harness connector and ground while front wiper (HI, LO) is operating.
OK or NG
OK >> Replace front wiper motor. Refer to WW-43, "Disassembly and Assembly of Front Wiper Drive
Assembly" .
NG >> Replace IPDM E/R. Refer to PG-31, "
Removal and Installation of IPDM E/R" .
Front Wiper Does Not Return to Stop Position (After Front Wiper Operate for 10
Seconds, They Stop for 20 Seconds, and After Repeating the Operations Five
Times, They Become Inoperative)
NKS003WO
CAUTION:
When auto stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front
wipers, IPDM E/R considers that front wipers are locked, and stops wiper output. That causes this
symptom.
This status can be checked by “DATA MONITOR” of “IPDM E/R” on which “WIPER PROTECTION”
item shows “BLOCK”.
Terminal
Condition Voltage (+)
(-)
IPDM E/R
connectorTerminal
E719
GroundStopped
Battery voltage
HI operation
23Stopped Approx. 0V
LO operation Battery voltage
Terminal
Condition Voltage (+)
(-)
IPDM E/R
connectorTerminal
E719
GroundStopped
Battery voltage
HI operation
23Stopped Approx. 0V
LO operation Battery voltage
SKIB4663E

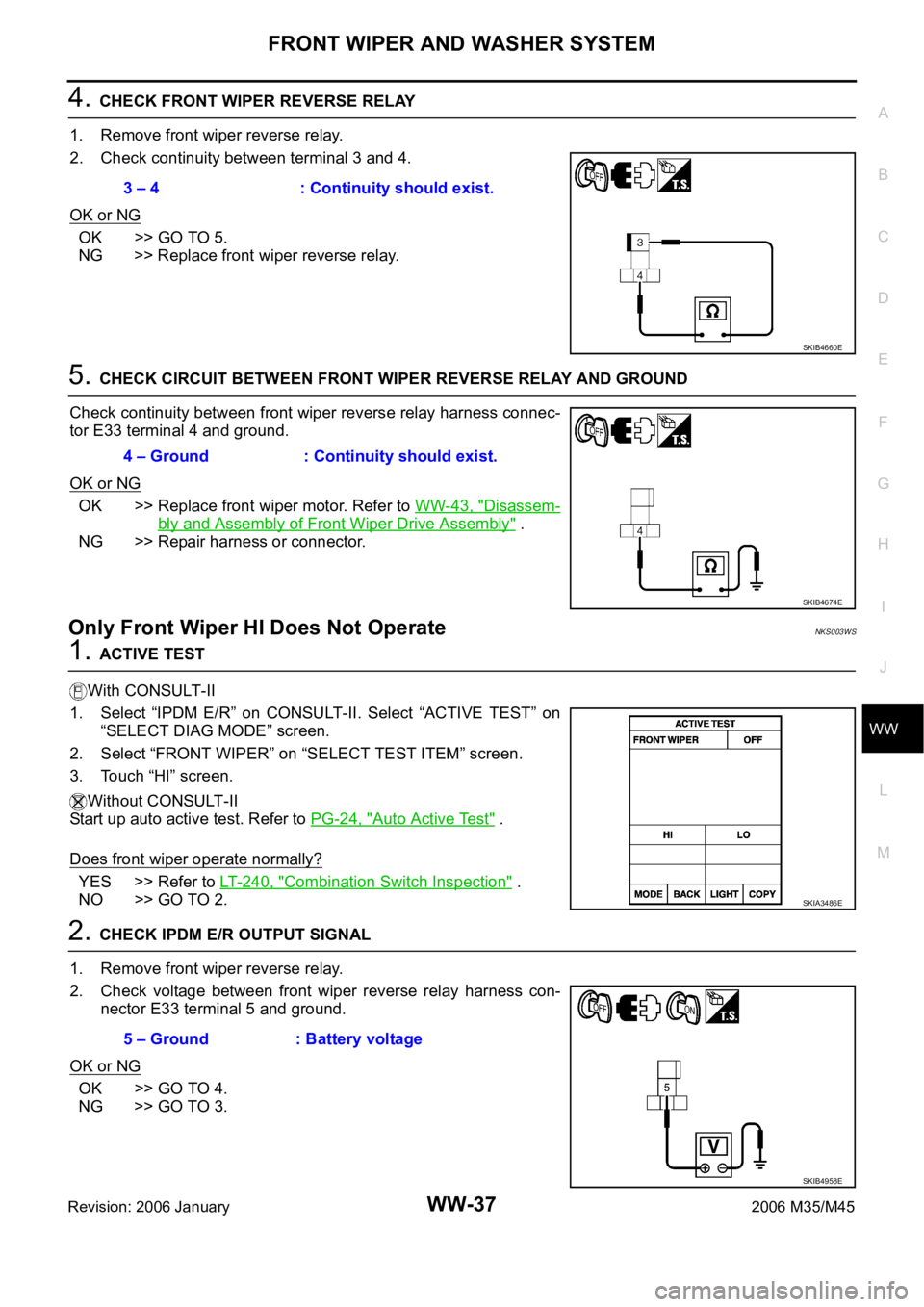

FRONT WIPER AND WASHER SYSTEM
WW-37
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
4. CHECK FRONT WIPER REVERSE RELAY
1. Remove front wiper reverse relay.
2. Check continuity between terminal 3 and 4.
OK or NG
OK >> GO TO 5.
NG >> Replace front wiper reverse relay.
5. CHECK CIRCUIT BETWEEN FRONT WIPER REVERSE RELAY AND GROUND
Check continuity between front wiper reverse relay harness connec-
tor E33 terminal 4 and ground.
OK or NG
OK >> Replace front wiper motor. Refer to WW-43, "Disassem-
bly and Assembly of Front Wiper Drive Assembly" .
NG >> Repair harness or connector.
Only Front Wiper HI Does Not OperateNKS003WS
1. ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II. Select “ACTIVE TEST” on
“SELECT DIAG MODE” screen.
2. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
3. Touch “HI” screen.
Without CONSULT-II
Start up auto active test. Refer to PG-24, "
Auto Active Test" .
Does front wiper operate normally?
YES >> Refer to LT- 2 4 0 , "Combination Switch Inspection" .
NO >> GO TO 2.
2. CHECK IPDM E/R OUTPUT SIGNAL
1. Remove front wiper reverse relay.
2. Check voltage between front wiper reverse relay harness con-
nector E33 terminal 5 and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.3 – 4 : Continuity should exist.
SKIB4660E
4 – Ground : Continuity should exist.
SKIB4674E
SKIA3486E
5 – Ground : Battery voltage
SKIB4958E

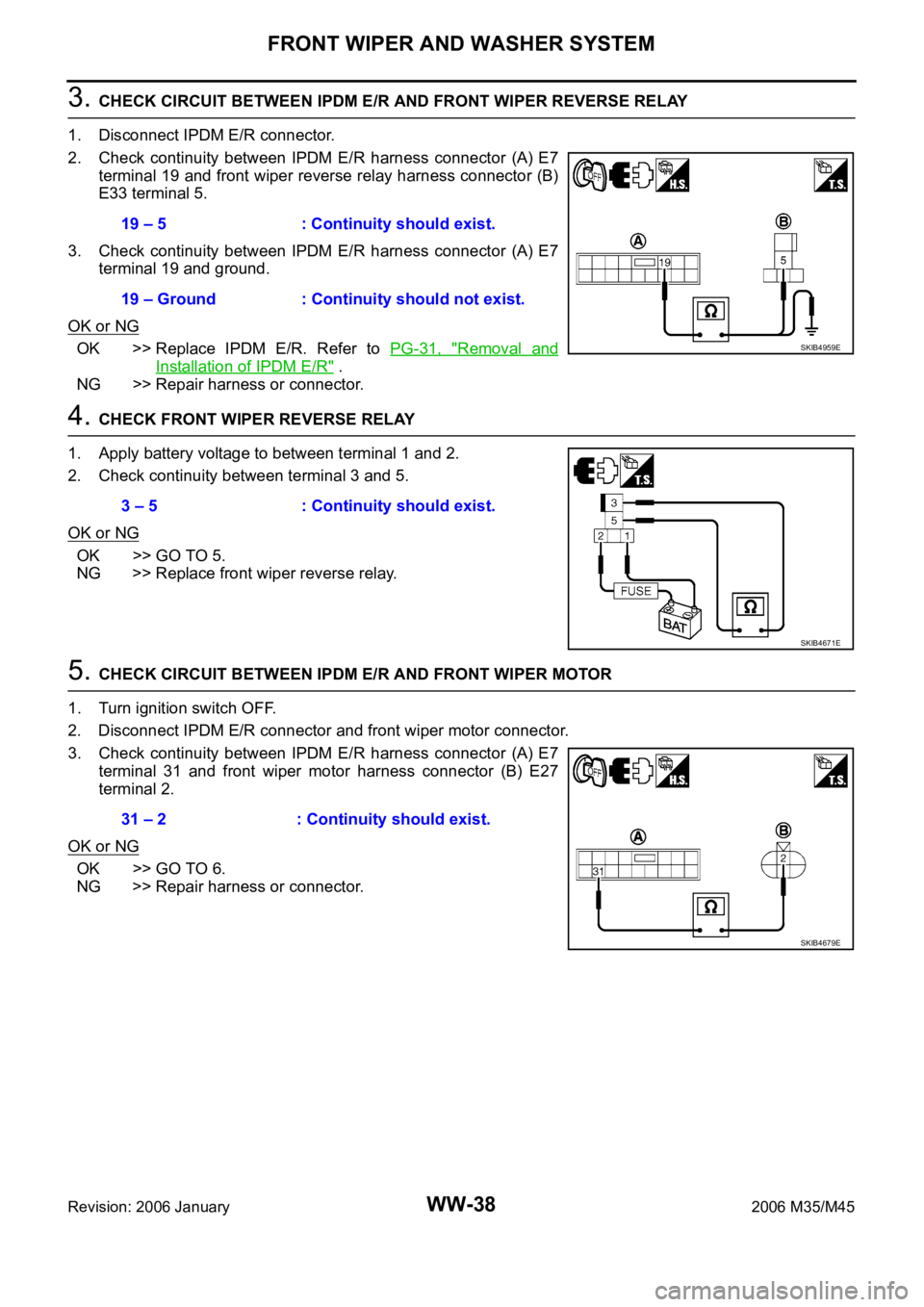

WW-38
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 January2006 M35/M45
3. CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT WIPER REVERSE RELAY
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector (A) E7
terminal 19 and front wiper reverse relay harness connector (B)
E33 terminal 5.
3. Check continuity between IPDM E/R harness connector (A) E7
terminal 19 and ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-31, "Removal and
Installation of IPDM E/R" .
NG >> Repair harness or connector.
4. CHECK FRONT WIPER REVERSE RELAY
1. Apply battery voltage to between terminal 1 and 2.
2. Check continuity between terminal 3 and 5.
OK or NG
OK >> GO TO 5.
NG >> Replace front wiper reverse relay.
5. CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT WIPER MOTOR
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connector.
3. Check continuity between IPDM E/R harness connector (A) E7
terminal 31 and front wiper motor harness connector (B) E27
terminal 2.
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.19 – 5 : Continuity should exist.
19 – Ground : Continuity should not exist.
SKIB4959E
3 – 5 : Continuity should exist.
SKIB4671E
31 – 2 : Continuity should exist.
SKIB4679E

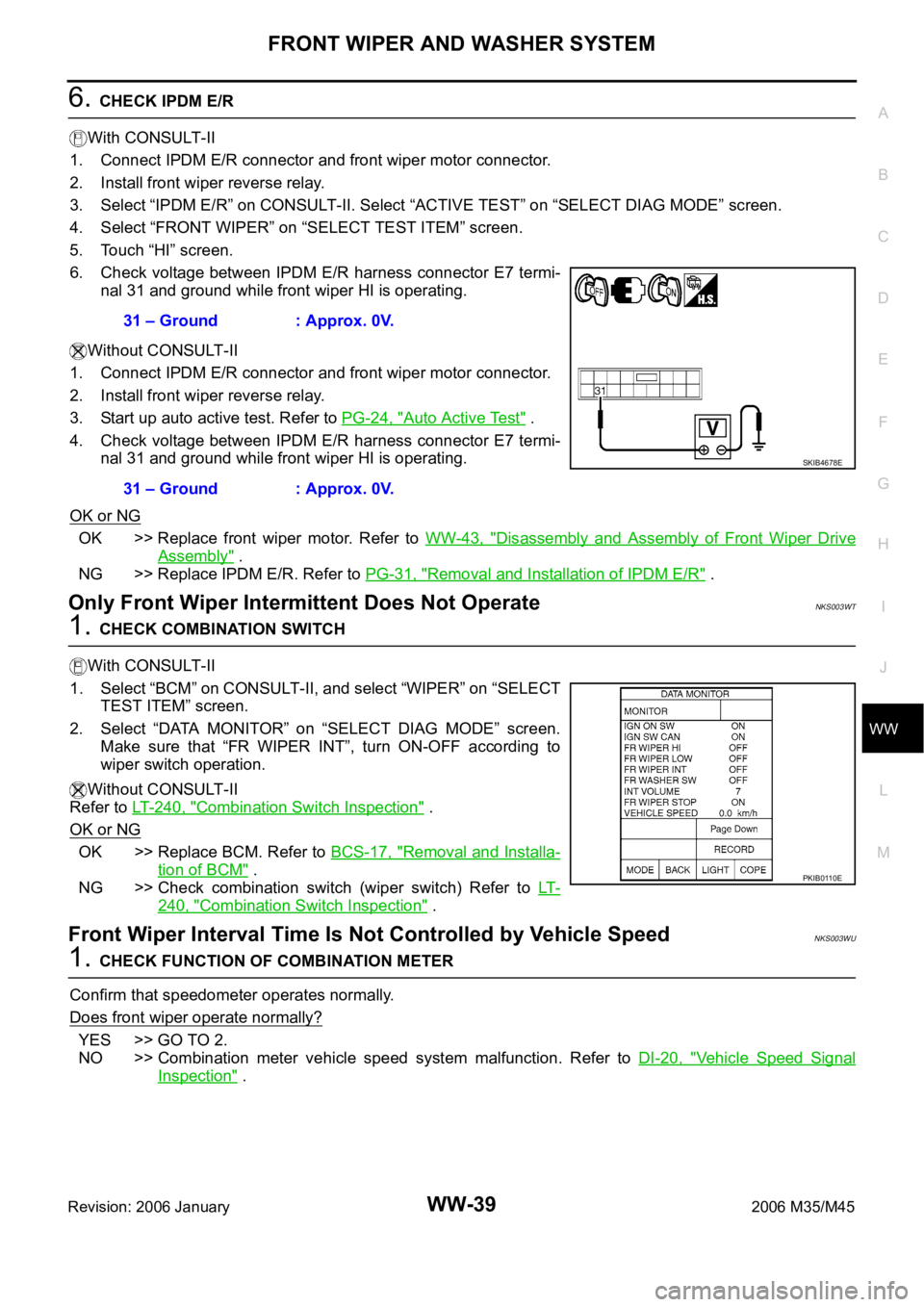

FRONT WIPER AND WASHER SYSTEM
WW-39
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
6. CHECK IPDM E/R
With CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Install front wiper reverse relay.
3. Select “IPDM E/R” on CONSULT-II. Select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
5. Touch “HI” screen.
6. Check voltage between IPDM E/R harness connector E7 termi-
nal 31 and ground while front wiper HI is operating.
Without CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Install front wiper reverse relay.
3. Start up auto active test. Refer to PG-24, "
Auto Active Test" .
4. Check voltage between IPDM E/R harness connector E7 termi-
nal 31 and ground while front wiper HI is operating.
OK or NG
OK >> Replace front wiper motor. Refer to WW-43, "Disassembly and Assembly of Front Wiper Drive
Assembly" .
NG >> Replace IPDM E/R. Refer to PG-31, "
Removal and Installation of IPDM E/R" .
Only Front Wiper Intermittent Does Not OperateNKS003WT
1. CHECK COMBINATION SWITCH
With CONSULT-II
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “FR WIPER INT”, turn ON-OFF according to
wiper switch operation.
Without CONSULT-II
Refer to LT-240, "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-17, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (wiper switch) Refer to LT-
240, "Combination Switch Inspection" .
Front Wiper Interval Time Is Not Controlled by Vehicle SpeedNKS003WU
1. CHECK FUNCTION OF COMBINATION METER
Confirm that speedometer operates normally.
Does front wiper operate normally?
YES >> GO TO 2.
NO >> Combination meter vehicle speed system malfunction. Refer to DI-20, "
Vehicle Speed Signal
Inspection" . 31 – Ground : Approx. 0V.
