2006 INFINITI M35 check

CAN SYSTEM (TYPE 13)
LAN-627
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 12
Check Intelligent Key unit circuit. Refer to LAN-643, "Intelligent Key Unit Circuit Inspection" .
PKIB8551E
SKIB4450E

LAN-628
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45
Case 13
Check unified meter and A/C amp. circuit. Refer to LAN-643, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIB8552E
SKIB4451E

CAN SYSTEM (TYPE 13)
LAN-629
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

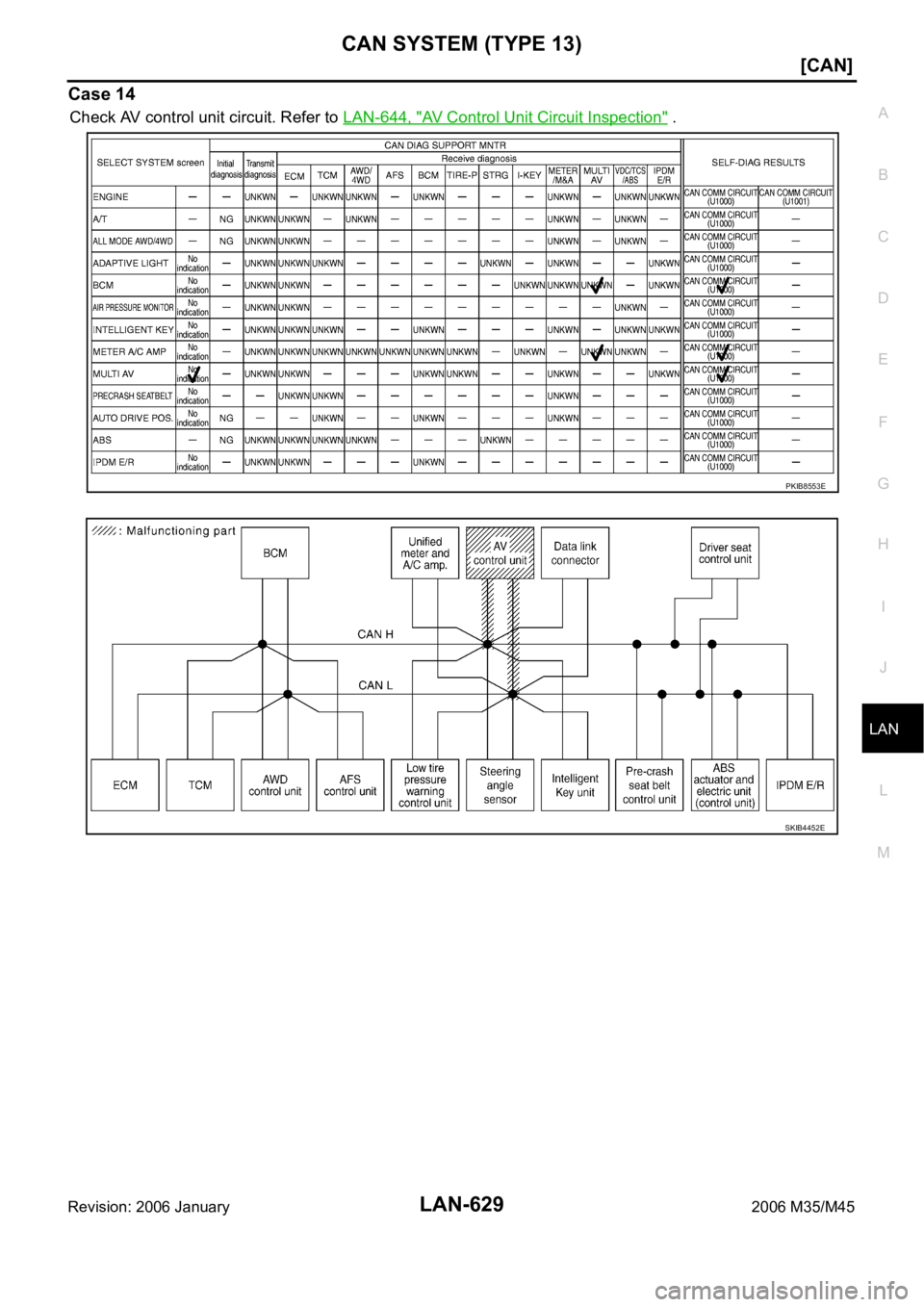

Case 14
Check AV control unit circuit. Refer to LAN-644, "AV Control Unit Circuit Inspection" .
PKIB8553E
SKIB4452E

LAN-630
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45

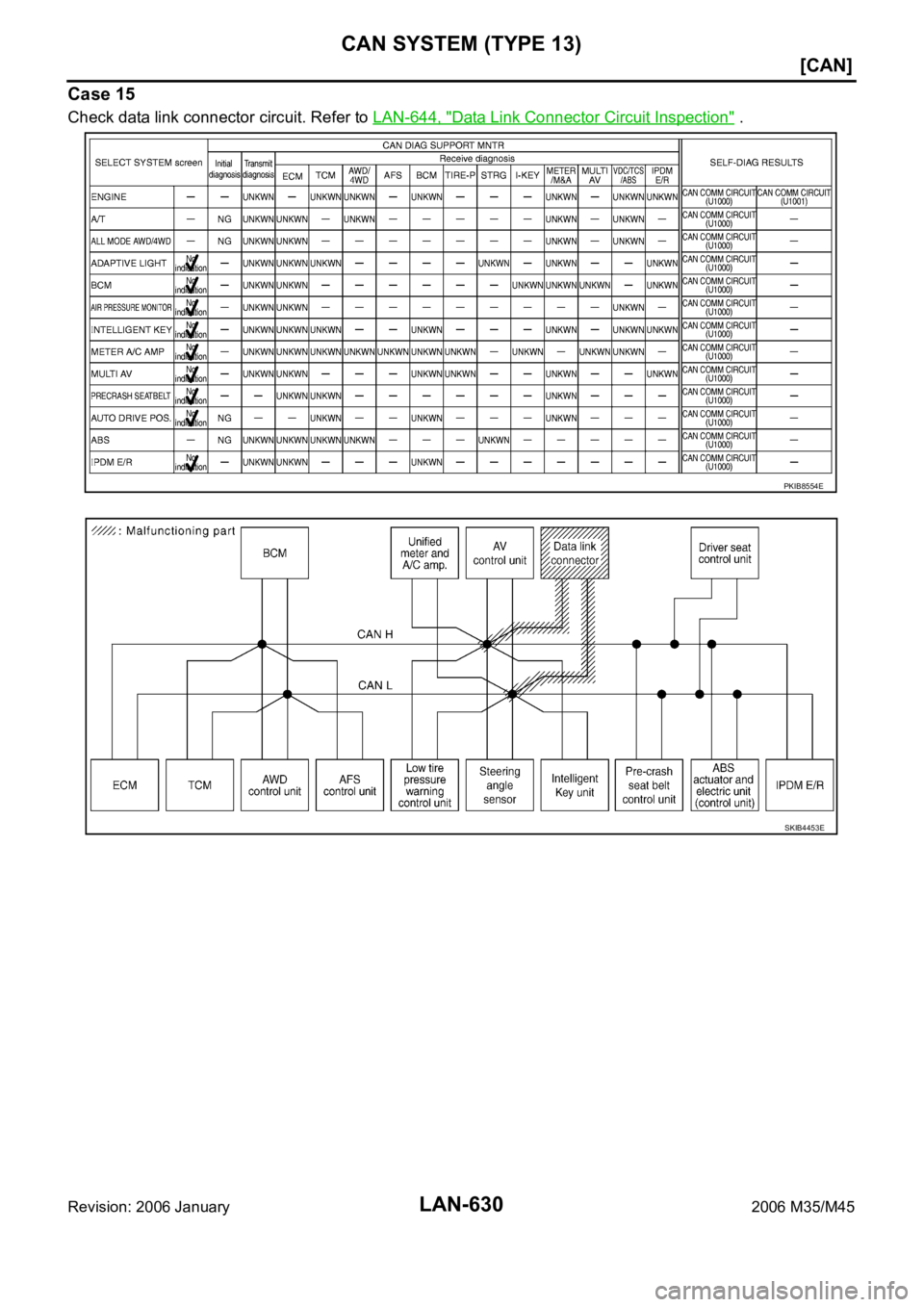

Case 15
Check data link connector circuit. Refer to LAN-644, "Data Link Connector Circuit Inspection" .
PKIB8554E
SKIB4453E

CAN SYSTEM (TYPE 13)
LAN-631
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 16
Check pre-crash seat belt control unit circuit. Refer to LAN-645, "Pre-Crash Seat Belt Control Unit Circuit
Inspection" .
PKIB8555E
SKIB4454E

LAN-632
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45

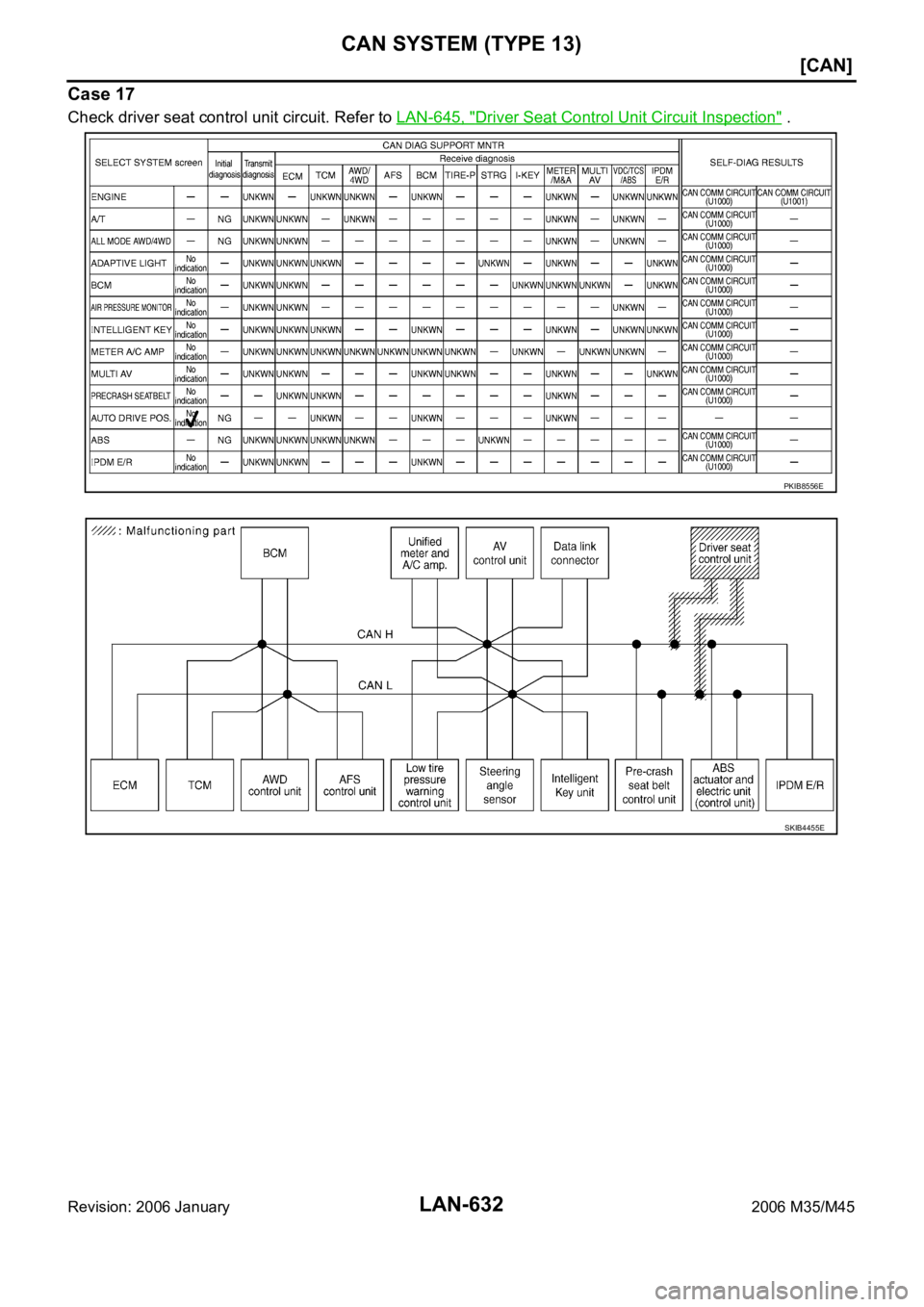

Case 17
Check driver seat control unit circuit. Refer to LAN-645, "Driver Seat Control Unit Circuit Inspection" .
PKIB8556E
SKIB4455E

CAN SYSTEM (TYPE 13)
LAN-633
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

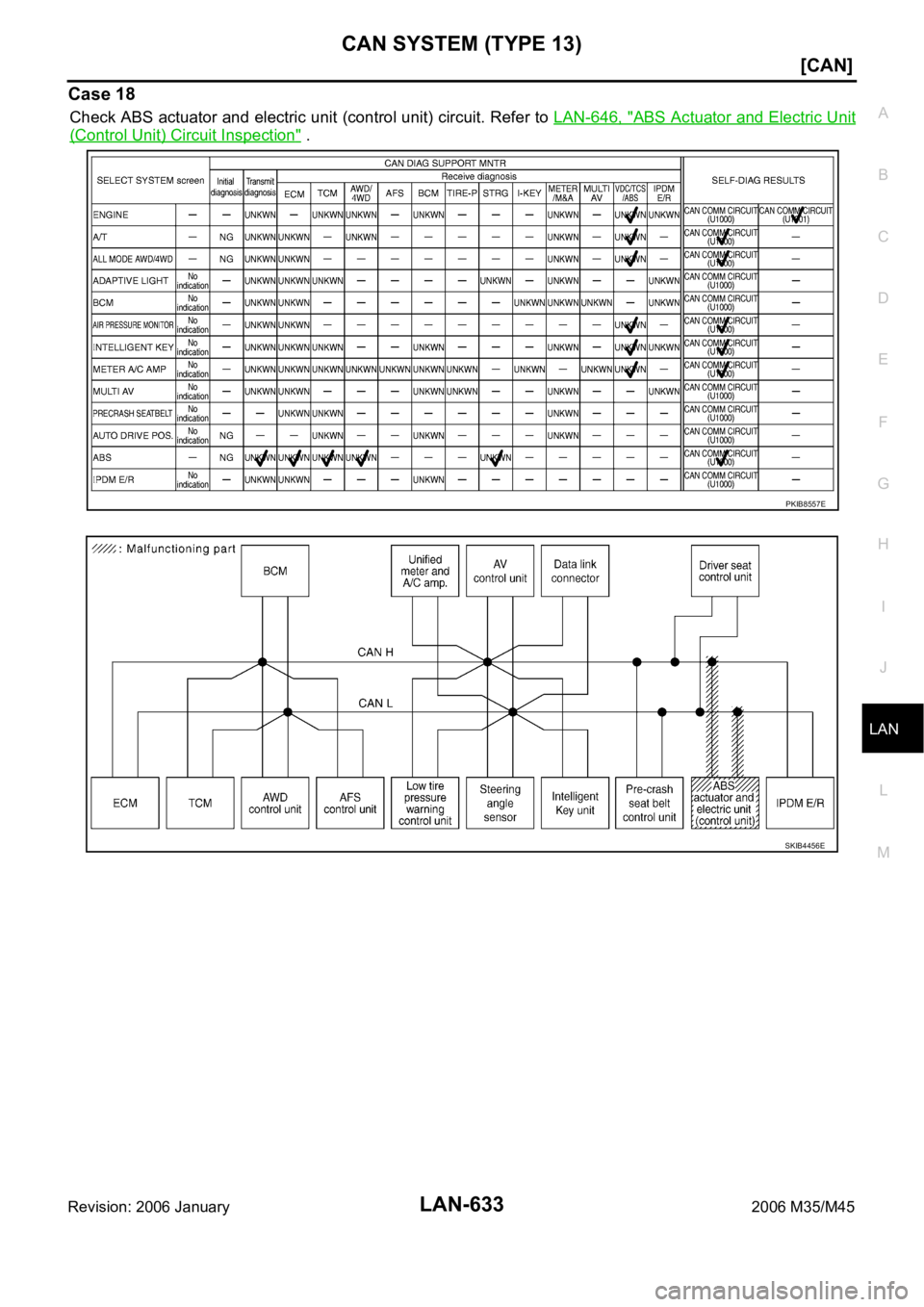

Case 18
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-646, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection" .
PKIB8557E
SKIB4456E

LAN-634
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45

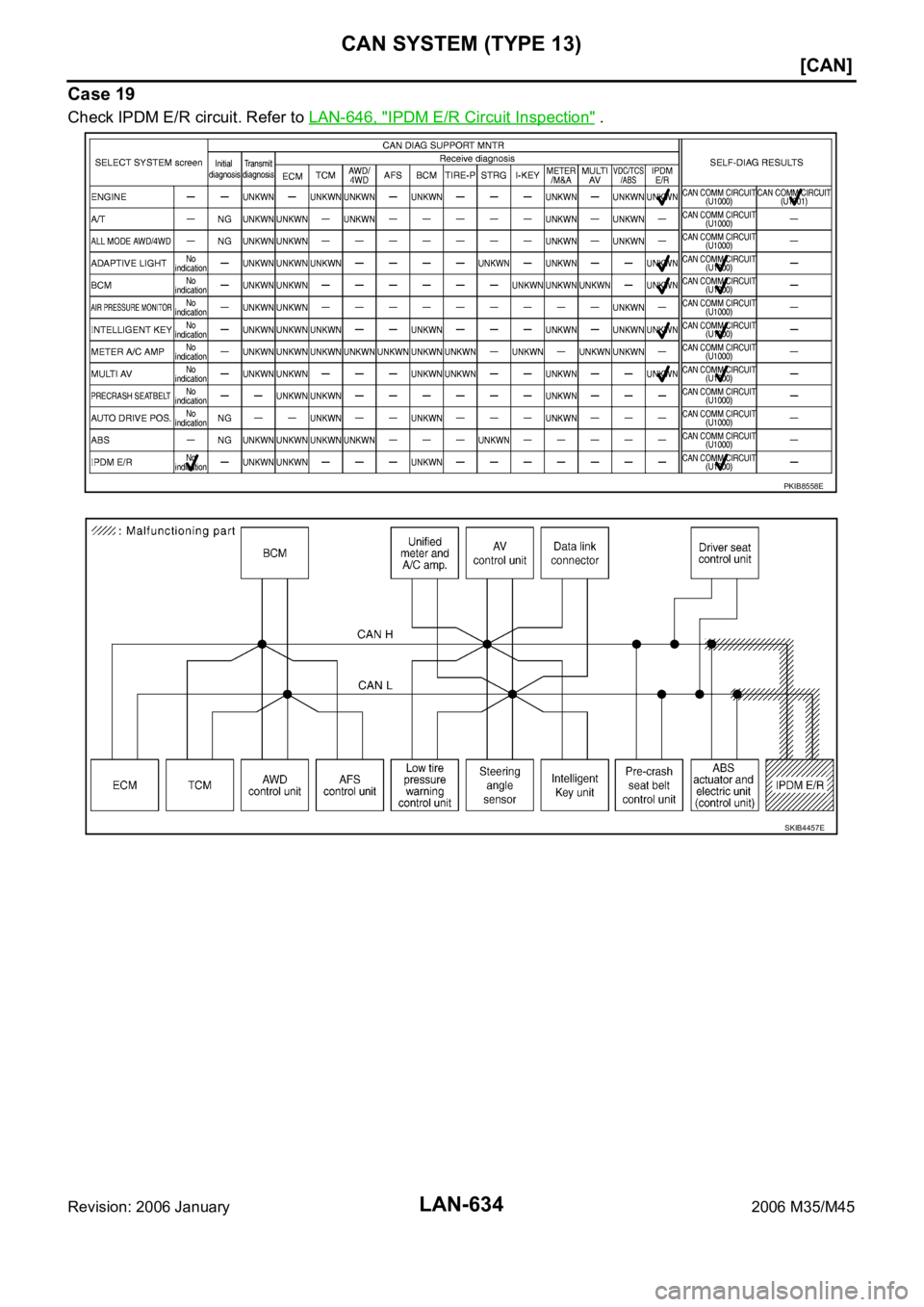

Case 19
Check IPDM E/R circuit. Refer to LAN-646, "IPDM E/R Circuit Inspection" .
PKIB8558E
SKIB4457E
