2006 INFINITI M35 check

CAN SYSTEM (TYPE 13)
LAN-619
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 4
Check harness between driver seat control unit and ABS actuator and electric unit (control unit). Refer to LAN-
638, "Inspection Between Driver Seat Control Unit and ABS Actuator and Electric Unit (Control Unit) Circuit" .
PKIB8543E
SKIB4442E

LAN-620
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45

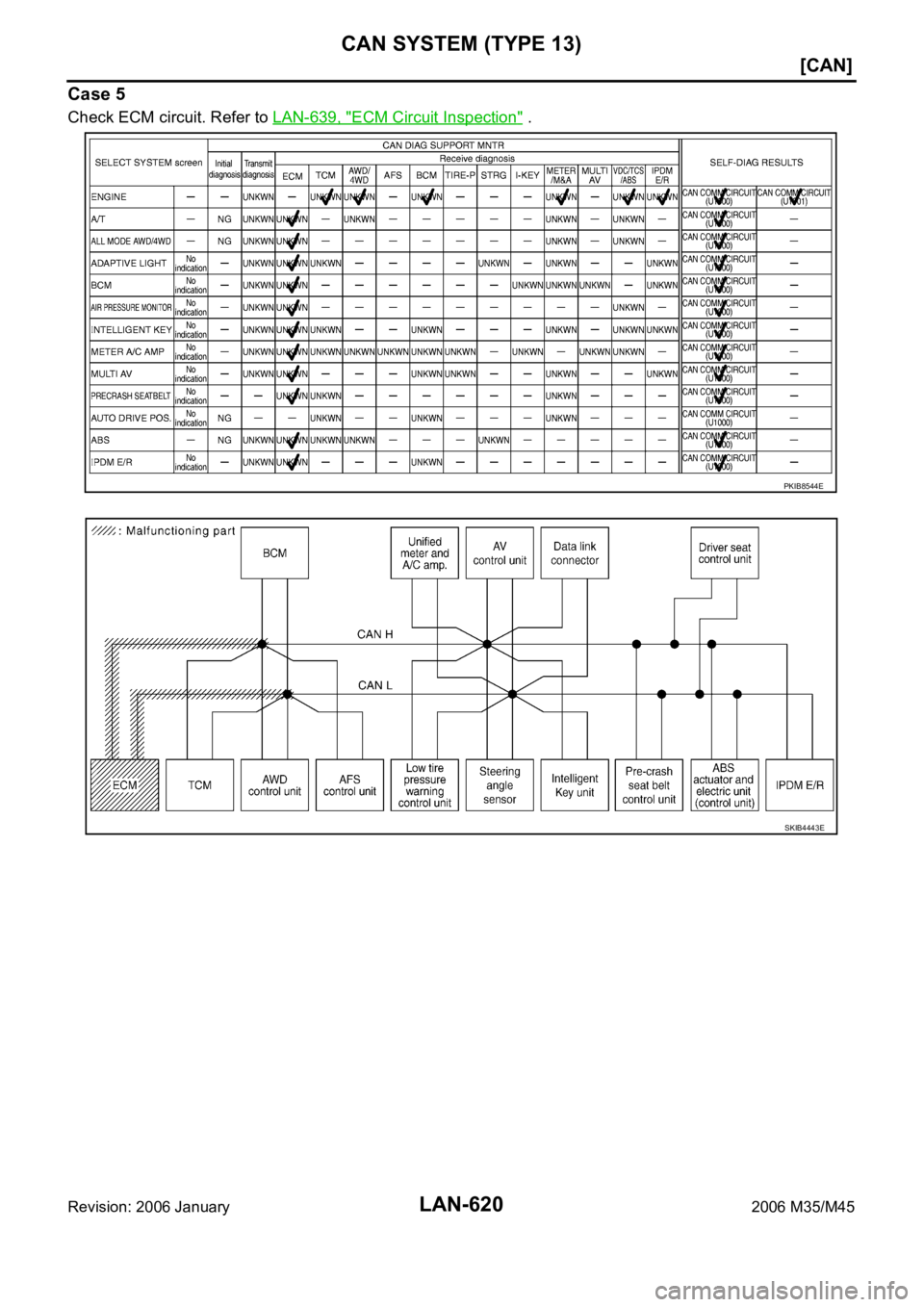

Case 5
Check ECM circuit. Refer to LAN-639, "ECM Circuit Inspection" .
PKIB8544E
SKIB4443E

CAN SYSTEM (TYPE 13)
LAN-621
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

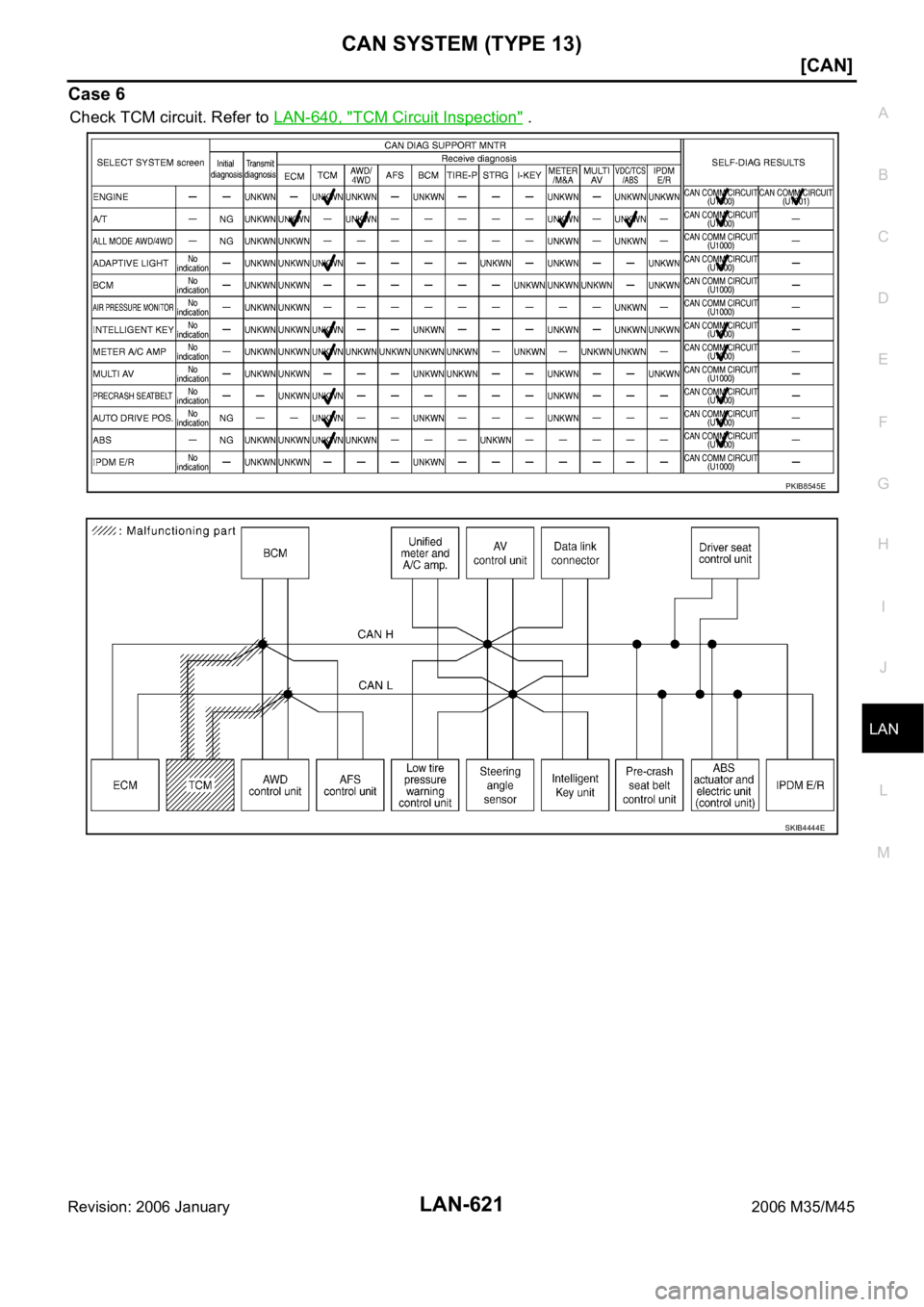

Case 6
Check TCM circuit. Refer to LAN-640, "TCM Circuit Inspection" .
PKIB8545E
SKIB4444E

LAN-622
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45

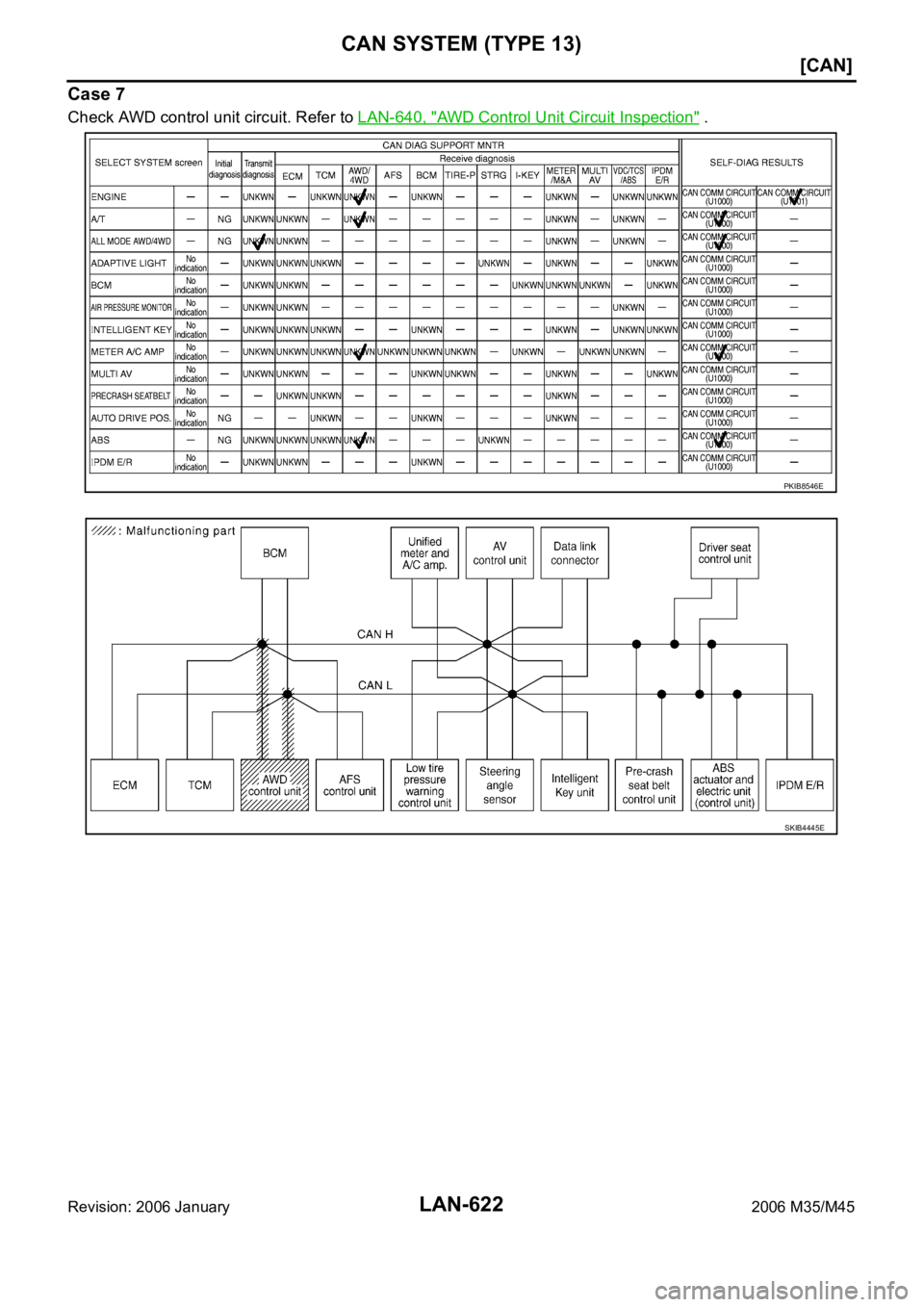

Case 7
Check AWD control unit circuit. Refer to LAN-640, "AWD Control Unit Circuit Inspection" .
PKIB8546E
SKIB4445E

CAN SYSTEM (TYPE 13)
LAN-623
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

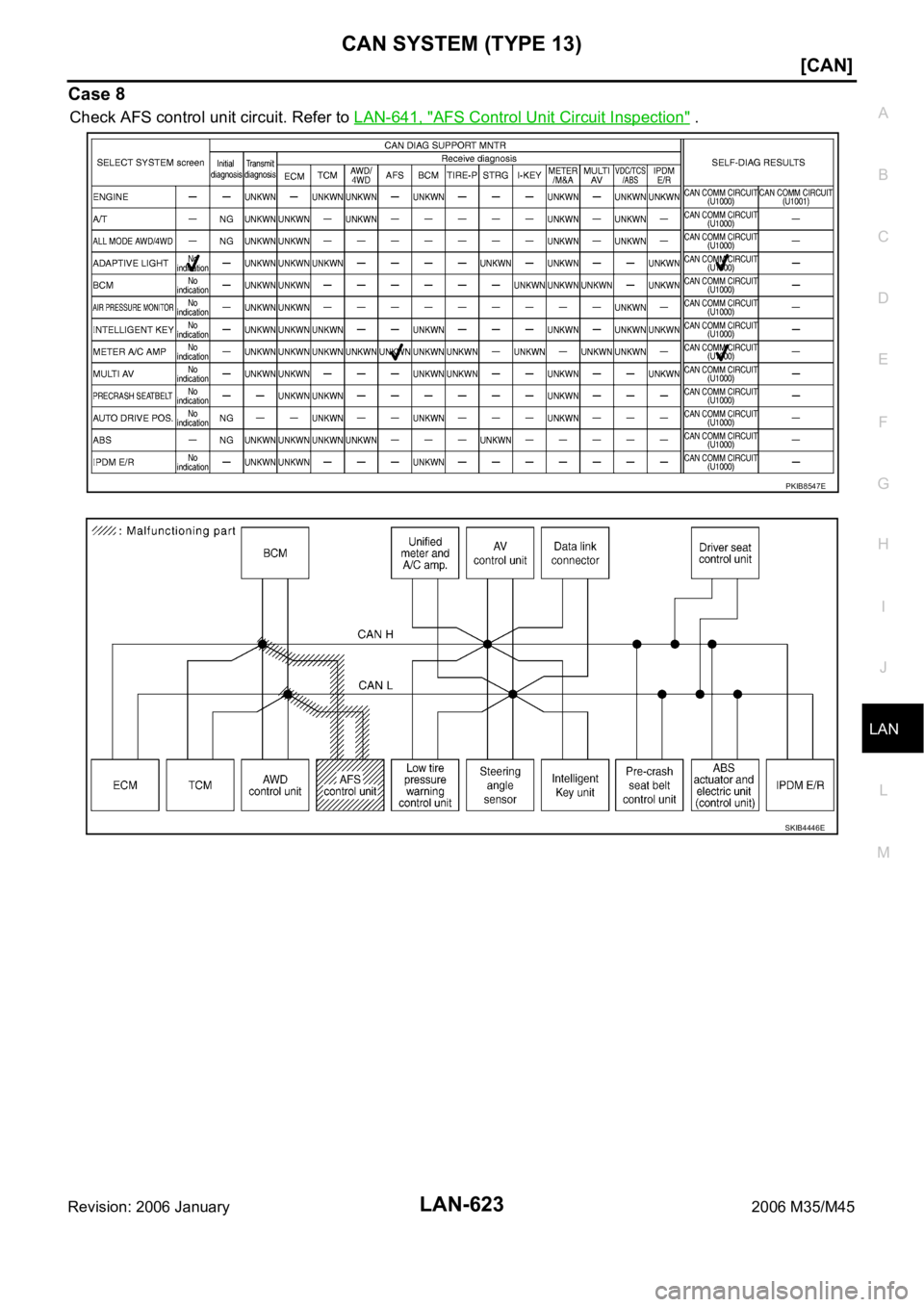

Case 8
Check AFS control unit circuit. Refer to LAN-641, "AFS Control Unit Circuit Inspection" .
PKIB8547E
SKIB4446E

LAN-624
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45

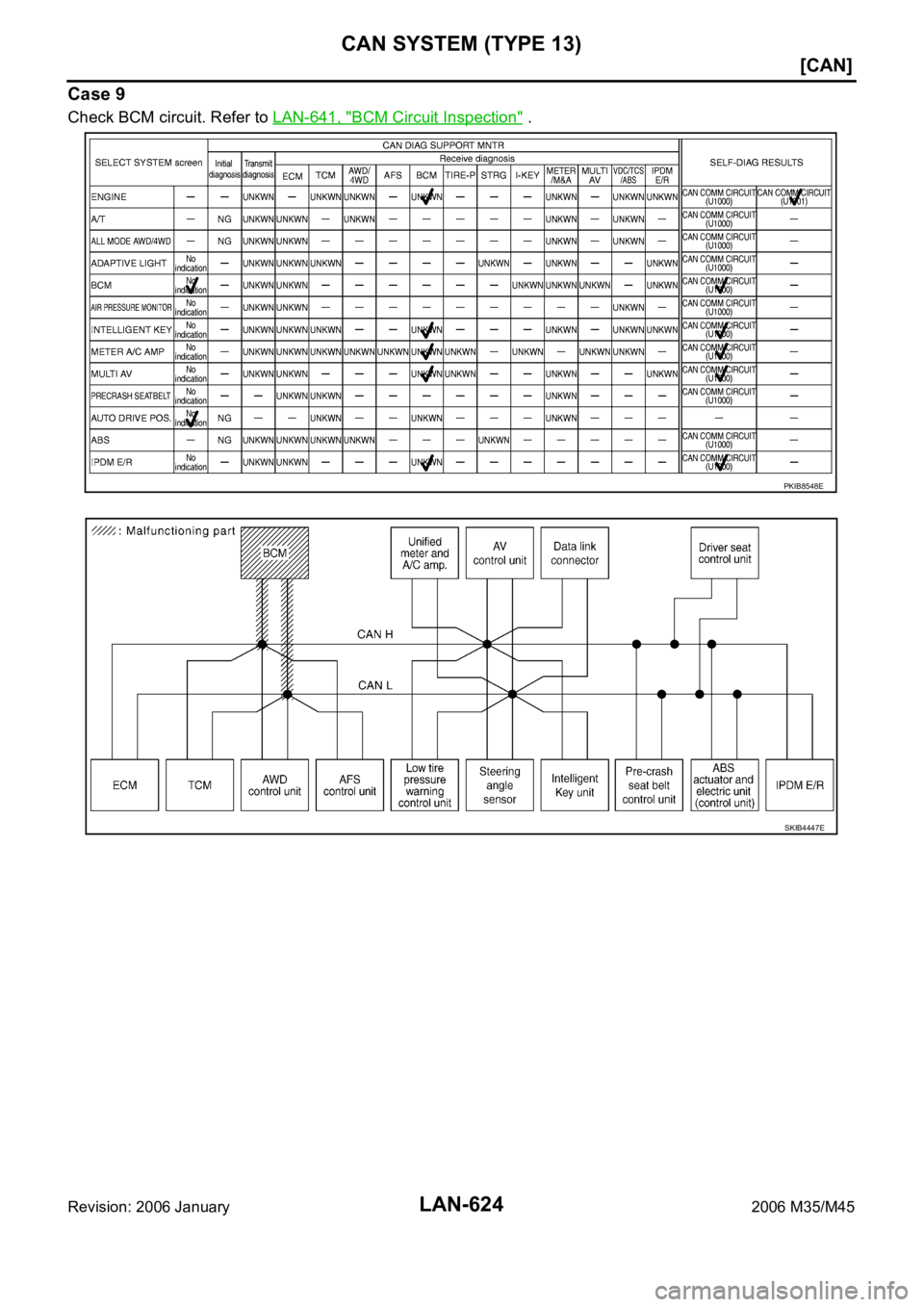

Case 9
Check BCM circuit. Refer to LAN-641, "BCM Circuit Inspection" .
PKIB8548E
SKIB4447E

CAN SYSTEM (TYPE 13)
LAN-625
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 10
Check low tire pressure warning control unit circuit. Refer to LAN-642, "Low Tire Pressure Warning Control
Unit Circuit Inspection" .
PKIB8549E
SKIB4448E

LAN-626
[CAN]
CAN SYSTEM (TYPE 13)
Revision: 2006 January2006 M35/M45
Case 11
Check steering angle sensor circuit. Refer to LAN-642, "Steering Angle Sensor Circuit Inspection" .
PKIB8550E
SKIB4449E
