CAN SYSTEM (TYPE 1)
LAN-83
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between A/T assembly harness connector termi-
nals and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness between A/T assembly and harness
connector F102.
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–Low tire pressure warning control unit connector
–Steering angle sensor connector
–Intelligent Key unit connector
–Unified meter and A/C amp. connector
–Harness connector M53
–Harness connector M13
2. Check continuity between data link connector terminals.
OK or NG
OK >> GO TO 7.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between data link connector and harness
connector M62
Harness between data link connector and low tire pressure warning control unit
Harness between data link connector and steering angle sensor
Harness between data link connector and Intelligent Key unit
Harness between data link connector and unified meter and A/C amp.
Harness between data link connector and harness connector M53
Harness between data link connector and harness connector M13
A/T assembly
connectorTerminal
GroundContinuity
F423No
8No
SKIA6875E
Data link
connectorTerminal Continuity
M60 6 14 No
PKIA9865E

LAN-84
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2006 January2006 M35/M45
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector terminals and ground.
OK or NG
OK >> GO TO 8.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between data link connector and harness
connector M62
Harness between data link connector and low tire pressure warning control unit
Harness between data link connector and steering angle sensor
Harness between data link connector and Intelligent Key unit
Harness between data link connector and unified meter and A/C amp.
Harness between data link connector and harness connector M53
Harness between data link connector and harness connector M13
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect AV control unit connector.
2. Check continuity between AV control unit harness connector ter-
minals.
OK or NG
OK >> GO TO 9.
NG >> Repair harness between AV control unit and harness
connector M216.
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between AV control unit harness connector termi-
nals and ground.
OK or NG
OK >> GO TO 10.
NG >> Repair harness between AV control unit and harness
connector M216.
Data link
connectorTerminal
GroundContinuity
M606No
14 No
PKIA9872E
AV control unit
connectorTerminal Continuity
M210 71 72 No
PKIC0288E
AV control unit
connectorTerminal
GroundContinuity
M21071 No
72 No
PKIC0291E

CAN SYSTEM (TYPE 1)
LAN-87
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
16. CHECK ECM AND IPDM E/R INTERNAL CIRCUIT
1. Remove ECM and IPDM E/R from vehicle.
2. Check resistance between ECM terminals.
3. Check resistance between IPDM E/R terminals.
OK or NG
OK >> GO TO 17.
NG >> Replace ECM and/or IPDM E/R.
17. CHECK SYMPTOM
1. Fill in described symptoms on the column “Symptom” in the check sheet.
2. Connect all connectors, and then make sure that the symptom is reproduced.
OK or NG
OK >> GO TO 18.
NG >> Refer to LAN-18, "
Example of Filling in Check Sheet When Initial Conditions Are Not Reproduced"
.
18. CHECK UNIT REPRODUCIBILITY
Performs the following procedure for each unit, and then perform reproducibility test.
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect the unit connector.
4. Connect the battery cable to the negative terminal.
5. Make sure that the symptom filled in the “Symptom” of the check sheet is reproduced. (Do not confuse it
with the symptom related to removed unit.)
6. Make sure that the same symptom is reproduced.
–A/T assembly
–BCM
–Low tire pressure warning control unit
–Steering angle sensor
–Intelligent Key unit
–Unified meter and A/C amp.
–AV control unit
–Driver seat control unit
–ABS actuator and electric unit (control unit)
–ECM
–IPDM E/R
Check results
Reproduce>>Install removed unit, and then check the other unit.
Not reproduced>>Replace removed unit.
TerminalResistance
(Approx.)
94 86 108 – 132
TerminalResistance
(Approx.)
49 50 108 – 132
LKIA0037E

CAN SYSTEM (TYPE 2)
LAN-103
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

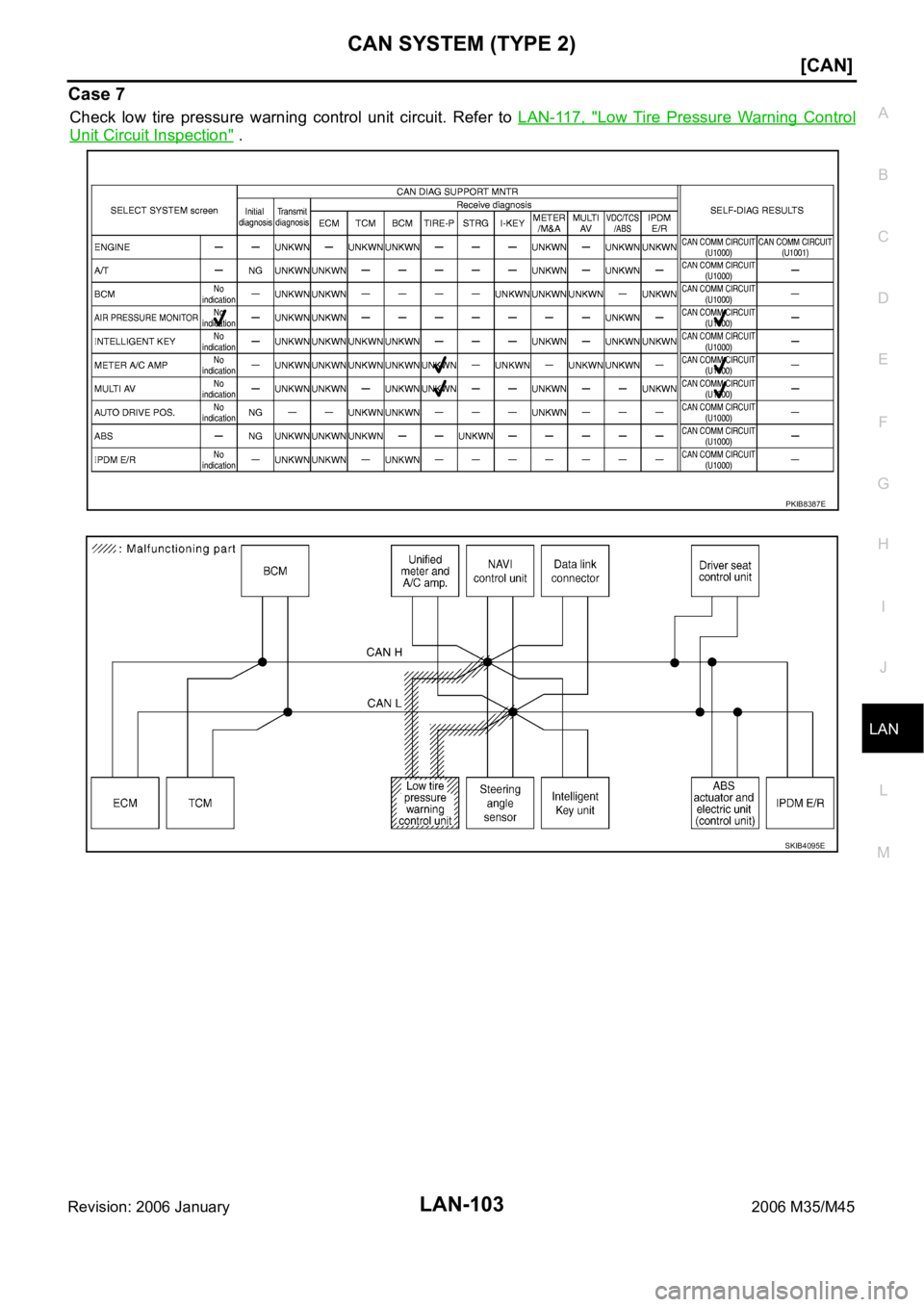

Case 7
Check low tire pressure warning control unit circuit. Refer to LAN-117, "Low Tire Pressure Warning Control
Unit Circuit Inspection" .
PKIB8387E
SKIB4095E

CAN SYSTEM (TYPE 2)
LAN-117
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector.
2. Check resistance between A/T assembly harness connector ter-
minals.
OK or NG
OK >> Replace control valve with TCM.
NG >> Repair harness between A/T assembly and BCM.
BCM Circuit InspectionNKS003YR
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of BCM for damage, bend and loose connection (control module side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect BCM connector.
2. Check resistance between BCM harness connector terminals.
OK or NG
OK >> Replace BCM. Refer to BCS-17, "Removal and Installa-
tion of BCM" .
NG >> Repair harness between BCM and harness connector
M61.
Low Tire Pressure Warning Control Unit Circuit InspectionNKS003YS
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of low tire pressure warning control unit for damage, bend and loose con-
nection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
A/T assembly
connectorTerminalResistance
(Approx.)
F42 3 8 54 – 66
SKIA6866E
BCM connector TerminalResistance
(Approx.)
M1 39 40 54 – 66
SKIA6869E

LAN-118
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect low tire pressure warning control unit connector.
2. Check resistance between low tire pressure warning control unit
harness connector terminals.
OK or NG
OK >> Replace low tire pressure warning control unit.
NG >> Repair harness between low tire pressure warning con-
trol unit and data link connector.
Steering Angle Sensor Circuit InspectionNKS003YT
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con-
nector terminals.
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and data
link connector.
Intelligent Key Unit Circuit InspectionNKS003YU
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check terminals and connector of Intelligent Key unit for damage, bend and loose connection (unit side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
Low tire pressure
warning control
unit connectorTerminalResistance
(Approx.)
M19 15 16 54 – 66
PKIC0285E
Steering angle
sensor connectorTerminalResistance
(Approx.)
M47 4 5 54 – 66
PKIA9864E

LAN-122
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 January2006 M35/M45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector termi-
nals.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and harness con-
nector E105.
CAN Communication Circuit InspectionNKS003Z1
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, unit side, sensor side, meter side and harness side).
–ECM
–A/T assembly
–BCM
–Low tire pressure warning control unit
–Steering angle sensor
–Intelligent Key unit
–Unified meter and A/C amp.
–NAVI control unit
–Driver seat control unit
–ABS actuator and electric unit (control unit)
–IPDM E/R
–Between ECM and A/T assembly
–Between ECM and NAVI control unit
–Between ECM and driver seat control unit
–Between ECM and IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
IPDM E/R
connectorTerminalResistance
(Approx.)
E9 49 50 108 – 132
PKIC0290E

LAN-124
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 January2006 M35/M45
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between A/T assembly harness connector termi-
nals and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness between A/T assembly and harness
connector F102.
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–Low tire pressure warning control unit connector
–Steering angle sensor connector
–Intelligent Key unit connector
–Unified meter and A/C amp. connector
–Harness connector M53
–Harness connector M13
2. Check continuity between data link connector terminals.
OK or NG
OK >> GO TO 7.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between data link connector and harness
connector M62
Harness between data link connector and low tire pressure warning control unit
Harness between data link connector and steering angle sensor
Harness between data link connector and Intelligent Key unit
Harness between data link connector and unified meter and A/C amp.
Harness between data link connector and harness connector M53
Harness between data link connector and harness connector M13
A/T assembly
connectorTerminal
GroundContinuity
F423No
8No
SKIA6875E
Data link
connectorTerminal Continuity
M60 6 14 No
PKIA9865E
