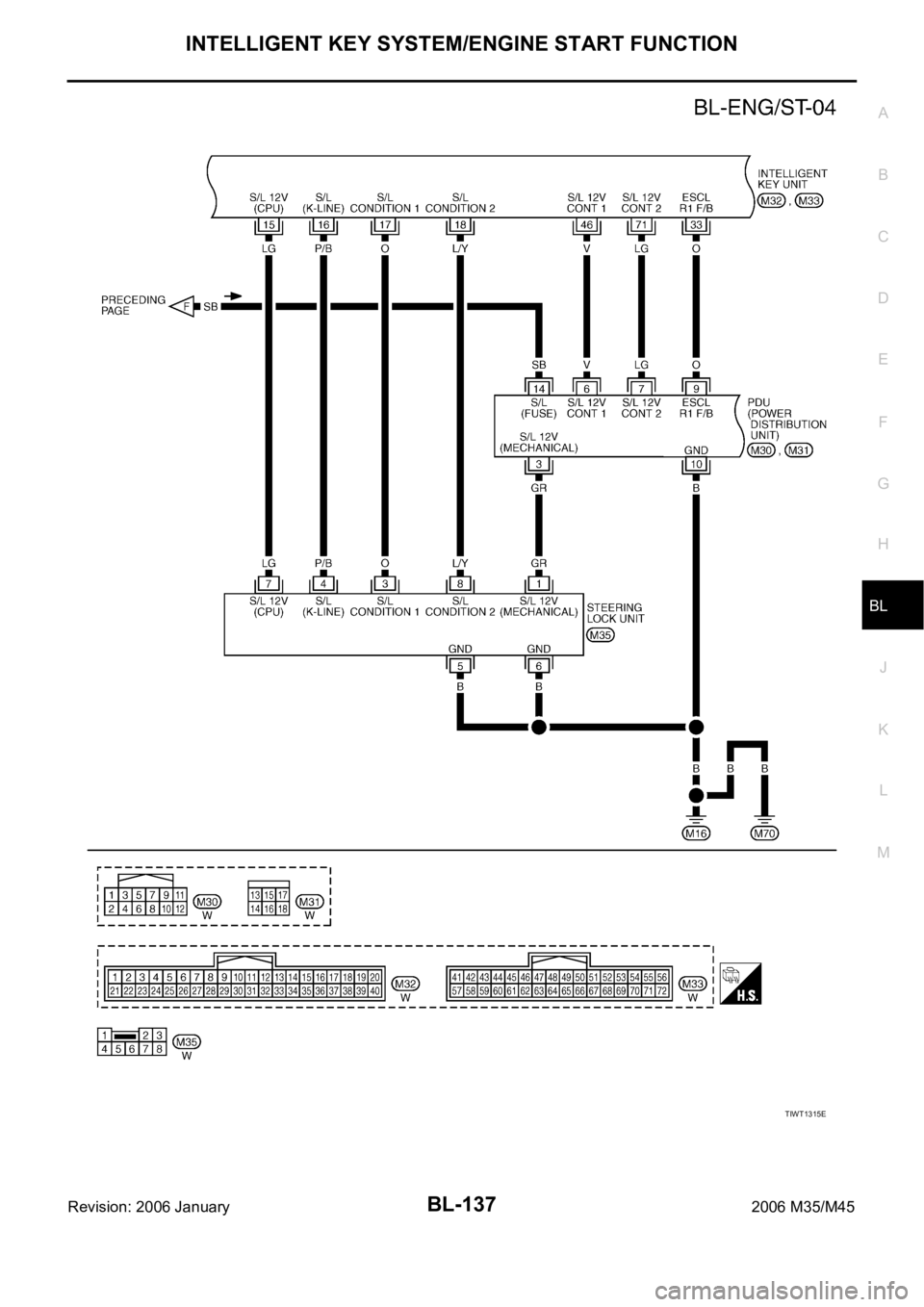

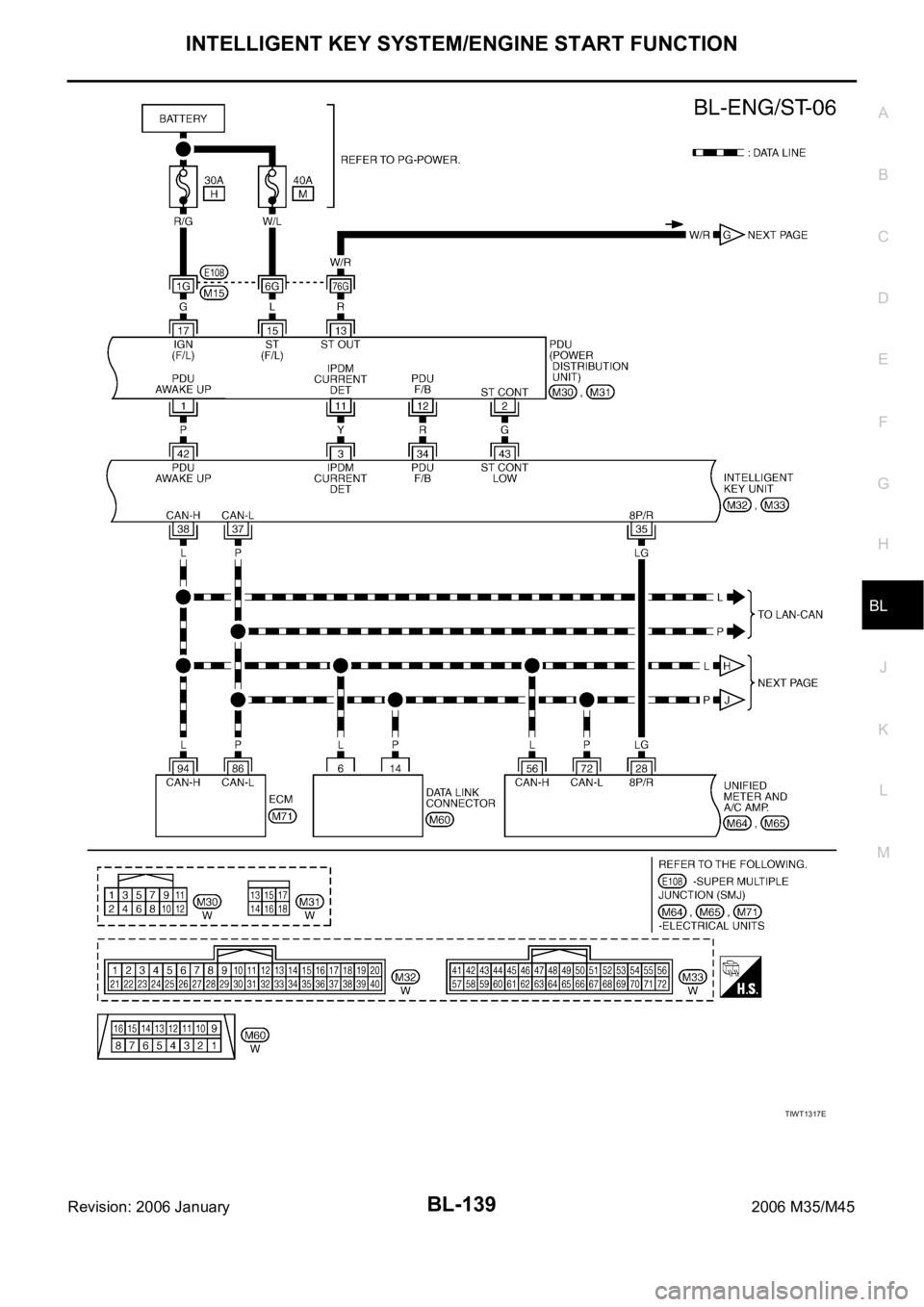

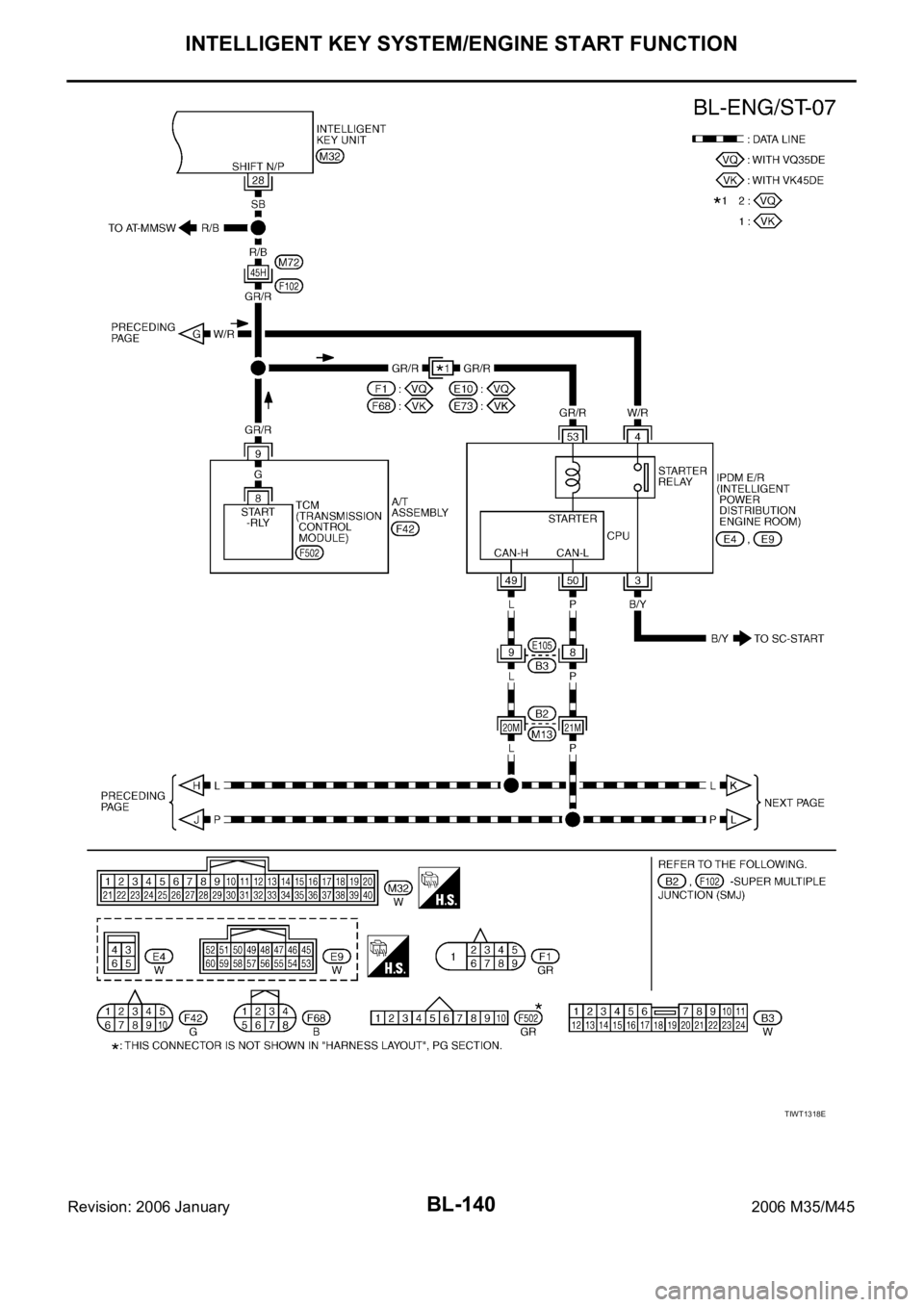

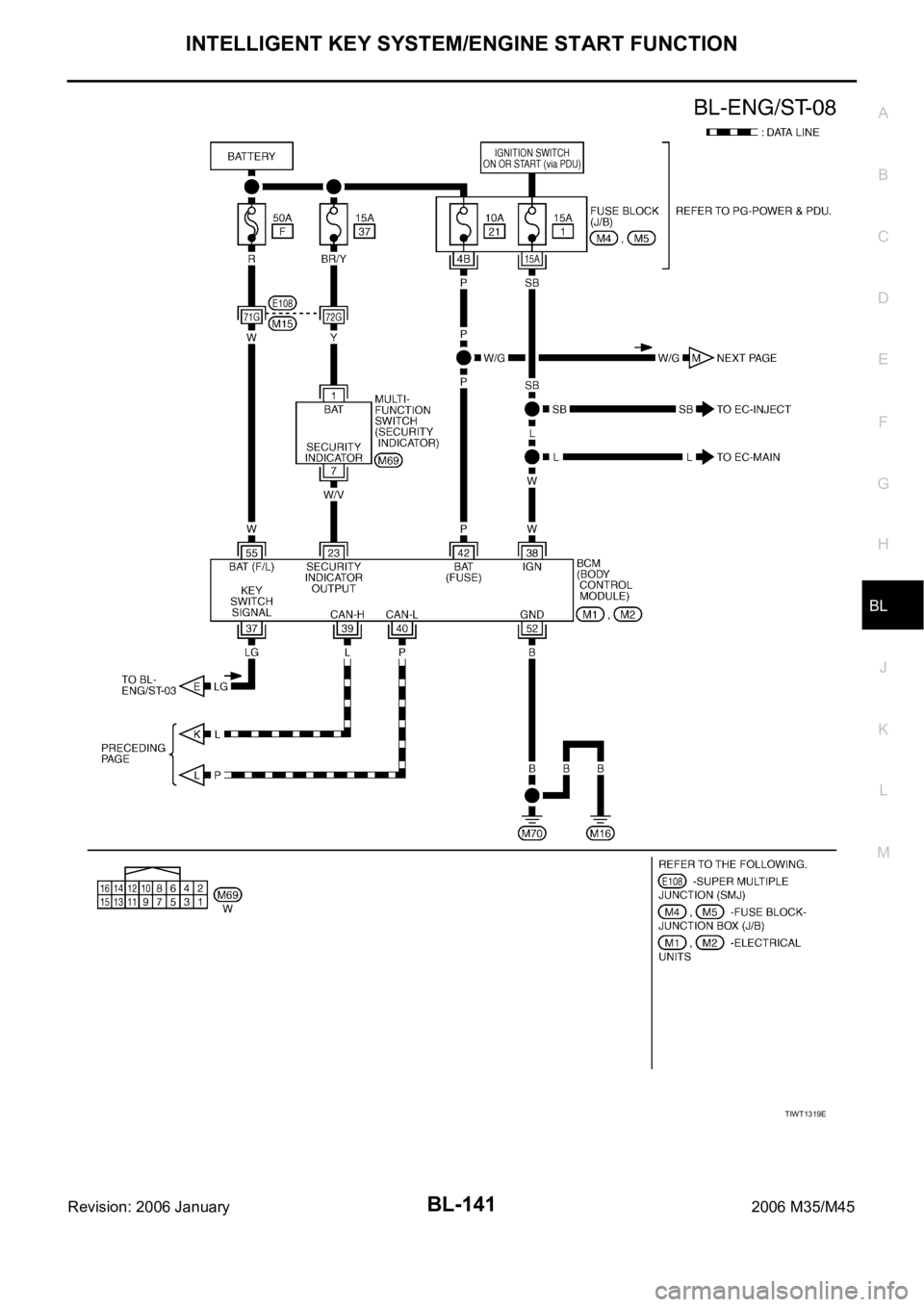

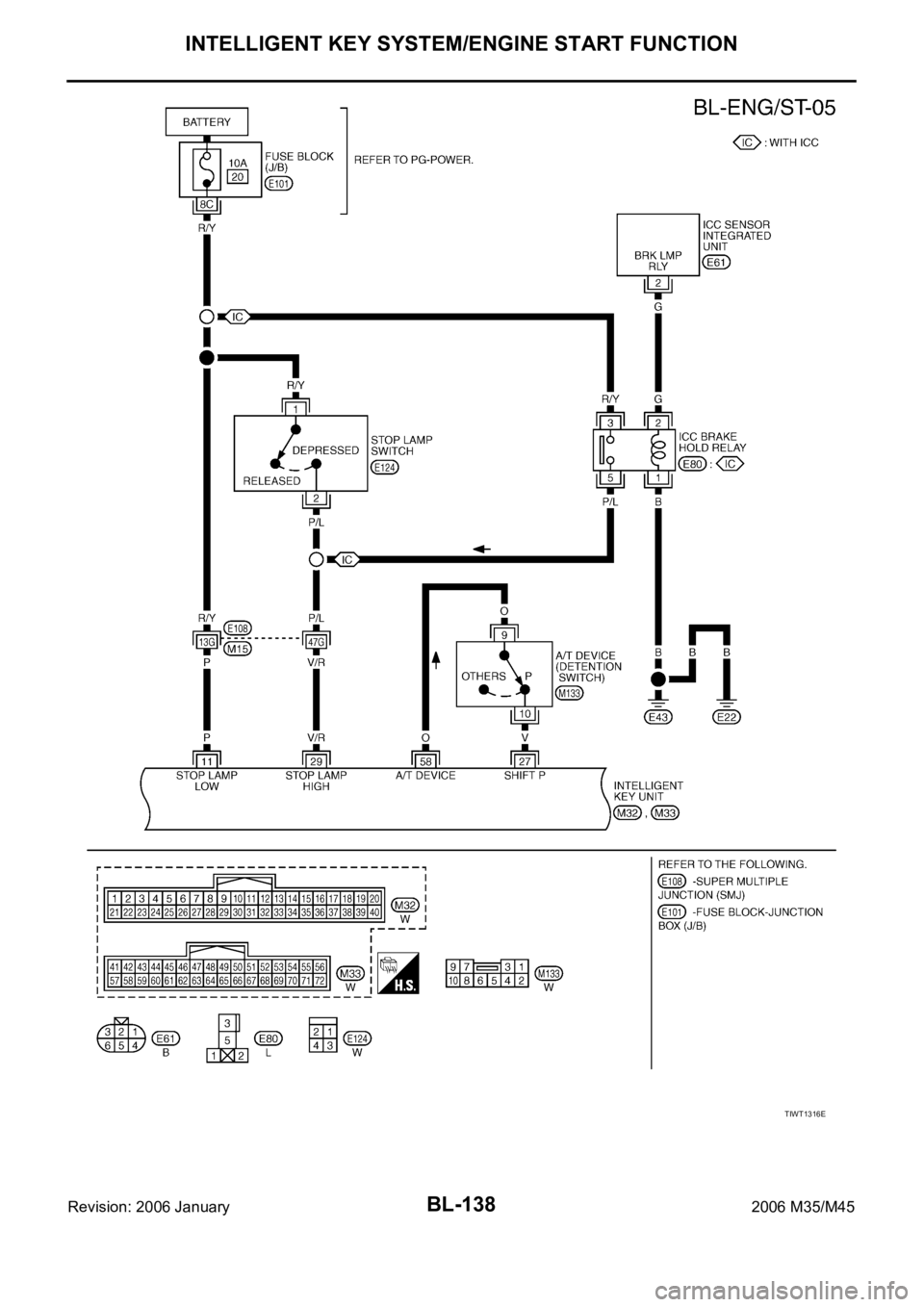

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
BL-137
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
TIWT1315E

BL-138
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
Revision: 2006 January2006 M35/M45
TIWT1316E

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
BL-139
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
TIWT1317E

BL-140
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
Revision: 2006 January2006 M35/M45
TIWT1318E

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
BL-141
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
TIWT1319E

BL-142
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
Revision: 2006 January2006 M35/M45
TIWT1320E

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
BL-143
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
Terminals and Reference Value for Intelligent Key UnitNIS001YE
Te r m i -
nal
No.Wire
colorItemCondition
Voltage (V)
(Approx.) Push-
button
ignition
switch
positionOperation or conditions
1 SB Power source (fuse) — — Battery voltage
3 Y IPDM E/R status signalSTART Engine starting (During cranking) 5
LOCK Other than above 2
4 B/Y RSSI signal LOCKCarry the Intelligent Key within the
inside key antenna detection area,
and then push the push-button ignition
switch.0
Other than above
5B/WRemote key less entry
receiver signalLOCKCarry the Intelligent Key within the
inside key antenna detection area,
and then push the push-button ignition
switch.
(When receiving the signal from Intelli-
gent Key)
Other than above
(Signal receiving wait mode)
6BRemote key less entry
receiver ground—— 0
7B/RRemote keyless entry
receiver power supply——
8WPush-button ignition
switch LOCK indicatorLOCKPush-button ignition switch is in LOCK
position0
—Push-button ignition switch is in any
position
(Except LOCK position)1.2
9LPush-button ignition
switch ACC indicatorACCPush-button ignition switch is in ACC
position0
—Push-button ignition switch is in any
position
(Except ACC position)1.2
PIIB5657J
OCC3880D
OCC3879D
OCC3881D

BL-144
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
Revision: 2006 January2006 M35/M45
10 VPush-button ignition
switch ON indicatorONPush-button ignition switch is in ON
position0
—Push-button ignition switch is in any
position
(Except ON position)1.2
11 P Stop lamp switch —Brake pedal depressed Battery voltage
Brake pedal released Battery voltage
12 L/RPush-button ignition
switch illumination—Push-button ignition switch illumina-
tion is turned on2.6
Push-button ignition switch illumina-
tion is turned off
(15 seconds or more after the driver
door is closed)0
13 LG/B Key slot illumination LOCKInsert Intelligent Key into key slot and
driver side door is open.Battery voltage
Remove Intelligent Key from key slot. 0
15 LGSteering lock unit
power sourceLOCK — Battery voltage
16 P/BSteering lock unit sig-
nalLOCK Steering lock: Lock Battery voltage
ACC
Steering lock: Unlock
(Unlocked moment)0
NO 0
17 OSteering lock unit con-
dition signal-1LOCK Steering lock: Lock 0
ACC
Steering lock: UnlockBattery voltage
ON Battery voltage
18 L/YSteering lock unit con-
dition signal-2LOCK Steering lock: Lock Battery voltage
ACC
Steering lock: Unlock0
ON 0
19 BR/Y Key switch signal LOCKInsert Intelligent Key into key slot. 0
Remove Intelligent Key from key slot Battery voltage
20 B Ground — — 0
27 VA/T device (Detention
switch)LOCK A/T selector lever is in P position 0
ON Other than above Battery voltage
28 SB Starter relayON A/T selector lever is in N or P position Battery voltage
—Ignition switch position is in LOCK
position or A/T selector lever is in any
position other than N or P position0
29 V/R Stop lamp switch —Brake pedal depressed Battery voltage
Brake pedal released 0
30 L/WIgnition power supply
(ACC)ACCIgnition switch position is in ACC or
ON positionBattery voltage
31 GRIgnition power supply
(ON)ONIgnition switch position is in ON or
START positionBattery voltage
33 O PDU signalLOCK Steering lock: Lock 0
ACC Steering lock: Unlock 8 Te r m i -
nal
No.Wire
color
ItemCondition
Voltage (V)
(Approx.) Push-
button
ignition
switch
positionOperation or conditions
