2006 INFINITI FX35 display

AIR CONDITIONER CONTROL ATC-35
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 December 2006 FX35/FX45
DISPLAY SCREEN
The operation status of the system is displayed on the screen.
AUTO SWITCH

The compressor, intake doors, air mix doors, mode doors and blower speed are automatically controlled
so that the in-vehicle temperature will reach, and be maintained at the set temperature selected by the
operator.

When pressing AUTO switch, air inlet, air outlet, fan speed, and discharge air temperature are automati-
cally controlled.
TEMPERATURE CONTROL SWITCH (POTENTIO TEMPERATURE CONTROL) (DRIVER SIDE)
The set temperature is increased or decreased with this switch.
TEMPERATURE CONTROL SWITCH (POTENTIO TEMPERATURE CONTROL) (PASSENGER
SIDE)

The set temperature is increased or decreased with this switch.

When the temperature switch is pressed, the DUAL switch indicator will automatically illuminate.
INTAKE SWITCH

When intake switch is ON, FRE LED turns ON, and air inlet is fixed to FRE.

When press intake switch again, REC LED turns ON, and air inlet is fixed to REC.

When intake switch is pressed for approximately 1.5 seconds or longer, FRE and REC LEDs blink twice.
Then, automatic control mode is entered. Inlet status is displayed by LED even during automatic con-
trolled.

When FRE LED is turned ON, shifting mode position to D/F or DEF, or when compressor is turned from
ON to OFF, intake switch is automatically turned OFF (fixed to FRE mode). REC mode can be re-entered
by pressing intake switch again, and then compressor is turned ON. (Except D/F or DEF position)
DEFROSTER (DEF) SWITCH
Mode doors are set to the defrost position with this switch. Also, intake doors are set to the outside air position,
and compressor turns ON.
REAR WINDOW DEFOGGER SWITCH
When illumination is ON, rear window is defogged.
OFF SWITCH
Compressor and blower are OFF, the intake doors are set to the outside air position, and the mode doors are
set to the foot (75% foot and 25% defrost) position.
A/C SWITCH
Compressor is ON or OFF with this switch.
(Pressing the A/C switch when the A/C switch is ON will turn OFF the A/C switch and compressor.)
MODE SWITCH
The air discharge outlets is controlled with this switch.
FAN SWITCH
The blower speed is manually controlled with this switch. Seven speeds are available for manual control (as
shown on the display screen).
DUAL SWITCH

When the DUAL switch indicator is illuminated, the driver-side and passenger-side temperature can each
be set independently.

When the DUAL switch indicator is not illuminated, the driver-side setting temperature is applied to both
sides.

ATC-36
AIR CONDITIONER CONTROL
Revision: 2006 December 2006 FX35/FX45
Fail-safe FunctionNJS000DQ
If a communication error exists between the unified meter and A/C amp., and the A/C and AV switch for 30
seconds or longer, air conditioner is controlled under following conditions:
Compressor : ON
Air outlet : AUTO
Air inlet : FRE (Fresh)
Blower fan speed : AUTO
Set temperature : Setting before communication error occurs
Display : OFF

ATC-40
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
TROUBLE DIAGNOSISPFP:00004
CONSULT-II Function (BCM)NJS000DU
CONSULT-II can display each diagnosis item using the diagnosis test modes shown following.
CONSULT-II BASIC OPERATION
Refer to GI-38, "CONSULT-II Start Procedure" .
DATA MONITOR
Operation Procedure
1. Touch “AIR CONDITIONER” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “DATA MONITOR” screen.
4. When “SELECTION FROM MENU” is selected, touch items to be monitored. When “ALL SIGNALS” is selected, all the items will be monitored.
5. Touch “START”.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop recording, touch “STOP”.
Display Item List
How to Perform Trouble Diagnosis for Quick and Accurate RepairNJS000DV
WORK FLOW
System part Check item, diagnosis mode Description
BCM Data monitor Displays BCM input data in real time.
All signals Monitors all the items.
Selection from menu Selects and monitors the individual item selected.
Monitor item name “operation or unit” Contents
IGN ON SW “ON/OFF” Displays “IGN position (ON)/OFF, ACC position (OFF)” status as judged from ignition switch signal.
FAN ON SIG “ON/OFF” Displays “FAN (ON)/FAN (OFF)” status as judged from blower fan motor switch signal.
AIR COND SW “ON/OFF” Displays “COMP (ON)/COMP (OFF)” status as judged from air conditioner switch signal.
*1 ATC-60, "Operational Check"
SHA900E

TROUBLE DIAGNOSIS ATC-41
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 December 2006 FX35/FX45
SYMPTOM TABLE
Symptom Reference Page
A/C system does not come on. Go to Trouble Diagnosis Procedure for A/C System. ATC-62, "
Power
Supply and Ground
Circuit for Auto
Amp."
A/C system cannot be controlled.
Go to Integrated Display System.

Go to Navigation System. AV- 8 4 , "
Unable to
Operate System
with A/C and AV
Switch" (Without
navigation system)
or AV-139, "
Unable
to Operate System
with A/C and AV
Switch" (With navi-
gation system)
Air outlet does not change. Go to Trouble Diagnosis Procedure for Mode Door Motor. (LAN) ATC-68, "
Mode
Door Motor Circuit"Mode door motor does not operate normally.
Discharge air temperature does not change. Go to Trouble Diagnosis Procedure for Air Mix Door Motor.
(LAN) AT C - 7 1 , "
Air Mix
Door Motor Circuit"Air mix door motor does not operate nor-
mally.
Intake door does not change. Go to Trouble Diagnosis Procedure for Intake Door Motor. (LAN) AT C - 7 4 , "
Intake
Door Motor Circuit"Intake door motor does not operate nor-
mally.
Blower motor operation is malfunctioning. Go to Trouble Diagnosis Procedure for Blower Motor. ATC-77, "
Blower
Motor Circuit"
Magnet clutch does not engage. Go to Trouble Diagnosis Procedure for Magnet Clutch.AT C - 8 2 , "Magnet
Clutch Circuit"
Insufficient cooling Go to Trouble Diagnosis Procedure for Insufficient Cooling.
ATC-90, "
Insufficient
Cooling"
Go to Diagnosis Procedure for Insufficient Cooling. ATC-97, "
DIAGNO-
SIS PROCEDURE
FOR INSUFFI-
CIENT COOLING"
Insufficient heating Go to Trouble Diagnosis Procedure for Insufficient Heating.
ATC-99, "Insufficient
Heating"
Noise Go to Trouble Diagnosis Procedure for Noise.
ATC-100, "Noise"
Self-diagnosis cannot be performed. Go to Trouble Diagnosis Procedure for Self-diagnosis. ATC-101, "Self-
diagnosis"
Memory function does not operate. Go to Trouble Diagnosis Procedure for Memory Function.
ATC-102, "Memory
Function"

TROUBLE DIAGNOSIS ATC-53
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 December 2006 FX35/FX45
FUNCTION CONFIRMATION PROCEDURE
1. SET IN SELF-DIAGNOSIS MODE
1. Turn ignition switch ON.
2. Set in self-diagnosis mode as follows. Within 10 seconds after starting engine (ignition switch is turned ON.), press OFF switch for at least 5 seconds.
CAUTION:

If battery voltage drops below 12 V during diagnosis STEP-3, door motor speed becomes slower
and as a result, the system may generate an error even when operation is normal. To avoid this,
start engine before performing this diagnosis.

Former STEP-1 (LEDs and display screen are checked) does not exist in this self-diagnosis func-
tion.
>> GO TO 2.
2. STEP-2: SENSOR CIRCUITS ARE CHECKED FOR OPEN OR SHORT CIRCUIT
Does code No. 20 appear on the display?
YES >> GO TO 3.
NO >> GO TO 13.
3. CHECK TO ADVANCE SELF-DIAGNOSIS STEP-3
Press temperature control (UP) switch (driver side).
Advance to self
-diagnosis STEP-3?
YES >> GO TO 4.
NO >> Replace A/C and AV switch. (Temperature control switch is malfunctioning.)
4. CHECK TO RETURN SELF-DIAGNOSIS STEP-2
Press temperature control (DOWN) switch (driver side).
Return to self
-diagnosis STEP-2?
YES >> GO TO 5.
NO >> Malfunctioning A/C and AV switch or unified meter and A/C amp. Refer to ATC-101, "
Self-diagno-
sis" .
5. STEP-3: MODE DOOR AND INTAKE DOOR POSITIONS ARE CHECKED
Press temperature control (UP) switch (driver side).
Does code No. 30 appear on the display?
YES >> GO TO 6.
NO >> GO TO 14.
RJIA0219E
RJIA0220E

ATC-54
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45

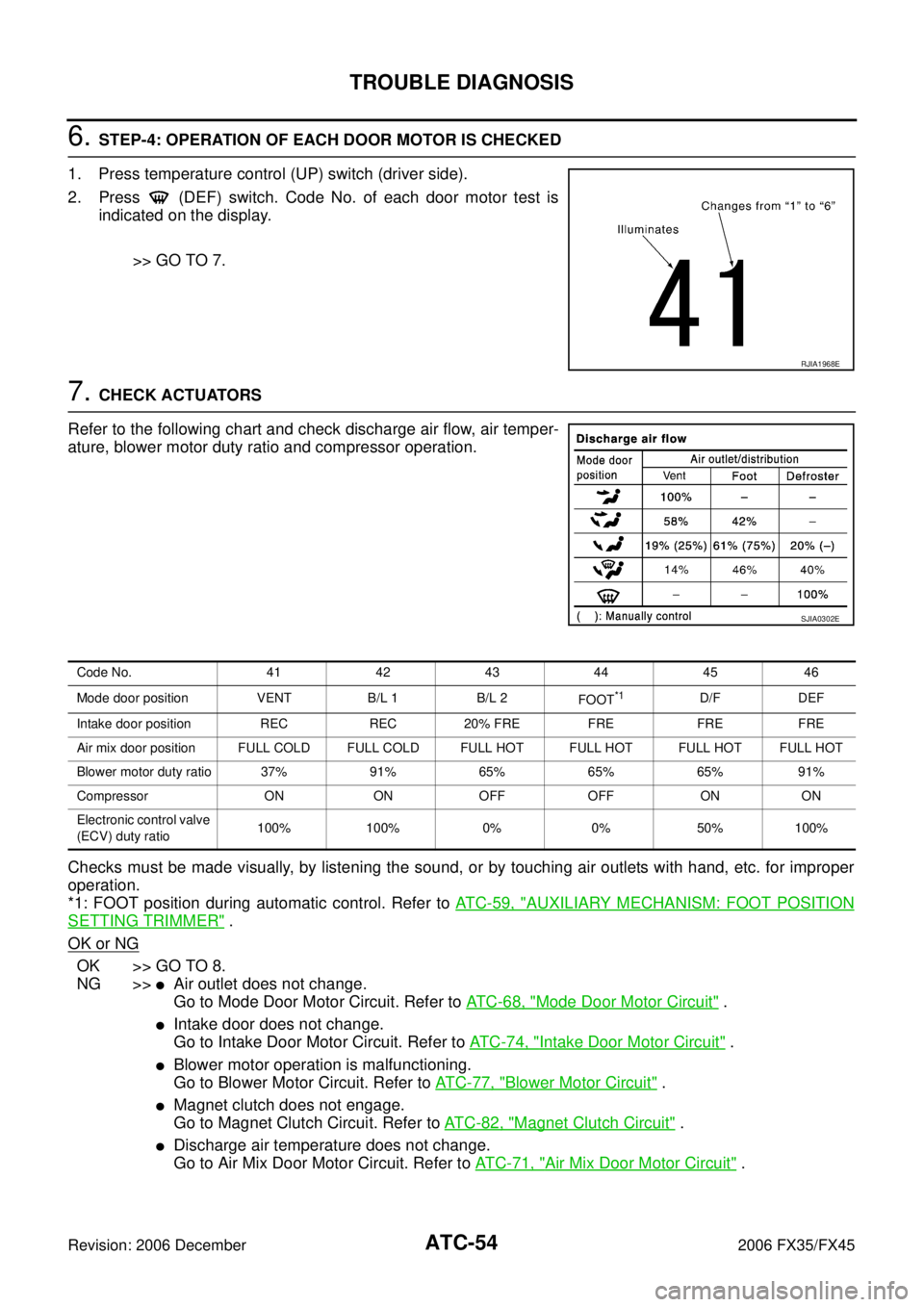

6. STEP-4: OPERATION OF EACH DOOR MOTOR IS CHECKED
1. Press temperature control (UP) switch (driver side).
2. Press (DEF) switch. Code No. of each door motor test is indicated on the display.
>> GO TO 7.
7. CHECK ACTUATORS
Refer to the following chart and check discharge air flow, air temper-
ature, blower motor duty ratio and compressor operation.
Checks must be made visually, by listening the sound, or by touching air outlets with hand, etc. for improper
operation.
*1: FOOT position during automatic control. Refer to AT C - 5 9 , "
AUXILIARY MECHANISM: FOOT POSITION
SETTING TRIMMER" .
OK or NG
OK >> GO TO 8.
NG >>

Air outlet does not change.
Go to Mode Door Motor Circuit. Refer to AT C - 6 8 , "
Mode Door Motor Circuit" .

Intake door does not change.
Go to Intake Door Motor Circuit. Refer to AT C - 7 4 , "
Intake Door Motor Circuit" .

Blower motor operation is malfunctioning.
Go to Blower Motor Circuit. Refer to AT C - 7 7 , "
Blower Motor Circuit" .

Magnet clutch does not engage.
Go to Magnet Clutch Circuit. Refer to AT C - 8 2 , "
Magnet Clutch Circuit" .

Discharge air temperature does not change.
Go to Air Mix Door Motor Circuit. Refer to AT C - 7 1 , "
Air Mix Door Motor Circuit" .
RJIA1968E
SJIA0302E
Code No. 41 42 43 44 45 46
Mode door position VENT B/L 1 B/L 2 FOOT
*1D/F DEF
Intake door position REC REC 20% FRE FRE FRE FRE
Air mix door position FULL COLD FULL COLD FULL HOT FULL HOT FULL HOT FULL HOT
Blower motor duty ratio 37% 91% 65% 65% 65% 91%
Compressor ON ON OFF OFF ON ON
Electronic control valve
(ECV) duty ratio 100% 100% 0% 0% 50% 100%

TROUBLE DIAGNOSIS ATC-55
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 December 2006 FX35/FX45
8. STEP-5: TEMPERATURE OF EACH SENSOR IS CHECKED
1. Press temperature control (UP) switch (driver side).
2. Code No. 51 appears on the display.
>> GO TO 9.
9. CHECK AMBIENT SENSOR
Press (DEF) switch one time. Temperature detected by ambient
sensor is indicated on the display.
NOTE:
If the temperature indicated on the display greatly differs from the
actual temperature, check sensor circuit first, and then check sensor.
OK or NG
OK >> GO TO 10.
NG >> Go to Ambient Sensor Circuit. Refer to ATC-103, "
Ambi-
ent Sensor Circuit" .
10. CHECK IN-VEHICLE SENSOR
Press (DEF) switch for the second time. Temperature detected
by in-vehicle sensor is indicated on the display.
NOTE:
If the temperature indicated on the display greatly differs from the
actual temperature, check sensor circuit first, and then check sensor.
OK or NG
OK >> GO TO 11.
NG >> Go to In-vehicle Sensor Circuit. Refer to ATC-106, "
In-
vehicle Sensor Circuit" .
11 . CHECK INTAKE SENSOR
Press (DEF) switch for the third time. Temperature detected by
intake sensor is indicated on the display.
NOTE:
If the temperature indicated on the display greatly differs from the
actual temperature, check sensor circuit first, and then check sensor.
OK or NG
OK >> GO TO 12.
NG >> Go to Intake Sensor Circuit. Refer to AT C - 11 2 , "
Intake
Sensor Circuit" .
SJIA1572E
SJIA1573E
SJIA1574E

ATC-56
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
12. CHECK CAN COMMUNICATION ERROR
1. Press intake switch.
2. CAN communication error between the unified meter and A/C amp. and the display control unit can be detected as self-diag-
nosis results. (If plural errors occur, the display of each error will
blink twice for 0-5 second intervals.)
OK or NG
OK >> 1. Turn ignition switch OFF or AUTO switch ON. 2. INSPECTION END
NG >> Go to CAN communication. Refer to BCS-14, "
CAN
Communication Inspection Using CONSULT-II (Self-
Diagnosis)" .

Unified meter and A/C amp. - Display control unit
13. CHECK MALFUNCTIONING SENSOR
Refer to the following chart for malfunctioning code No.
(If two or more sensors malfunction, corresponding code Nos. blink respectively twice.)
*1: Perform self-diagnosis STEP-2 under sunshine.
When performing indoors, aim a light (more than 60 W) at sunload sensor, otherwise code No. 25 will indicate
despite that sunload sensor is functioning properly.
*2: ATC-103, "
DIAGNOSIS PROCEDURE FOR AMBIENT SENSOR" .
*3: ATC-107, "
DIAGNOSIS PROCEDURE FOR IN-VEHICLE SENSOR" .
*4: AT C - 11 2 , "
DIAGNOSIS PROCEDURE FOR INTAKE SENSOR" .
*5: ATC-109, "
DIAGNOSIS PROCEDURE FOR SUNLOAD SENSOR" .
*6: AT C - 7 3 , "
DIAGNOSIS PROCEDURE FOR AIR MIX DOOR MOTOR PBR" .
>> INSPECTION END
SJIA1611E
Code No. Malfunctioning sensor (Including circuits) Reference page 21 / −21 Ambient sensor *2
22 / −22 In-vehicle sensor *3
24 / −24 Intake sensor *4
25 / −25
Sunload sensor
*1*5
26 / −26 Air mix door motor PBR (Driver side)
*6
27 / −27 Air mix door motor PBR (Passenger side)
SJIA1641E
