2006 HONDA RIDGELINE Owners Manual

If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.The operator will load
your vehicle on the back of a truck.
Any other method of towing will
damage the drive system. When you
contact the towing agency, inf orm
them a f lat-bed is required. If , due to damage, your vehicle must
be towed with all f our wheels on the
ground, do the f ollowing:
Release the parking brake.
Start the engine.
Shif t to D f or several seconds,
then to N.
Turn of f the engine. With all f our wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
Emergency T owing
The only way you can saf ely tow
your vehicle is with f lat-bed
equipment.
Emergency Towing, If Your Vehicle Gets Stuck
286
Towing your vehicle with two tires on
the ground will damage parts of the
4WD system. It should be transported
on a f lat-bed truck or trailer. Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine, your vehicle must be
transported with the all f our wheels of f
the ground.The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in Accessory (I), and
make sure the steering wheel turns
f reely bef ore you begin towing.
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.
—
—y
y
(y
y

If your vehicle gets stuck in sand,
mud, or snow, call a towing service
to pull it out (see the previous page).

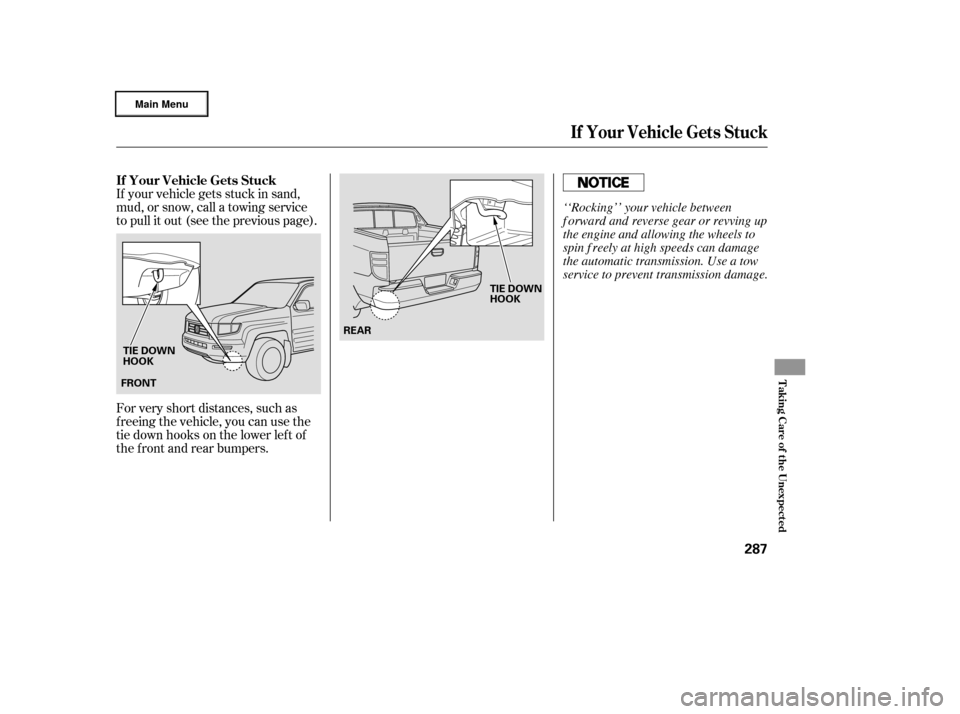

For very short distances, such as
f reeing the vehicle, you can use the
tie down hooks on the lower lef t of
the f ront and rear bumpers.
If Your Vehicle Gets Stuck
If Your Vehicle Gets Stuck
T aking Care of t he Unexpect ed
287
FRONTREAR
TIE DOWN
HOOK TIE DOWN
HOOK
‘‘Rocking’’ your vehicle between
f orward and reverse gear or revving up
the engine and allowing the wheels to
spin f reely at high speeds can damage
the automatic transmission. Use a tow
service to prevent transmission damage.
—
—y
y
(yy

If Your Vehicle Gets Stuck
288
To avoid damage to your vehicle, use
the tie down hooks f or straight, f lat
ground towing only. Do not tow at an
angle. These hooks should not be used
f or open-road towing.
—
—y
y
(yy

Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle, and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.................
Identif ication Numbers .290
................................
Specif ications .292
DOT Tire Quality Grading
......................
(U.S. Vehicles) .294
Unif orm Tire Quality ..................................
Grading .294
.................................
Treadwear .294
......................................
Traction .294
.............................
Temperature .295
.................................
Tire Labeling .296 .......................
Emissions Controls .297
.....................
The Clean Air Act .297
Crankcase Emissions Control
....................................
System .297
Evaporative Emissions Control ....................................
System .297
Onboard Ref ueling Vapor ................................
Recovery .297
...
Exhaust Emissions Controls .298
....................
PGM-FI System .298
Ignition Timing Control
................................
System .298
Exhaust Gas Recirculation ...................
(EGR) System .298
Three Way Catalytic ...........................
Converter .298
....................
Replacement Parts .298
..
Three Way Catalytic Converter .299
..............
State Emissions Testing .300
T echnical Inf ormation
Technical Inf ormation
289
—
—y
y
(yy

Your vehicle has several identif ying
numbers in various places.

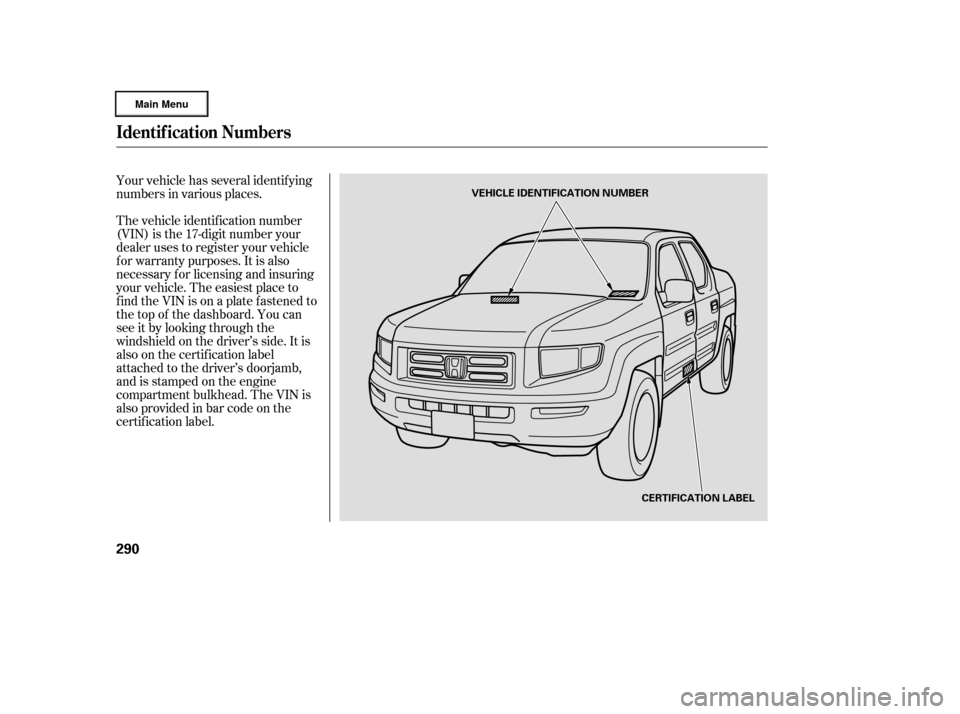

The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
290
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL
—
—y
y
(yy

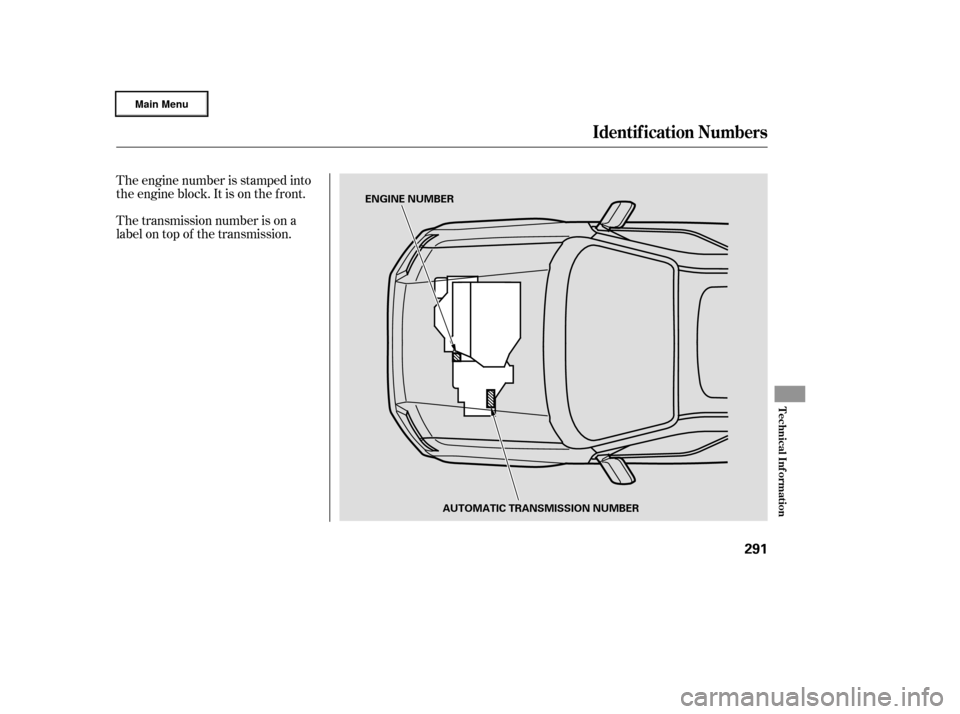

The engine number is stamped into
the engine block. It is on the f ront.
The transmission number is on a
label on top of the transmission.
Identif ication Numbers
Technical Inf ormation
291
ENGINE NUMBERAUTOMATIC TRANSMISSION NUMBER
—
—y
y
(yy

ÎÎ
Î
Î
Î
µµ Î
Î
Î
Î
Î
Specif ications
292
Capacities
Dimensions
Weights
Air Conditioning 1.64 US gal (6.2
)
2.14 US gal (8.1)
4.5 US qt (4.3
)
4.2 US qt (4.0
)
5.3 US qt (5.0
)
3.3 US qt (3.1)
8.6 US qt (8.1)
206.7 in (5,250 mm)
78.0 in (1,980 mm)
70.3 in (1,785 mm)
2.79 US qt (2.64
)
3.01 US qt (2.85)
0.45 US qt (0.43
)
0.48 US qt (0.45)
0.16 US gal (0.6
) 4.8 US qt (4.5
)
Excluding the oil remaining in the engine. Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
Fuel tank
Engine
coolant
Engine oil
Automatic
transmission
fluid
Rear
differential
fluid
Transfer
assembly
fluid
Windshield
washer
reservoir
Length
Width
Height
Wheelbase
Track
122.0 in (3,100 mm)
67.1 in (1,705 mm)
66.9 in (1,700 mm) 22.01 US gal (83.3
)
See the tire information label
attached to the driver’s doorjamb.
Gross vehicle weight rating
Gross combined weight
rating (GCWR)
Maximum load limit
(Payload)
The GCWR must be reduced 2 percent for every 1,000 feet (305
meters) of elevation.
Refrigerant type
Charge quantity
Lubricant type HFC-134a (R-134a)
21.2 23.0 oz (600 650 g) ND-OIL8 Approx.
Front
Rear
1:
2:Change
Total
Change
Including
filter
Without
filter
Total
Change
Total
Change
Total
Change
Total
10,088 lbs (4,575 kg)
1:
2:
3: On vehicles without moonroof or navigation system 1,530 lbs (690 kg)
1,480 lbs (670 kg)
On vehicles with moonroof and navigation system
1 1
2
2
3
——y

y
(yy

µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Specif ications
Technical Inf ormation
293
Fuses
Battery Engine
Alignment
Tires
Lights
60/55 W (HB2)
12 V
12 V 28/8 W
12 V 21 W
12 V 21/5 W
12 V 18 W
12 V 3 CP
12 V 3 CP
12 V
12 V 8W
5W
12 V 3 CP
12 V 1.4 W Interior
Under-hood
See page285or the fuse label
attached to the inside of the fuse
box lid under the dashboard.
See page284or the fuse box lid.
Capacity 12 V 12 V
3.8 W
2W
12 V 3.4 W Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Toe-in
Camber
Caster
Size
Pressure3.50 x 3.66 in (89.0 x 93.0 mm)
211.8 cu-in (3,471 cm
)
10.0 : 1
IZFR5K-11
SKJ16DR-M11
0.00 in (0.0 mm)
0.00 in (0.0 mm) 0°50’
0°50’
1°53’
P245/65R17 105S
T165/90R17 105M
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm)
Headlights
Front turn signal/Parking/
Hazard lights
Rear turn signal/hazard lights
Brake/Taillights
Back-up lights
License plate lights
High-mount brake lights
Individual map lights
Bed lights
Console compartment light
Glove box light
Vanity mirror light
Door courtesy lights
12 V 72 AH/20 HR
Front/Rear
Spare
Front/Rear
Spare Front
Rear
Front
Rear
Front
Front
Rear
NGK:
DENSO:
High/Low
(Amber)
Water cooled 4-stroke SOHC VTEC,V6 gasoline engine
—
