2006 FORD FREESTYLE Owners Manual

Page 169 of 288

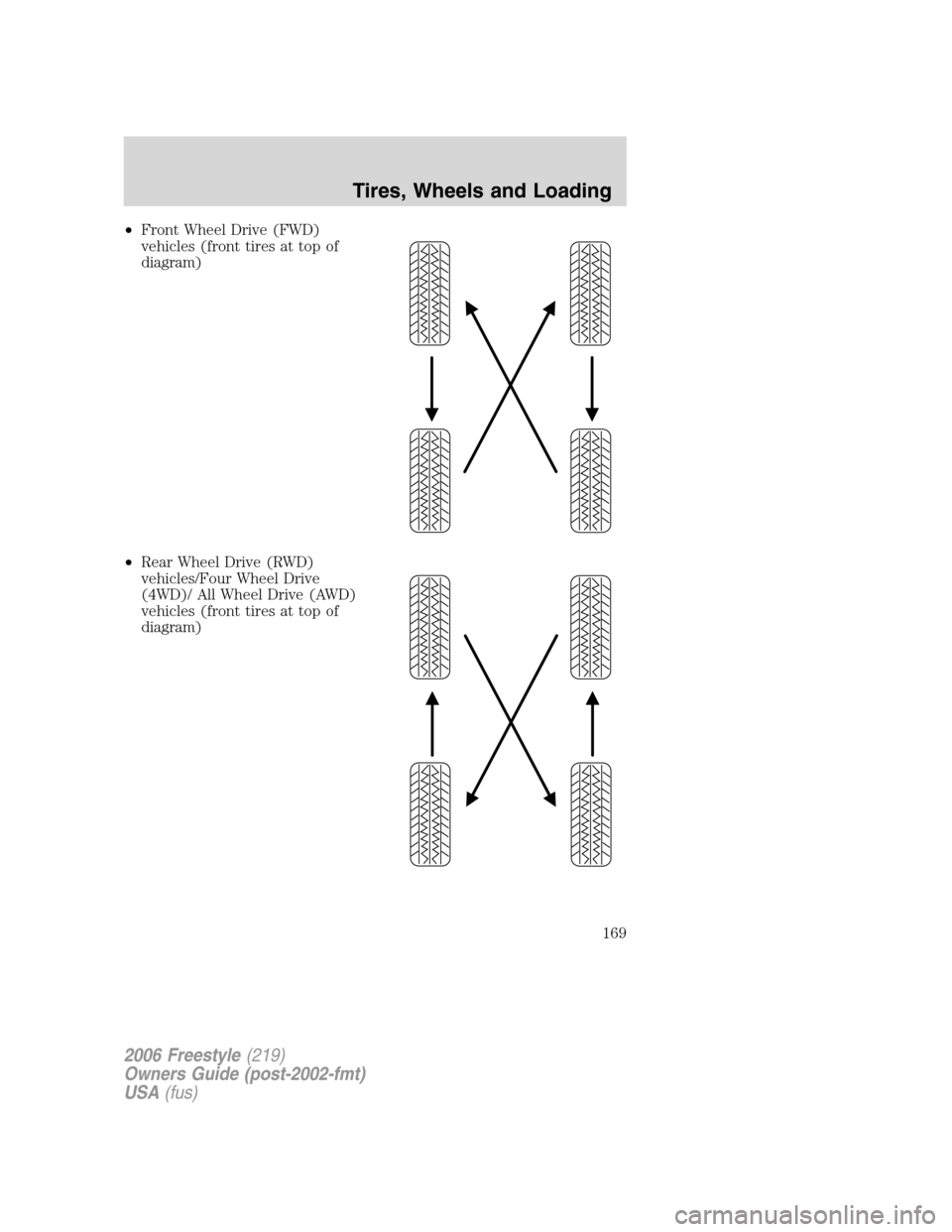

FORD FREESTYLE 2006 1.G Owners Manual •Front Wheel Drive (FWD)
vehicles (front tires at top of
diagram)
•Rear Wheel Drive (RWD)
vehicles/Four Wheel Drive
(4WD)/ All Wheel Drive (AWD)
vehicles (front tires at top of
diagram)
2006 Frees

Page 170 of 288

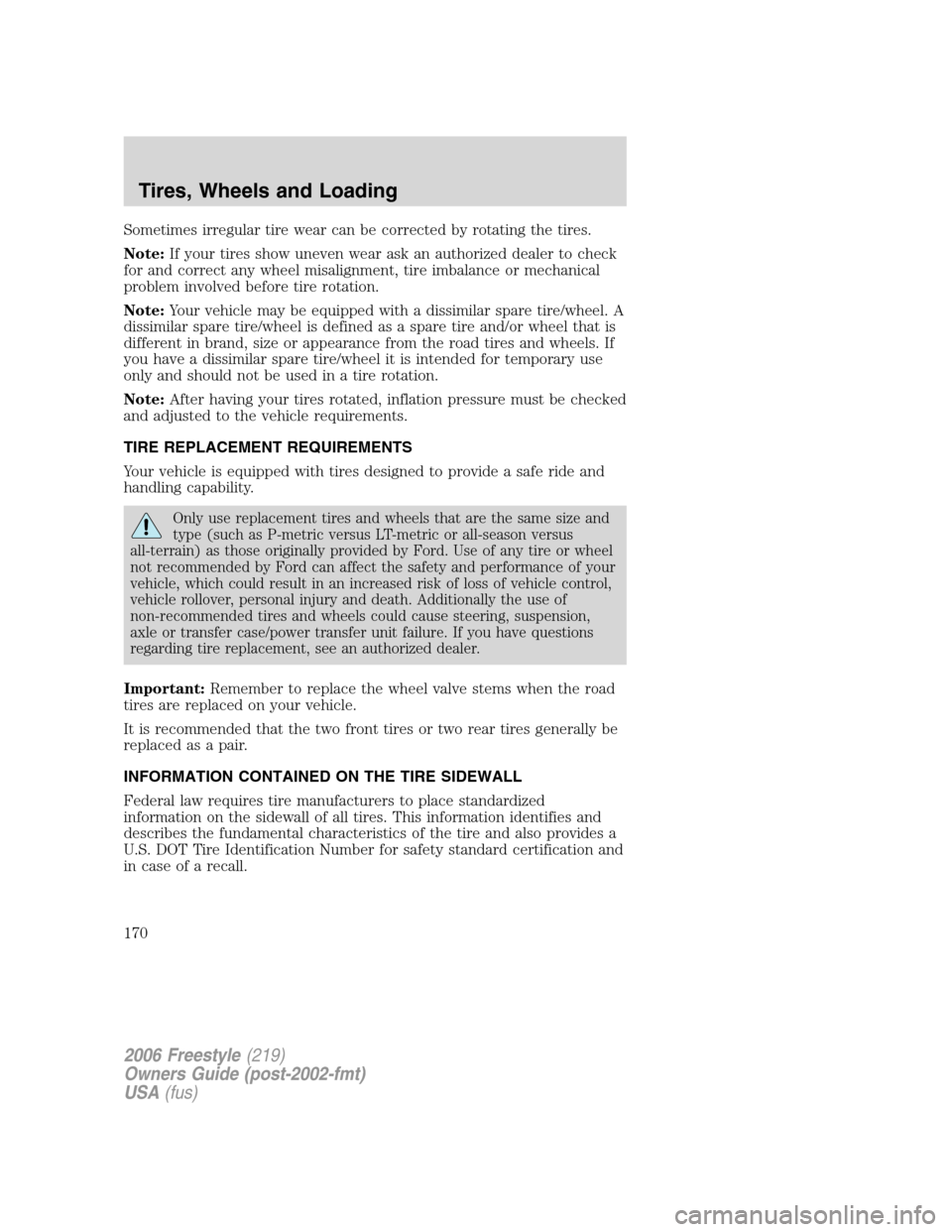

FORD FREESTYLE 2006 1.G Owners Manual Sometimes irregular tire wear can be corrected by rotating the tires.
Note:If your tires show uneven wear ask an authorized dealer to check
for and correct any wheel misalignment, tire imbalance or me

Page 171 of 288

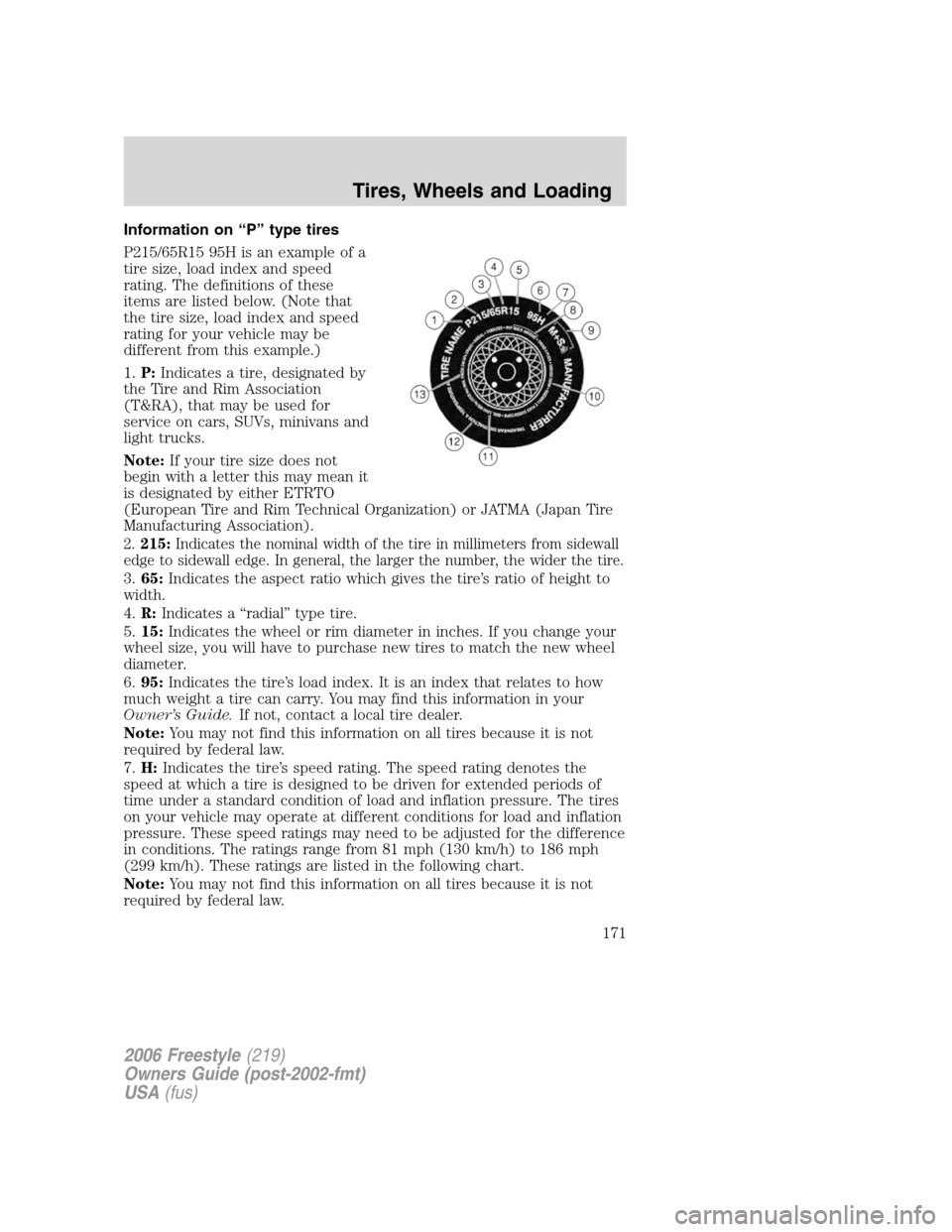

FORD FREESTYLE 2006 1.G Owners Manual Information on “P” type tires
P215/65R15 95H is an example of a
tire size, load index and speed
rating. The definitions of these
items are listed below. (Note that
the tire size, load index and sp

Page 172 of 288

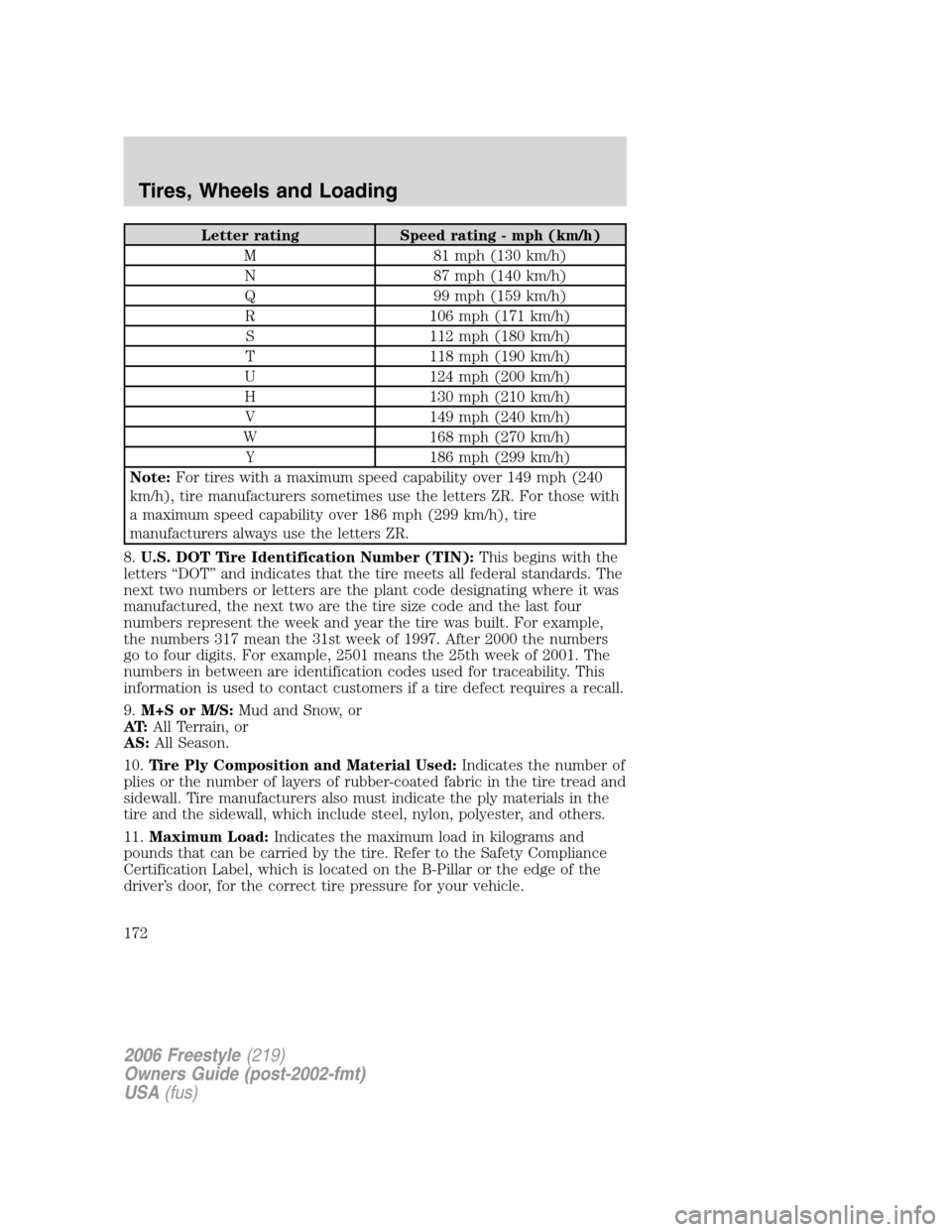

FORD FREESTYLE 2006 1.G Owners Manual Letter rating Speed rating - mph (km/h)
M 81 mph (130 km/h)
N 87 mph (140 km/h)
Q 99 mph (159 km/h)
R 106 mph (171 km/h)
S 112 mph (180 km/h)
T 118 mph (190 km/h)
U 124 mph (200 km/h)
H 130 mph (210 k

Page 173 of 288

FORD FREESTYLE 2006 1.G Owners Manual 12.Treadwear, Traction and Temperature Grades
•Treadwear:The treadwear grade is a comparative rating based on the
wear rate of the tire when tested under controlled conditions on a
specified governm

Page 174 of 288

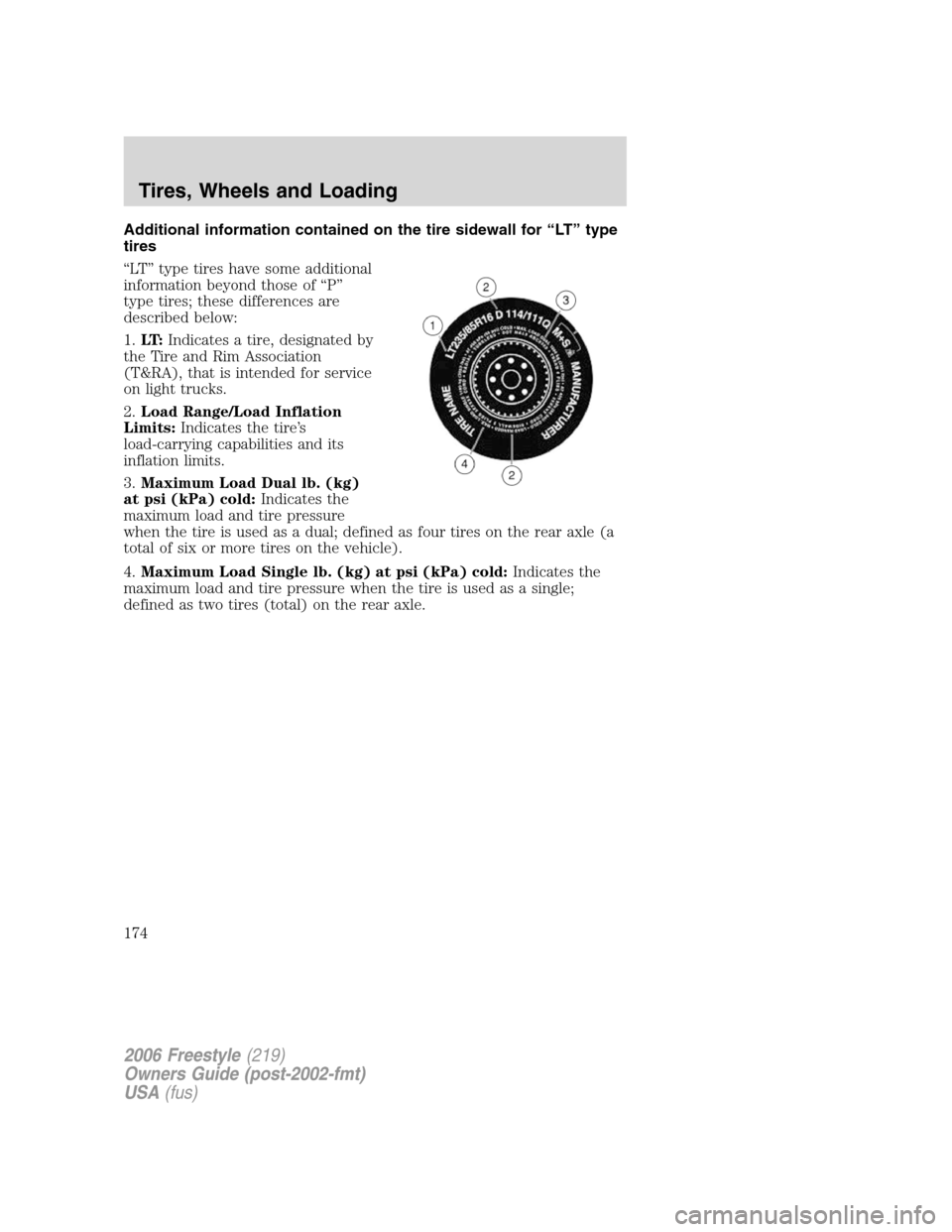

FORD FREESTYLE 2006 1.G Owners Manual Additional information contained on the tire sidewall for “LT” type
tires
“LT” type tires have some additional
information beyond those of “P”
type tires; these differences are
described b

Page 175 of 288

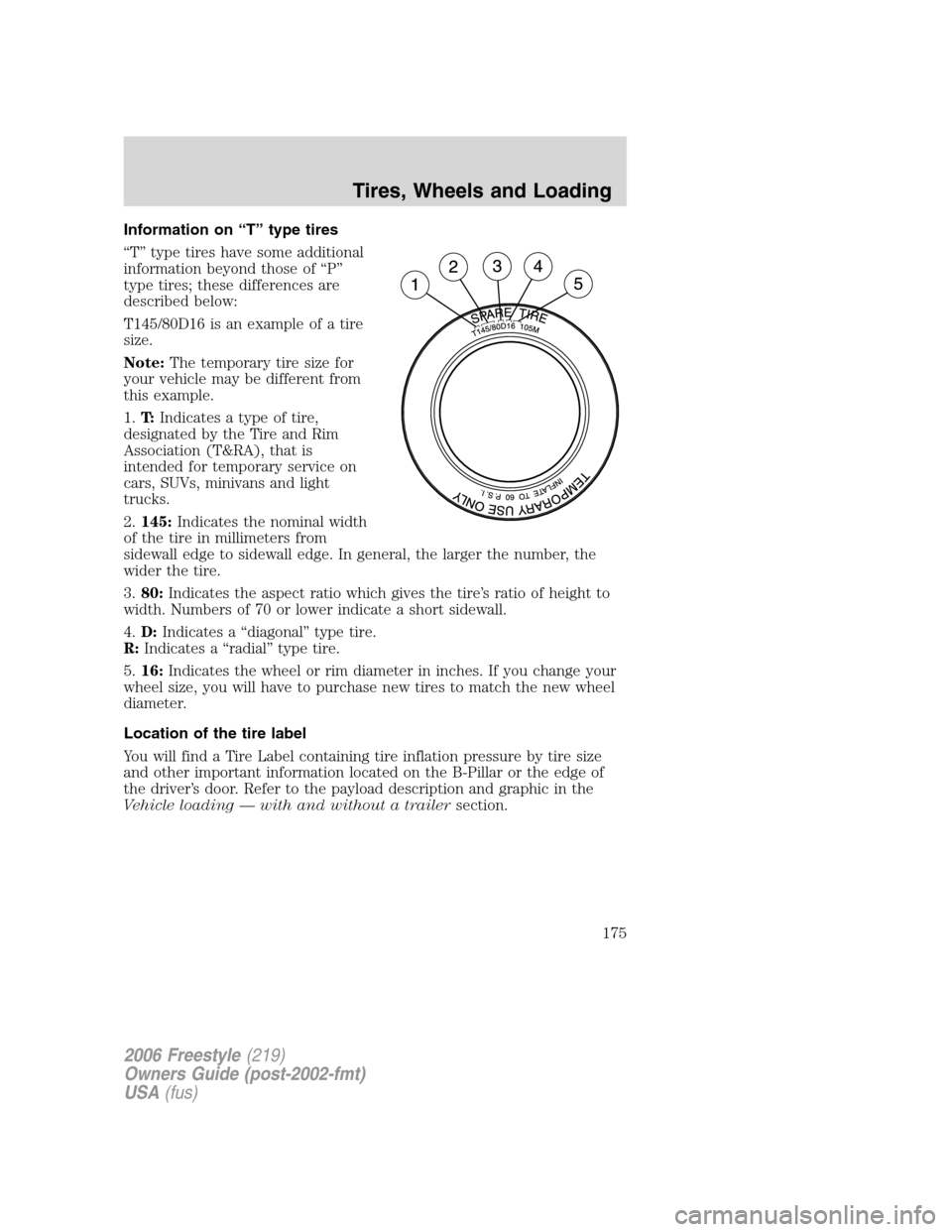

FORD FREESTYLE 2006 1.G Owners Manual Information on “T” type tires
“T” type tires have some additional
information beyond those of “P”
type tires; these differences are
described below:
T145/80D16 is an example of a tire
size

Page 176 of 288

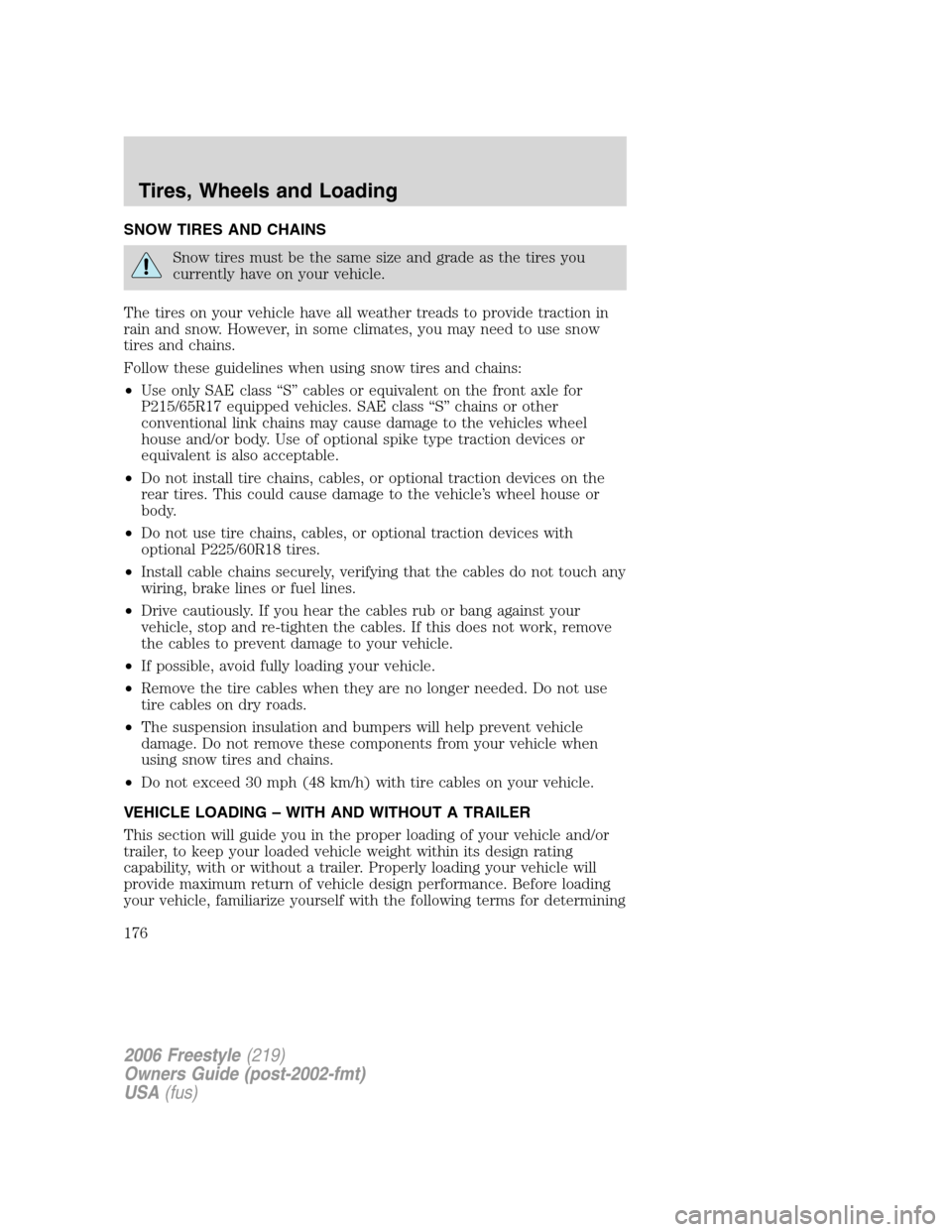

FORD FREESTYLE 2006 1.G Owners Manual SNOW TIRES AND CHAINS
Snow tires must be the same size and grade as the tires you
currently have on your vehicle.
The tires on your vehicle have all weather treads to provide traction in
rain and snow
