2006 FORD FREESTYLE Owners Manual

Page 241 of 288

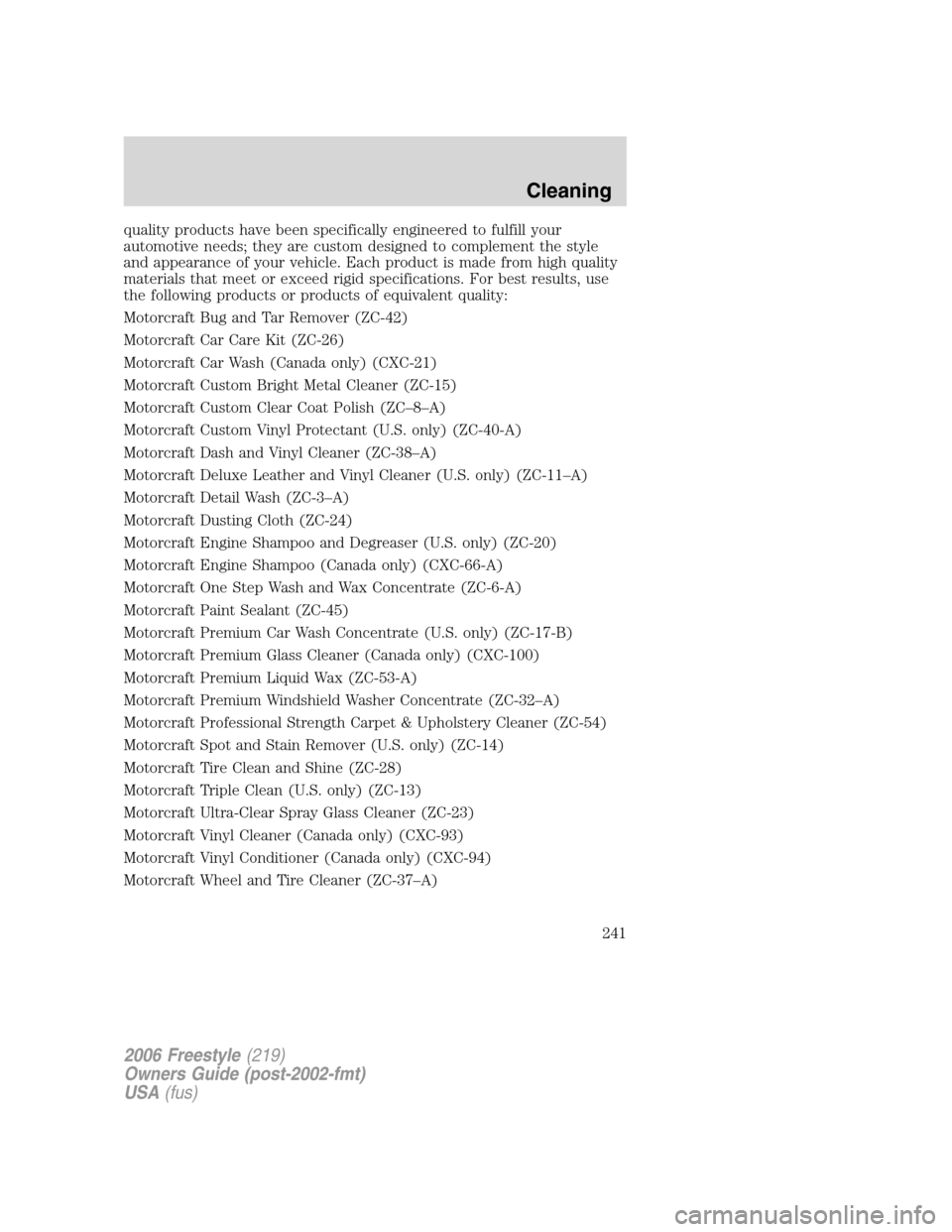

FORD FREESTYLE 2006 1.G Owners Manual quality products have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and appearance of your vehicle. Each product is made from high qua

Page 242 of 288

FORD FREESTYLE 2006 1.G Owners Manual SERVICE RECOMMENDATIONS
To help you service your vehicle:
•We highlight do-it-yourself items in the engine compartment for easy
location.
•We providescheduled maintenance informationwhich makes
tr

Page 243 of 288

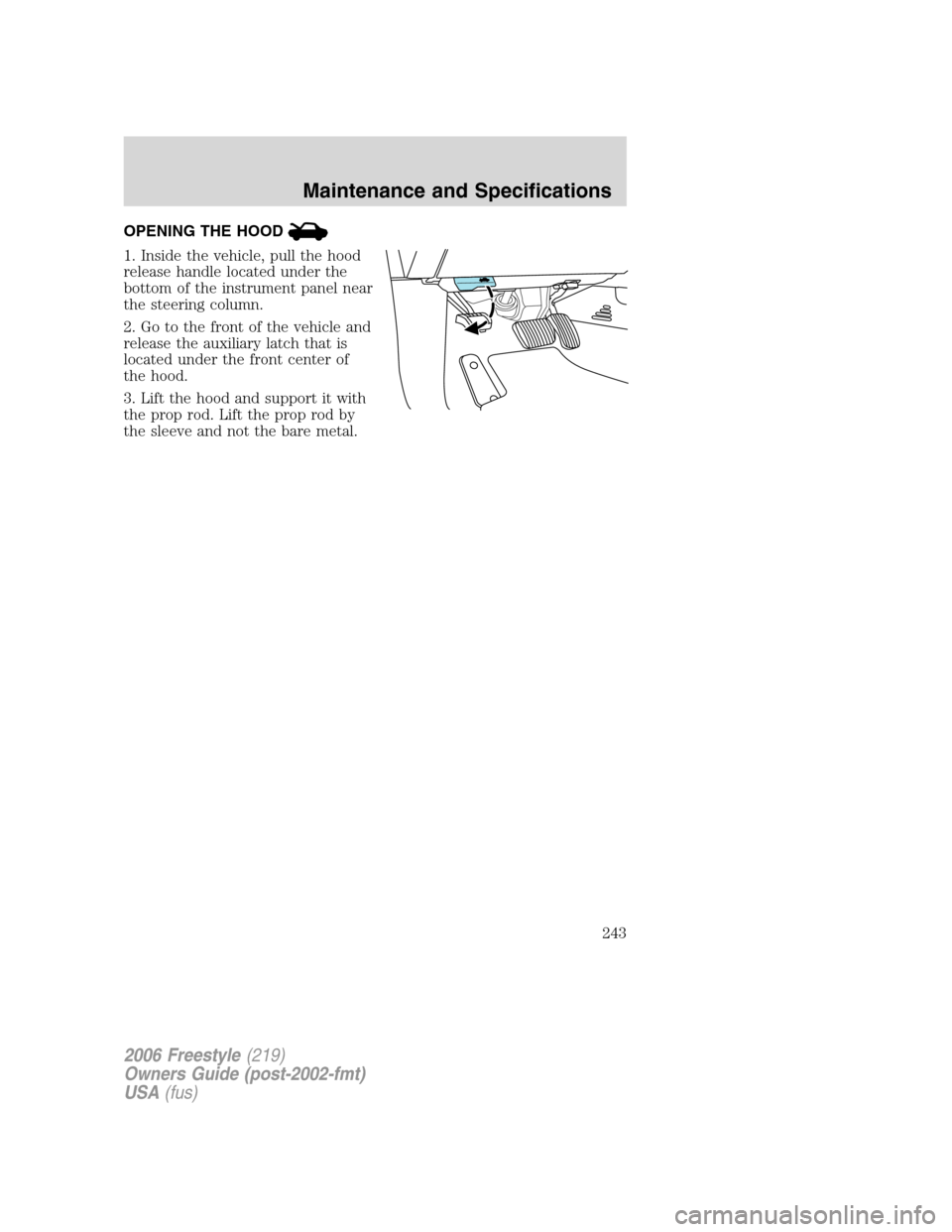

FORD FREESTYLE 2006 1.G Owners Manual OPENING THE HOOD
1. Inside the vehicle, pull the hood
release handle located under the
bottom of the instrument panel near
the steering column.
2. Go to the front of the vehicle and
release the auxili

Page 244 of 288

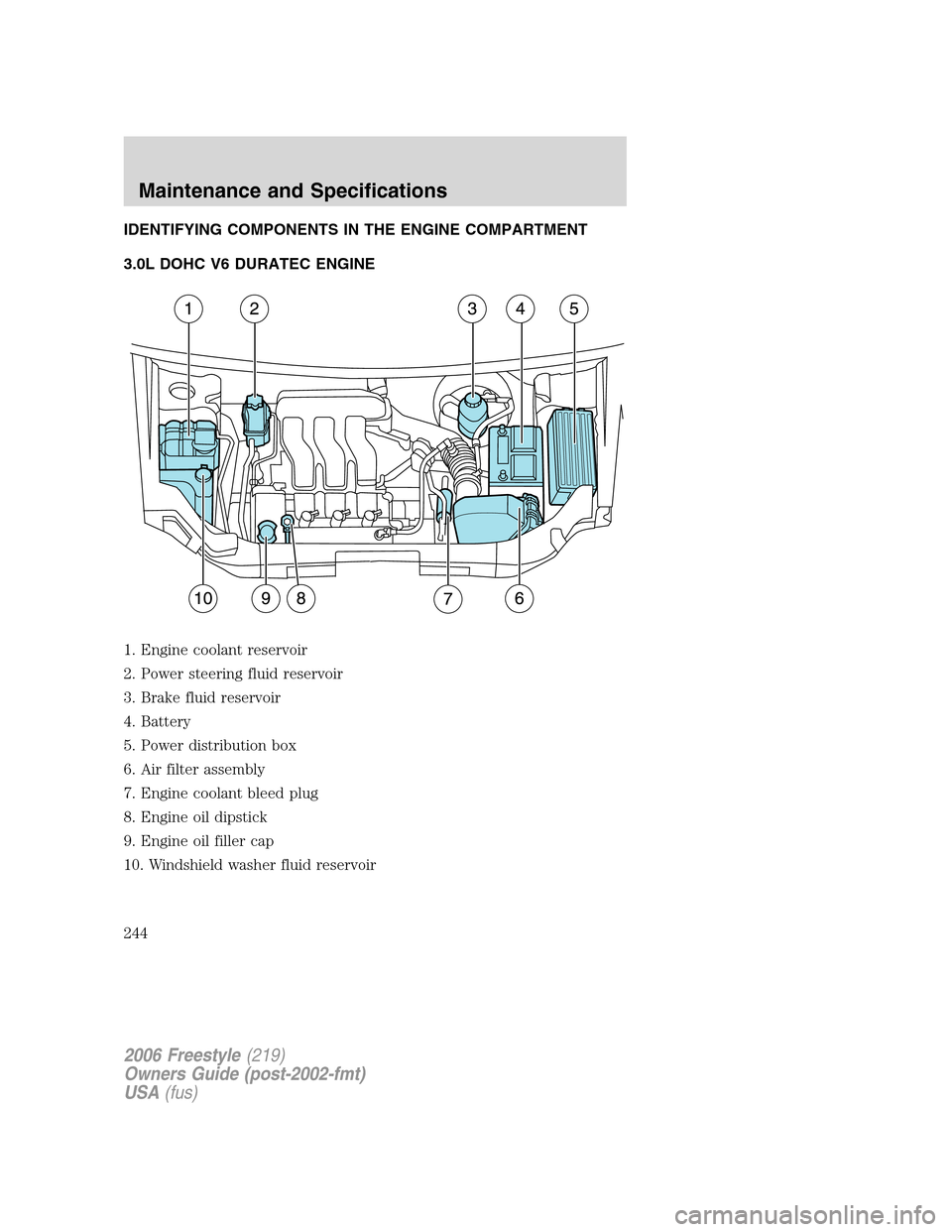

FORD FREESTYLE 2006 1.G Owners Manual IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
3.0L DOHC V6 DURATEC ENGINE
1. Engine coolant reservoir
2. Power steering fluid reservoir
3. Brake fluid reservoir
4. Battery
5. Power distribution box

Page 245 of 288

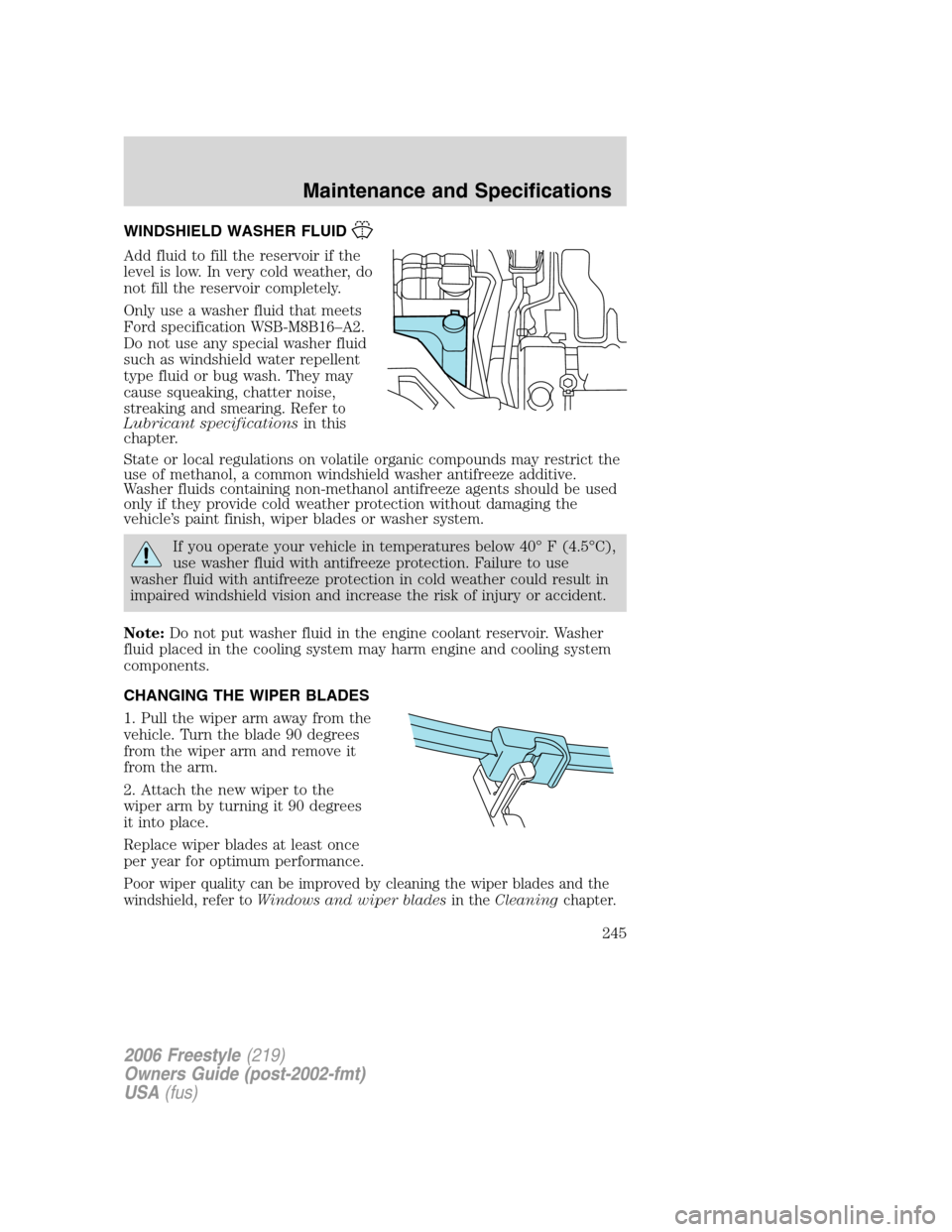

FORD FREESTYLE 2006 1.G Owners Manual WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specification WSB-M8B16

Page 246 of 288

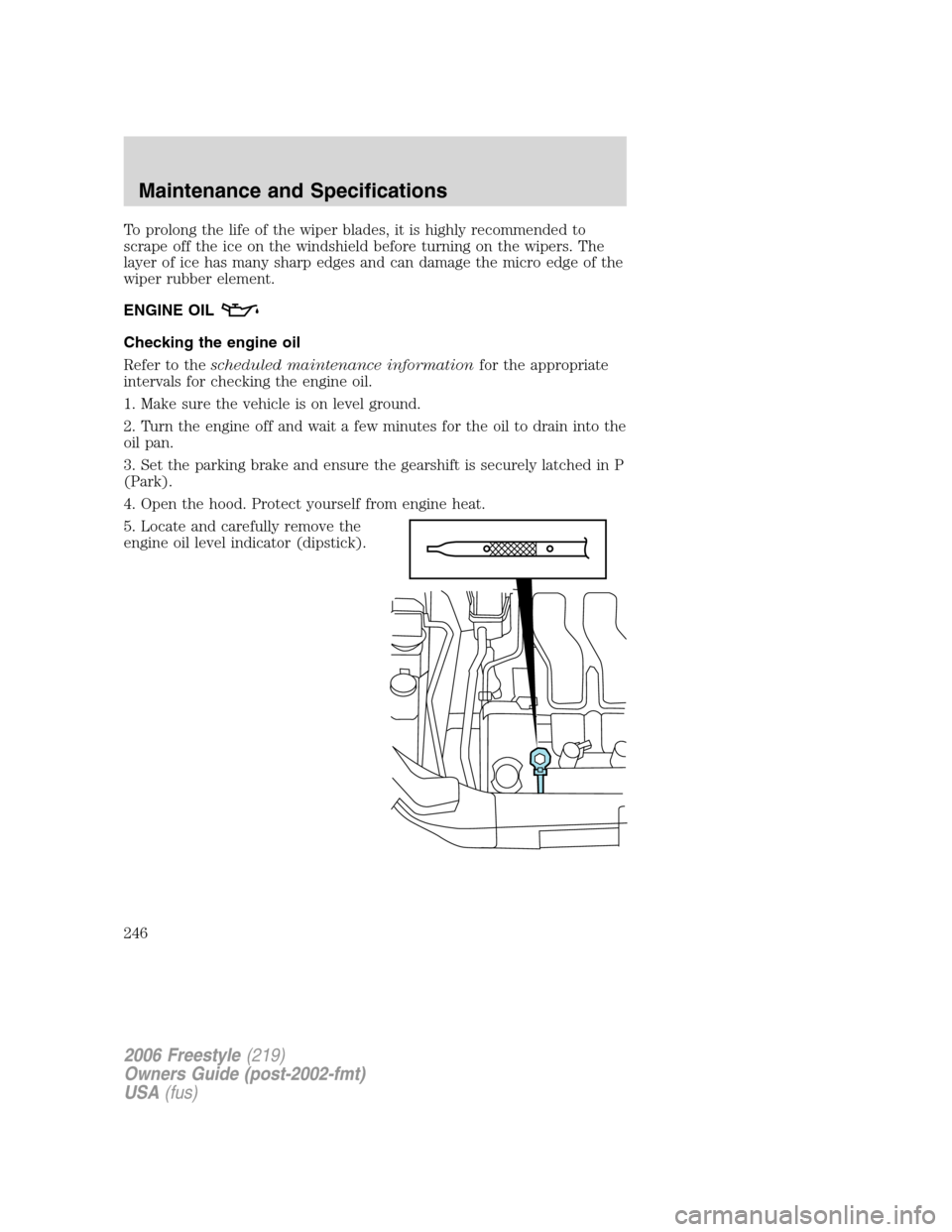

FORD FREESTYLE 2006 1.G Owners Manual To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro e

Page 247 of 288

FORD FREESTYLE 2006 1.G Owners Manual 6. Wipe the indicator clean. Insert the indicator fully, then remove it
again.
•If the oil level iswithin this
range,the oil level is acceptable.
DO NOT ADD OIL.
•If the oil level isbelow this
mar

Page 248 of 288

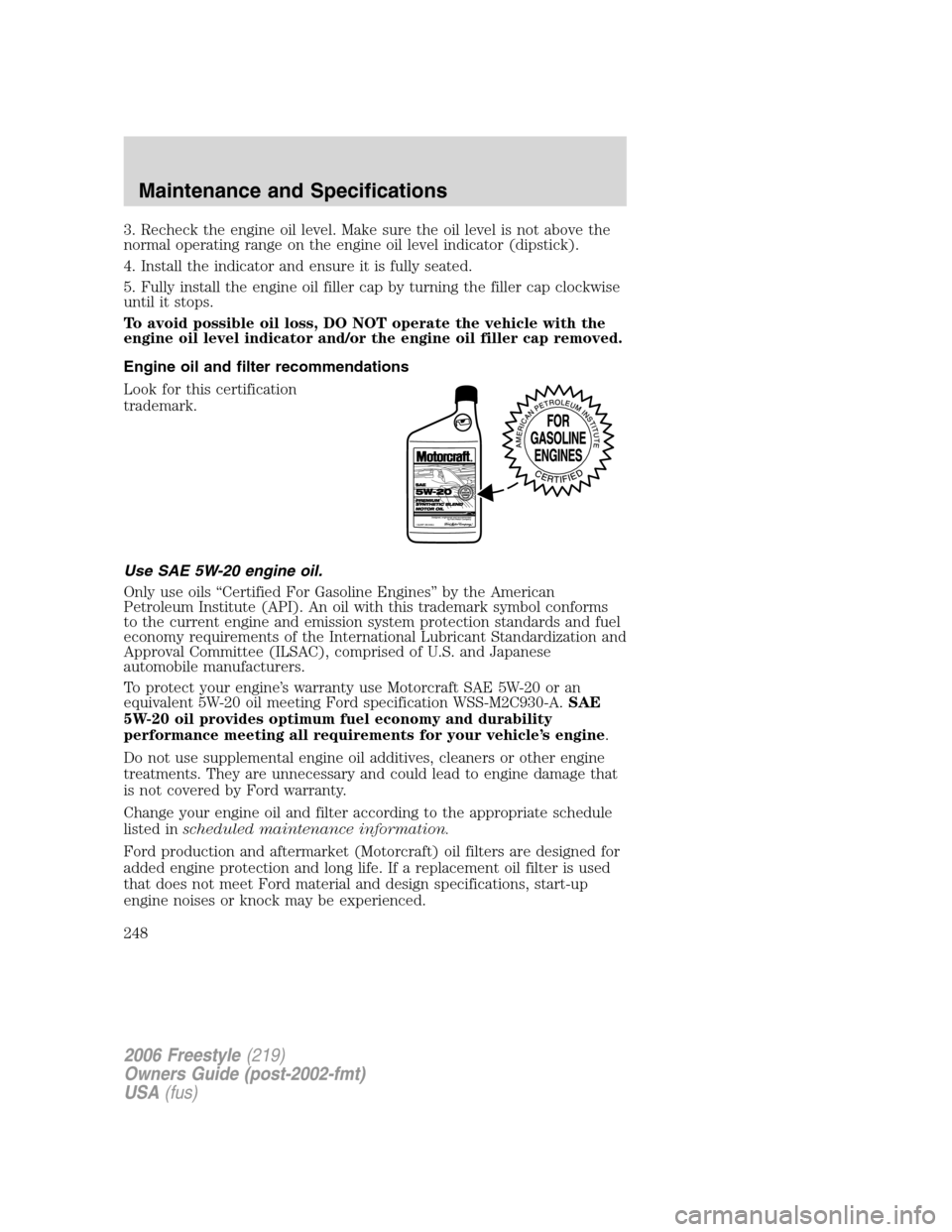

FORD FREESTYLE 2006 1.G Owners Manual 3. Recheck the engine oil level. Make sure the oil level is not above the
normal operating range on the engine oil level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5
