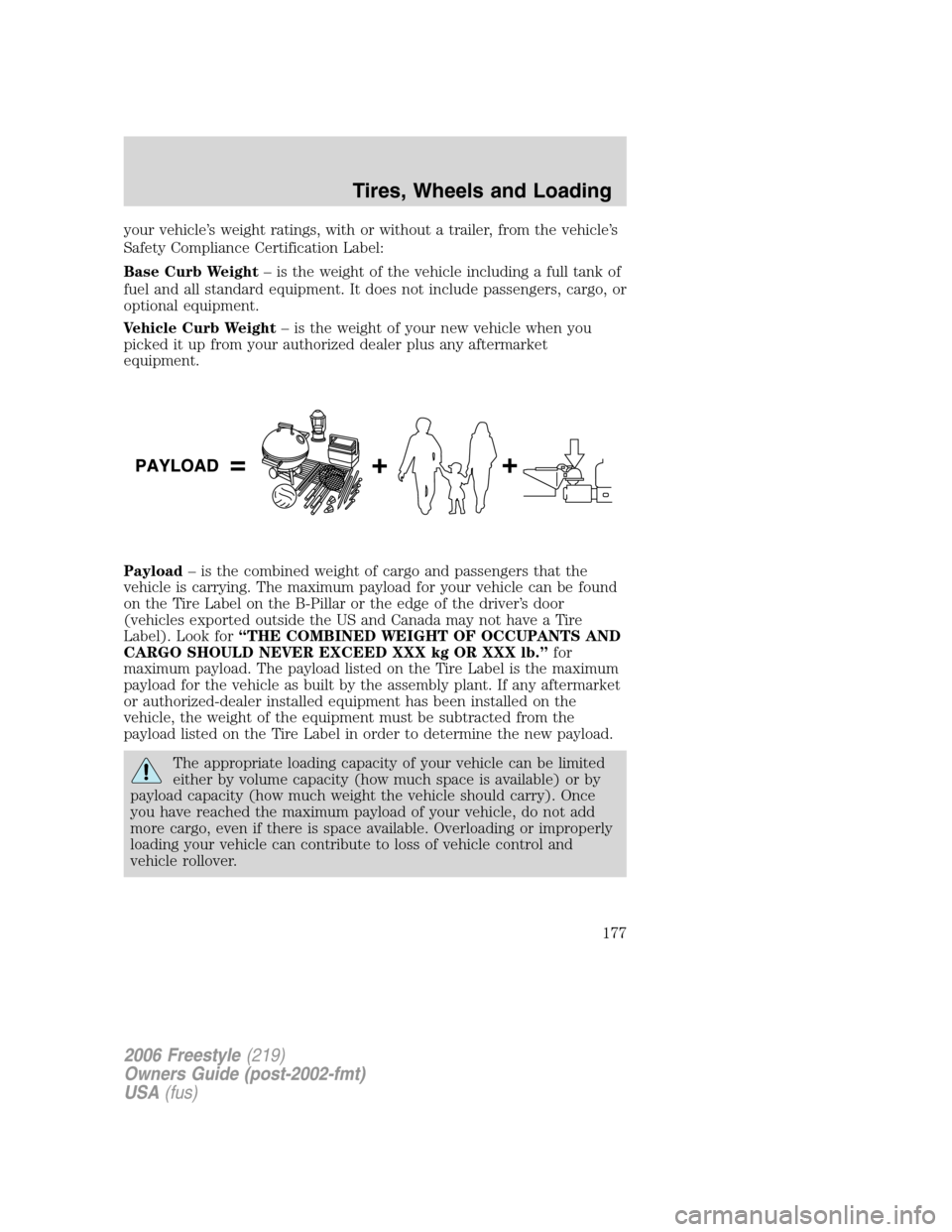

FORD FREESTYLE 2006 1.G Owners Manual your vehicle’s weight ratings, with or without a trailer, from the vehicle’s
Safety Compliance Certification Label:
Base Curb Weight– is the weight of the vehicle including a full tank of
fuel a

Page 178 of 288

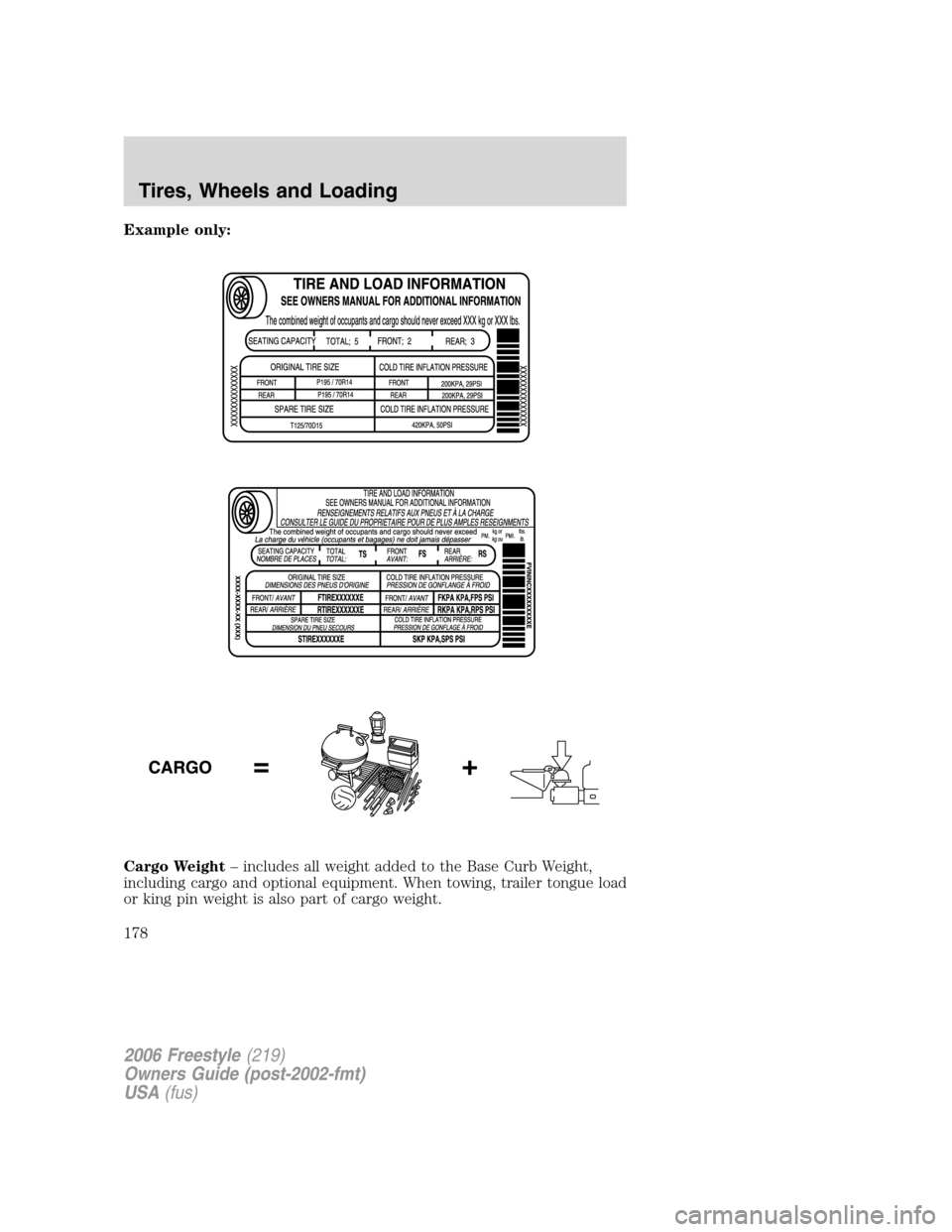

FORD FREESTYLE 2006 1.G Owners Manual Example only:
Cargo Weight– includes all weight added to the Base Curb Weight,
including cargo and optional equipment. When towing, trailer tongue load
or king pin weight is also part of cargo weigh

Page 179 of 288

FORD FREESTYLE 2006 1.G Owners Manual GAW (Gross Axle Weight)– is the total weight placed on each axle
(front and rear) – including vehicle curb weight and all payload.
GAWR (Gross Axle Weight Rating)– is the maximum allowable
weigh

Page 180 of 288

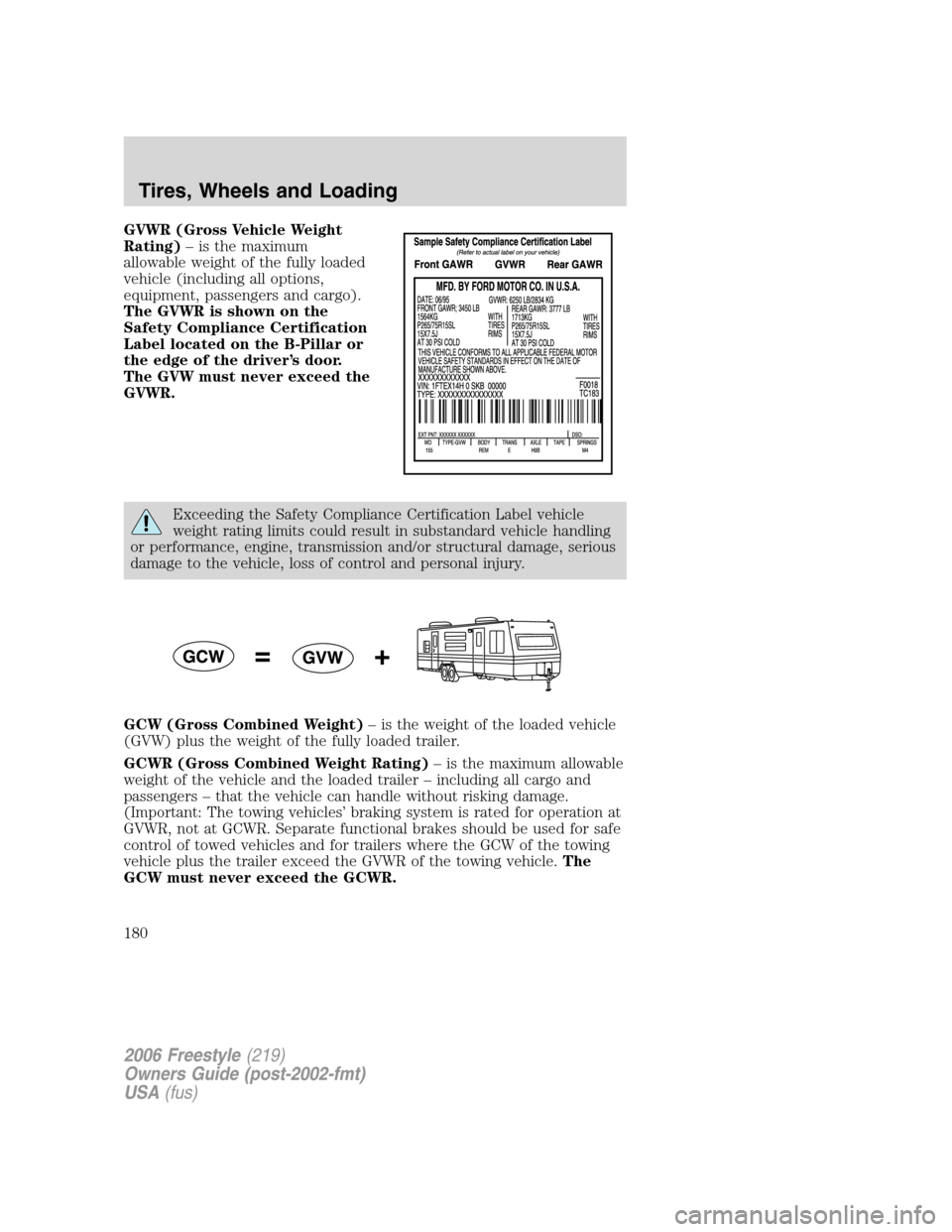

FORD FREESTYLE 2006 1.G Owners Manual GVWR (Gross Vehicle Weight
Rating)– is the maximum
allowable weight of the fully loaded
vehicle (including all options,
equipment, passengers and cargo).
The GVWR is shown on the
Safety Compliance C

Page 181 of 288

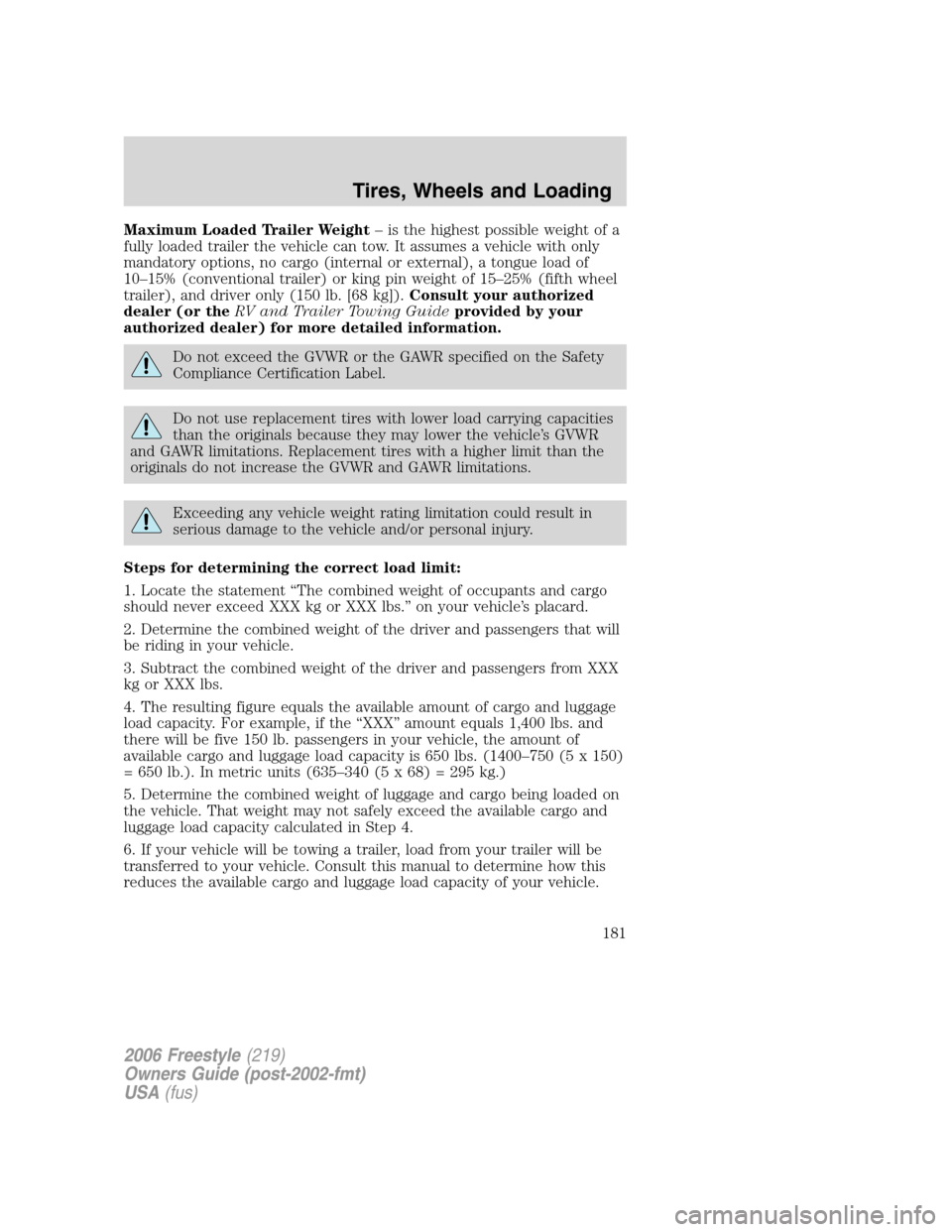

FORD FREESTYLE 2006 1.G Owners Manual Maximum Loaded Trailer Weight– is the highest possible weight of a
fully loaded trailer the vehicle can tow. It assumes a vehicle with only
mandatory options, no cargo (internal or external), a tong

Page 182 of 288

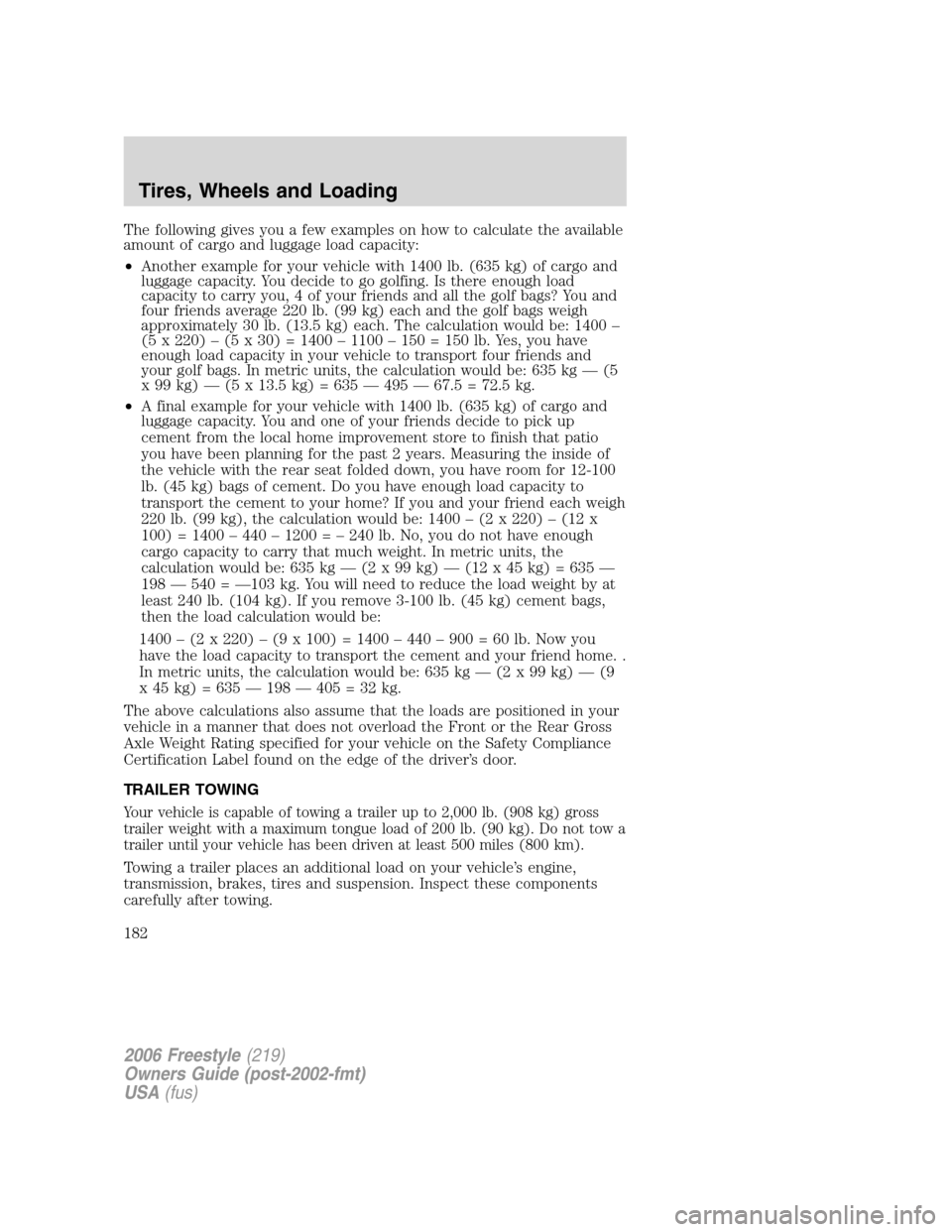

FORD FREESTYLE 2006 1.G Owners Manual The following gives you a few examples on how to calculate the available
amount of cargo and luggage load capacity:
•Another example for your vehicle with 1400 lb. (635 kg) of cargo and
luggage capa

Page 183 of 288

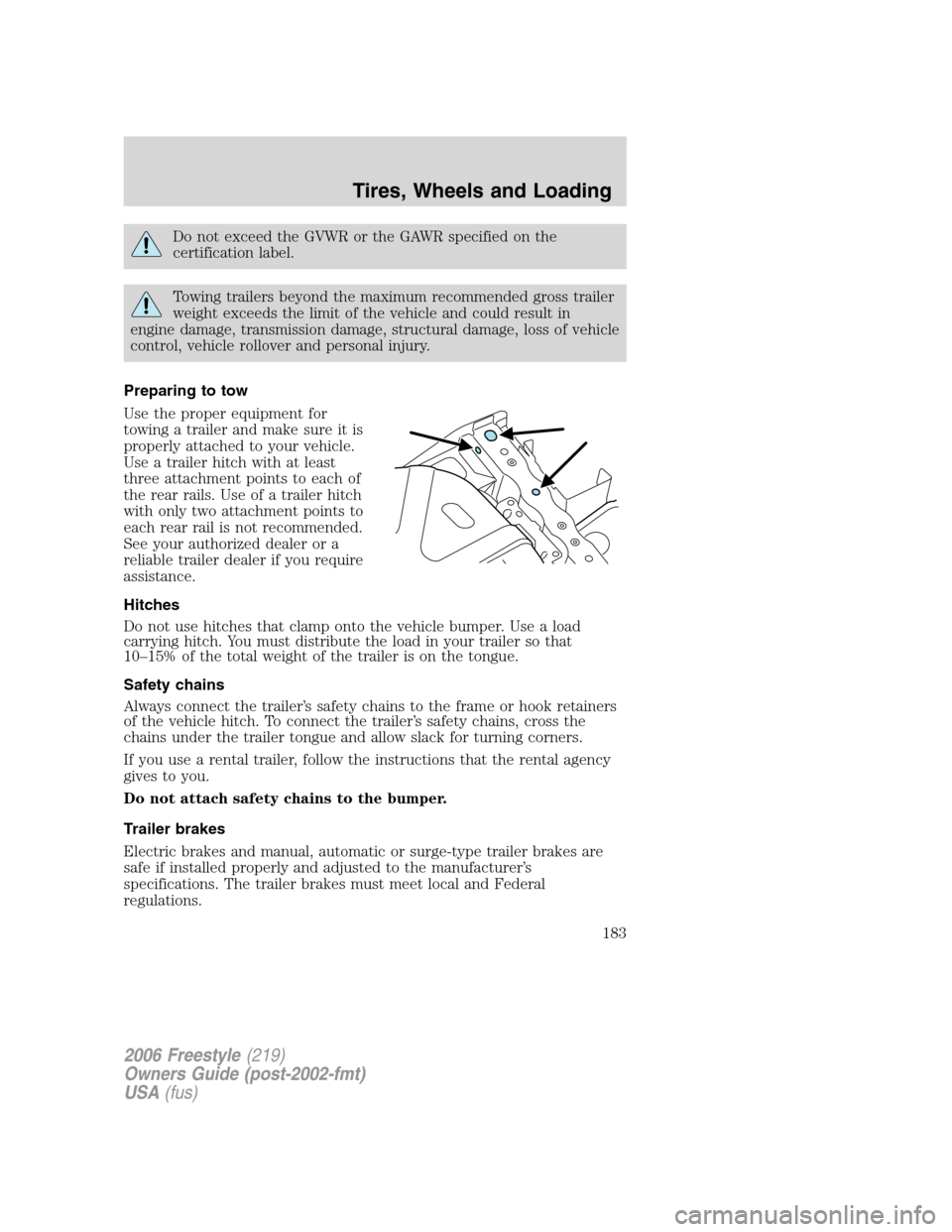

FORD FREESTYLE 2006 1.G Owners Manual Do not exceed the GVWR or the GAWR specified on the
certification label.
Towing trailers beyond the maximum recommended gross trailer
weight exceeds the limit of the vehicle and could result in
engine

Page 184 of 288

FORD FREESTYLE 2006 1.G Owners Manual Do not connect a trailer’s hydraulic brake system directly to your
vehicle’s brake system. Your vehicle may not have enough
braking power and your chances of having a collision greatly increase.
T
