2006 FORD FREESTYLE Owners Manual

Page 249 of 288

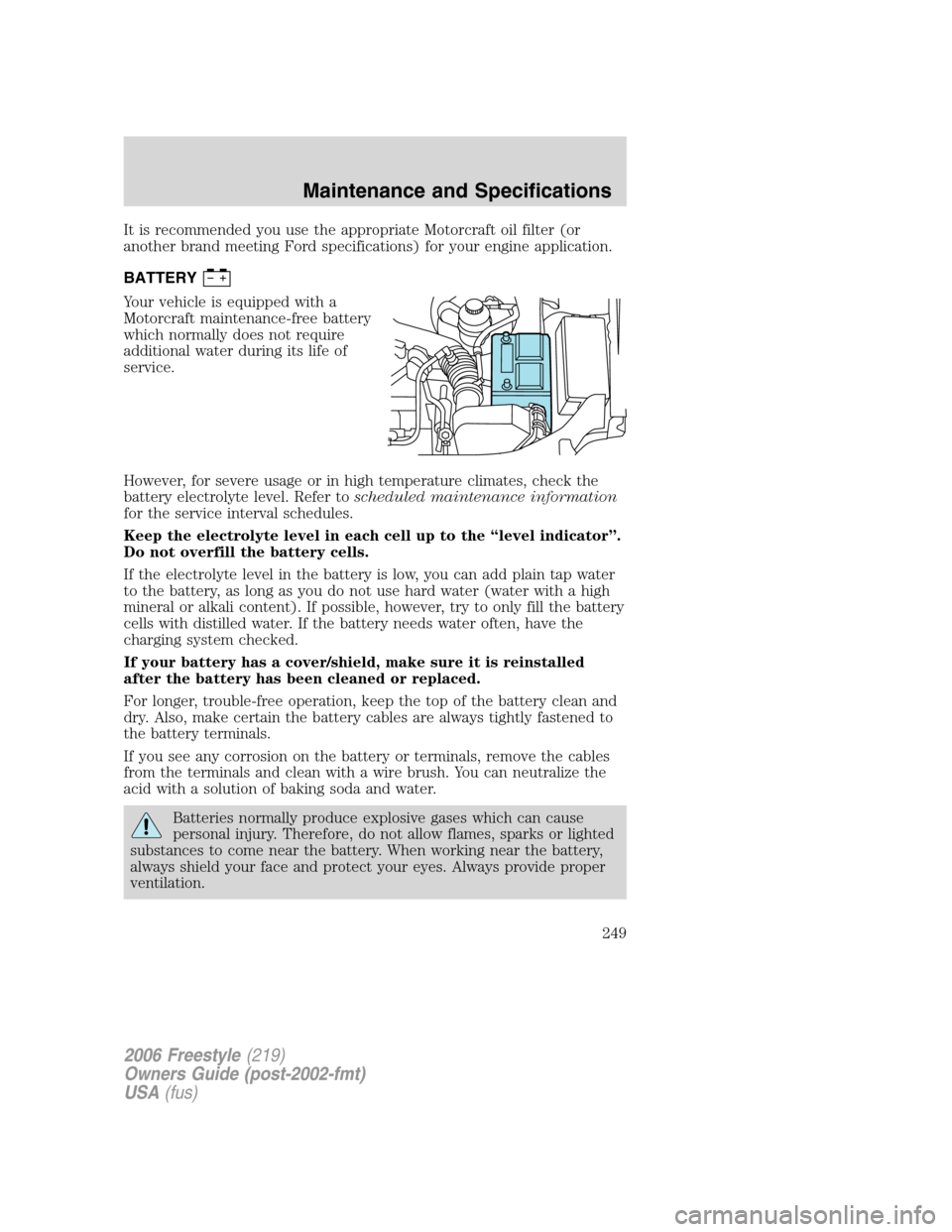

FORD FREESTYLE 2006 1.G Owners Manual It is recommended you use the appropriate Motorcraft oil filter (or
another brand meeting Ford specifications) for your engine application.
BATTERY
Your vehicle is equipped with a
Motorcraft maintenan

Page 250 of 288

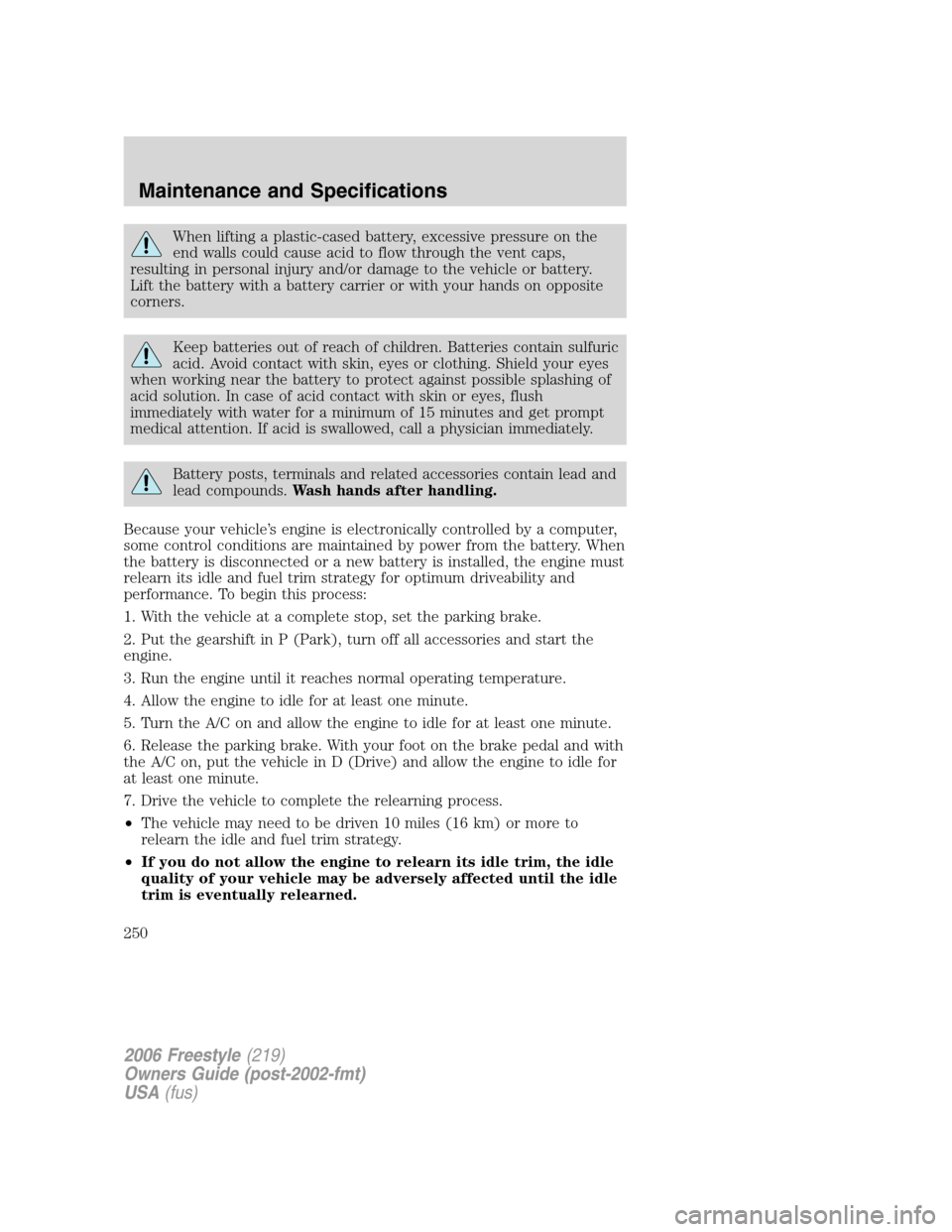

FORD FREESTYLE 2006 1.G Owners Manual When lifting a plastic-cased battery, excessive pressure on the
end walls could cause acid to flow through the vent caps,
resulting in personal injury and/or damage to the vehicle or battery.
Lift the

Page 251 of 288

FORD FREESTYLE 2006 1.G Owners Manual If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a res

Page 252 of 288

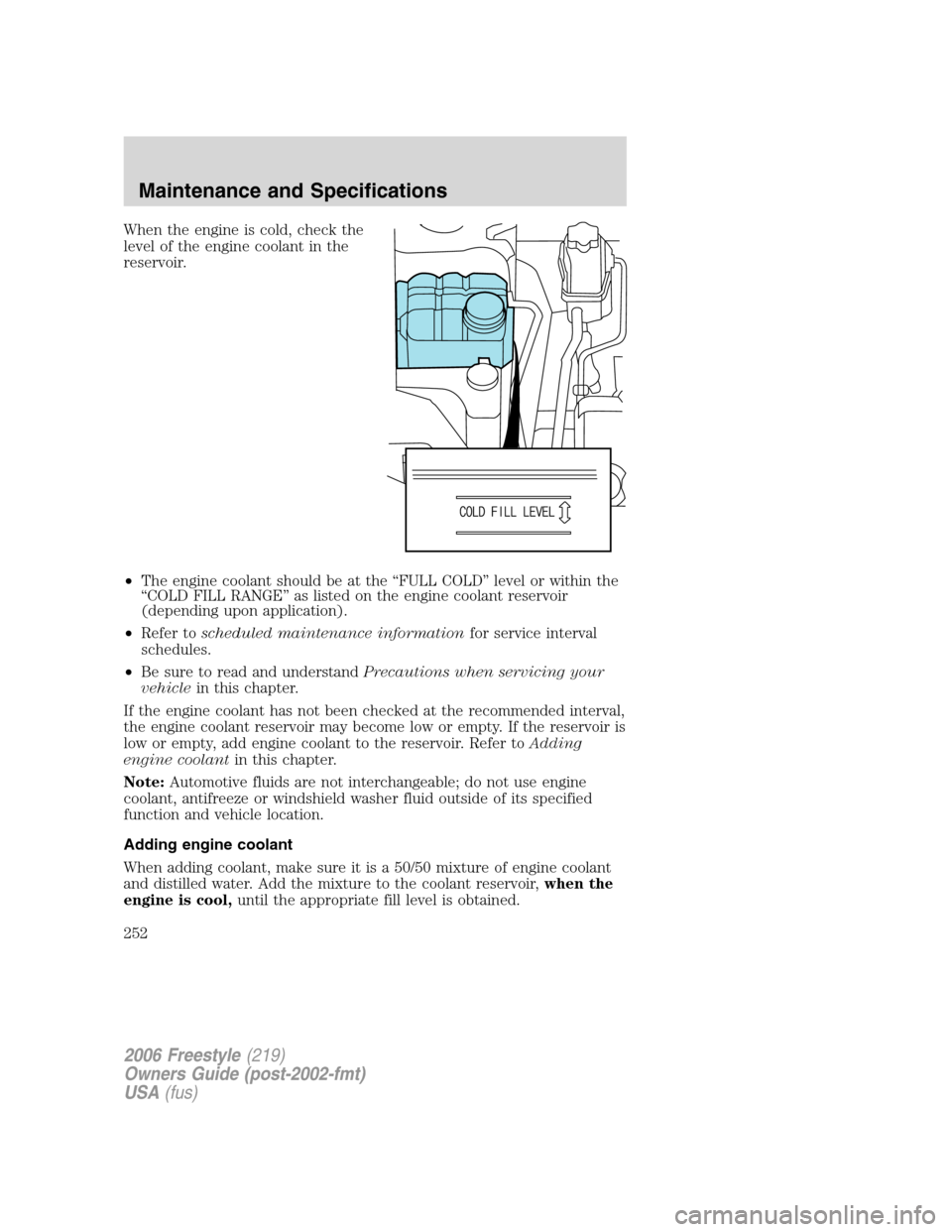

FORD FREESTYLE 2006 1.G Owners Manual When the engine is cold, check the
level of the engine coolant in the
reservoir.
•The engine coolant should be at the “FULL COLD” level or within the
“COLD FILL RANGE” as listed on the engin

Page 253 of 288

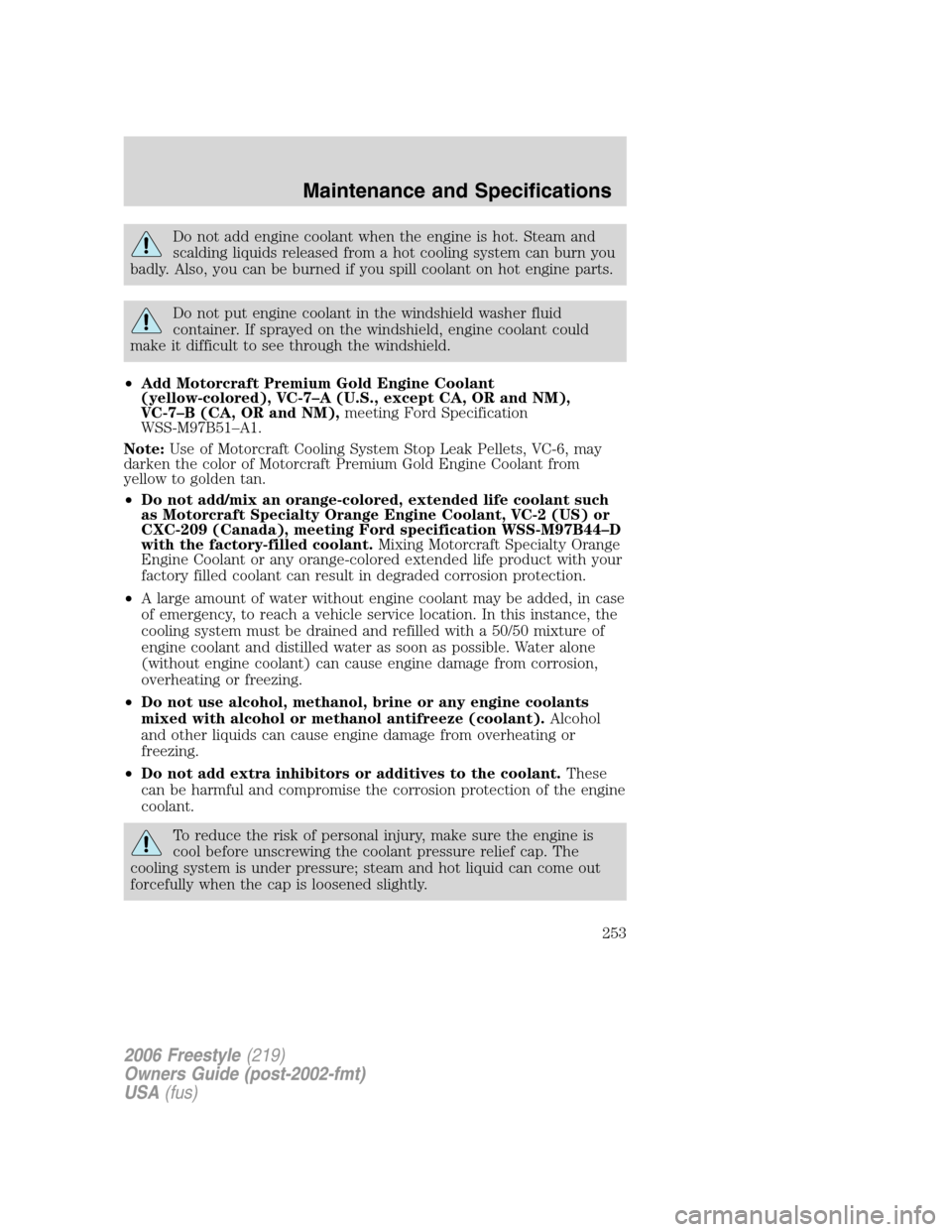

FORD FREESTYLE 2006 1.G Owners Manual Do not add engine coolant when the engine is hot. Steam and
scalding liquids released from a hot cooling system can burn you
badly. Also, you can be burned if you spill coolant on hot engine parts.
Do

Page 254 of 288

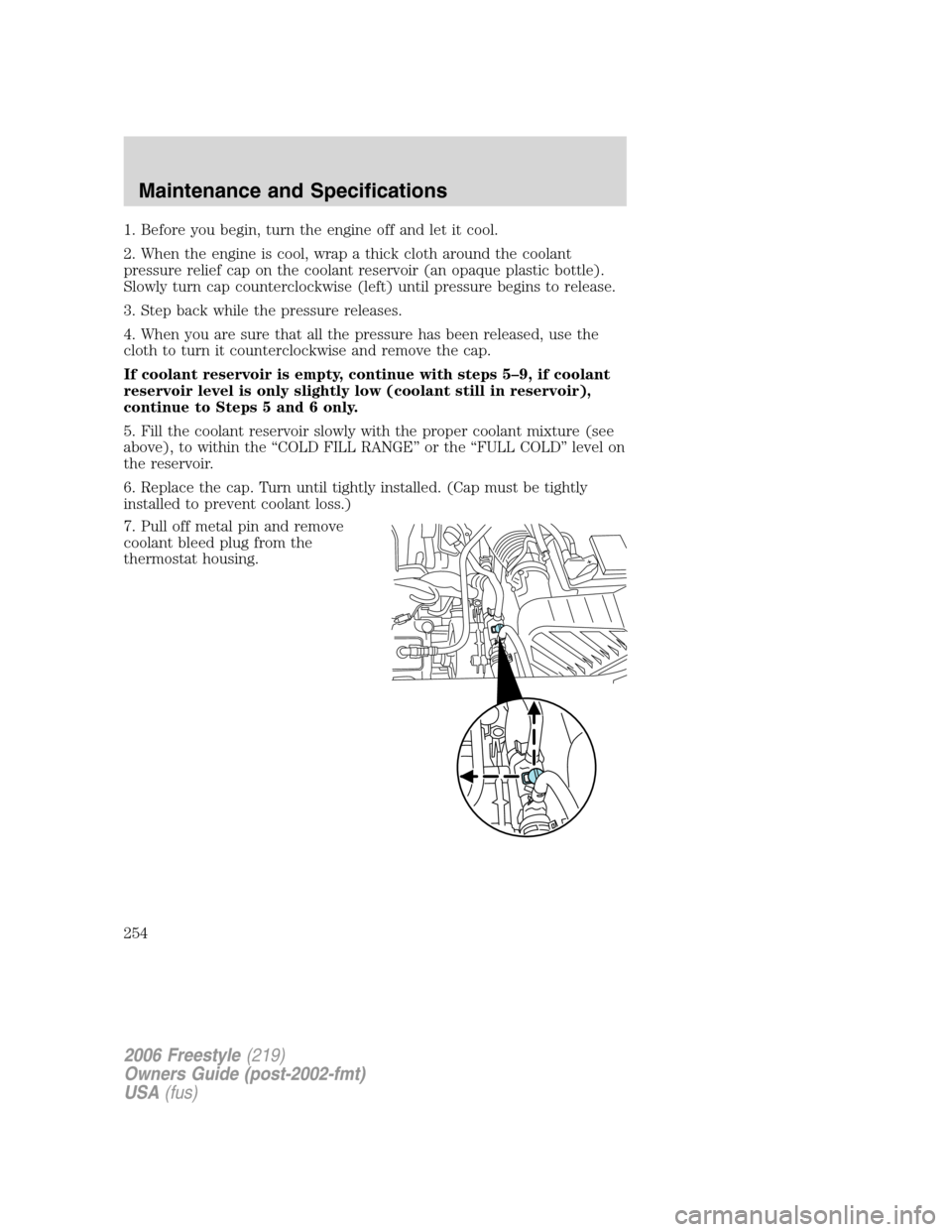

FORD FREESTYLE 2006 1.G Owners Manual 1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (an opaque plastic bottle).
Slo

Page 255 of 288

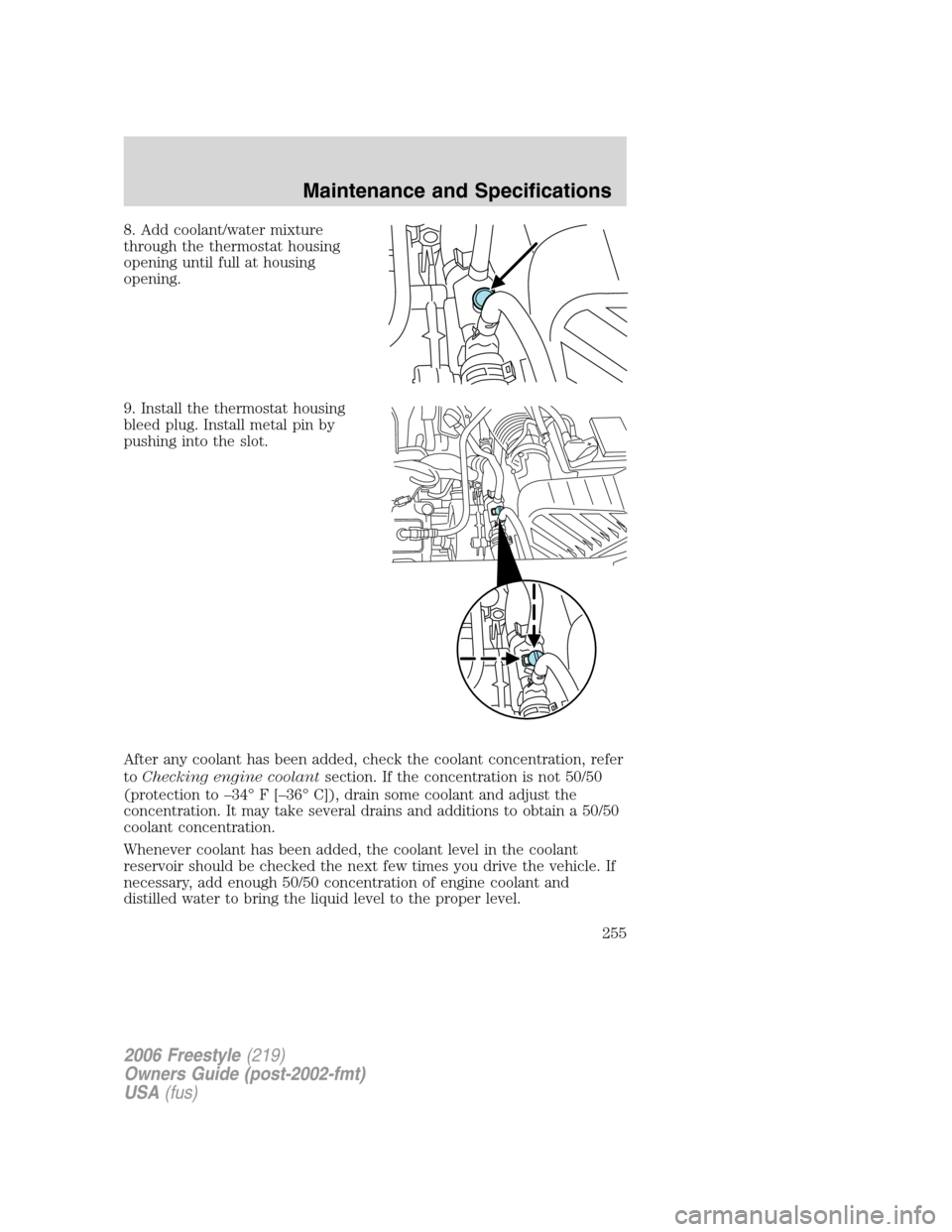

FORD FREESTYLE 2006 1.G Owners Manual 8. Add coolant/water mixture
through the thermostat housing
opening until full at housing
opening.
9. Install the thermostat housing
bleed plug. Install metal pin by
pushing into the slot.
After any c

Page 256 of 288

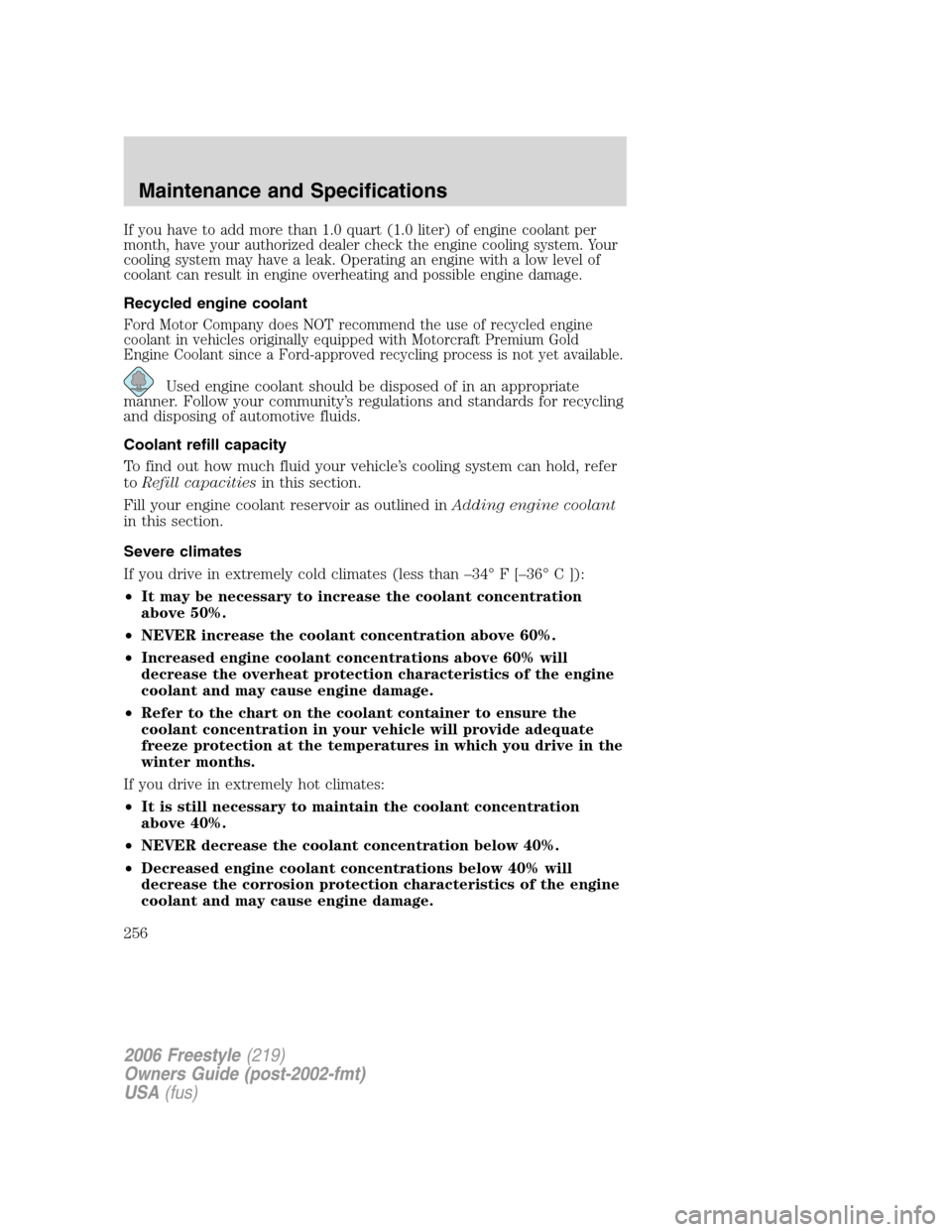

FORD FREESTYLE 2006 1.G Owners Manual If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system. Your
cooling system may have a leak. Operating an engine wi
