2006 CHEVROLET TRAIL BLAZER Owners Manual

9. Place the spare tire on the wheel-mounting surface.
{CAUTION:
Never use oil or grease on studs or nuts. If
you do, the nuts might come loose. Your wheel
could fall off, causing a serious accident.
10. Put the nuts on by hand. Make sure the rounded
end is toward the wheel.
11. Tighten each nut by hand until the wheel is held
against the hub. If a nut cannot be turned by
hand, use the wheel wrench and see your dealer
as soon as possible.12. Lower the vehicle by turning the jack handle
counterclockwise. Lower the jack completely.
5-89

{CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to come loose
and even come off. This could lead to an
accident. Be sure to use the correct wheel
nuts. If you have to replace them, be sure to
get new original equipment wheel nuts. Stop
somewhere as soon as you can and have the
nuts tightened with a torque wrench to the
proper torque specication. SeeCapacities
and Specifications on page 5-122for wheel nut
torque specication.Notice:Improperly tightened wheel nuts can lead
to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specication. SeeCapacities and
Specifications on page 5-122for the wheel nut
torque specication.
13. Use the wrench to
tighten the wheel nuts
rmly in a crisscross
sequence as shown.
5-90

Secondary Latch System
Your vehicle has an underbody-mounted tire hoist
assembly equipped with a secondary latch system. It is
designed to stop the spare tire from suddenly falling
off your vehicle if the cable holding the spare tire
is damaged. For the secondary latch to work, the tire
must be stored with the valve stem pointing up.
SeeStoring a Flat or Spare Tire and Tools on page 5-94
for instructions on storing the spare or at tire correctly.
{CAUTION:
Before beginning this procedure read all the
instructions. Failure to read and follow the
instructions could damage the hoist assembly
and you and others could get hurt. Read and
follow the instructions listed below.
{CAUTION:
Someone standing too close during the
procedure could be injured by the jack.
If the spare tire does not slide off the jack
completely, make sure no one is behind you
or on either side of you as you pull the jack
out from the spare.
To release the spare tire from the secondary latch,
do the following:
1. Check under the
vehicle to see if the
cable is visible. If it is
not visible, proceed
to Step 6.
5-91

2. If visible, rst try to tighten the cable by turning
the wheel wrench clockwise until you hear
two clicks or feel it skip twice. You cannot
overtighten the cable.
3. Loosen the cable by turning the wheel wrench
counterclockwise three or four turns.
4. Repeat this procedure at least two times.
If the spare tire lowers to the ground, continue with
Step 2 ofRemoving the Spare Tire and Tools on
page 5-82.
5. Turn the wrench counterclockwise until
approximately 6 inches (15 cm) of cable is exposed.
6. Attach the jack handle, extension(s) and the wheel
wrench to the jack and place it under the vehicle
towards the front of the rear bumper. Position
the center lift point of the jack under the center of
the spare tire.
7. Turn the wrench clockwise to raise the jack until it
lifts the end tting.
5-92

8. Continue raising the jack until the spare tire
stops moving upward and is held rmly in place.
The secondary latch has released and the spare tire
is balancing on the jack.
9. Lower the jack by turning the wheel wrench
counterclockwise. Keep lowering the jack until the
spare tire slides off the jack or is hanging by
the cable.
10. Disconnect the jack handle from the jack and
carefully remove the jack. Use one hand to push
against the spare while rmly pulling the jack out
from under the spare tire with the other hand.
11. If the spare tire is
hanging from the cable,
insert the socket end
of the extension
connected to the wheel
wrench into the hoist
shaft hole just above
the rear bumper on a
45 degree angle
downward.
Be sure that the socket end of the extension
connects to the hoist shaft.12. Turn the wheel wrench counterclockwise to lower
the spare the rest of the way.
5-93

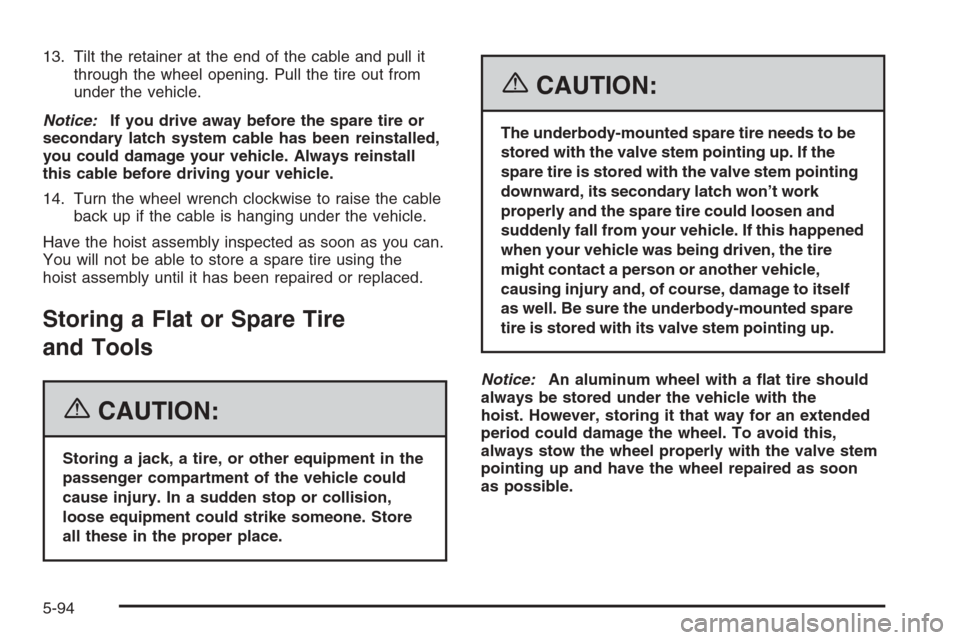

13. Tilt the retainer at the end of the cable and pull it
through the wheel opening. Pull the tire out from
under the vehicle.
Notice:If you drive away before the spare tire or
secondary latch system cable has been reinstalled,
you could damage your vehicle. Always reinstall
this cable before driving your vehicle.
14. Turn the wheel wrench clockwise to raise the cable
back up if the cable is hanging under the vehicle.
Have the hoist assembly inspected as soon as you can.
You will not be able to store a spare tire using the
hoist assembly until it has been repaired or replaced.
Storing a Flat or Spare Tire
and Tools
{CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision,
loose equipment could strike someone. Store
all these in the proper place.
{CAUTION:
The underbody-mounted spare tire needs to be
stored with the valve stem pointing up. If the
spare tire is stored with the valve stem pointing
downward, its secondary latch won’t work
properly and the spare tire could loosen and
suddenly fall from your vehicle. If this happened
when your vehicle was being driven, the tire
might contact a person or another vehicle,
causing injury and, of course, damage to itself
as well. Be sure the underbody-mounted spare
tire is stored with its valve stem pointing up.
Notice:An aluminum wheel with a at tire should
always be stored under the vehicle with the
hoist. However, storing it that way for an extended
period could damage the wheel. To avoid this,
always stow the wheel properly with the valve stem
pointing up and have the wheel repaired as soon
as possible.
5-94

Follow this diagram to store the underbody-mounted
spare tire.
A. Wheel Wrench
B. Hoist Shaft
C. Extension(s)
D. Retainer
E. Spare or Flat Tire
(Valve Stem
Pointed Up)
1. Put the tire (E) on the ground at the rear of the
vehicle.
2. Remove the hubcap, if equipped, from the at tire
by tapping the backside of the hubcap with the
wheel wrench (A). Store in a safe location until the
at tire is repaired. Once the tire is repaired,
replace the hubcap.3. Ensure the valve stem is pointed up and to
the rear.
4. Pull the retainer (D) through the wheel.
5. Put the socket end of the extension (C), on a
45 degree angle downward, through the hole
just above the rear bumper and connected to the
hoist shaft (B).
6. Raise the tire fully against the underside of the
vehicle. Continue turning the wheel wrench (A)
clockwise until you hear two clicks or feel it
skip twice. This indicates that the tire is secure and
the cable is tight. The spare tire hoist cannot be
overtightened.
5-95

7. Make sure the tire is stored securely. Push, pull (A),
and then try to turn (B) the tire. If the tire moves,
use the wheel wrench and socket end of the
extension to tighten the cable.
8. Return the equipment to the proper location in the
vehicle as shown next.A. Handle
B. Wheel Wrench
C. Instruction Label
D. Extension(s)E. Knob
F. Wheel Blocks
and Jack
1. Attach the handle (A), wheel wrench (B), and
extension (D) in the slots provided.
2. Roll up the instruction label (C) and return to the
slot in the tool kit.
3. Assemble the wheel blocks (F) to the jack.
4. Turn the knob (E) on the jack clockwise to raise the
jack head.
5. Return the rear seat to its proper position.Regular Model
5-96
