CAUTION: (Continued)
4. Turn off the engine and do not restart
while the vehicle is raised.
5. Do not allow passengers to remain in the
vehicle.
6. Put the wheel blocks at the front and rear
of the tire farthest away from the one
being changed. That would be the tire on
the other side, at the opposite end of the
vehicle.When your vehicle has a at tire, use the following
example as a guide to assist you in the placement of
wheel blocks.
The following information will tell you how to use the
jack and change a tire.
5-81

Removing the Spare Tire and Tools
The jacking equipment you will need is stored under the
rear seat (regular model) or in the left rear quarter
panel storage compartment (extended model). To
release the jack from its holder, turn the knob on the
jack counterclockwise to lower the jack head. SeeRear
Seat Operation on page 1-10for more information. Regular Model
Extended Model
5-82

The tools you will be using include the wheel wrench (A),
wheel blocks (B), extension(s) (socket end) (C),
handle (jack end) (D), and jack (E). The extended model
will include an additional extension.
The following instructions explain how to remove the
underbody-mounted spare underneath your vehicle.
Notice:If you remove or restow a tire from/to the
storage position under the vehicle when it is
supported by a jack, you could damage the tire
and/or your vehicle. Always remove or restow a tire
when the vehicle is on the ground.A. Wheel Wrench
B. Hoist Shaft
C. Extension(s)
D. Retainer
E. Spare or Flat Tire
(Valve Stem
Pointed Up)
1. Open the liftgate. SeeLiftgate/Liftglass on
page 2-13for more information.
2. Attach the wheel wrench (A) to the extension (C).
3. Insert the socket end
of the extension (C) on
a 45 degree angle
downward into the hoist
drive shaft hole (D).
It is exposed when the
rear gate is open
and is just above the
rear bumper.
Be sure the socket end of the extension (C)
connects to the hoist shaft.
5-83

4. Turn the wheel wrench counterclockwise to lower
the spare tire. Keep turning the wheel wrench until
the spare tire can be pulled out from under the
vehicle.
If the spare tire does not lower to the ground, the
secondary latch is engaged causing the tire
not to lower. SeeSecondary Latch System on
page 5-91for more information.5. Tilt the retainer at the end of the cable when the
tire has been completely lowered, and pull it
through the wheel opening.
6. Pull the tire out from under the vehicle.
Notice:If you drive away before the spare tire or
secondary latch system cable has been reinstalled,
you could damage your vehicle. Always reinstall
this cable before driving your vehicle.
7. Put the spare tire near the at tire.
5-84

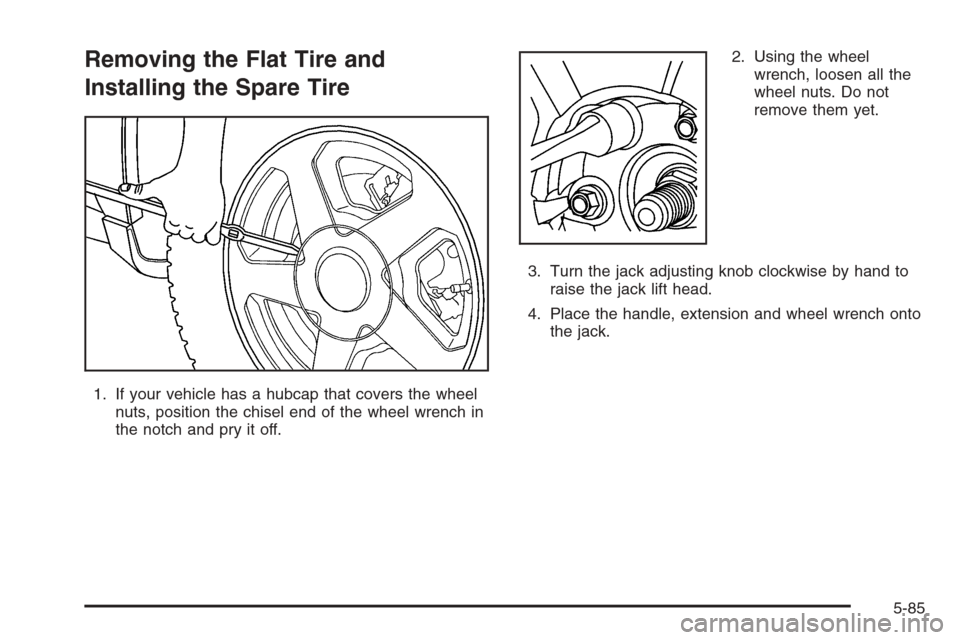

Removing the Flat Tire and
Installing the Spare Tire
1. If your vehicle has a hubcap that covers the wheel
nuts, position the chisel end of the wheel wrench in
the notch and pry it off.2. Using the wheel
wrench, loosen all the
wheel nuts. Do not
remove them yet.
3. Turn the jack adjusting knob clockwise by hand to
raise the jack lift head.
4. Place the handle, extension and wheel wrench onto
the jack.
5-85

A. Front Frame/
Rear Axle
B. JackC. Handle
D. Extension(s)
E. Wheel Wrench
5. Place the jack in the appropriate position nearest
the at tire.
{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack you
could be badly injured or killed. Never get
under a vehicle when it is supported only by
a jack.
Front Position
Rear Position
5-86

{CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal
injury and vehicle damage, be sure to t the
jack lift head into the proper location before
raising the vehicle.
6. Raise the vehicle by turning the jack handle
clockwise. Raise the vehicle far enough off the
ground so there is enough room for the spare
tire to t.
5-87

7. Remove all the wheel
nuts and take off the
at tire.
{CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could
come off and cause an accident. When you
change a wheel, remove any rust or dirt from
the places where the wheel attaches to the
vehicle. In an emergency, you can use a cloth
or a paper towel to do this; but be sure to use
a scraper or wire brush later, if needed, to get
all the rust or dirt off.
8. Remove any rust or dirt
from the wheel bolts,
mounting surfaces
and spare wheel.
5-88
