2006 CHEVROLET TRAIL BLAZER Owners Manual

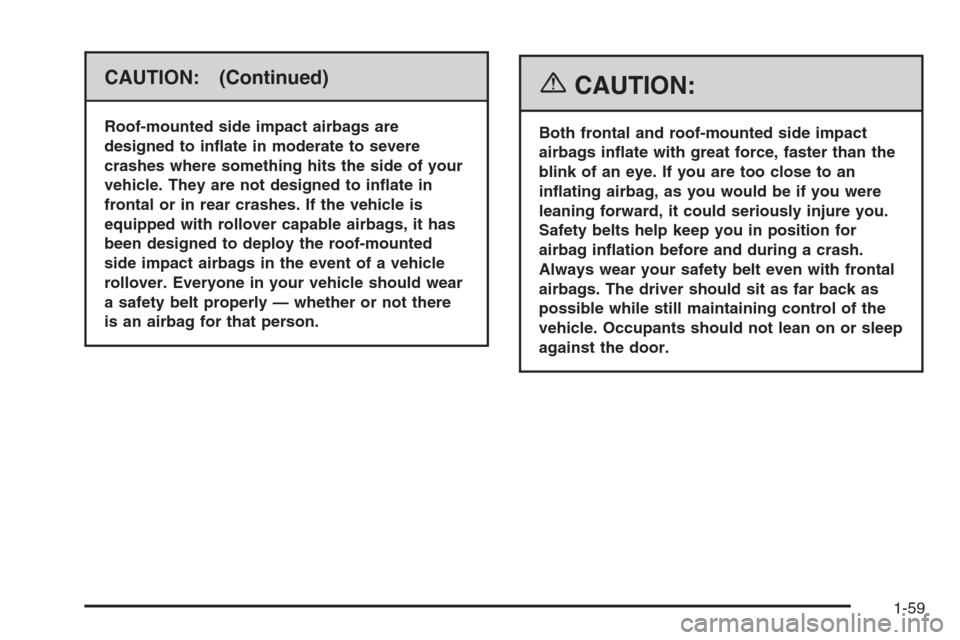

CAUTION: (Continued)
Roof-mounted side impact airbags are
designed to inate in moderate to severe
crashes where something hits the side of your
vehicle. They are not designed to inate in
frontal or in rear crashes. If the vehicle is
equipped with rollover capable airbags, it has
been designed to deploy the roof-mounted
side impact airbags in the event of a vehicle
rollover. Everyone in your vehicle should wear
a safety belt properly — whether or not there
is an airbag for that person.
{CAUTION:
Both frontal and roof-mounted side impact
airbags inate with great force, faster than the
blink of an eye. If you are too close to an
inating airbag, as you would be if you were
leaning forward, it could seriously injure you.
Safety belts help keep you in position for
airbag ination before and during a crash.
Always wear your safety belt even with frontal
airbags. The driver should sit as far back as
possible while still maintaining control of the
vehicle. Occupants should not lean on or sleep
against the door.
1-59

{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults, but
not for young children and infants. Neither the
vehicle’s safety belt system nor its airbag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
seeOlder Children on page 1-33orInfants and
Young Children on page 1-36.There is an airbag
readiness light on the
instrument panel cluster,
which shows the airbag
symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-34
for more information.
1-60

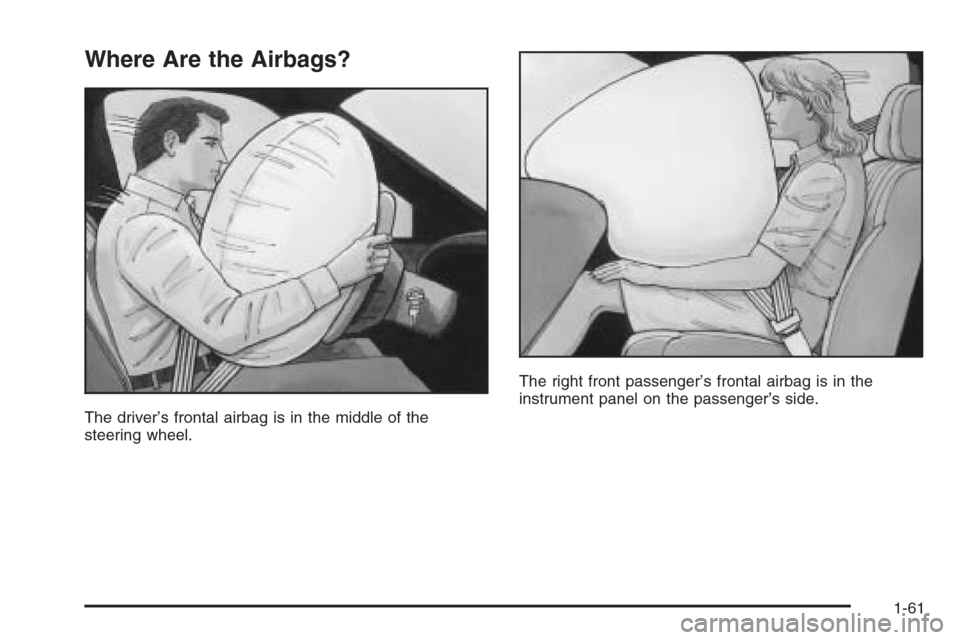

Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.
1-61

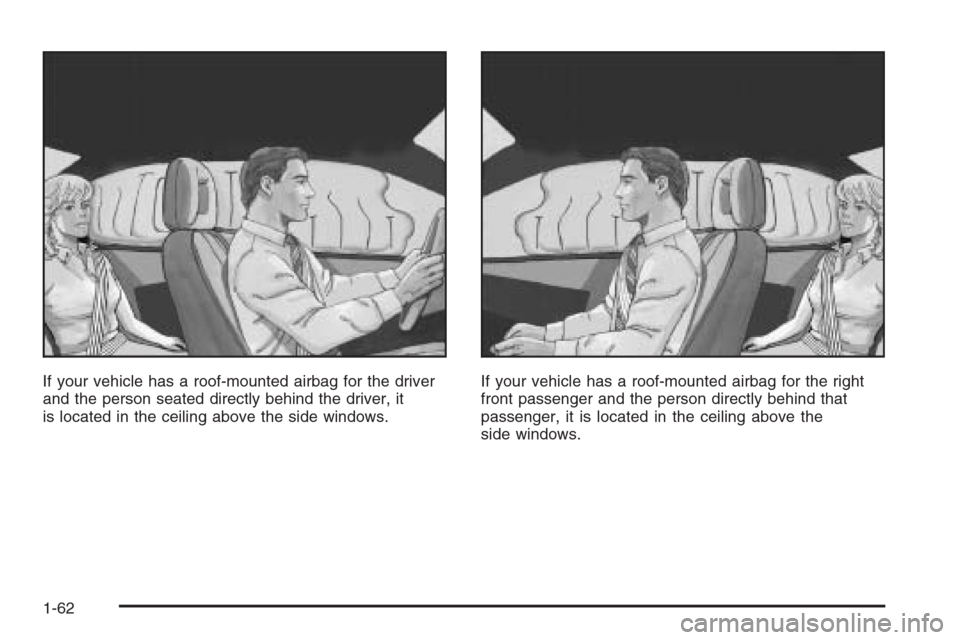

If your vehicle has a roof-mounted airbag for the driver
and the person seated directly behind the driver, it
is located in the ceiling above the side windows.If your vehicle has a roof-mounted airbag for the right
front passenger and the person directly behind that
passenger, it is located in the ceiling above the
side windows.
1-62

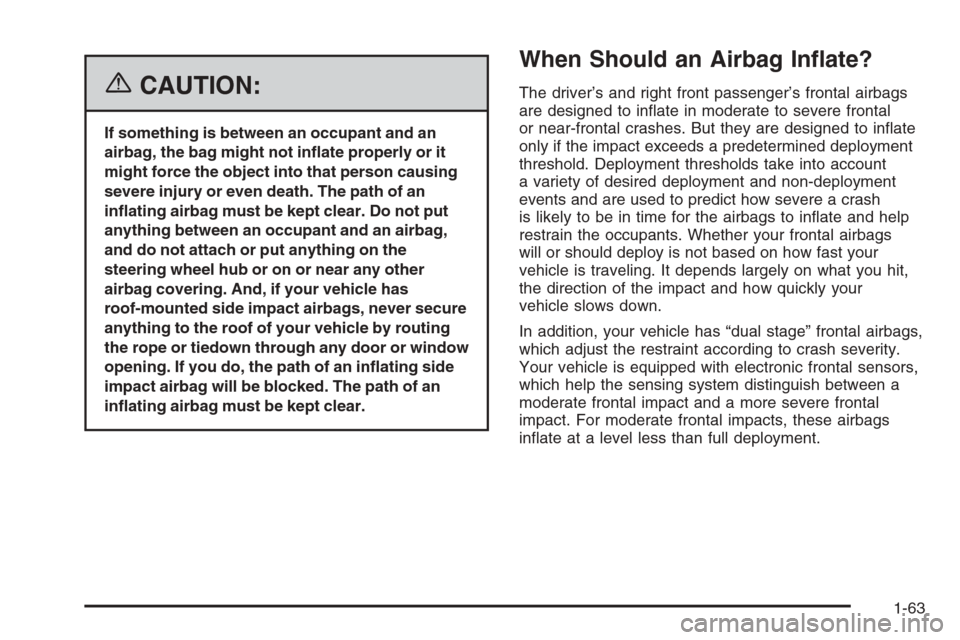

{CAUTION:
If something is between an occupant and an
airbag, the bag might not inate properly or it
might force the object into that person causing
severe injury or even death. The path of an
inating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering. And, if your vehicle has
roof-mounted side impact airbags, never secure
anything to the roof of your vehicle by routing
the rope or tiedown through any door or window
opening. If you do, the path of an inating side
impact airbag will be blocked. The path of an
inating airbag must be kept clear.
When Should an Airbag Inate?
The driver’s and right front passenger’s frontal airbags
are designed to inate in moderate to severe frontal
or near-frontal crashes. But they are designed to inate
only if the impact exceeds a predetermined deployment
threshold. Deployment thresholds take into account
a variety of desired deployment and non-deployment
events and are used to predict how severe a crash
is likely to be in time for the airbags to inate and help
restrain the occupants. Whether your frontal airbags
will or should deploy is not based on how fast your
vehicle is traveling. It depends largely on what you hit,
the direction of the impact and how quickly your
vehicle slows down.
In addition, your vehicle has “dual stage” frontal airbags,
which adjust the restraint according to crash severity.
Your vehicle is equipped with electronic frontal sensors,
which help the sensing system distinguish between a
moderate frontal impact and a more severe frontal
impact. For moderate frontal impacts, these airbags
inate at a level less than full deployment.
1-63

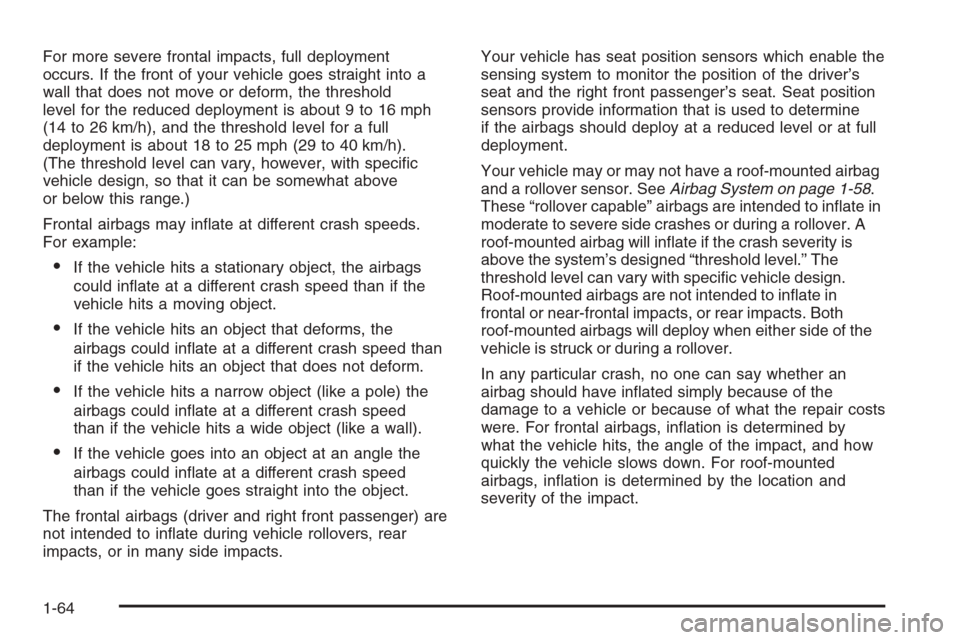

For more severe frontal impacts, full deployment
occurs. If the front of your vehicle goes straight into a
wall that does not move or deform, the threshold
level for the reduced deployment is about 9 to 16 mph
(14 to 26 km/h), and the threshold level for a full
deployment is about 18 to 25 mph (29 to 40 km/h).
(The threshold level can vary, however, with specic
vehicle design, so that it can be somewhat above
or below this range.)
Frontal airbags may inate at different crash speeds.
For example:
If the vehicle hits a stationary object, the airbags
could inate at a different crash speed than if the
vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could inate at a different crash speed than
if the vehicle hits an object that does not deform.
If the vehicle hits a narrow object (like a pole) the
airbags could inate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle the
airbags could inate at a different crash speed
than if the vehicle goes straight into the object.
The frontal airbags (driver and right front passenger) are
not intended to inate during vehicle rollovers, rear
impacts, or in many side impacts.Your vehicle has seat position sensors which enable the
sensing system to monitor the position of the driver’s
seat and the right front passenger’s seat. Seat position
sensors provide information that is used to determine
if the airbags should deploy at a reduced level or at full
deployment.
Your vehicle may or may not have a roof-mounted airbag
and a rollover sensor. SeeAirbag System on page 1-58.
These “rollover capable” airbags are intended to inate in
moderate to severe side crashes or during a rollover. A
roof-mounted airbag will inate if the crash severity is
above the system’s designed “threshold level.” The
threshold level can vary with specic vehicle design.
Roof-mounted airbags are not intended to inate in
frontal or near-frontal impacts, or rear impacts. Both
roof-mounted airbags will deploy when either side of the
vehicle is struck or during a rollover.
In any particular crash, no one can say whether an
airbag should have inated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, ination is determined by
what the vehicle hits, the angle of the impact, and how
quickly the vehicle slows down. For roof-mounted
airbags, ination is determined by the location and
severity of the impact.
1-64

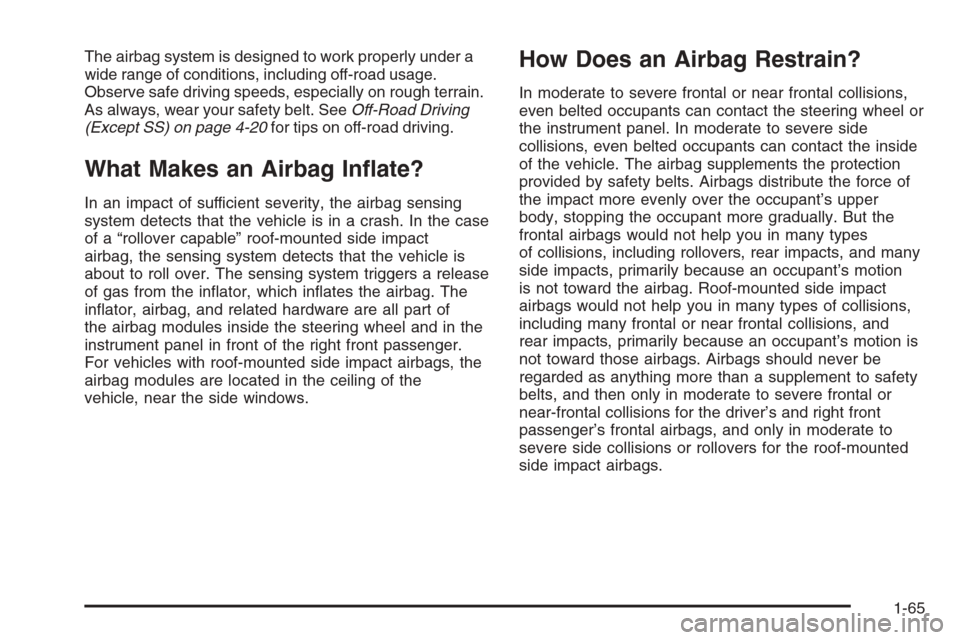

The airbag system is designed to work properly under a
wide range of conditions, including off-road usage.
Observe safe driving speeds, especially on rough terrain.
As always, wear your safety belt. SeeOff-Road Driving
(Except SS) on page 4-20for tips on off-road driving.
What Makes an Airbag Inate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. In the case
of a “rollover capable” roof-mounted side impact
airbag, the sensing system detects that the vehicle is
about to roll over. The sensing system triggers a release
of gas from the inator, which inates the airbag. The
inator, airbag, and related hardware are all part of
the airbag modules inside the steering wheel and in the
instrument panel in front of the right front passenger.
For vehicles with roof-mounted side impact airbags, the
airbag modules are located in the ceiling of the
vehicle, near the side windows.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel or
the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The airbag supplements the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But the
frontal airbags would not help you in many types
of collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motion
is not toward the airbag. Roof-mounted side impact
airbags would not help you in many types of collisions,
including many frontal or near frontal collisions, and
rear impacts, primarily because an occupant’s motion is
not toward those airbags. Airbags should never be
regarded as anything more than a supplement to safety
belts, and then only in moderate to severe frontal or
near-frontal collisions for the driver’s and right front
passenger’s frontal airbags, and only in moderate to
severe side collisions or rollovers for the roof-mounted
side impact airbags.
1-65

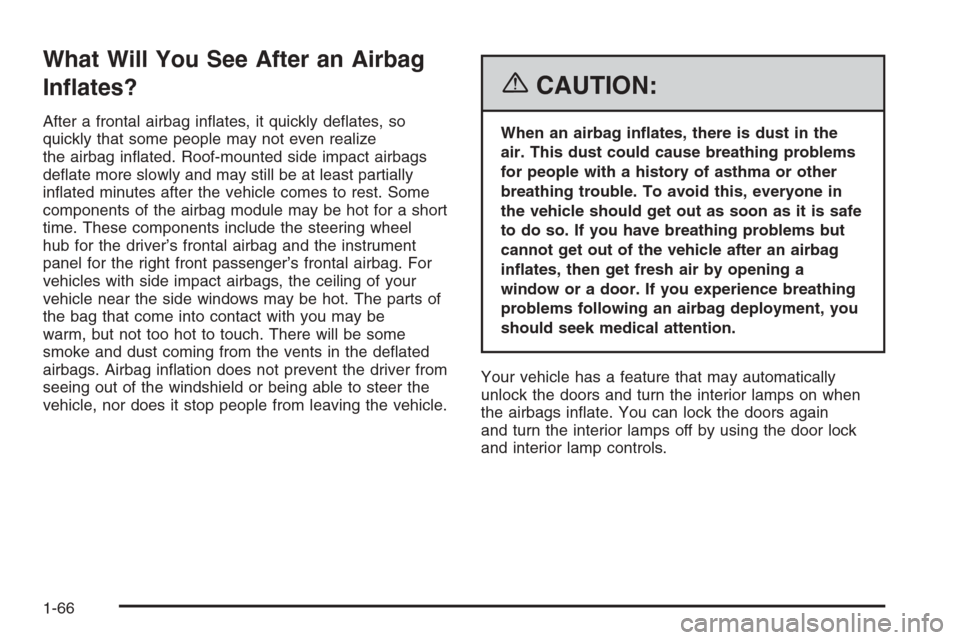

What Will You See After an Airbag
Inates?
After a frontal airbag inates, it quickly deates, so
quickly that some people may not even realize
the airbag inated. Roof-mounted side impact airbags
deate more slowly and may still be at least partially
inated minutes after the vehicle comes to rest. Some
components of the airbag module may be hot for a short
time. These components include the steering wheel
hub for the driver’s frontal airbag and the instrument
panel for the right front passenger’s frontal airbag. For
vehicles with side impact airbags, the ceiling of your
vehicle near the side windows may be hot. The parts of
the bag that come into contact with you may be
warm, but not too hot to touch. There will be some
smoke and dust coming from the vents in the deated
airbags. Airbag ination does not prevent the driver from
seeing out of the windshield or being able to steer the
vehicle, nor does it stop people from leaving the vehicle.
{CAUTION:
When an airbag inates, there is dust in the
air. This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in
the vehicle should get out as soon as it is safe
to do so. If you have breathing problems but
cannot get out of the vehicle after an airbag
inates, then get fresh air by opening a
window or a door. If you experience breathing
problems following an airbag deployment, you
should seek medical attention.
Your vehicle has a feature that may automatically
unlock the doors and turn the interior lamps on when
the airbags inate. You can lock the doors again
and turn the interior lamps off by using the door lock
and interior lamp controls.
1-66
