2006 CHEVROLET MALIBU Owners Manual

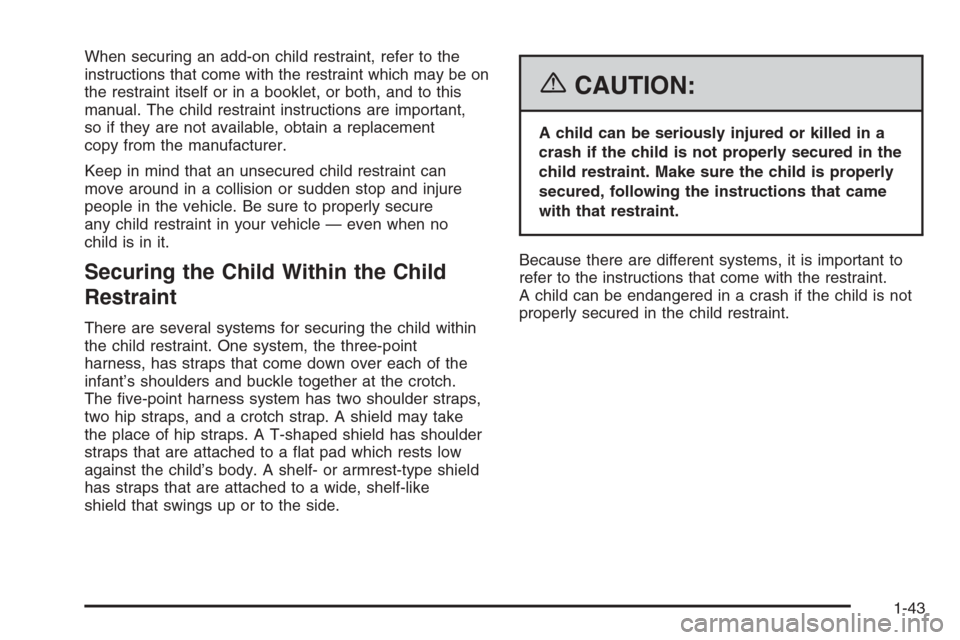

When securing an add-on child restraint, refer to the
instructions that come with the restraint which may be on
the restraint itself or in a booklet, or both, and to this
manual. The child restraint instructions are important,
so if they are not available, obtain a replacement
copy from the manufacturer.
Keep in mind that an unsecured child restraint can
move around in a collision or sudden stop and injure
people in the vehicle. Be sure to properly secure
any child restraint in your vehicle — even when no
child is in it.
Securing the Child Within the Child
Restraint
There are several systems for securing the child within
the child restraint. One system, the three-point
harness, has straps that come down over each of the
infant’s shoulders and buckle together at the crotch.
The ve-point harness system has two shoulder straps,
two hip straps, and a crotch strap. A shield may take
the place of hip straps. A T-shaped shield has shoulder
straps that are attached to a at pad which rests low
against the child’s body. A shelf- or armrest-type shield
has straps that are attached to a wide, shelf-like
shield that swings up or to the side.
{CAUTION:
A child can be seriously injured or killed in a
crash if the child is not properly secured in the
child restraint. Make sure the child is properly
secured, following the instructions that came
with that restraint.
Because there are different systems, it is important to
refer to the instructions that come with the restraint.
A child can be endangered in a crash if the child is not
properly secured in the child restraint.
1-43

Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat.
General Motors recommends that child restraints
be secured in a rear seat, including an infant riding in a
rear-facing infant seat, a child riding in a forward-facing
child seat and an older child riding in a booster seat.
Neverput a rear-facing child restraint in the right
front passenger seat. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inates. This is because
the back of the rear-facing child restraint
would be very close to the inating airbag.
Always secure a rear-facing child restraint in a
rear seat.
If you need to secure a forward-facing child
restraint in the right front seat, always move
the front passenger seat as far back as it will
go. It is better to secure the child restraint in a
rear seat.If you need to secure more than one child restraint
in the rear seat, review the following illustrations.
Depending on where you place the child restraint, you
may not be able to access certain safety belt assemblies
or LATCH anchors for additional passengers or child
restraints.
Congurations for Use of
Child Restraints
A. Child restraint
using LATCH
B. Child restraint or
occupant using
safety belt
A. Occupant prohibited
B. Child restraint
using LATCH
1-44

A. Child restraint
using LATCH
B. Child restraint or
occupant using
safety belt
C. Child restraint using
safety belt or LATCH
or occupant using
safety belt
A. Child restraint or
occupant using
safety belt
A. Child restraint or
occupant using
safety belt
B. Child restraint
using LATCHWherever you install a child restraint, be sure to secure
the child restraint properly.
Keep in mind that an unsecured child restraint can
move around in a collision or sudden stop and injure
people in the vehicle. Be sure to properly secure
any child restraint in your vehicle — even when no child
is in it.
Lower Anchors and Tethers for
Children (LATCH)
Your vehicle has the LATCH system. The LATCH
system holds a child restraint during driving or in a
crash. This system is designed to make installation of
a child restraint easier. The LATCH system uses
anchors in the vehicle and attachments on the child
restraint that are made for use with the LATCH system.
Make sure that a LATCH-compatible child restraint is
properly installed using the anchors, or use the
vehicle’s safety belts to secure the restraint, following
the instructions that came with that restraint, and
also the instructions in this manual. When installing a
child restraint with a top tether, you must also use
either the lower anchors or the safety belts to properly
secure the child restraint. A child restraint must never
be installed using only the top tether and anchor.
1-45

In order to use the LATCH system in your vehicle,
you need a child restraint equipped with LATCH
attachments. The child restraint manufacturer will
provide you with instructions on how to use the child
restraint and its attachments. The following explains
how to attach a child restraint with these attachments
in your vehicle.
Your vehicle has lower anchors and top tether anchors.
Your child restraint may have lower attachments and
a top tether.
Not all vehicle seating positions or child restraints have
lower anchors and attachments or top tether anchors
and attachments.Lower Anchors
Lower anchors (A) are metal bars built into the vehicle.
There are two lower anchors for each LATCH seating
position that will accommodate a child restraint with
lower attachments (B).
1-46

Top Tether Anchor
A top tether (A, C) anchors the top of the child restraint
to the vehicle. A top tether anchor is built into the
vehicle. The top tether attachment (B) on the child
restraint connects to the top tether anchor in the vehicle
in order to reduce the forward movement and rotation
of the child restraint during driving or in a crash.Your child restraint may have a single tether (A) or a
dual tether (C). Either will have a single attachment (B)
to secure the top tether to the anchor.
Some top tether-equipped child restraints are designed
for use with or without the top tether being attached.
Others require the top tether always to be attached.
In Canada, the law requires that forward-facing
child restraints have a top tether, and that the tether
be attached. In the United States, some child restraints
also have a top tether. Be sure to read and follow
the instructions for your child restraint.
If the child restraint does not have a top tether, one
can be obtained, in kit form, for many child restraints.
Ask the child restraint manufacturer whether or not a kit
is available.
1-47

Lower Anchor and Top Tether
Anchor Locations
i(Top Tether Anchor):
Seating positions with
top tether anchors.
j(Lower Anchor):
Seating positions with
two lower anchors.
For MAXX models, to assist
you in locating the lower
anchors, each rear anchor
position has a label, near
the crease between the
seatback and the seat
cushion, showing where
the anchors are located.For sedan models, each rear seating position has
exposed metal lower anchors in the crease between
the seatback and the seat cushion.
For MAXX models, to
assist you in locating the
top tether anchors,
the top tether anchor
symbol is located on
the back of the rear
seatback near the top
tether anchors.
Rear Seat
1-48

For sedan models, the top tether anchors are located
behind the rear seat on the ller panel.For MAXX models, the top tether anchors are located
on the back of the rear seatback. Be sure to use an
anchor located on the same side of the vehicle as the
seating position where the child restraint will be placed.
Do not secure a child restraint in the right front
passenger’s position if a national or local law requires
that the top tether be attached, or if the instructions
that come with the child restraint say that the top tether
must be attached. There is no place to attach the
top tether in this position.
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat.
SeeWhere to Put the Restraint on page 1-44for
additional information. Sedan
MAXX
1-49

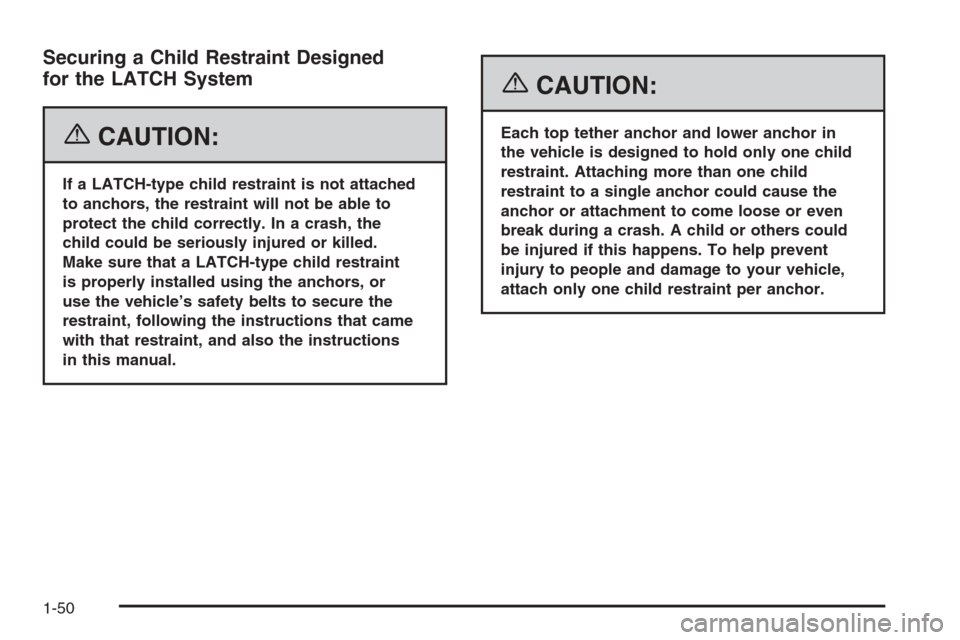

Securing a Child Restraint Designed
for the LATCH System
{CAUTION:
If a LATCH-type child restraint is not attached
to anchors, the restraint will not be able to
protect the child correctly. In a crash, the
child could be seriously injured or killed.
Make sure that a LATCH-type child restraint
is properly installed using the anchors, or
use the vehicle’s safety belts to secure the
restraint, following the instructions that came
with that restraint, and also the instructions
in this manual.
{CAUTION:
Each top tether anchor and lower anchor in
the vehicle is designed to hold only one child
restraint. Attaching more than one child
restraint to a single anchor could cause the
anchor or attachment to come loose or even
break during a crash. A child or others could
be injured if this happens. To help prevent
injury to people and damage to your vehicle,
attach only one child restraint per anchor.
1-50
