2006 CHEVROLET MALIBU Owners Manual

{CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to come loose
and even come off. This could lead to an
accident. Be sure to use the correct wheel
nuts. If you have to replace them, be sure to
get new GM original equipment wheel nuts.
Stop somewhere as soon as you can and have
the nuts tightened with a torque wrench to the
proper torque specication. SeeCapacities
and Specifications on page 5-107for wheel nut
torque specication.
Notice:Improperly tightened wheel nuts can
lead to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper torque
specication. SeeCapacities and Specifications on
page 5-107for the wheel nut torque specication.13. Tighten the wheel nuts
rmly in a crisscross
sequence, as shown,
with the wheel wrench.
Notice:Wheel covers will not t on your compact
spare. If you try to put a wheel cover on the compact
spare, you could damage the cover or the spare.
Do not try to put a wheel cover on your compact spare
tire. It will not t. Store the wheel cover and wheel nut
caps in the trunk until you have the at tire repaired or
replaced.
5-81

Storing a Flat or Spare Tire and
Tools (Sedan)
Storing a Flat Tire and Tools
{CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision,
loose equipment could strike someone. Store
all these in the proper place.To store the at tire and tools in the compact spare tire
compartment, do the following:
A. Cover
B. Wing Nut
C. Jack and Wheel
WrenchD. Flat Tire
(Valve Stem down)
E. Bolt
5-82

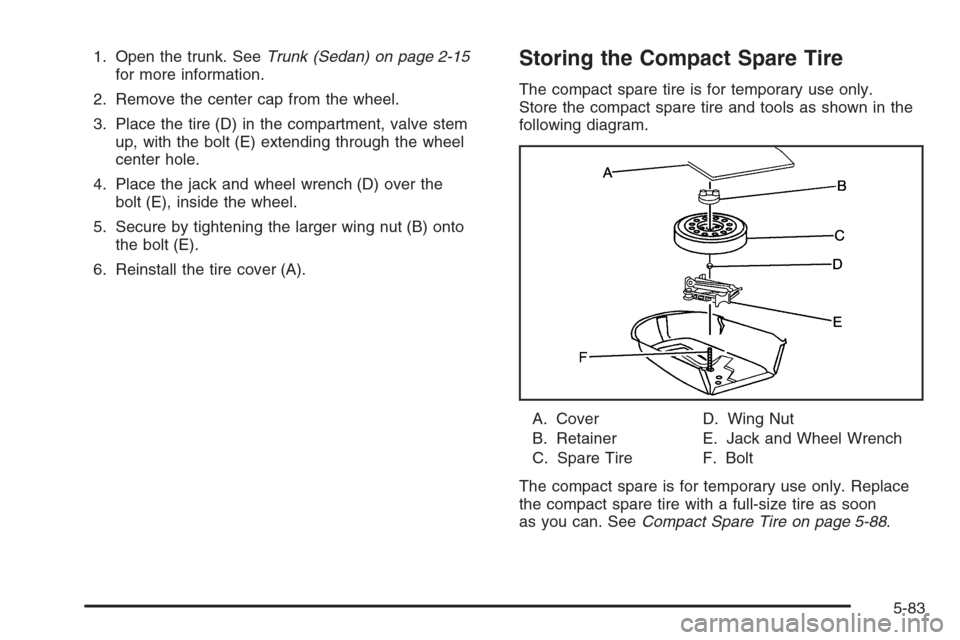

1. Open the trunk. SeeTrunk (Sedan) on page 2-15
for more information.
2. Remove the center cap from the wheel.
3. Place the tire (D) in the compartment, valve stem
up, with the bolt (E) extending through the wheel
center hole.
4. Place the jack and wheel wrench (D) over the
bolt (E), inside the wheel.
5. Secure by tightening the larger wing nut (B) onto
the bolt (E).
6. Reinstall the tire cover (A).Storing the Compact Spare Tire
The compact spare tire is for temporary use only.
Store the compact spare tire and tools as shown in the
following diagram.
A. Cover
B. Retainer
C. Spare TireD. Wing Nut
E. Jack and Wheel Wrench
F. Bolt
The compact spare is for temporary use only. Replace
the compact spare tire with a full-size tire as soon
as you can. SeeCompact Spare Tire on page 5-88.
5-83

Storing a Flat or Spare Tire and
Tools (Sedan SS)
{CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision,
loose equipment could strike someone.
Store all these in the proper place.
Storing the Flat Tire and Tools
To store the at tire and jack in the compact spare tire
compartment, do the following:
1. Open the trunk. SeeTrunk (Sedan) on page 2-15
for more information.
2. Remove the bolt extension (in the yellow sleeve)
from the jack and remove the center cap from
the wheel.3. Place the jack over the bolt (B) on the oor, making
sure it contacts the bolt as shown.
4. With the yellow cap in place to prevent the wheel
from being scratched, place the bolt extension (A)
onto the bolt (B).
5. Thread the small wing nut (C) until it is at or near
the end of the threads.
6. Place the at tire in the compartment, valve stem up.
7. Reach under the wheel and lift the bolt
extension (A) so that the threaded end of the
bolt passes through the center hole of the wheel.
5-84

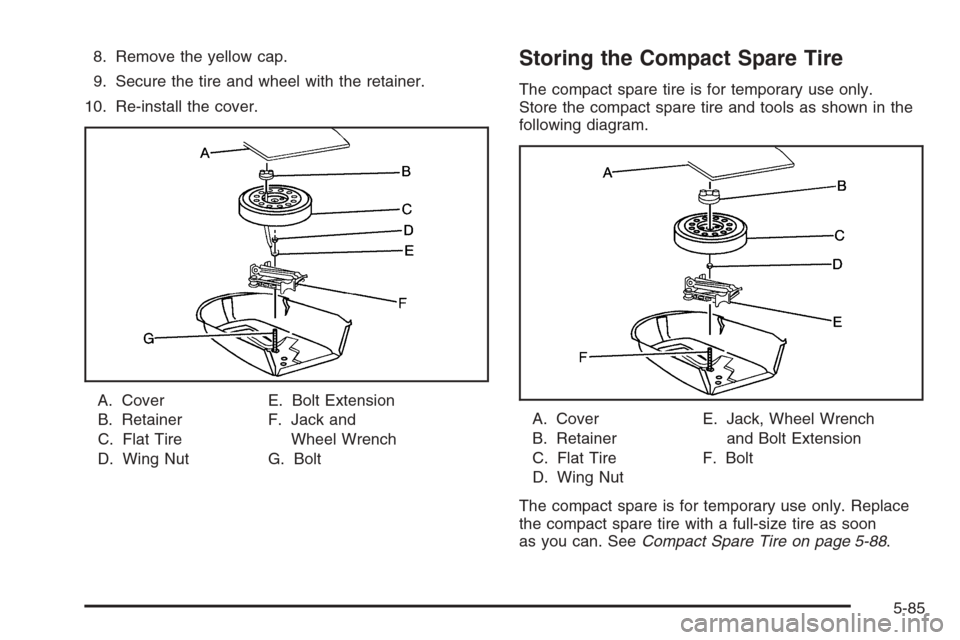

8. Remove the yellow cap.
9. Secure the tire and wheel with the retainer.
10. Re-install the cover.
A. Cover
B. Retainer
C. Flat Tire
D. Wing NutE. Bolt Extension
F. Jack and
Wheel Wrench
G. BoltStoring the Compact Spare Tire
The compact spare tire is for temporary use only.
Store the compact spare tire and tools as shown in the
following diagram.
A. Cover
B. Retainer
C. Flat Tire
D. Wing NutE. Jack, Wheel Wrench
and Bolt Extension
F. Bolt
The compact spare is for temporary use only. Replace
the compact spare tire with a full-size tire as soon
as you can. SeeCompact Spare Tire on page 5-88.
5-85

Storing a Flat or Spare Tire and
Tools (All MAXX Models)
{CAUTION:
Storing a jack, a tire, or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision,
loose equipment could strike someone.
Store all these in the proper place.
Storing the Flat Tire and Tools
To store the at tire and jack in the compact spare tire
compartment, do the following:
1. Open the liftgate. SeeLiftgate (MAXX) on page 2-16
for more information.
2. Remove the bolt extension (in the yellow sleeve)
from the jack and remove the center cap from
the wheel.3. Place the jack over the bolt (B) on the oor, making
sure it contacts the bolt as shown.
4. Install the bracket (D) and then the bolt
extension (A).
5. Secure the jack, bracket and bolt extension with the
wing nut (C) provided.
5-86

6. With the valve stem up, place the tire on the
compartment oor with the rear of the tire beneath
the trim panel (tire may not lay completely at).
7. Make sure the bolt extension (A) passes through
the wheel center.
8. Remove the plug from the center hole of the oor
cover by pressing on the tabs on the bottom of
the cover.
9. Remove the yellow cap from the bolt extension.
10. Fold the rear ap of the cover up and place
the cover on top of the wheel. The extension
will come through the center hole in the cover.
11. Secure the tire and wheel with the retainer.
A. Retainer
B. Cover
C. Flat Tire
(Valve Stem Up)
D. NutE. Bolt Extension
F. Bracket
G. Jack and
Wheel Wrench
H. Bolt
5-87

Storing the Compact Spare Tire
and Tools
The compact spare tire is for temporary use only.
Store the compact spare tire and tools as shown in the
following diagram.
A. Cover
B. Retainer
C. Spare Tire
D. Wing NutE. Bracket
F. Jack, Wheel Wrench
and Bolt Extension
G. Bolt
The compact spare is for temporary use only. Replace
the compact spare tire with a full-size tire as soon
as you can. SeeCompact Spare Tire on page 5-88.
Compact Spare Tire
Although the compact spare tire was fully inated
when the vehicle was new, it can lose air after a time.
Check the ination pressure regularly. It should be
60 psi (420 kPa).
After installing the compact spare on the vehicle, stop
as soon as possible and make sure the spare tire is
correctly inated. The compact spare is made to perform
well at speeds up to 65 mph (105 km/h) for distances up
to 3,000 miles (5 000 km), so you can nish your trip
and have the full-size tire repaired or replaced at your
convenience. Of course, it is best to replace the spare
with a full-size tire as soon as possible. The spare tire
will last longer and be in good shape in case it is
needed again.
Notice:When the compact spare is installed, do not
take your vehicle through an automatic car wash with
guide rails. The compact spare can get caught on the
rails. That can damage the tire and wheel, and maybe
other parts of your vehicle.
Do not use the compact spare on other vehicles.
And do not mix the compact spare tire or wheel with
other wheels or tires. They will not t. Keep the
spare tire and its wheel together.
Notice:Tire chains will not t your compact spare.
Using them can damage your vehicle and can
damage the chains too. Do not use tire chains on
your compact spare.
5-88
