2006 CHEVROLET MALIBU Owners Manual

Vehicle Care/Appearance Materials
Description Usage
Polishing Cloth
Wax-TreatedInterior and exterior
polishing cloth.
Tar and Road
Oil RemoverRemoves tar, road oil
and asphalt.
Chrome Cleaner
and PolishUse on chrome or
stainless steel.
White Sidewall
Tire CleanerRemoves soil and black
marks from whitewalls.
Vinyl Cleaner Cleans vinyl.
Glass CleanerRemoves dirt, grime,
smoke and ngerprints.
Chrome and Wire
Wheel CleanerRemoves dirt and grime
from chrome wheels and
wire wheel covers.
Finish EnhancerRemoves dust,
ngerprints, and surface
contaminants. Spray on
wipe off.
Swirl Remover PolishRemoves swirl marks,
ne scratches and
other light surface
contamination.
Vehicle Care/Appearance Materials
(cont’d)
Description Usage
Cleaner WaxRemoves light scratches
and protects nish.
Foaming Tire Shine
Low GlossCleans, shines and
protects in one easy step,
no wiping necessary.
Wash Wax ConcentrateMedium foaming
shampoo. Cleans
and lightly waxes.
Biodegradable and
phosphate free.
Spot LifterQuickly and easily
removes spots and stains
from carpets, vinyl and
suede upholstery.
Odor EliminatorOdorless spray odor
eliminator used on
fabrics, vinyl, suede
and carpet.
5-97

Vehicle Identication
Vehicle Identication Number (VIN)
This is the legal identier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on
the driver’s side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certication and Service Parts
labels and the certicates of title and registration.
Engine Identication
The eighth character in the VIN is the engine code.
This code will help you identify your vehicle’s engine,
specications, and replacement parts.
Service Parts Identication Label
You will nd this label on the inside of the glove box.
It is very helpful if you ever need to order parts.
On this label, you will nd the following:
VIN
Model designation
Paint information
Production options and special equipment
Do not remove this label from the vehicle.
Electrical System
Add-On Electrical Equipment
Notice:Don’t add anything electrical to your vehicle
unless you check with your dealer rst. Some
electrical equipment can damage your vehicle and
the damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from working as they should.
Your vehicle has an airbag system. Before attempting to
add anything electrical to your vehicle, seeServicing
Your Airbag-Equipped Vehicle on page 1-69.
SeeTowing a Trailer on page 4-42for more information
about add-on electrical equipment and towing a vehicle.
5-98

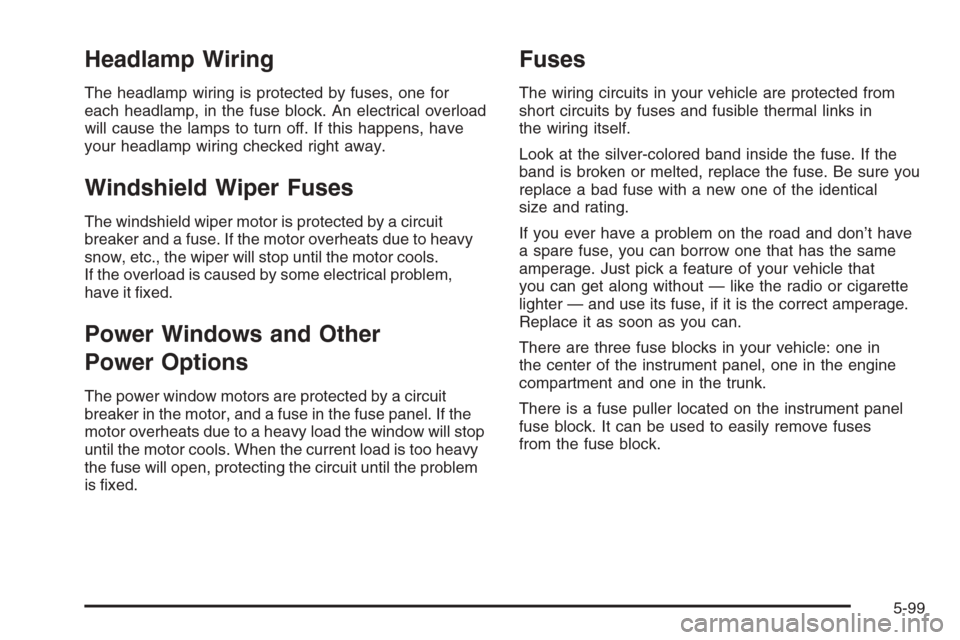

Headlamp Wiring
The headlamp wiring is protected by fuses, one for
each headlamp, in the fuse block. An electrical overload
will cause the lamps to turn off. If this happens, have
your headlamp wiring checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If the overload is caused by some electrical problem,
have it xed.
Power Windows and Other
Power Options
The power window motors are protected by a circuit
breaker in the motor, and a fuse in the fuse panel. If the
motor overheats due to a heavy load the window will stop
until the motor cools. When the current load is too heavy
the fuse will open, protecting the circuit until the problem
is xed.
Fuses
The wiring circuits in your vehicle are protected from
short circuits by fuses and fusible thermal links in
the wiring itself.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating.
If you ever have a problem on the road and don’t have
a spare fuse, you can borrow one that has the same
amperage. Just pick a feature of your vehicle that
you can get along without — like the radio or cigarette
lighter — and use its fuse, if it is the correct amperage.
Replace it as soon as you can.
There are three fuse blocks in your vehicle: one in
the center of the instrument panel, one in the engine
compartment and one in the trunk.
There is a fuse puller located on the instrument panel
fuse block. It can be used to easily remove fuses
from the fuse block.
5-99

Instrument Panel Fuse Block
The instrument panel fuse block is located at on the lower front side of the console, on the passenger side of the
vehicle. To access the fuses, open the fuse panel door by pulling out.
To reinstall the door, insert the hooks at the front end rst, then push the door into the console panel to secure it.
5-100

Fuses Usage
POWER MIRRORS Power Mirrors
EPS Electric Power Steering
RUN/CRANKCruise Control, Electronic Range
Select, Driver Shift Control
HVAC BLOWER
HIGH (Relay)Climate Control System
CLUSTER/ THEFTInstrument Panel Cluster,
Theft Deterrent System
ONSTAR OnStar
®System
NOT INSTALLED Not Used
AIRBAG (IGN) Airbag System
HVAC CTRL
(BATT)Climate Control System
PEDALAdjustable Throttle and Brake
Pedal
WIPER SW Windshield Wiper/Washer Switch
IGN SENSOR Ignition Switch
NOT INSTALLED Not Used
NOT INSTALLED Not Used
RADIO Audio System
INTERIOR LIGHTSOverhead Lighting,
Trunk/Cargo Lighting
Fuses Usage
REAR WIPERRear Wiper System/
Washer Pump
HVAC CTRL (IGN) Climate Control System
HVAC BLOWER Climate Control System
DOOR LOCK Automatic Door Lock System
ROOF/HEAT SEATSunroof, Heated Seats,
Automatic Dimming Rearview
Mirror, Compass, Rear Wiper/
Washer System
POWER
WINDOWSPower Window Switch
NOT INSTALLED Not Used
NOT INSTALLED Not Used
AIRBAG (BATT) Airbag System
FUSE PULLER Fuse Puller
SPARE FUSE
HOLDERSpare
SPARE FUSE
HOLDERSpare
SPARE FUSE
HOLDERSpare
SPARE FUSE
HOLDERSpare
5-101

Engine Compartment Fuse Block
The engine compartment fuse block is located on the driver’s side of the vehicle, near the battery. SeeEngine
Compartment Overview on page 5-12for more information on location.
5-102

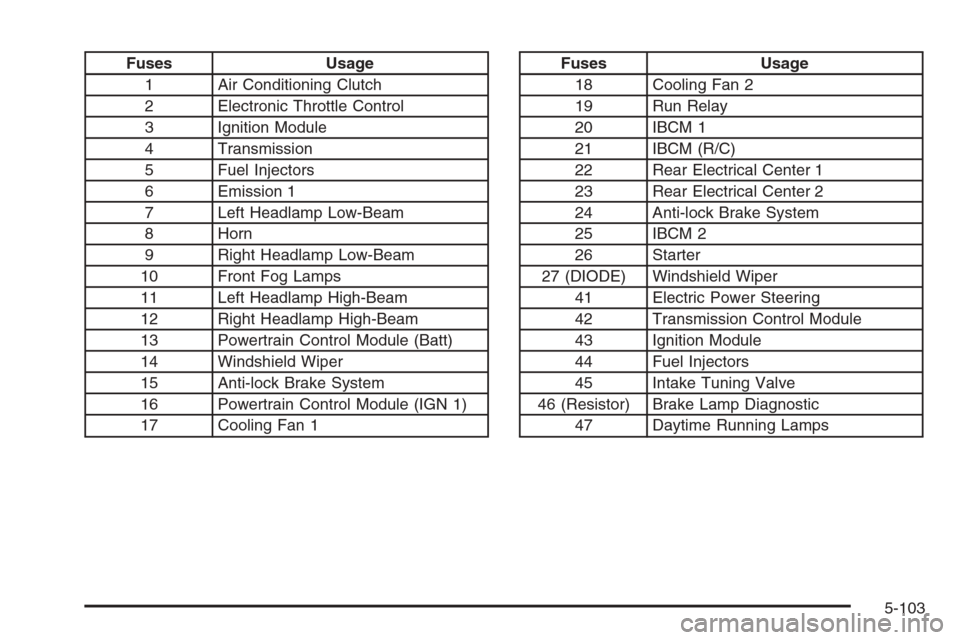

Fuses Usage
1 Air Conditioning Clutch
2 Electronic Throttle Control
3 Ignition Module
4 Transmission
5 Fuel Injectors
6 Emission 1
7 Left Headlamp Low-Beam
8 Horn
9 Right Headlamp Low-Beam
10 Front Fog Lamps
11 Left Headlamp High-Beam
12 Right Headlamp High-Beam
13 Powertrain Control Module (Batt)
14 Windshield Wiper
15 Anti-lock Brake System
16 Powertrain Control Module (IGN 1)
17 Cooling Fan 1Fuses Usage
18 Cooling Fan 2
19 Run Relay
20 IBCM 1
21 IBCM (R/C)
22 Rear Electrical Center 1
23 Rear Electrical Center 2
24 Anti-lock Brake System
25 IBCM 2
26 Starter
27 (DIODE) Windshield Wiper
41 Electric Power Steering
42 Transmission Control Module
43 Ignition Module
44 Fuel Injectors
45 Intake Tuning Valve
46 (Resistor) Brake Lamp Diagnostic
47 Daytime Running Lamps
5-103

Relays Usage
28 Cooling Fan 1
29 Cooling Fan Mode Series/Parallel
30 Cooling Fan 2
31 Starter
32 Run/Crank, Ignition
33 Powertrain
34 Air Conditioning Clutch
35 High-Beam Headlamps
36 Front Fog Lamps
37 Horn
38 Low-Beam Headlamps
39 Windshield Wiper 1
40 Windshield Wiper 2
48 Daytime Running LampsRear Compartment Fuse Block
The rear compartment fuse block is located in the trunk of
the vehicle. Access the fuse block through the trunk panel
on the driver’s side of the rear cargo area.
5-104
