2006 CHEVROLET CORVETTE Owners Manual

Power Lumbar and Side Bolsters
Your vehicle may have power lumbar and side bolsters.
The switches are located on the outboard side of the
seat cushion.Use the power seat control to move the seat to
the proper position. SeePower Seats on page 1-2.
Use the vertical lumbar switch (A) to adjust support in
the seatback. Press the switch forward to increase
support. Press the switch rearward to decrease support.
Use the horizontal switch (B) to adjust the side bolsters.
Pull up the switch to move the wings of the seatback in
closer to your body. Push down the switch to move the
wings away from your body.
Keep in mind that as your seating position changes,
as it may during long trips, so should the position of
your lumbar support. Adjust the seat as needed.
1-3

Heated Seats
If your vehicle is equipped
with heated seats, the
buttons are located on
the center console.
There is one button for each seat. Each button has
three settings: high, low, and off.
To turn on the heated seats, press the top of the button
once. The seat will heat to the high setting. Press the top
of the button again to switch to the low setting. The lights
at the top of the button will indicate which setting it is in.
Press the bottom of the button to turn the system off.
The heated seats can only be used when the ignition is
on. When the vehicle is off, the heated seats will turn off.
Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
1-4

{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.The seats have manual reclining seatbacks. The lever
used to operate them is located on the outboard side
of the seats.
To adjust the seatback, lean slightly forward to lift your
weight off the seatback. Pull completely up on the lever
until it stops, and lean back to position the seatback to
where you want it. Release the lever to lock the seatback
into place.
1-5

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job. In a crash,
you could go into it, receiving neck or other
injuries.
The lap belt cannot do its job either. In a crash
the belt could go up over your abdomen.
The belt forces would be there, not at your
pelvic bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Do not have a seatback reclined if your vehicle is moving.
1-6

Seatback Latches
Both seatbacks fold forward to give you access to the
rear area. To fold a seatback forward, lift this latch,
which is located on top of the backside of the seat,
and pull the seatback forward. The seatback will lock
down in this position.To unlock, lift up on the latch and push the seatback
rearward. When you return the seatback to its original
position, make sure the seatback is locked in place.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there.
Always push and pull on the seatback to be
sure it is locked.
1-7

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she can
not wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be if you are
buckled up. Always fasten your safety belt,
and check that your passenger’s belt is
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
SeeSafety Belt Reminder
Light on page 3-34.
1-8

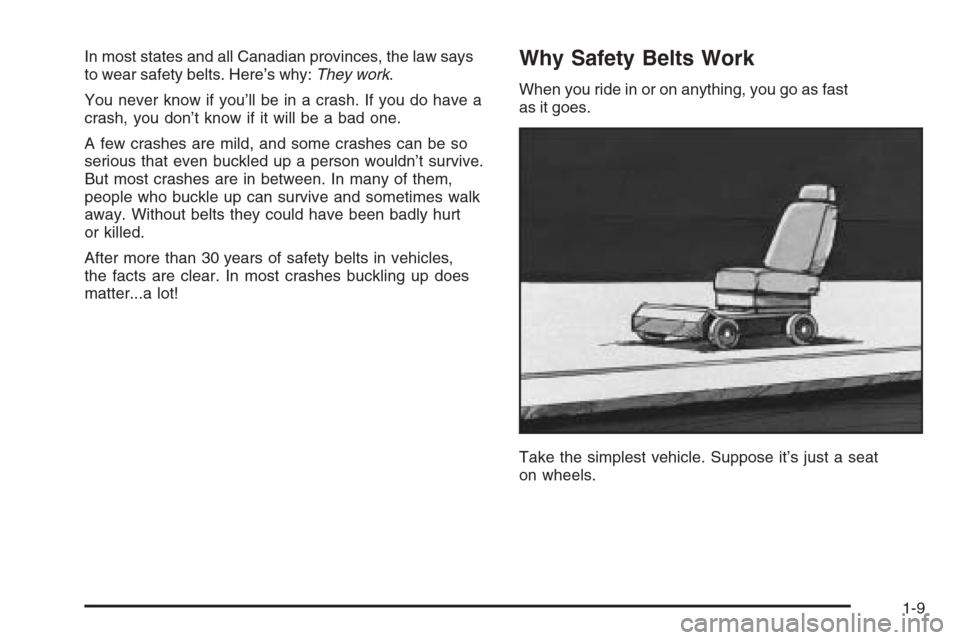

In most states and all Canadian provinces, the law says
to wear safety belts. Here’s why:They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up a person wouldn’t survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter...a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast
as it goes.
Take the simplest vehicle. Suppose it’s just a seat
on wheels.
1-9

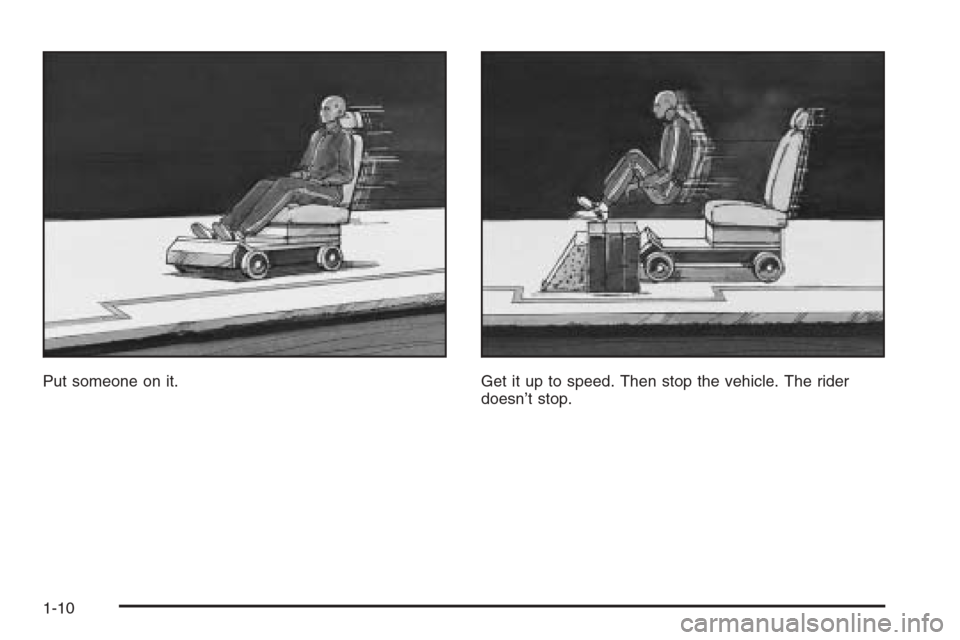

Put someone on it. Get it up to speed. Then stop the vehicle. The rider
doesn’t stop.
