2006 BMW X3 3.0I Owner's Manual

Reference
At a glance
Controls
Driving tips
Mobility
111

Reference
This chapter contains the technical data
and the index that will direct you as
quickly as possible to the information sought.
Reference

Technical data
114
Technical data
Engine specifications
X3 2.5iX3 3.0i
Displacement
Number of cylinderscu in/cmµ152.2/2,494
6181.8/2,979
6
Maximum output
at engine speedhp
rpm184
6,000225
5,900
Maximum torque
at engine speedIb ft/Nm
rpm175/237
3,500214/290
3,500
An engine performance test is authorized only on an appropriate chassis dynamometer.

Reference
At a glance
Controls
Driving tips
Mobility
115

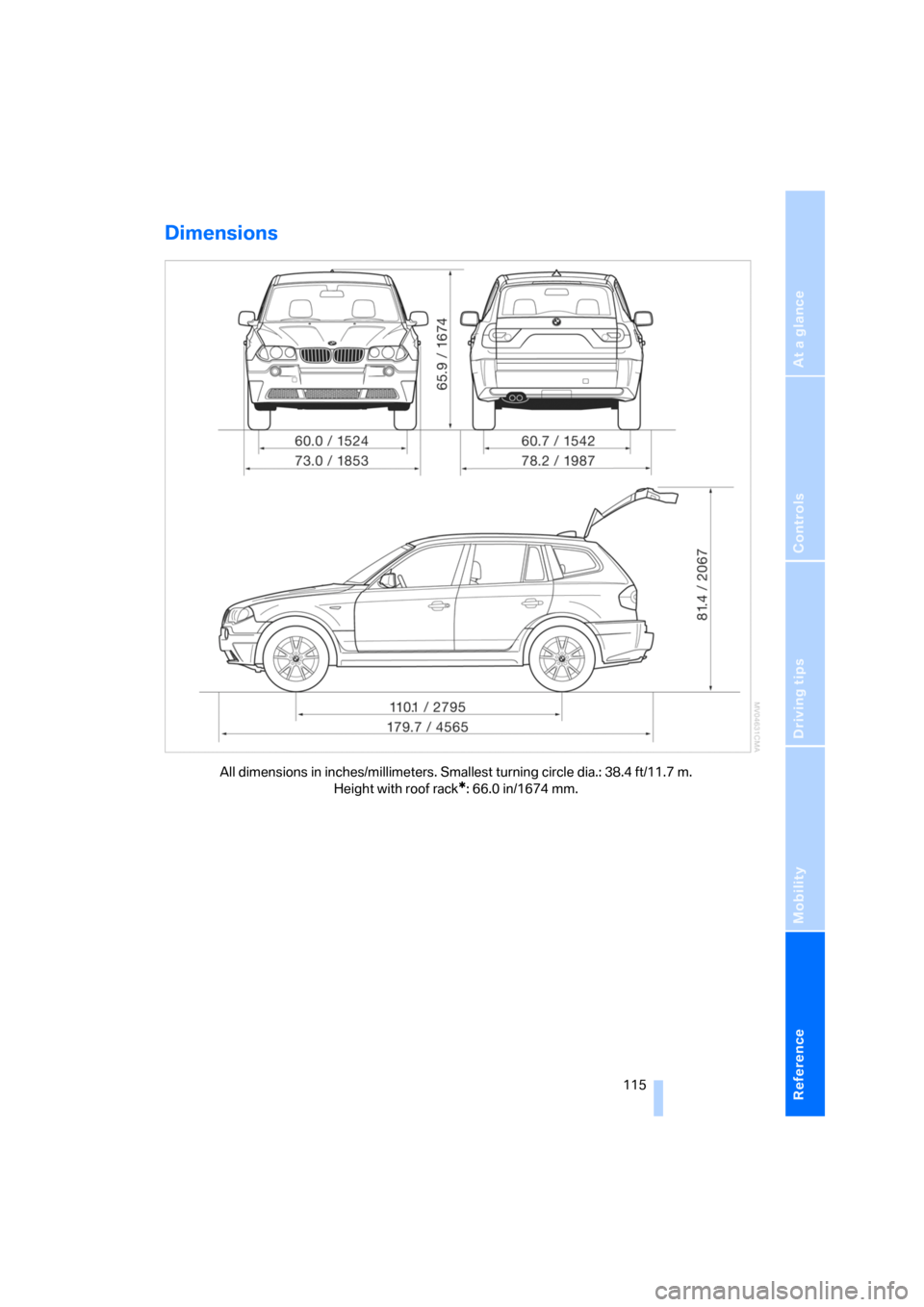

Dimensions
All dimensions in inches/millimeters. Smallest turning circle dia.: 38.4 ft/11.7 m.
Height with roof rack
*: 66.0 in/1674 mm.

Technical data
116
Weights
Capacities
X3 2.5iX3 3.0i
Curb weight
with manual transmission
with automatic transmissionlbs./kg
lbs./kg4,001/1,815
4,045/1,8354,023/1,825
4,067/1,845
Approved gross vehicle weight
with manual transmission
with automatic transmissionlbs./kg
lbs./kg4,993/2,265
5,049/2,2905,049/2,290
5,104/2,315
Payload
with manual transmission
with automatic transmissionlbs./kg
lbs./kg992/450
1,003/4551,025/465
1,036/470
Approved front axle load lbs./kg 2,425/1,100 2,425/1,100
Approved rear axle load lbs./kg 2,756/1,250 2,778/1,260
Approved roof load capacity lbs./kg 165/75 165/75
Cargo area capacity cu ft/l 71/2,011 71/2,011
Never exceed either the approved axle loads or the gross vehicle weight.
Notes
Fuel tank
Reserve gal./liters
gal./litersapprox. 17.7/67
approx. 2/8Fuel specification:
page85
Windshield washer/
headlamp washer systemquarts/liters approx. 3.2/3.0
approx. 6.9/6.5For details: page41
Engine oil and filter change quarts/liters approx. 6.6/6.2 For details: page94

Reference
At a glance
Controls
Driving tips
Mobility
117

Everything from A to Z
118
Everything from A to Z
Index
A
ABS Antilock Brake
System48
– indicator lamp12
Accessories, refer to For your
own safety6
Accident, refer to Receiving
assistance107
Acknowledgment signal for
locking/unlocking
vehicle19,20
Activated-charcoal filter64
Adaptive Head Light57
Adding engine oil94
Adjusting seats27
– electrically27
– mechanically27
– mechanically Sports seat28
Airbags53
– deactivating front passenger
side33,54
– indicator lamp for front
passenger airbags54
– sitting safely26
– warning lamp54
Air circulation, refer to Recir-
culated-air mode60,63
Air conditioner59
Air distribution
– air conditioner60
– automatic climate control63
Airing, refer to
Ventilation61,64
Air outlets, refer to
Ventilation61,64
Air pressure, refer to Tire
inflation pressure86
Air vents, refer to
Ventilation61,64
Air volume60
– adjusting manually63AKI, refer to Fuel
specifications85
Alarm system24
– avoiding unintentional
alarms25
All-season tires, refer to
Special characteristics of
winter tires90
All wheel drive, refer to
xDrive49
Anchorage points73
Antifreeze
– coolant95
– washer fluid41
Antifreeze protection,
coolant95
Antilock Brake System
ABS48
– indicator lamp12
Anti-theft alarm system, refer
to Alarm system18,24
Approved axle load, refer to
Weights116
Approved engine oils95
Approved gross vehicle
weight, refer to Weights116
Armrest
– front67
– rear68
Artificial leather, refer to
Caring for your vehicle
brochure
Ashtray68
AUC Automatic recirculated-
air control63
Automatic
– air distribution63
– air volume63
– recirculated-air control
AUC63
Automatic car wash, refer to
Caring for your vehicle
brochureAutomatic climate control62
Automatic cruise control41
Automatic curb monitor31
Automatic deactivation of
front passenger airbags54
Automatic headlamp
control56
Automatic transmission with
Steptronic38
– indicator lamp39
– interlock36
– selector lever interlock38
– shiftlock38
– towing109
– tow starting110
AUTO program63
Average fuel consumption46
– setting units45
Average speed46
– setting units45
Avoiding unintentional
alarms25
Axle loads, refer to
Weights116
B
Backrest, refer to Seats27
Backrest contour, refer to
Lumbar support28
Backup lamps
– bulb replacement102
– refer to Tail lamps102
Bandages, refer to First-aid
kit108
Bar, towing110
Battery105
– disposal106
– indicator lamp12
– jump starting108
– power failure106
– remote control18
– warning lamp105
