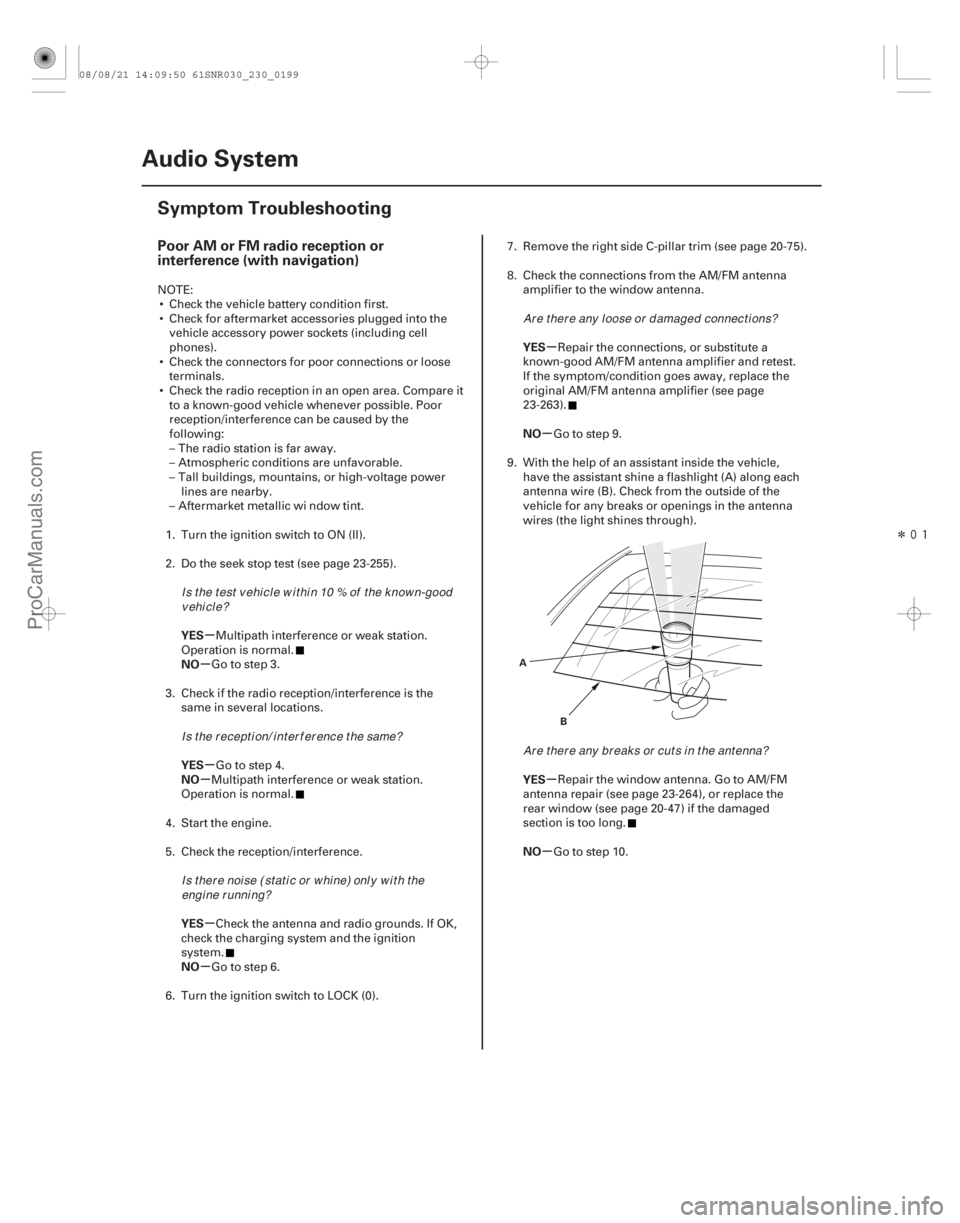

Poor AM or FM radio reception or
interference (without navigation)
YES
NO
YES
NO
YES
NO YES
NO
YES
NO
23-32
Audio System
Symptom Troubleshooting (cont’d)
AA
B
NOTE:
 Check the vehicle battery condition first.
 Check for aftermarket accessories plugged into the vehicle accessory power sockets (including cell
phone).
 Check the connectors for poor connections or loose terminals.
 Check the radio reception in an open area. Compare it to a known-good vehicle when ever possible.Poor
reception/interference can be caused by the
following:
– The radio station is far away.
– Atmospheric conditions are unfavorable.
– Tall buildings, mountains, or high-voltage power lines are nearby.
– Aftermarket metallic wi ndow tint.
1. Turn the ignition switch to ON (II).
2. Do the seek stop test (see page 23-78).
Multipath interference or weak station.
Operation is normal. Go to step 3.
3. Check if the radio reception/interference is the same in several locations.
Go to step 4.
Multipath interference or weak station.
Operation is normal.
4. Start the engine.
5. Check the reception/interference.
Check the antenna and radio grounds. If OK,
check the charging system and the ignition
system. Go to step 6.
6. Turn the ignition switch to LOCK (0). 7. Remove the right side C-pillar trim (see page 20-75).
8. Check the connections from the AM/FM antenna
amplifier to the window antenna.
Repair the connections, or substitute a
known-good AM/FM antenna amplifier and retest.
If the symptom/condition goes away, replace the
original AM/FM antenna amplifier (see page 23-87).
Go to step 9.
9. With the help of an assistant inside the vehicle, have the assistant shine a flashlight (A) along each
antenna wire (B). Check from the outside of the
vehicle for any breaks or openings in the antenna
wires (the light shines through).
Repair the window antenna. Go to AM/FM
antenna repair (see page 23-87), or replace the rear
window (see page 20-47).
Go to step 10.
I s t he t est v ehi cl e w i t hi n 10 % of t he k now n-goodvehicle?
Is t he r ecept i on/ i nt er f er ence t he same?
I s t her e noi se ( st at i c or w hi ne) onl y w i t h t heengi ne r unni ng? Ar e t her e any l oose or d amaged connect i ons?
Ar e t her e any br eak s or cut s i n t he ant enna?
08/08/21 14:04:38 61SNR030_230_0035
ProCarManuals.com
DYNOMITE -2009-

(#'
)

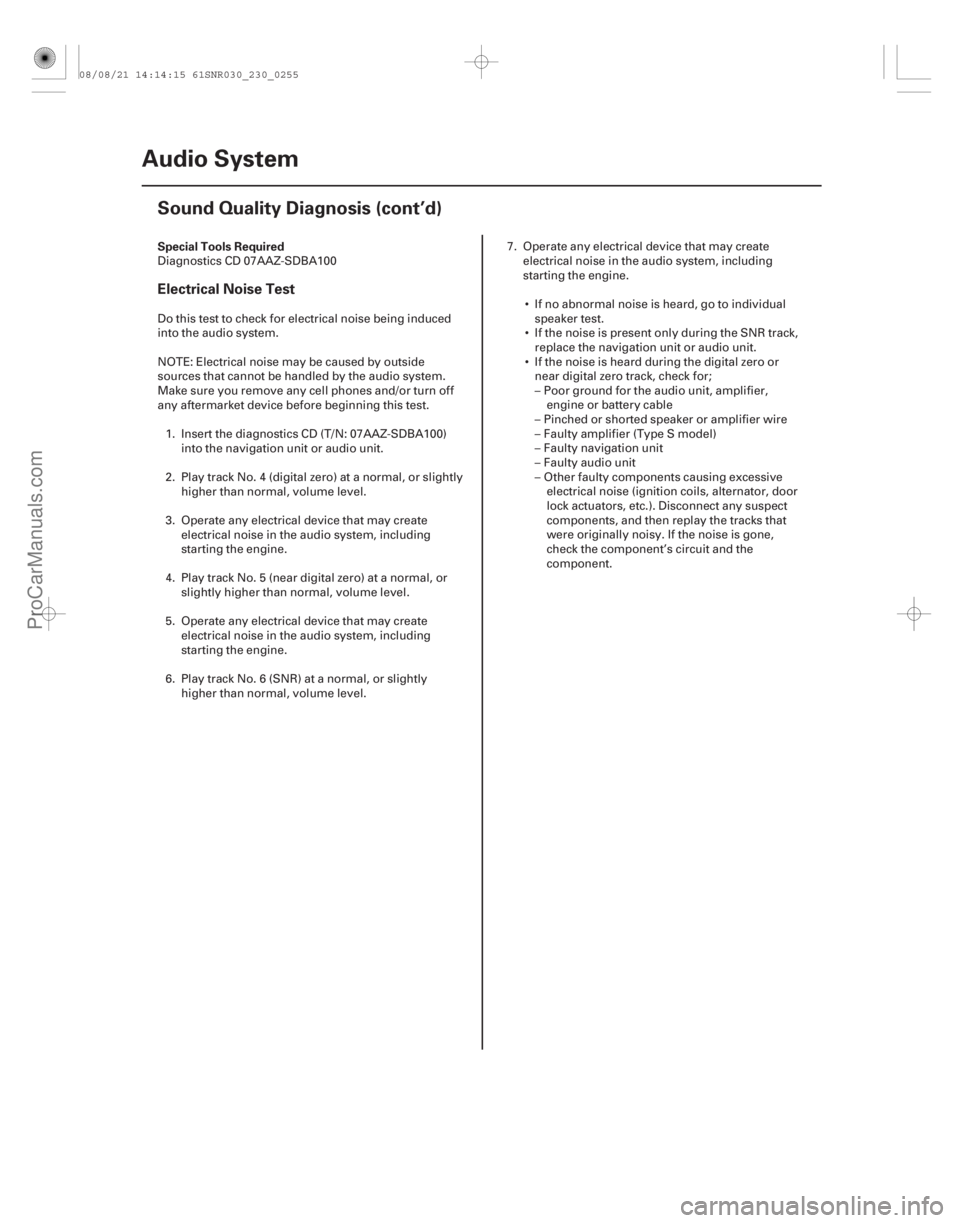

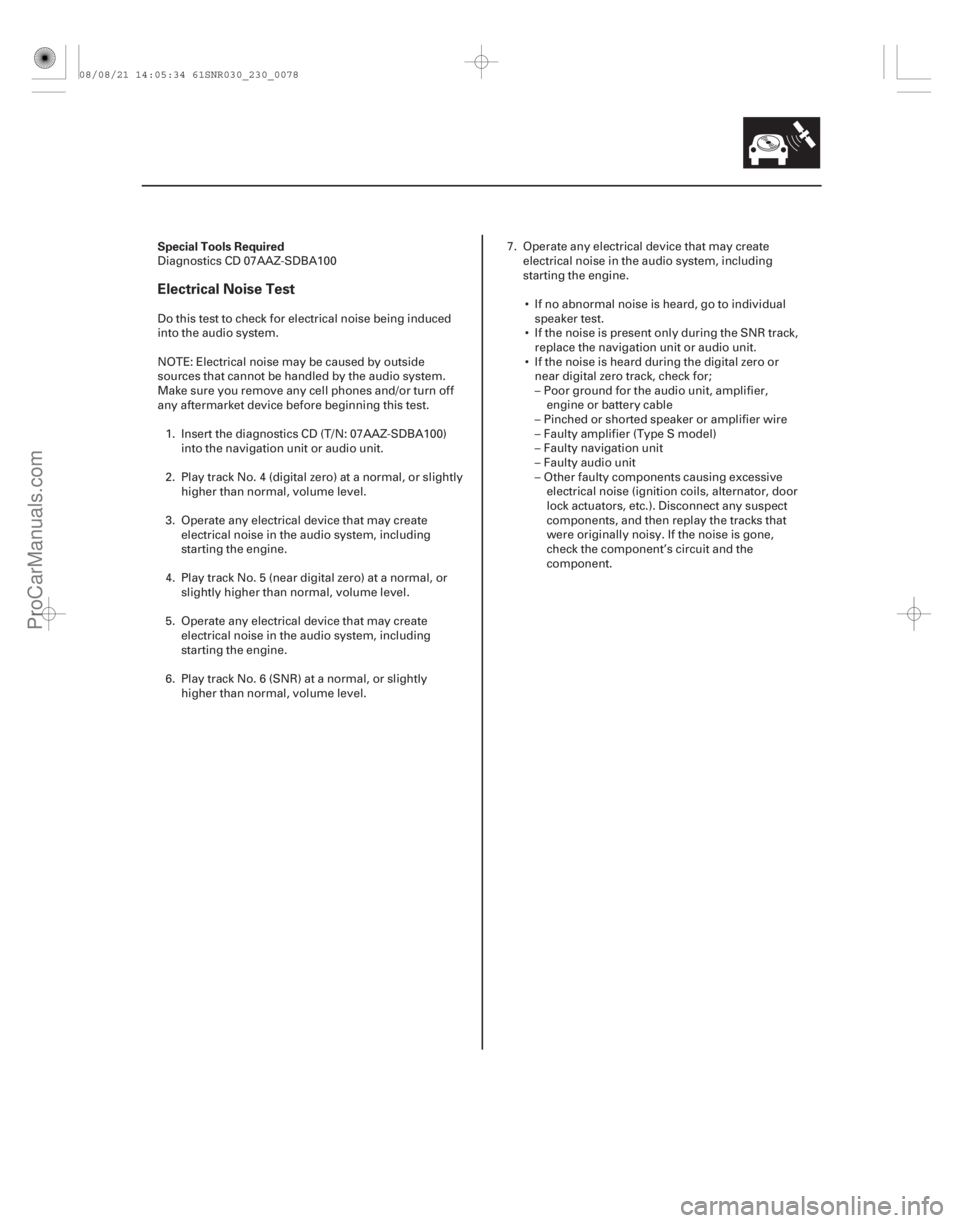

Special Tools Required
Electrical Noise Test
23-75
Diagnostics CD 07AAZ-SDBA100
Do this test to check for electrical noise being induced
into the audio system.
NOTE: Electrical noise may be caused by outside
sources that cannot be handled by the audio system.
Make sure you remove any cell phones and/or turn off
any aftermarket device before beginning this test.
1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
2. Play track No. 4 (digital zero) at a normal, or slightly higher than normal, volume level.
3. Operate any electrical device that may create electrical noise in the audio system, including
starting the engine.
4. Play track No. 5 (near digital zero) at a normal, or slightly higher than normal, volume level.
5. Operate any electrical device that may create electrical noise in the audio system, including
starting the engine.
6. Play track No. 6 (SNR) at a normal, or slightly higher than normal, volume level. 7. Operate any electrical device that may create
electrical noise in the audio system, including
starting the engine.
 If no abnormal noise is heard, go to individual speaker test.
 If the noise is present only during the SNR track, replace the navigation unit or audio unit.
 If the noise is heard during the digital zero or near digital zero track, check for;
– Poor ground for the audio unit, amplifier, engine or battery cable
– Pinched or shorted speaker or amplifier wire
– Faulty amplifier (Type S model)
– Faulty navigation unit
– Faulty audio unit
– Other faulty components causing excessive electrical noise (ignition coils, alternator, door
lock actuators, etc.). Disconnect any suspect
components, and then replay the tracks that
were originally noisy. If the noise is gone,
check the component’s circuit and the
component.
08/08/21 14:05:34 61SNR030_230_0078
ProCarManuals.com
DYNOMITE -2009-

How to Identify Navigation DVD Versions,
and How to Inspect A DVD for Damage
23-96Navigation System
General Troubleshooting Information (cont’d)
To determine the navigation version on a particular
model, start the engine, then locate the navigation unit.
Open the DVD door, and push the eject button to eject
the DVD. Hold the DVD by the edges, and check for
these items:
 The DVD label color.
 Read the DVD version on the label, and note it on the repair order. The version number is near the bottom
of the label text (for example, ver: 4.23A). You will
need this version number:
– To verify that the DVD version is appropriate for the vehicle. Check any official Honda service website
for more service information.
– Any time you call Tech Line regarding a navigation system issue.
– To answer client inquires concerning update or coverage issue.
NOTE: Clients may obtain DVDs from sources
outside the normal ordering process. If you
determine this is the case, recommend that your
client purchase the appropriate DVD from the
Honda Disc Fulf illment Center (see ORDERING A
DVD).
– Check the underside of the DVD for signs of mishandling. Deep scratches, or random scratches,
light swirl marks, or fingerprints can cause random
lock-ups, reboots, erratic voice response, erratic
positioning errors, and DVD read or format errors.
NOTE: A damaged DVD is not covered under
warranty unless the disc is damaged by the
navigation unit. Damage by the navigation unit
typically appears as circular scratches caused by
something rubbing against the DVD as it spins. The
damage may appear as arcs or complete circles on
the DVD reading surface.
– Verify that the underside of the DVD is silver, and not a copy with a blue color. Copies will not work
properly and can cause other symptoms that mimic
hardware problems.  Incorrectly colored DVDs being put into navigation
vehicles. This causes the system to either display
error messages, or causes system malfunctions that
mimic a hardware problem. This results in the client
leaving with a malfunctioning navigation system.
 The DVD version provided to the client is out-of date or incompatible with a particular model. This
inconveniences your client by delaying the repair, or
by causing additional (and unnecessary) returns to
your dealership.
 The client experiences bugs or other issues that have already been resolved in later versions currently
available at the fulfillment desk.
If the DVD is defective, or has any of the issues
mentioned above, return the vehicle to your client and
recommend that they order the proper DVD from the
Honda Disc Fulf illment Center (see ORDERING A DVD).
NOTE: Navigation DVDs do not come with replacement
navigation units. If you are replacing a navigation unit
because it is defective (following appropriate service
manual troubleshooting), and the DVD does not eject,
order a DVD. See Obtaining a navigation DVD.
08/08/21 14:06:26 61SNR030_230_0099
ProCarManuals.com
DYNOMITE -2009-

´
(#'#
)

(#'#
)

µ
µ
µ
µ µ
µ

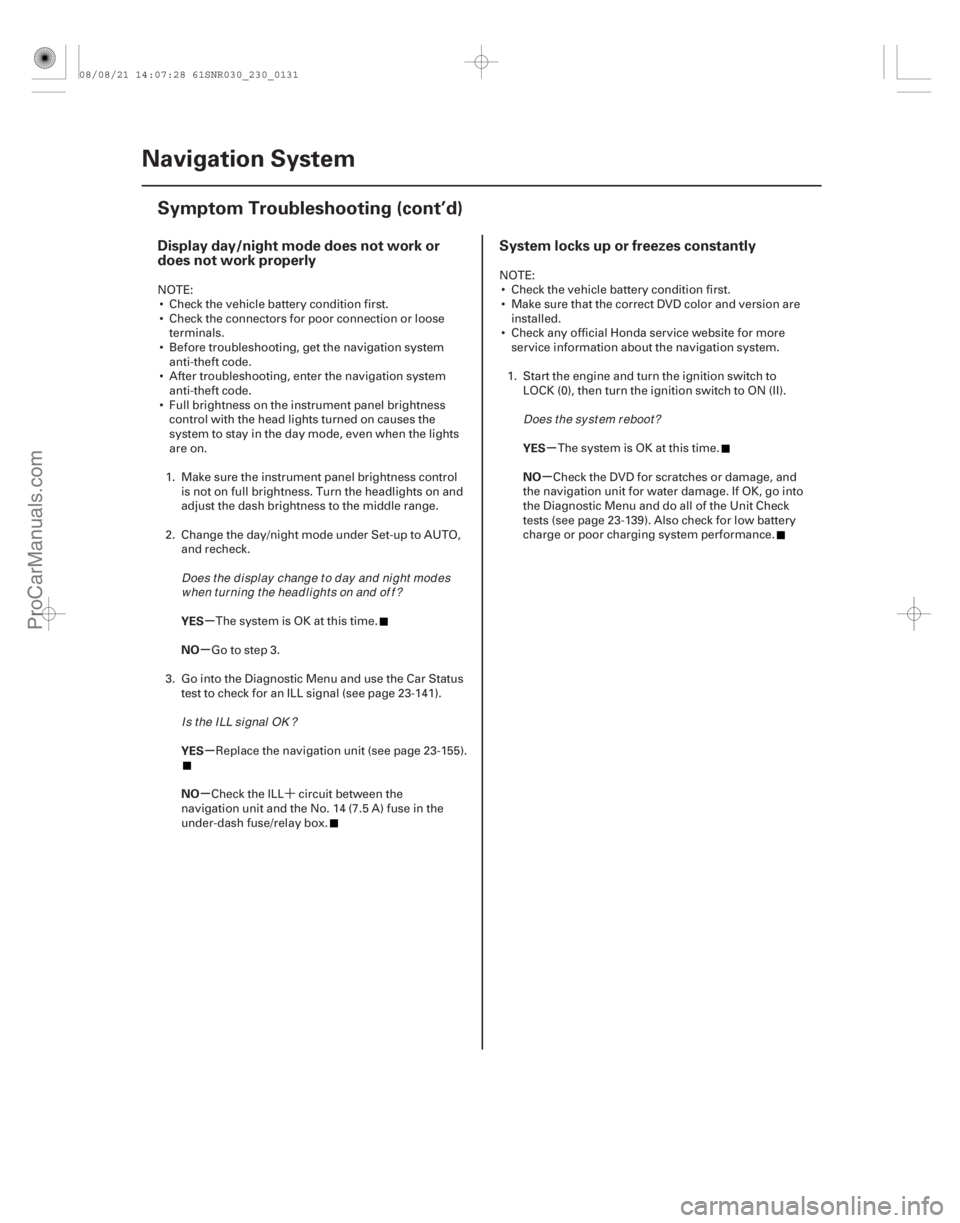

Display day/night mode does not work or
does not work properly System locks up or freezes constantly
YES
NO
YES
NO YES
NO
23-12823-128Navigation System
Symptom Troubleshooting (cont’d)
NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connection or loose terminals.
 Before troubleshooting, get the navigation system anti-theft code.
 After troubleshooting, enter the navigation system anti-theft code.
 Full brightness on the instrument panel brightness control with the head lights turned on causes the
system to stay in the day mode, even when the lights
are on.
1. Make sure the instrument panel brightness control is not on full brightness. Turn the headlights on and
adjust the dash brightness to the middle range.
2. Change the day/night mode under Set-up to AUTO, and recheck.
The system is OK at this time.
Go to step 3.
3. Go into the Diagnostic Menu and use the Car Status test to check for an ILL signal (see page 23-141).
Replace the navigation unit (see page 23-155).
Check the ILL circuit between the
navigation unit and the No. 14 (7.5 A) fuse in the
under-dash fuse/relay box. NOTE:
 Check the vehicle battery condition first.
 Make sure that the correct DVD color and version are installed.
 Check any official Honda service website for more service information about the navigation system.
1. Start the engine and turn the ignition switch to LOCK (0), then turn the ignition switch to ON (II).
The system is OK at this time.
Check the DVD for scratches or damage, and
the navigation unit for water damage. If OK, go into
the Diagnostic Menu and do all of the Unit Check
tests (see page 23-139). Also check for low battery
charge or poor charging system performance.
Does t he d i spl ay change t o d ay and ni ght mod es w hen t ur ni ng t he head l i ght s on and of f ?
I s t he I LL si gnal OK ? Does the system reboot?
08/08/21 14:07:28 61SNR030_230_0131
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ
µ
µ
µ
µ µ
µ
µ
µ

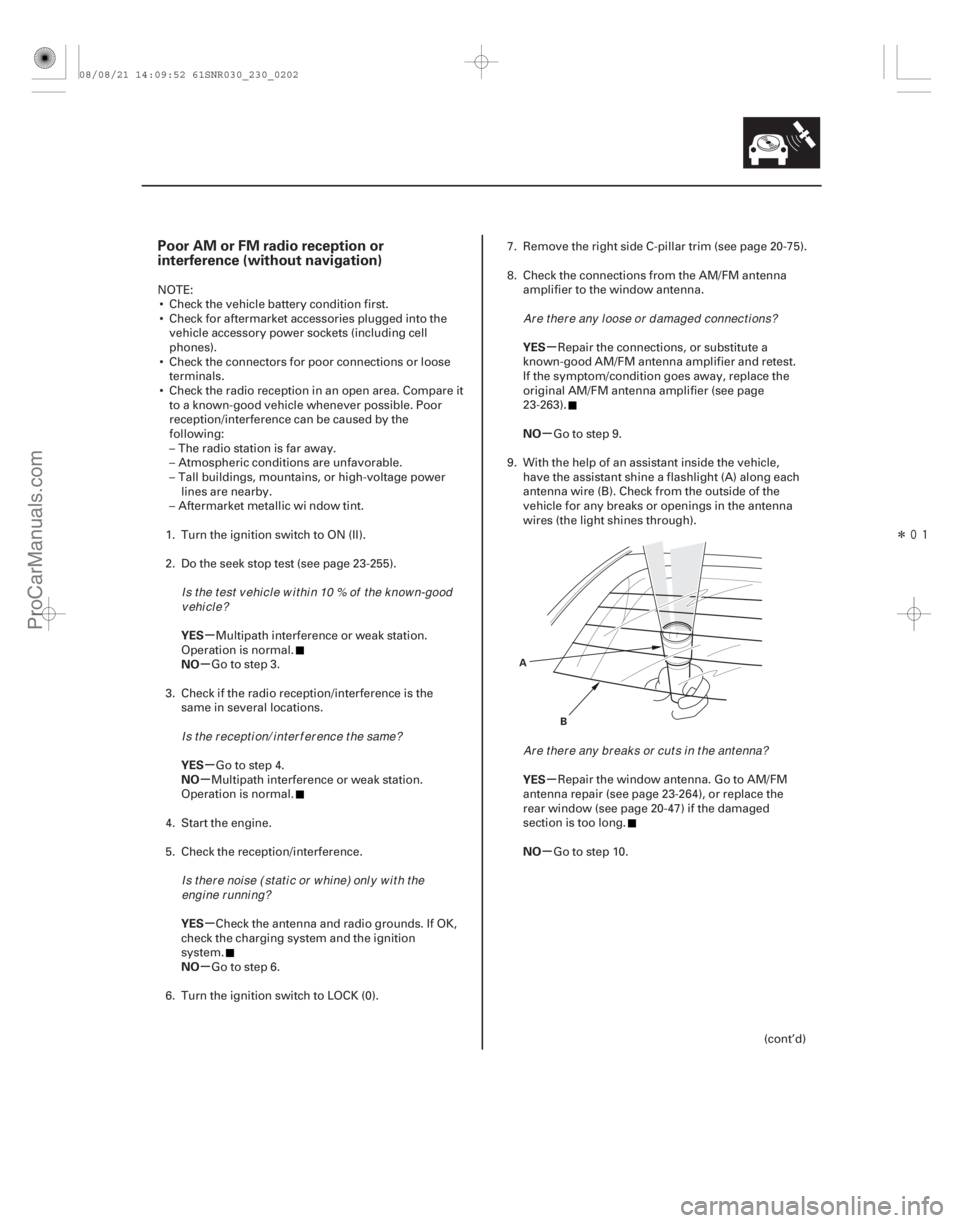

Poor AM or FM radio reception or
interference (with navigation)
YES
NO
YES
NO
YES
NO YES
NO
YES
NO
23-196
Audio System
Symptom Troubleshooting
A
B
NOTE: Check the vehicle battery condition first.
 Check for aftermarket accessories plugged into the vehicle accessory power sockets (including cell
phones).
 Check the connectors for poor connections or loose terminals.
 Check the radio reception in an open area. Compare it to a known-good vehicle when ever possible.Poor
reception/interference can be caused by the
following:
– The radio station is far away.
– Atmospheric conditions are unfavorable.
– Tall buildings, mountains, or high-voltage power lines are nearby.
– Aftermarket metallic wi ndow tint.
1. Turn the ignition switch to ON (II).
2. Do the seek stop test (see page 23-255).
Multipath interference or weak station.
Operation is normal. Go to step 3.
3. Check if the radio reception/interference is the same in several locations.
Go to step 4.
Multipath interference or weak station.
Operation is normal.
4. Start the engine.
5. Check the reception/interference.
Check the antenna and radio grounds. If OK,
check the charging system and the ignition
system. Go to step 6.
6. Turn the ignition switch to LOCK (0). 7. Remove the right side C-pillar trim (see page 20-75).
8. Check the connections from the AM/FM antenna
amplifier to the window antenna.
Repair the connections, or substitute a
known-good AM/FM antenna amplifier and retest.
If the symptom/condition goes away, replace the
original AM/FM antenna amplifier (see page
23-263).
Go to step 9.
9. With the help of an assistant inside the vehicle, have the assistant shine a flashlight (A) along each
antenna wire (B). Check from the outside of the
vehicle for any breaks or openings in the antenna
wires (the light shines through).
Repair the window antenna. Go to AM/FM
antenna repair (see page 23-264), or replace the
rear window (see page 20-47) if the damaged
section is too long.
Go to step 10.
I s t he t est v ehi cl e w i t hi n 10 % of t he k now n-goodvehicle?
Is t he r ecept i on/ i nt er f er ence t he same?
I s t her e noi se ( st at i c or w hi ne) onl y w i t h t heengi ne r unni ng? Ar e t her e any l oose or d amaged connect i ons?
Ar e t her e any br eak s or cut s i n t he ant enna?
08/08/21 14:09:50 61SNR030_230_0199
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ
µ
µ
µ
µ µ
µ
µ
µ
Poor AM or FM radio reception or
interference (without navigation)
YES
NO
YES
NO
YES
NO YES
NO
YES
NO
23-199
A
B
NOTE: Check the vehicle battery condition first.
 Check for aftermarket accessories plugged into the vehicle accessory power sockets (including cell
phones).
 Check the connectors for poor connections or loose terminals.
 Check the radio reception in an open area. Compare it to a known-good vehicle when ever possible.Poor
reception/interference can be caused by the
following:
– The radio station is far away.
– Atmospheric conditions are unfavorable.
– Tall buildings, mountains, or high-voltage power lines are nearby.
– Aftermarket metallic wi ndow tint.
1. Turn the ignition switch to ON (II).
2. Do the seek stop test (see page 23-255).
Multipath interference or weak station.
Operation is normal. Go to step 3.
3. Check if the radio reception/interference is the same in several locations.
Go to step 4.
Multipath interference or weak station.
Operation is normal.
4. Start the engine.
5. Check the reception/interference.
Check the antenna and radio grounds. If OK,
check the charging system and the ignition
system. Go to step 6.
6. Turn the ignition switch to LOCK (0). 7. Remove the right side C-pillar trim (see page 20-75).
8. Check the connections from the AM/FM antenna
amplifier to the window antenna.
Repair the connections, or substitute a
known-good AM/FM antenna amplifier and retest.
If the symptom/condition goes away, replace the
original AM/FM antenna amplifier (see page
23-263).
Go to step 9.
9. With the help of an assistant inside the vehicle, have the assistant shine a flashlight (A) along each
antenna wire (B). Check from the outside of the
vehicle for any breaks or openings in the antenna
wires (the light shines through).
Repair the window antenna. Go to AM/FM
antenna repair (see page 23-264), or replace the
rear window (see page 20-47) if the damaged
section is too long.
Go to step 10.
(cont’d)
I s t he t est v ehi cl e w i t hi n 10 % of t he k now n-goodvehicle?
Is t he r ecept i on/ i nt er f er ence t he same?
I s t her e noi se ( st at i c or w hi ne) onl y w i t h t heengi ne r unni ng? Ar e t her e any l oose or d amaged connect i ons?
Ar e t her e any br eak s or cut s i n t he ant enna?
08/08/21 14:09:52 61SNR030_230_0202
ProCarManuals.com
DYNOMITE -2009-

(#'
)
Special Tools Required
Electrical Noise Test
23-252
Audio System
Sound Quality Diagnosis (cont’d)
Diagnostics CD 07AAZ-SDBA100
Do this test to check for electrical noise being induced
into the audio system.
NOTE: Electrical noise may be caused by outside
sources that cannot be handled by the audio system.
Make sure you remove any cell phones and/or turn off
any aftermarket device before beginning this test.
1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
2. Play track No. 4 (digital zero) at a normal, or slightly higher than normal, volume level.
3. Operate any electrical device that may create electrical noise in the audio system, including
starting the engine.
4. Play track No. 5 (near digital zero) at a normal, or slightly higher than normal, volume level.
5. Operate any electrical device that may create electrical noise in the audio system, including
starting the engine.
6. Play track No. 6 (SNR) at a normal, or slightly higher than normal, volume level. 7. Operate any electrical device that may create
electrical noise in the audio system, including
starting the engine.
 If no abnormal noise is heard, go to individual speaker test.
 If the noise is present only during the SNR track, replace the navigation unit or audio unit.
 If the noise is heard during the digital zero or near digital zero track, check for;
– Poor ground for the audio unit, amplifier, engine or battery cable
– Pinched or shorted speaker or amplifier wire
– Faulty amplifier (Type S model)
– Faulty navigation unit
– Faulty audio unit
– Other faulty components causing excessive electrical noise (ignition coils, alternator, door
lock actuators, etc.). Disconnect any suspect
components, and then replay the tracks that
were originally noisy. If the noise is gone,
check the component’s circuit and the
component.
08/08/21 14:14:15 61SNR030_230_0255
ProCarManuals.com
DYNOMITE -2009-

Î

Service Precautions
System InitializationEntering the Security Code
GPS Initialization
23-268Navigation System
General Troubleshooting Information (cont’d)
The navigation system lost power and is acquiring its
location from the GPS satellites. This usually takes
less than 10 minutes.
* Start the engine.
*Parkthevehicleinanopenareaawayfromtrees,
* Remove loose articles, cell phones, or electrical
* If this screen is displayed repeatedly when starting power lines, and tall buildings.
accessories located near the GPS antenna.
the vehicle, see your dealer.
 If you need to replace the navigation unit, you can
back-up the navigation data and transfer it to a new
navigation unit. See Save users memory (see page
23-310).
 When the battery is disconnected, the internal GPS clock resets to 0:00. The clock resets to the correct
time after the system finishes GPS initialization.
 Before disconnecting the battery, make sure you have the anti-theft codes for the audio system and the
navigation system, and write down the audio presets.
Also obtain any PGM-FI or transmission DTCs and
freeze frame date (which are lost when the ECM/PCM
loses power).
 After reconnecting the battery, you have to wait to get the initial signal from the satellite. It will take from 10
to 45 minutes.
 Adjust the setup clock settings (time zone and daylight savings) in the navigation system.
 Before returning the vehicle to the client, enter the anti-theft codes for the audio system and the
navigation system.
If the navigation system loses power (like the battery
was disconnected), the navigation system requires
initialization. Once completed, your system is ready to
use.
This initialization requires the following:  Entering the 4-digit anti-theft security code to unlock the system
 GPS initialization (may not be needed depending of the length of time the system was without power)
 Map matching to align the GPS to a location on the map Any time the navigation system loses power, you need
to enter the 4-digit anti-theft code on the navigation
system display. This 4-digit code is located on a small
code card that was given to the customer. Enter the 4-
digit code, then select Done.
If the navigation system anti-theft code is missing, use
the interactive Network (iN) to look it up. You need the
serial number for the navigation unit to do this.
You can view the serial number by entering the
diagnostic mode. Select Unit Check from the main
menu, then the ECU info diagnostic screen. This allows
you to get the serial number without removing the
navigation unit.
The iN may display more than one code for a given
serial number. This is because serial numbers are not
unique. You may have to try more than one 4-digit code.
If no code is shown, or if the code(s) given do not work
in the navigation unit, contact the Automobile Warranty
department. If the code 0000 works, replace the
navigation unit.
When replacing the navigation unit or audio unit, make
sure you give the client the new anti-theft security code.
NOTE: You must park the vehicle outside with a clear
view of the southern sky.
Depending on the length of time the battery was
disconnected, your system may require GPS
initialization. If it does, the following screen appears:
08/08/21 14:15:38 61SNR030_230_0271
ProCarManuals.com
DYNOMITE -2009-
