2006 ACURA CSX navigation

Î
ÎÎ
µ
µ µ
µ
YES
NO From terminal To terminals
YES
NO
23-335
HANDSFREELINK CONTROL UNIT 28P CONNECTOR NAV
COMM3 (RED)
NAV
COMM4 (WHT)
NAV
COMM2 (GRN)
NAV
COMM1 (BLK)
JUMPER WIRE
JUMPER WIRE
NAVIGATION UNIT CONNECTOR B (24P) HFL/NAVI
COMM3 (RED)
HFL/NAVI
COMM4 (WHT)
HFL/NAVI COMM2 (GRN)
HFL/NAVI COMM1 (BLK) NAVIGATION UNIT CONNECTOR B (24P)
13. Connect HandsFr
eeLink control unit 28P connector
terminals No. 6 and No. 7 with a jumper wire, then
connect the terminals No. 20 and No. 21 with a
jumper wire.
14. Check for continuity between navigation unit connector B (24P) terminals No. 11 and No. 23 then
check for continuity between terminals No. 12 and
No. 24.
Go to step 15.
Open in the wire between the navigation unit
and the HandsFreeLink control unit. Replace the
affected shielded harness.
15. Disconnect the jumper wire. 16. Check for continuity between the terminals of
navigation unit connector B (24P) according to the
table.
B11 (GRN) B12 (WHT), B23 (BLK), B24 (RED)
B12 (WHT) B23 (BLK), B24 (RED)
B23 (BLK) B24 (RED)
Short in the wires between the navigation
unit and the HandsFreeLink control unit. Replace
the affected shielded harness.
Go to step 17.
(cont’d)
Wire side of female terminalsWire side of female terminals Wire side of female terminals
Is there continuity?
Is there continuity?
08/08/21 14:17:49 61SNR030_230_0338
ProCarManuals.com
DYNOMITE -2009-

Îµµ
(#'#
#)
µ
µ µ
µ
Navigation unit
connector Wire color
YES
NO YES
NO
DTC 2706:
23-33623-336Navigation System
DTC Troubleshooting (cont’d)
NAVIGATION UNIT CONNECTOR B (24P)
17. Check for continuity between navigation unit
connector B (24P) and body ground according to
the table.
B11 GRN
B12 BLK
B23 WHT
B24 RED
Short to body ground in the wires between
the navigation unit and the HandsFreeLink control
unit. Replace the affected shielded harness.
Replace the HandsFreeLink control unit
(see page 23-388). NOTE:
 Before you troubleshoot, make sure to follow the general troubleshooting information (see page
23-266).
 Do this test only when the passenger’s compartment temperature is between 20 °C ( 4 °F) and 70 °C
(158 °F).
1. Clear the hard error code (see page 23-274).
2. Turn the ignition switch to LOCK (0), and then back ON (II).
3. Check for the hard error code (see page 23-273).
Replace the navigation unit (see page 23-355).
Intermittent failure, the system is OK at this
time.Gyro Diag: ECU Temp XX °C
Wire side of female terminals
Is there continuity? I s DT C 27 06 i nd i cat ed ?
08/08/21 14:17:49 61SNR030_230_0339
ProCarManuals.com
DYNOMITE -2009-

(#'#
#)
µ
µ
µ
µ µ
µ
µ
µ
DTC 2707:
YES
NO
YES
NO YES
NO
YES
NO
23-337
MIC Diag
NOTE: Before you troubleshoot, make sure to follow the
general troubleshooting information (see page 23-
266).
1. Clear the hard error code (see page 23-274).
2. Turn the ignition switch to LOCK (0), and then back to ON (II).
3. Go into the Diagnostic Menu, and select the Self- Diagnosis Mode in the Select Diagnosis items
menu (see page 23-297).
4. Select the System Links.
Go to step 5.
Go to step 8.
5. Turn the ignition switch to LOCK (0).
6. Check for poor connections or loose terminals at the HandsFreeLink control unit 28P connector, the
HFL-navigation microphone 3P connector, and the
navigation unit B (24P) connector.
Go to step 7.
Repair the poor connections or loose
terminals. 7. Check for DTCs with the HDS.
Troubleshoot the indicated DTC.
Replace the HFL-navigation microphone
(see page 23-358).
8. Select the Mic in the System Links.
9. Press the navigation Talk button on the steering wheel switch, then check the Mic Level (see page
23-311).
Intermittent failure, the system is OK at this
time.
Replace the HFL-navigation microphone
(see page 23-358).
Is the Mic icon red?
Ar e t he connect i ons OK ? Is DTC B1775 or B1776 indicated?
I s t he mi cr ophone l ev el OK ?
08/08/21 14:17:50 61SNR030_230_0340
ProCarManuals.com
DYNOMITE -2009-

Î
Î
(#'#
)
´
µ
µ
µ
µ µ
µ
µ
µ
No picture is displayed
YES
NO
YES
NO YES
NO
YES
NO
23-338Navigation System
Symptom Troubleshooting
NAVIGATION UNIT CONNECTOR A (24P)
BBACKUP(WHT)
NAVIGATION UNIT CONNECTOR A (24P) ACC RADIO (PUR)
NOTE: Check the vehicle battery condition first.
 Make sure that the correct DVD color and version are installed.
 Check any official Honda service website for more service information about the navigation system.
 Check the connectors for poor connections or loose terminals.
 Before troubleshooting, make sure you have the navigation system anti-theft code.
1. Check the No. 23 (10 A) fuse in the under-hood fuse/relay box and the No. 35 (7.5 A) fuse in the
under-dash fuse/relay box, and reinstall the fuse if
it is OK.
Go to step 2.
Replace the fuse and recheck.
2. Turn the ignition switch to ON (II).
3. Operate the radio and listen to the audio.
Go to step 4.
Refer to audio system troubleshooting.
4. Turn the ignition switch to LOCK (0).
5. Remove the navigation unit (see page 23-355). 6. Measure the voltage between navigation unit
connector A (24P) terminal No. 24 and body ground.
Go to step 7.
Repair open in the wire between the under-
dash fuse/relay box and the navigation unit.
7. Turn the ignition switch to ON (II).
8. Measure the voltage between navigation unit connector A (24P) terminal No. 14 and body ground.
Go to step 9.
Repair open in the wire between the under-
dash fuse/relay box and the navigation unit.
Wire side of female terminals
Wire side of female terminals
IsthefuseOK? Can y ou hear t he aud i o? Is there battery voltage?
Is there battery voltage?
08/08/21 14:17:50 61SNR030_230_0341
ProCarManuals.com
DYNOMITE -2009-

Î
Î
(#'#
)

µ
µ µ
µ
µ
µ
µ
µ
YES
NO Diagnostic Test: Monitor Check
YES
NO
YES
NO
YES
NO
Picture has lines/rolls/other issues or is an
odd color
23-33923-339
NAVIGATION UNIT CONNECTOR A (24P) RADIO GND (BLK)
NAVIGATION UNIT CONNECTOR C (8P) GND (BLK)
9. Measure the voltage between navigation unitconnector A (24P) terminal No. 12 and body ground,
and between navigation unit connector C (8P)
terminal No. 4 and body ground.
Replace the navigation unit (see page 23-355).
Repair open in the wire between the
navigation unit and body ground (G 504) (see page
22-30), (G505) (see page 22-32). NOTE:
 Check the vehicle battery condition frist.
 Make sure that the correct DVD color and version are installed.
 Check any official Honda service website for more service information about the navigation system.
 Check the navigation screen settings for brightness, contrast, black level and the color screen for map
color and menu color.
 Check the connectors for poor connections or loose terminals.
 Before troubleshooting, make sure you have the navigation system anti-theft codes.
1. Check for electronic aftermarket accessories (possibly hidden) mounted near the navigation unit.
Disable the accessories, and recheck.
Go to step 2.
2. Turn the ignition switch to ON (II).
3. Start up the navigation picture.
Go to step 5.
Go to step 4.
4. Go into the Detail Information & Settings, select Monitor Check, and use RGB Color diagnostic
under Monitor Check (see page 23-302).
Go to step 5.
Replace the navigation unit (see page 23-355).
(cont’d)
Wire side of female terminals
Wire side of female terminals
Is t her e l ess t han 0.1 V ? Ar e t her e any el ect r oni c accessor i es?
Is the picture scrolling horizontally (lef t to right orright to left)?
Ar e t he r ed , gr een, and bl ue col or ed ci r cl esshow n?
08/08/21 14:17:50 61SNR030_230_0342
ProCarManuals.com
DYNOMITE -2009-

(#'#
)

µ
µ
µ
µ
YES
NO
YES
NO
Navigation display buttons do not work or
respond properly
23-34023-340Navigation System
Symptom Troubleshooting (cont’d)
5. Turn the ignition switch to LOCK (0), then turn to
ON (II), and observe the navigation picture.
Check for sources of electrical noise, such as
poor battery connection, alternator, defective
battery, aftermarket accessories or cell phone, and
poor pin fits at the navigation unit.
Replace the navigation unit (see page 23-355). NOTE:
 Check the vehicle battery condition first.
 Always make sure that the correct DVD color and version are installed.
 Check any official Honda service website for more service information about the navigation system.
 Always check the connectors for poor connections or loose terminals.
 Before troubleshooting, make sure you have the navigation system anti-theft codes.
1. Turn the ignition switch to ON (II).
2. Go into the Detail Information & Settings select Unit Check, and use Hard Key test under Unit Check
(see page 23-305).
The system is OK at this time.
Replace the navigation unit (see page 23-355).
Di d t he i mage i mpr ov e?
Does t he nav i gat i on uni t but t ons w or k pr oper l y ?
08/08/21 14:17:50 61SNR030_230_0343
ProCarManuals.com
DYNOMITE -2009-

(#'#
)(#'#
)

µ
µ
µ
µ µ
µ
µ
µ
µ
µ
GPS icon is white or not shown Voice guidance cannot be heard, is broken
up, or there is static
Diagnostic Test: Self-Diagnosis Mode
YES
NO
YES
NO Diagnostic Test: Self-Diagnosis Mode
YES
NO
YES
NO
YES
NO
23-34123-341
NOTE: Check the vehicle battery condition first.
 With good reception, the icon is normally green.
 Make sure the GPS antenna is plugged in.
 Check for any aftermarket accessories or metallic window tinting that may be interfering with the GPS
signal.
 Make sure the vehicle is parked outside, away from buildings.
 Refer to GPS Information (see page 23-312) for realtime satellite reception display.
1. Check for aftermarket metallic wi ndow tint on the
rear window and electronic aftermarket
accessories (possibly hidden) mounted near the
GPS antenna or the navigation unit.
Remove tint or the accessories, and
recheck.
Go to step 2.
2. Turn the ignition switch to ON (II).
3. Go into the Self-Diagnosis Mode, and use the System Links diagnostic (see page 23- 297) to check
the GPS antenna.
Check for a kinked, crushed, or disconnected
GPS antenna wire. If the icon is still red, replace the
GPS antenna (see page 23-358).
Check that nothing is blocking the GPS
antenna located under the package shelf and
recheck. Substitute a known-good GPS antenna,
and recheck.
 If the symptom is gone, replace the GPS antenna.
 If the symptom is still present, substitute a known-good navigation unit (see page 23- 355),
and recheck. If the symptom is gone, replace the
original navigation unit. NOTE:
 Check the vehicle battery condition first.
 Check the navigation volume level (see Owner’s Manual).
 Check the connectors for poor connections or loose terminals.
 If the Hard Error Code is stored, check the Hard Error Code troubleshooting first.
 Make sure that the correct DVD color and version are installed.
 Inspect the DVD for dirt or damage.
 Before troubleshooting, make sure you have anti- theft codes for the navigation system.
 After troubleshooting, enter the anti-theft codes for the navigation system.
1. Turn the ignition switch to ON (II).
2. Press the SET-UP button.
3. Check the volume and voice feedback setting for the navigation system in set-up.
Set the voice feedback to ON, and select an
audible level for the volume.
Go to step 4.
4. Check the audio system operation.
Go to step 5.
Troubleshoot audio system.
5. Select the Self-Diagnosis mode.
6. Check for error code to the Error History.
Refer to the Hard Error Code
troubleshooting.
Replace the navigation unit (see page 23-355).
Is there af termarket metallic window tint orel ect r oni c accessor i es?
Is the GPS Ant icon red? Is ei t her set t o OF F ?
Can y ou hear t he aud i o?
Is the Hard Error Code in stored?
08/08/21 14:17:50 61SNR030_230_0344
ProCarManuals.com
DYNOMITE -2009-

Î

(#'#
)
 µ
µ
µ
µ
µ
µ

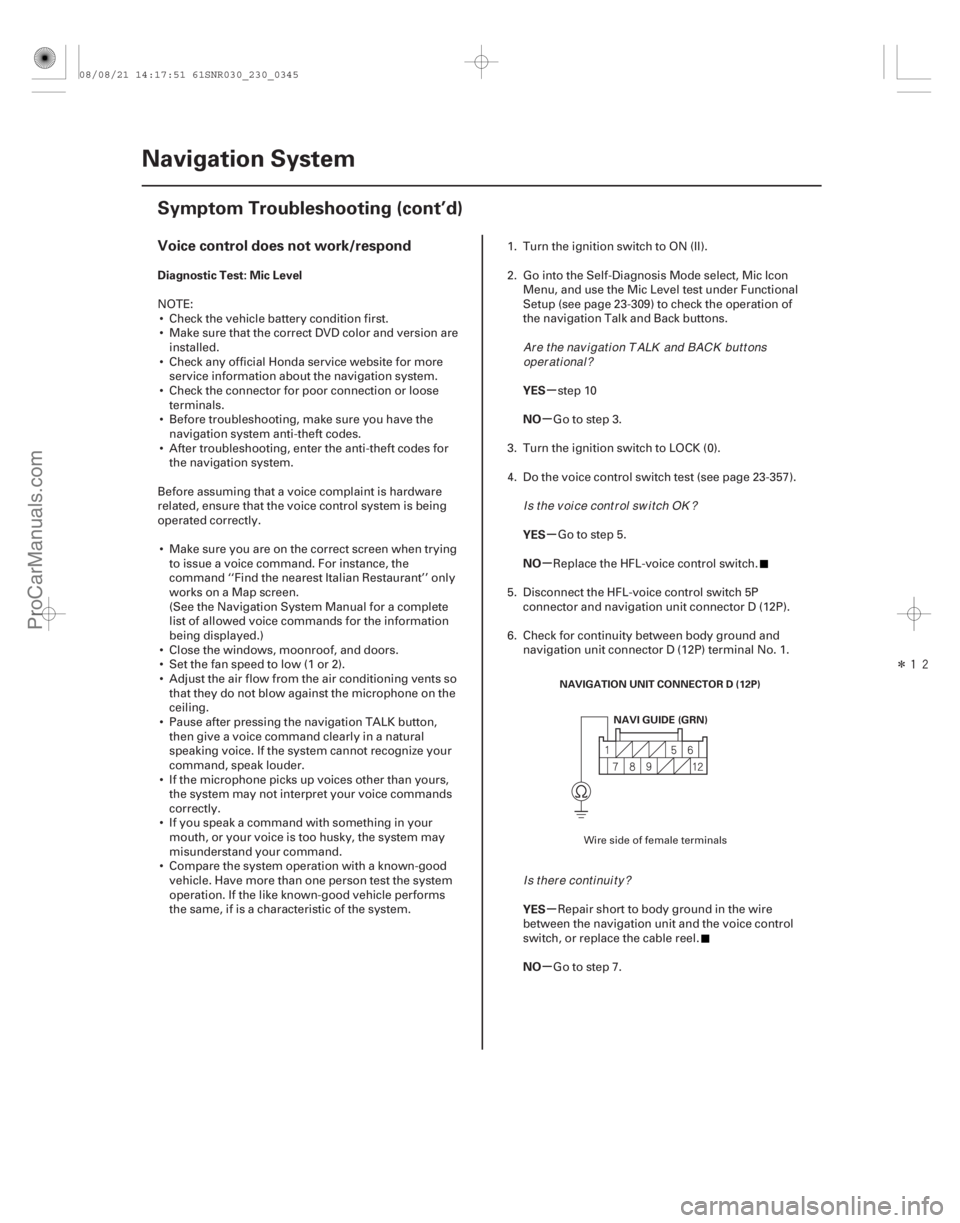

Voice control does not work/respond
Diagnostic Test: Mic Level
YES
NO
YES
NO
YES
NO
23-342Navigation System
Symptom Troubleshooting (cont’d)
NAVIGATION UNIT CONNECTOR D (12P)
NAVI GUIDE (GRN)
NOTE: Check the vehicle battery condition first.
 Make sure that the correct DVD color and version are installed.
 Check any official Honda service website for more service information about the navigation system.
 Check the connector for poor connection or loose terminals.
 Before troubleshooting, make sure you have the navigation system anti-theft codes.
 After troubleshooting, enter the anti-theft codes for the navigation system.
Before assuming that a voice complaint is hardware
related, ensure that the voice control system is being
operated correctly.  Make sure you are on the correct screen when trying to issue a voice command. For instance, the
command ‘‘Find the nearest Italian Restaurant’’ only
works on a Map screen.
(See the Navigation System Manual for a complete
list of allowed voice commands for the information
being displayed.)
 Close the windows, moonroof, and doors.
 Set the fan speed to low (1 or 2).
 Adjust the air flow from the air conditioning vents so that they do not blow against the microphone on the
ceiling.
 Pause after pressing the navigation TALK button, then give a voice command clearly in a natural
speaking voice. If the system cannot recognize your
command, speak louder.
 If the microphone picks up voices other than yours, the system may not interpret your voice commands
correctly.
 If you speak a command with something in your mouth, or your voice is too husky, the system may
misunderstand your command.
 Compare the system operation with a known-good vehicle. Have more than one person test the system
operation. If the like known-good vehicle performs
the same, if is a characteristic of the system. 1. Turn the ignition switch to ON (II).
2. Go into the Self-Diagnosis Mode select, Mic Icon
Menu, and use the Mic Level test under Functional
Setup (see page 23-309) to check the operation of
the navigation Talk and Back buttons.
step 10
Go to step 3.
3. Turn the ignition switch to LOCK (0).
4. Do the voice control switch test (see page 23-357).
Go to step 5.
Replace the HFL-voice control switch.
5. Disconnect the HFL-voice control switch 5P connector and navigation unit connector D (12P).
6. Check for continuity between body ground and navigation unit connector D (12P) terminal No. 1.
Repair short to body ground in the wire
between the navigation unit and the voice control
switch, or replace the cable reel.
Go to step 7.
Wire side of female terminals
Ar e t he nav i gat i on T ALK and BACK but t onsoper at i onal ?
I s t he v oi ce cont r ol sw i t ch OK ?
Is there continuity?
08/08/21 14:17:51 61SNR030_230_0345
ProCarManuals.com
DYNOMITE -2009-
