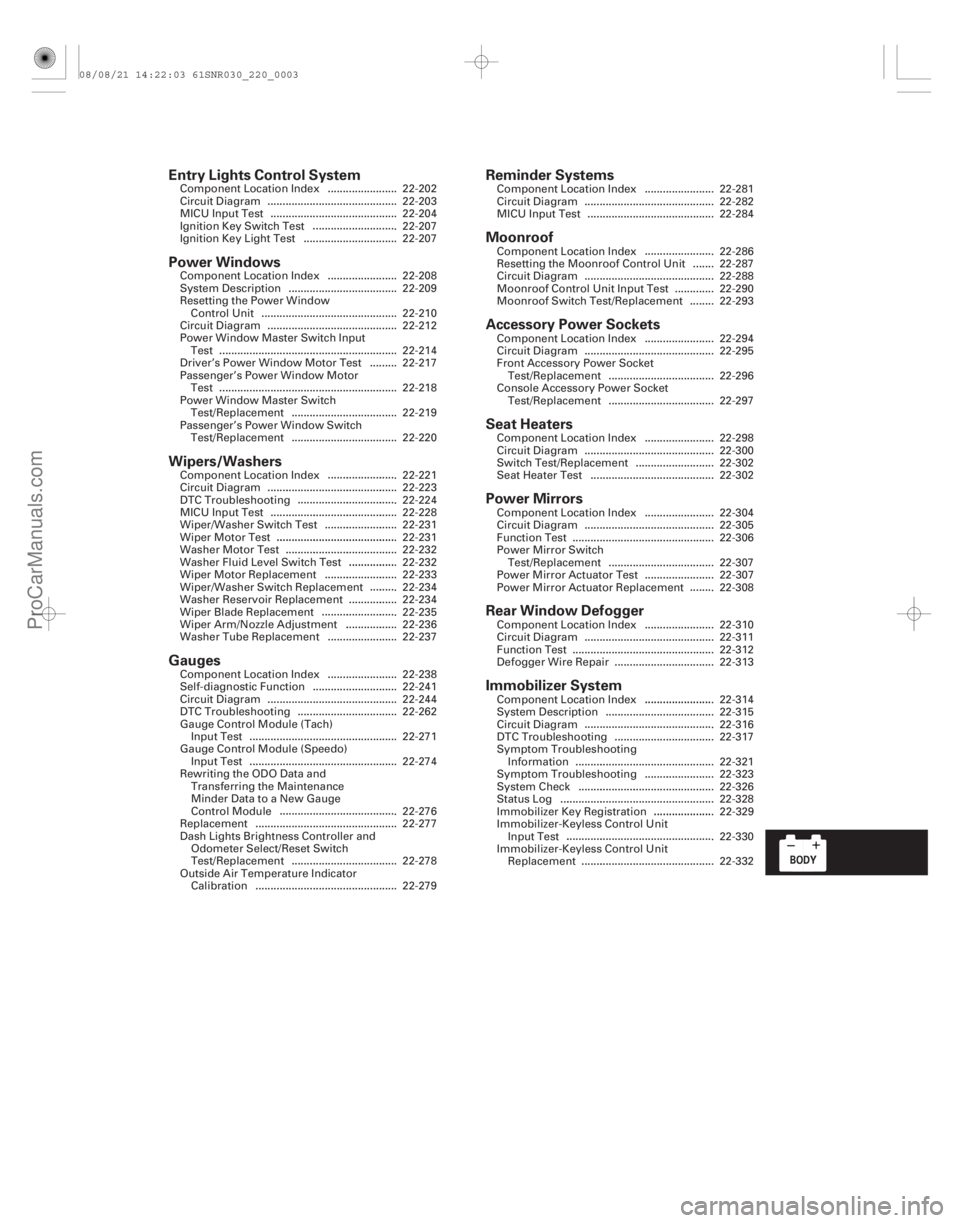

Immobilizer System......................
.......................................... ......................................... ...........................
.............................. ......................
.......................................... ......................................... ...........................
..............................
Component Location Index . 22-202
Circuit Diagram . 22-203
MICU Input Test . 22-204
Ignition Key Switch Test . 22-207
Ignition Key Light Test . 22-207
......................
...................................
............................................ ..........................................
.......................................................... ........
.......................................................... ..................................
........................................................
...................................
............................................ ..........................................
.......................................................... ........
.......................................................... ..................................
..................................
Component Location Index
. 22-208
System Description . 22-209
Resetting the Power Window Control Unit . 22-210
Circuit Diagram . 22-212
Power Window Master Switch Input Test . 22-214
Driver’s Power Window Motor Test . 22-217
Passenger’s Power Window Motor Test . 22-218
Power Window Master Switch Test/Replacement . 22-219
Passenger’s Power Window Switch Test/Replacement . 22-220
......................
.......................................... ................................
......................................... .......................
....................................... .................................... ...............
....................... ........
...............
........................ ................
...................... ......................
.......................................... ................................
......................................... .......................
....................................... .................................... ...............
....................... ........
...............
........................ ................
......................
Component Location Index
. 22-221
Circuit Diagram . 22-223
DTC Troubleshooting . 22-224
MICU Input Test . 22-228
Wiper/Washer Switch Test . 22-231
Wiper Motor Test . 22-231
Washer Motor Test . 22-232
Washer Fluid Level Switch Test . 22-232
Wiper Motor Replacement . 22-233
Wiper/Washer Switch Replacement . 22-234
Washer Reservoir Replacement . 22-234
Wiper Blade Replacement . 22-235
Wiper Arm/Nozzle Adjustment . 22-236
Washer Tube Replacement . 22-237
......................
...........................
.......................................... ................................
................................................
................................................
......................................
..............................................
..................................
.............................................. ......................
...........................
.......................................... ................................
................................................
................................................
......................................
..............................................
..................................
..............................................
Component Location Index
. 22-238
Self-diagnostic Function . 22-241
Circuit Diagram . 22-244
DTC Troubleshooting . 22-262
Gauge Control Module (Tach) Input Test . 22-271
Gauge Control Module (Speedo) Input Test . 22-274
Rewriting the ODO Data and Transferring the Maintenance
Minder Data to a New Gauge
Control Module . 22-276
Replacement . 22-277
Dash Lights Brightness Controller and Odometer Select/Reset Switch
Test/Replacement . 22-278
Outside Air Temperature Indicator Calibration . 22-279 ......................
.......................................... ......................................... ......................
.......................................... .........................................
Component Location Index
. 22-281
Circuit Diagram . 22-282
MICU Input Test . 22-284
...................... ......
.......................................... ...................
......................
......
.......................................... ...................
Component Location Index
. 22-286
Resetting the Moonroof Control Unit . 22-287
Circuit Diagram . 22-288
Moonroof Control Unit Input Test . 22-290
Moonroof Switch Test/Replacement . 22-293
......................
..........................................
..................................
.................................. ......................
..........................................
..................................
..................................
Component Location Index
. 22-294
Circuit Diagram . 22-295
Front Accessory Power Socket Test/Replacement . 22-296
Console Accessory Power Socket Test/Replacement . 22-297
......................
.......................................... .........................
........................................ ......................
.......................................... .........................
........................................
Component Location Index
. 22-298
Circuit Diagram . 22-300
Switch Test/Replacement . 22-302
Seat Heater Test . 22-302
......................
..........................................
..............................................
........................................................ .......
......................
..........................................
..............................................
........................................................ .......
Component Location Index
. 22-304
Circuit Diagram . 22-305
Function Test . 22-306
Power Mirror Switch Test/Replacement . 22-307
Power Mirror Actuator Test . 22-307
Power Mirror Actuator Replacement . 22-308
......................
..........................................
.............................................. ......................................................
..........................................
.............................................. ................................
Component Location Index
. 22-310
Circuit Diagram . 22-311
Function Test . 22-312
Defogger Wire Repair . 22-313
......................
...................................
.......................................... ................................
............................................. ......................
............................................
.................................................. ...................
................................................ ........................................... ......................
...................................
.......................................... ................................
............................................. ......................
............................................
.................................................. ...................
................................................ ...........................................
Component Location Index
. 22-314
System Description . 22-315
Circuit Diagram . 22-316
DTC Troubleshooting . 22-317
Symptom Troubleshooting Information . 22-321
Symptom Troubleshooting . 22-323
System Check . 22-326
Status Log . 22-328
Immobilizer Key Registration . 22-329
Immobilizer-Keyless Control Unit Input Test . 22-330
Immobilizer-Keyless Control Unit Replacement . 22-332
08/08/21 14:22:03 61SNR030_220_0003
ProCarManuals.com
DYNOMITE -2009-




Testing and Repairs

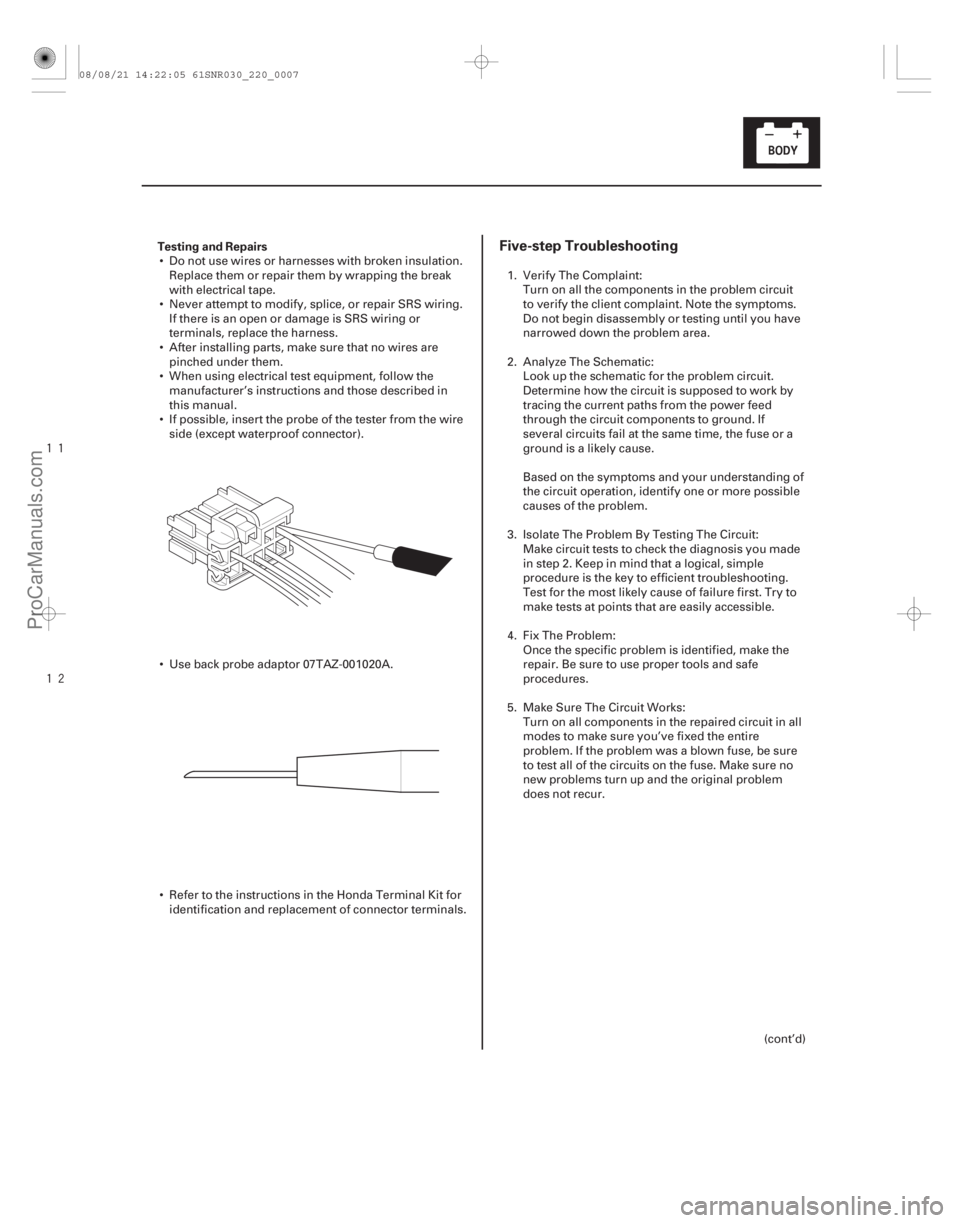

Five-step Troubleshooting
22-5
 Do not use wires or harnesses with broken insulation.
Replace them or repair them by wrapping the break
with electrical tape.
 Never attempt to modify, splice, or repair SRS wiring. If there is an open or damage is SRS wiring or
terminals, replace the harness.
 After installing parts, make sure that no wires are pinched under them.
 When using electrical test equipment, follow the manufacturer’s instructions and those described in
this manual.
 If possible, insert the probe of the tester from the wire side (except waterproof connector).
 Use back probe adaptor 07TAZ-001020A.
 Refer to the instructions in the Honda Terminal Kit for identification and replacement of connector terminals. 1. Verify The Complaint:
Turn on all the components in the problem circuit
to verify the client complaint. Note the symptoms.
Do not begin disassembly or testing until you have
narrowed down the problem area.
2. Analyze The Schematic: Look up the schematic for the problem circuit.
Determine how the circuit is supposed to work by
tracing the current paths from the power feed
through the circuit components to ground. If
several circuits fail at the same time, the fuse or a
ground is a likely cause.
Based on the symptoms and your understanding of
the circuit operation, identify one or more possible
causes of the problem.
3. Isolate The Problem By Testing The Circuit: Make circuit tests to check the diagnosis you made
in step 2. Keep in mind that a logical, simple
procedure is the key to efficient troubleshooting.
Test for the most likely cause of failure first. Try to
make tests at points that are easily accessible.
4. Fix The Problem: Once the specific problem is identified, make the
repair. Be sure to use proper tools and safe
procedures.
5. Make Sure The Circuit Works: Turn on all components in the repaired circuit in all
modes to make sure you’ve fixed the entire
problem. If the problem was a blown fuse, be sure
to test all of the circuits on the fuse. Make sure no
new problems turn up and the original problem
does not recur.
(cont’d)
08/08/21 14:22:05 61SNR030_220_0007
ProCarManuals.com
DYNOMITE -2009-

Î
22-9
SRS UNIT
CLIMATE CONTROL UNIT
IMMOBILIZER-KEYLESS
CONTROL UNIT
(With built-in receiver)
EPS CONTROL UNIT
AUDIO UNIT or
NAVIGATION UNIT
TPMS CONTROL UNIT
(’08-09 models)
08/08/21 14:22:06 61SNR030_220_0011
ProCarManuals.com
DYNOMITE -2009-

•••
•••
•••
•••
(#')
 Under-hood Fuse/Relay Box
Fuse
Number Amps Component(s) or Circuit(s) Protected
22-60Power Distribution
Fuse to Components Index
1 100 A
(BAT)Battery, Power distribution
70 A
(EPS) EPS control unit
250A (IG)Ignition switch
80 A
60 A
(OPTION) No. 5, No. 6, No. 7, No. 27, No. 28, No. 29, and No. 31 fuses (in the under-dash fuse/relay box)
330A (ABS MTR) ABS modulator-control unit , VSA modulator-control unit
30 A
40 A
(ABS FSR) ABS modulator-control unit , VSA modulator-control unit
450A (H/L)No. 18, No. 19, No. 20, and No. 21 fuses (in the under-dash fuse/relay box)
40 A
(P/W) No. 24, No. 25, No. 26, No. 30, No. 32, and No. 33 fuses (in the under-dash fuse/relay box), Power window relay
(in the under-dash fuse/relay box)
5 Not used
6 20 A A/C condenser fan motor (via A/C condenser fan relay)
7 20 A Radiator fan motor (via radiator fan relay)
8 30 A Noise condenser (via rear window defogger relay), Rear window defogger (via rear window defogger relay)
9 40 A Blower motor (via blower motor relay)
10 10 A MICU (turn signal/hazard warning lights circuit)
11 15 A A/F sensor (Sensor 1) (via PGM-FI subrelay), EVAP canister vent shut valve (via PGM-FI subrelay), PGM-FI subrelay, No. 15 fuse (in the under-hood fuse/relay box) (via PGM-FI subrelay)
12 15 A Brake lights, ECM/PCM, Horn, MICU
13 Not used
14 Not used
15 7.5 A A/C condenser fan relay
16 Not used
17 15 A Stereo amplifier
18 15 A Ignition coil relay, Ignition coils (via Ignition coil relay)
19 15 A CKP sensor (via PGM-FI main relay 1), CMP sensor B (via PGM-FI main relay 1), ECM/PCM, ETCS control relay, Injectors (via PGM-FI main relay 1), PGM-FI main relay 1 (FI MAIN), PGM-FI main relay 2 (FUEL PUMP)
20 7.5 A A/C compressor clutch (via A/C compressor clutch relay)
21 15 A ECM/PCM (via ETCS control relay)
22 7.5 A Ceiling light, Courtesy lights, Front individual map lights, Ignition key light, Trunk light, Vanity mirror lights
23 10 A Audio unit , Data link connector (DLC), Gauge control module (speedo), Gauge control module (tach), HandsFreeLink control unit , Immobilizer-keyless control unit, MICU, Moonroof switch, Navigation unit
1: ’06-07 models
2: ’08-09 models
3: ’06-07 Touring and Premium models
4: ’07 TYPE S and ’08-09 models
5: ’08-09 models
6: TYPE S model
7: Without navigation system
8: With navigation system
9: ’09 model with navigation system
1
2
34
3
4 34
6 5
7 9 8
08/08/21 14:24:02 61SNR030_220_0062
ProCarManuals.com
DYNOMITE -2009-

•••
•••´
´
•••
Under-dash Fuse/Relay Box
Fuse
Number Amps
Component(s) or Circuit(s) Protected
22-62Power Distribution
Fuse to Components Index (cont’d)
1 7.5 A Power mirror switch light
2 15 A ECM/PCM, Fuel pump (via PGM-FI main relay 2), Immobilizer-keyless control unit
3 10 A Alternator, CMP sensor A, ECM/PCM (via brake pedal position switch), ELD, EVAP canister purge valve, MAF
sensor/IAT sensor, Reverse lockout solenoid , Secondary HO2S (sensor 2)
4 7.5 A ABS modulator-control unit , EPS control unit, VSA modulator-control unit , Yaw rate-lateral acceleration sensor
5 15 A Seat heaters (via seat heater relays)
6 20 A Fog light relay, Fog lights (via fog light relay)
7 Not used
8 Not used
9 7.5 A ODS unit, Passenger’s airbag cutoff indicator, SRS unit
10 7.5 A Back-up light (M/T), Gauge control module (speedo), Gauge control module (tach), MICU, Shift lock solenoid (A/T), TPMS control unit
11 10 A SRS unit
12 10 A Right headlight (high beam)
13 10 A Left headlight (high beam)
14 7.5 A Audio unit light , Climate control unit light, Dash lights brightness controller and odometer select/reset switch light, Driver’s footwell light , Driver’s seat heater switch light, Glove box light, Hazard warning switch light,
Moonroof switch light, Navigation unit , Park pin switch light (A/T), Passenger’s airbag cutoff indicator light,
Passenger’s footwell light , Passenger’s seat heater switch light, Steering wheel switches light (via cable reel),
VSA OFF switch light
15 7.5 A Parking lights, Taillights, License plate lights, Side marker lights
16 10 A Right headlight (low beam) 15 A Right HID unit
17 10 A Left headlight (low beam) 15 A Left HID unit
18 20 A MICU ( B H/L HI)
19 15 A MICU ( B SMALL LT)
20 Not used
1: ’06-07 Touring and Premium models
2: ’07 TYPE S and ’08-09 models
3: ’08-09 models
4: TYPE S model
5: With HID
6: Without HID
7: TYPE S and ’08 Premium and ’09 models
8: Without navigation system
9: With navigation system
4
1 2
2
7
3
8 49
4
6
5
6
5
08/08/21 14:24:03 61SNR030_220_0064
ProCarManuals.com
DYNOMITE -2009-

´
´
•••
•••
´
•••
•••
•••

Fuse
Number Amps
Component(s) or Circuit(s) Protected
22-63
23 45
1 16 17
19
18 20
11
12 1413 15
26 27 2928 30
21 22
2423 25
36 37
38
3132
34
33
35
10
67 8
9
21 20 A MICU ( B H/L LO)
30 A MICU ( B H/L LO)
22 Not used
23 Not used
24 20 A Moonroof control unit/motor
25 20 A MICU ( B DR LOCK)
26 20 A Driver’s power window motor (via power window master switch)
27 Not used
28 15 A Console accessory power socket (via console accessory power socket relay)
29 15 A Front accessory power socket (via front accessory power socket relay)
30 20 A Front passenger’s power window motor
31 Not used
32 20 A Moonroof control unit/motor, Moonroof switch , Right rear power window motor
33 20 A Left rear power window motor
34 Not used
35 7.5 A Audio unit , Console accessory power socket relay, Front accessory power socket relay, HandsFreeLink control unit , Ignition key switch, Navigation unit , Stereo amplifier
36 10 A Climate control unit, Driver’s seat heater switch, Fan control relay and radiator fan relay (via A/C diode), Passenger’s seat heater switch, Power mirrors (via power mirror switch), Under-hood fuse/relay box (A/C
compressor clutch relay, Blower motor relay, Power mirror defogger relay, Rear window defogger relay)
37 7.5 A MICU (daytime running lights power supply)
38 30 A MICU (IG 1 WIPER)
1: ’06-07 models
2: TYPE S model
3: Without HID
4: With HID
5: ’09 model with navigation system
6: Without navigation system
7: With navigation system3
4
1
6
5 72
08/08/21 14:24:03 61SNR030_220_0065
ProCarManuals.com
DYNOMITE -2009-

µ
(#'
)
GroundComponent or Circuit Grounded
22-64Ground Distribution
Ground to Components Index
G1 Battery
G2 Engine
G3 Transmission housing
G101 A/T clutch pressure control solenoid valves A, B, C (A/T), CKP sensor, CMP sensor A, CMP sensor B, Data link connector (DLC), ECM/PCM (LG1), ECM/PCM (LG2), ECM/PCM (PG1), ECM/PCM (PG2), ECM/PCM (PGMETCS), EGR valve (K20Z2 engine), Ignition
coils, Immobilizer-keyless control unit, Rocker arm oil control solenoid, Rocker arm oil pressure switch, Transmission range
switch (A/T), VTC oil control solenoid valve
Shielding between the ECM/PCM and Knock sensor (KS) has wire.
Shielding between the ECM/PCM and Secondary HO2S (Sensor 2) has wire.
G201 Right fog light , Right front parking light, Right front side marker light, Right front turn signal light, Right headlight (high/low beams), Right HID unit , Windshield washer motor, Windshield wiper motor
G202 ABS modulator-control unit , VSA modulator-control unit
G301 A/C condenser fan motor, Blower motor relay, ELD, Left fog light , Left front parking light, Left front side marker light, Left front turn signal light, Left headlight (high/low beams), Left HID unit , Radiator fan motor (via fan control relay)
G401 Brake fluid level switch, Clutch interlock switch (M/T), Clutch pedal position switch (M/T), Hood switch, MICU (PG), Power transistor, Washer fluid level switch (G401 connects to G601 via under-dash fuse/relay box)
G402 EPS control unit
G403 Torque sensor
G501 Dash lights brightness controller and odometer select/reset switch, Driver’s door key cylinder switch, Driver’s door lock knob switch, HandsFreeLink control unit , MICU (SG), VSA OFF switch
G502 Data link connector (DLC), Front accessory power socket, Glove box light, Right power mirror defogger, Right side turn signal light
G503 Accessory power socket relays (front and console), Driver’s door lock switch, Gauge control module (tach), Left power mirror defogger, Left side turn signal light, Moonroof control unit/motor, Power mirror switch light, Power mirror switch, Power
window master switch (main switch), Power window master switch, Vanity mirror lights (driver’s and front passenger’s)
G504 Cable reel (steering wheel switches ground), Climate control unit, Front passenger’s door lock knob switch, Front passenger’s door lock switch, Gauge control module (speedo), Gauge control module (tach), Ignition key switch, Navigation unit , TPMS
control unit
G505 Audio unit , Navigation unit
G506 Memory erase signal (MES) connector, SRS unit (2 wires)
G601 A/T gear position console panel light/Park-pin switch (A/T), Console accessory power socket , Fuel pump, MICU (PG), Seat heater relays (driver’s and front passenger’s), Seat heater switches (driver’s and front passenger’s), Seat heaters (driver’s and
front passenger’s), Stereo amplifier (G601 connects to G401 via under-dash fuse/relay box)
Shielding between the left side impact sensor (FIRST) and rear safing sensor has wire.
Shielding between the SRS unit and left side impact sensor (FIRST) has wire.
G602 Driver’s seat belt buckle switch, Front passenger’s seat belt buckle switch, Left rear door lock knob switch, MICU (SG), MICU service check connector, ODS unit, Right rear door lock knob switch, Yaw rate-lateral acceleration sensor
Shielding between the right side impact sensor (FIRST) and right side impact sensor (SECOND) have wires.
Shielding between the SRS unit and right side impact sensor (FIRST) has wire.
G603 Noise condenser Shielding between the rear safing sensor and left side impact sensor (SECOND) has wire.
G701 High mount brake light, Left back-up light, Left inner taillight, Left rear side marker light, Left rear turn signal light, Left taillight/ brake light, License plate lights, Right back-up light, Right inner taillight, Right rear side marker light, Right rear turn signal light,
Right taillight/brake light, Trunk lid release actuator/Trunk lid latch switch
G801 Rear window defogger ( )
1: ’06-07 Touring and Premium models
2: ’07 TYPE S and ’08-09 models
3: ’08-09 models
4: TYPE S and ’08 premium and ’09 models
5: With HID
6: Without navigation system
7: With navigation system
8: ’09 model with navigation system
9: ’06-08 models, and ’09 model without navigation system
10: TYPE S model
4
512 4
5
82 3
7
3
67
9
10
2
08/08/21 14:24:03 61SNR030_220_0066
ProCarManuals.com
DYNOMITE -2009-

(#'

)

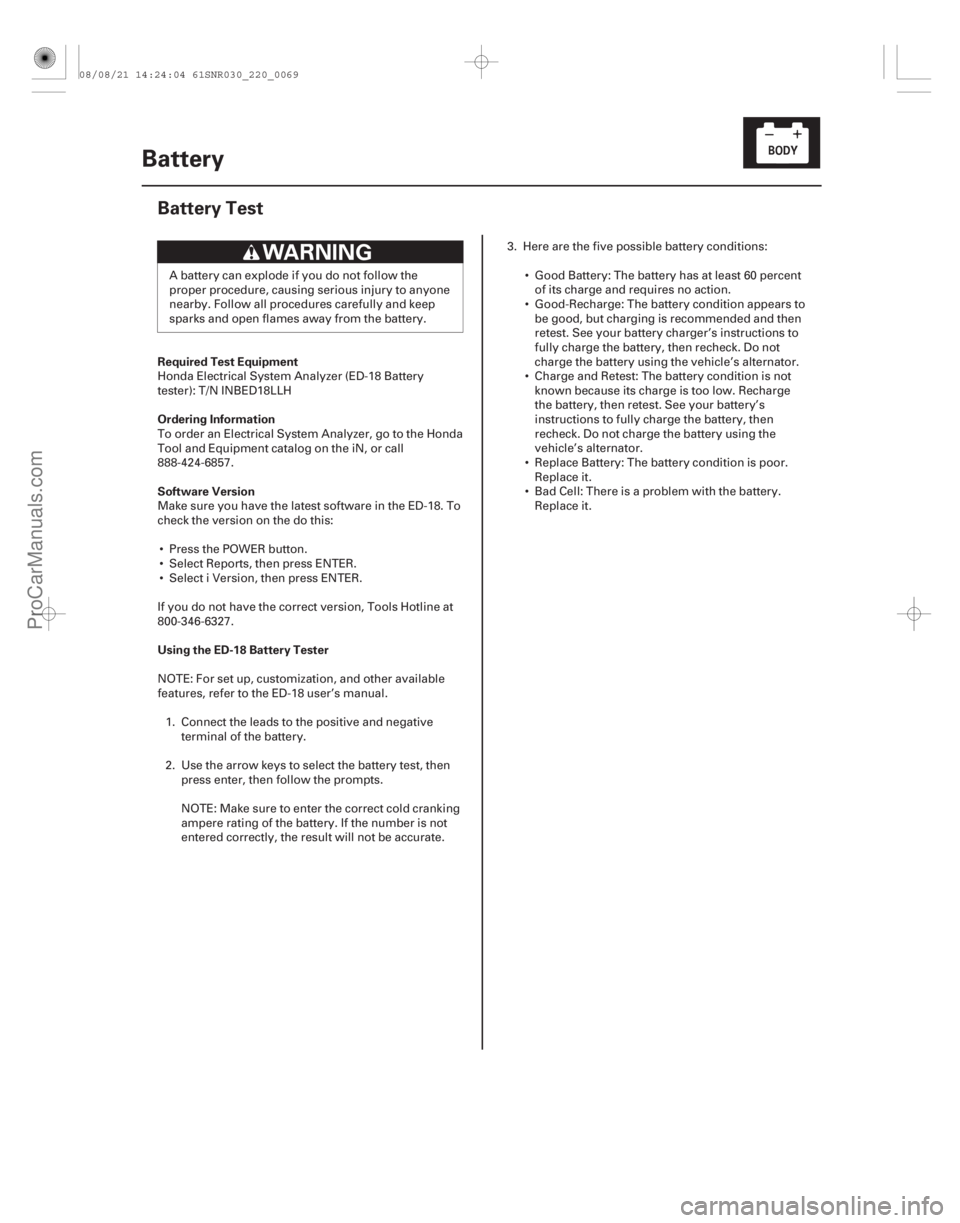

Required Test Equipment
Ordering Information
Software Version
Using the ED-18 Battery Tester
22-67
Battery
Battery Test
A battery can explode if you do not follow the
proper procedure, causing serious injury to anyone
nearby. Follow all procedures carefully and keep
sparks and open flames away from the battery.
Honda Electrical System Analyzer (ED-18 Battery
tester): T/N INBED18LLH
To order an Electrical System Analyzer, go to the Honda
Tool and Equipment catalog on the iN, or call
888-424-6857.
Make sure you have the latest software in the ED-18. To
check the version on the do this:  Press the POWER button.
 Select Reports, then press ENTER.
 Select i Version, then press ENTER.
If you do not have the correct version, Tools Hotline at
800-346-6327.
NOTE: For set up, customization, and other available
features, refer to the ED-18 user’s manual. 1. Connect the leads to the positive and negative terminal of the battery.
2. Use the arrow keys to select the battery test, then press enter, then follow the prompts.
NOTE: Make sure to enter the correct cold cranking
ampere rating of the battery. If the number is not
entered correctly, the result will not be accurate. 3. Here are the five possible battery conditions:
 Good Battery: The battery has at least 60 percentof its charge and requires no action.
 Good-Recharge: The battery condition appears to be good, but charging is recommended and then
retest. See your battery charger’s instructions to
fully charge the battery, then recheck. Do not
charge the battery using the vehicle’s alternator.
 Charge and Retest: The battery condition is not known because its charge is too low. Recharge
the battery, then retest. See your battery’s
instructions to fully charge the battery, then
recheck. Do not charge the battery using the
vehicle’s alternator.
 Replace Battery: The battery condition is poor. Replace it.
 Bad Cell: There is a problem with the battery. Replace it.
08/08/21 14:24:04 61SNR030_220_0069
ProCarManuals.com
DYNOMITE -2009-
