11-14Fuel and Emissions Systems
Symptom Troubleshooting Index (cont’d)










Low power
(MIL works OK, no DTCs set)
Check the fuel pressure (see page 11-325). Low compression
Incorrect camshaft
timing
Incorrect engine oil
level
Exhaust restriction
Engine stalls
(MIL works OK, no DTCs set) 1.
2.
3.
4.DotheECM/PCMidlelearnprocedure(seepage
11-310).
Check the fuel pressure (see page 11-325).
Check the idle speed (see page 11-309).
Troubleshoot the brake pedal position switch signal
circuit (see page 11-308). Intake air leaks
Faulty harness and
sensor
connections
Fuel contamination
Difficult to refuel
(MIL works OK, no DTCs set) 1.
2.
3.Check the fuel vent tube between the EVAP canister
and the fuel tank.
Check the fuel tank vapor recirculation tube between
thefuelpipeandthefueltank.
Replace the fuel tank (see page 11-339). Malfunctioning gas
station filling
nozzle.
Filler neck
restriction
Faulty fuel tank
vapor control valve
Fuel overflows during
refueling
(No DTCs set) Replace the fuel tank (see page 11-339). Malfunctioning gas
station filling nozzle.
HDS does not communicate
with the ECM/PCM or the
vehicle Troubleshoot the DLC circuit (see page 11-204).
Fuel cap warning message
stays on
(MIL works OK, no DTCs set)
(K20Z3 engine) Troubleshoot the fuel cap warning message system
(see page 11-405).
08/08/21 14:12:36 61SNR030_110_0014
ProCarManuals.com
DYNOMITE -2009-

Î
´µ
11-19
A42 WEN
A31 SCS OIL PRESSURE
SWITCH
B
BRAKE PEDAL
POSITION SWITCH
BKSW A40
BKSWNC A39 H
VSSOUT A29 To
MOONROOF
CONTROL UNIT/MOTOR,
AUDIO UNIT
A37 CANL
FTP SENSOR
A19 VCC6
A26 FTP
A9 SG6
A36 CANH
E OPSW B7
Q
R
P
CRMTCLS A41 CLUTCH PEDAL
POSITION SWITCH
S
THROTTLE
ACTUATOR
THROTTLE BODY C12 VCC3
C20 TPSA
C21 TPSB
C39 SG3
C4 ETCSM
C3 ETCSM ECT SENSOR 2
R
S
A/C PRESSURE
SENSOR *2
VCC4 A25 APSA A17 SG4 A35
VCC5 A24
APSB A18 SG5 A34
ETC2 A33
ACPD A16
To MICU *3
T
RVS A27
GAUGE CONTROL MODULE (TACH)
B A
REVERSE LOCKOUT
SOLENOID
TP SENSOR A/B A
DATA LINK
CONNECTOR
B APP SENSOR A/B
*2: M/T
*3: K20Z3 engine
(cont’d)
08/08/21 14:12:39 61SNR030_110_0019
ProCarManuals.com
DYNOMITE -2009-

µ
Ø
ECM/PCM Inputs and Outputs at Connector A ( ) (44P)
Terminal
numberWire color Terminal name DescriptionSignal
11-26Fuel and Emissions Systems
System Description (cont’d)
NOTE: Standard battery voltage is about 12 V.
24 GRY VCC5 (SENSOR VOLTAGE) Provides sensor reference voltageWith ignition switch ON (II): about 5.0 V
25 BRN VCC4 (SENSOR VOLTAGE) Provides sensor reference voltageWith ignition switch ON (II): about 5.0 V
26 LT GRN FTP (FUEL TANK PRESSURE (FTP) SENSOR) Detects FTP sensor signal With ignition switch ON (II) and fuel fill cap
removed: about 2.5 V
27 PNK SLS (SHIFT LOCK SOLENOID) Drives shift lock solenoid With ignition switch ON (II), in P, brake pedal
pressed, and accelerator released:
battery voltage
27 GRN RVS (REVERSE LOCKOUT SOLENOID) Drives reverse lockout
solenoidWith vehicle speed below 9 mph (15 km/h):
battery voltage
With vehicle speed above 13 mph (20 km/h):
about 0 V
28 BLU NEP (ENGINE SPEED PULSE) Outputs engine speed pulse With engine running: pulses
29 BLU VSSOUT (VEHICLE SPEED SIGNAL OUTPUT) Sends vehicle speed signal Depending on vehicle speed: pulses
31 BRN SCS (SERVICE CHECK SIGNAL) Detects service check signal With service check signal shorted using HDS:
about 0 V
With service check signal opened: about 5.0 V
33 GRN ECT2 (ENGINE COOLANT TEMPERATURE (ECT)
SENSOR 2) Detects ECT sensor 2 signal With ignition switch ON (II): about 0.1 4.8 V
(depending on engine coolant temperature)
34 LT BLU SG5 (SENSOR GROUND) Sensor ground Less than 1.0 V at all times
35 BLU SG4 (SENSOR GROUND) Sensor ground Less than 1.0 V at all times
36 WHT CANH (CAN COMMUNICATION SIGNAL
HIGH) Sends communication
signal
With ignition switch ON (II): about 2.5 V (pulses)
37 RED CANL (CAN COMMUNICATION SIGNAL
LOW) Sends communication
signal
With ignition switch ON (II): about 2.5 V (pulses)
1: A/T
3: K20Z3 engine
1
3
Terminal side of female terminals
08/08/21 14:12:43 61SNR030_110_0026
ProCarManuals.com
DYNOMITE -2009-

Throttle Body
Brake Pedal Position Switch
Electrical Power Steering (EPS) Signal
Fuel Cutoff Control
Fuel Pump Control
PGM-FI Main Relay 1 and 2
Idle Control System
Fuel Supply System
11-36Fuel and Emissions Systems
System Description (cont’d)
THROTTLE VALVE
THROTTLE POSITION
(TP) SENSOR and
THROTTLE ACTUATOR
The throttle body is a single-barrel side draft type. The
lower portion of the throttle valve is heated by engine
coolant from the cylinder head to prevent icing of the
throttle plate. When the engine is cold, the A/C compressor is on, the
transmission is in gear, the brake pedal is pressed, the
power steering load is high, or the alternator is
charging, the ECM/PCM sends signal to the throttle
position to maintain the correct idle speed.
The brake pedal position switch signals the ECM/PCM
when the brake pedal is pressed.
The EPS signals the ECM/PCM when the power steering
load is high.
During deceleration with the throttle valve closed,
current to the injectors is cut off to improve fuel
economy at engine speeds over 1,000 rpm. Fuel cutoff
control also occurs when the engine speed exceeds
6,900 rpm (K20Z3: 8,200 rpm), regardless of the
position of the throttle valve, to protect the engine from
over-revving. When the vehicle is st
opped, the ECM/
PCM cuts the fuel at engine speeds over 5,000 rpm
(K20Z3: 7,700 rpm). On a cold engine, fuel cut occurs at
a lower engine speed.
When the ignition switch is turned to ON (II), the ECM/
PCM grounds PGM-FI main relay 2 (FUEL PUMP) which
feeds current to the fuel pump for 2 seconds to
pressurize the fuel system. With the engine running, the
ECM/PCM grounds PGM-FI main relay 2 (FUEL PUMP)
and feeds current to the fuel pump. When the engine is
not running and the ignition is turned to ON (II), the
ECM/PCM cuts ground to PGM-FI main relay 2 (FUEL
PUMP) which cuts current to the fuel pump.
PGM-FI main relay 1 is energized whenever the ignition
switch is ON (II), to supply battery voltage to the ECM/
PCM, power to the injectors, and power for PGM-FI
main relay 2 (FUEL PUMP). PGM-FI main relay 2 (FUEL
PUMP) is energized to supply power to the fuel pump
for 2 seconds when the ignition switch is turned to
ON (II), and when the engine is cranking or running.
08/08/21 14:13:39 61SNR030_110_0036
ProCarManuals.com
DYNOMITE -2009-

Î

´
µ
ECM/PCM Circuit Diagram (K20Z2 engine) (cont’d)
11-48Fuel and Emissions Systems
System Description (cont’d)
1
2
3
BLK/YEL
4
GRN/BLK
5
RED/YEL
B30
VG
RED/BLK
B32
VG BLK/BLU
G
B33
SG2 GRN/BLK
B31
IAT RED/YEL F
N *1
ECT SENSOR 1
B23
ECT1
RED/WHT GRN/BLK
RED/WHT
B36
PG1 BLK
B1
PG2 BLK/RED
(BLK)*4
C2
PGMETCS BLK
G101
3
A39
BKSWNC BRN Brake pedal pressed: closed
Brake pedal released: open
Brake pedal pressed: open
Brake pedal released: closed
4
YEL 1
WHT 2
LT GRN
SU T BRAKE PEDAL
POSITION SWITCH
LT BLU Clutch pedal pressed: open
Clutch pedal released: closed
CLUTCH PEDAL
POSITION SWITCH
A41
CRMTCLS
3 2
G401 BLK
*2 C40
LG1
BRN/YEL
C44
LG2 BRN/YEL
G101D
IJ
H
18
1920 BRN
BRN
BRN/YEL C101
AF
AG
BRN/
YEL BRN/
YEL
21
*4
*3*4 1 2
MAF
SENSOR
IAT
SENSOR
6 5
*1: A/T
*2: M/T
*3: ’06 model
*4: ’07-09 models
08/08/21 14:13:46 61SNR030_110_0048
ProCarManuals.com
DYNOMITE -2009-

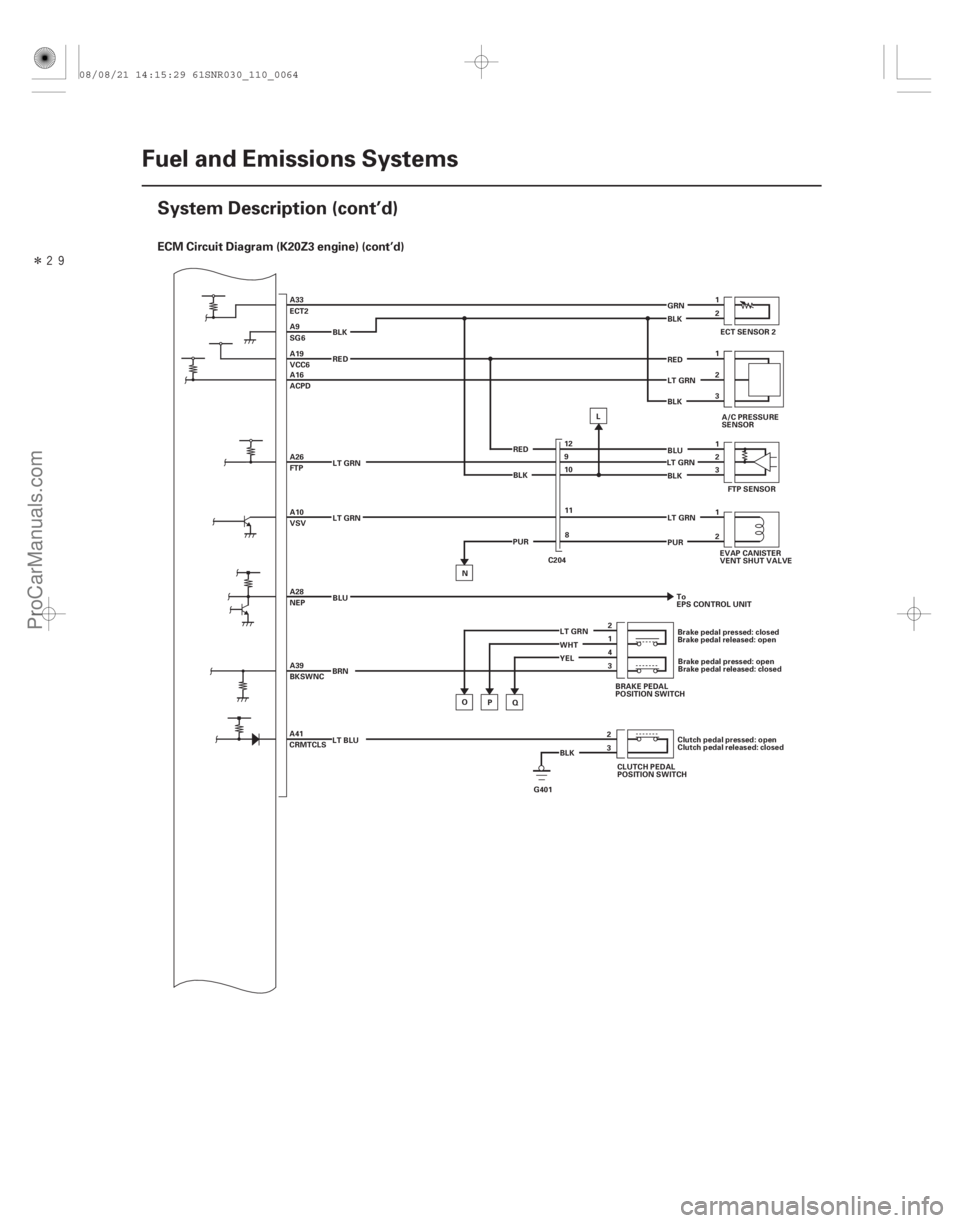

ÎECM Circuit Diagram (K20Z3 engine) (cont’d)
11-64Fuel and Emissions Systems
System Description (cont’d)
ECT SENSOR 2
1
A33
ECT2
2
A9
SG6 GRN
BLK
A/C PRESSURE
SENSOR
1
A19
VCC6 RED
2
A16
ACPD LT GRN
3
BLK
1
FTP SENSOR
2
A26
FTP
3
BLK
1
A10
VSV LT GRN
LT GRN
EVAP CANISTER
VENT SHUT VALVE
2
PUR
A28
NEP BLU
To
EPS CONTROL UNIT
3
A39
BKSWNC BRN Brake pedal pressed: closed
Brake pedal released: open
Brake pedal pressed: open
Brake pedal released: closed
4
YEL 1
WHT 2
LT GRN 12
9
10
11 8
RED
BLK
PUR C204
O Q
P BRAKE PEDAL
POSITION SWITCH
N
LT BLU Clutch pedal pressed: open
Clutch pedal released: closed
CLUTCH PEDAL
POSITION SWITCH
A41
CRMTCLS L
BLK 3 2
G401 BLU
LT GRN
LT GRN RED BLK
08/08/21 14:15:29 61SNR030_110_0064
ProCarManuals.com
DYNOMITE -2009-

(#'


)
µ
µ
µ
µ
µ
µ µ
µ
µ
µ
µ
µ
DTC P0101:
YES
NO
YES
NO
YES
NO YES
NO
YES
NO
YES
NO
11-74
PGM-FI System
DTC Troubleshooting
MAF Sensor Circuit Range/
Performance Problem
NOTE:
 Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).
 If DTC P1128, P1129, P2228, and/or P2229 are stored at the same time as DTC P0101, troubleshoot those
DTCs first, then recheck for DTC P0101.
1. Check for poor connections or damage to these parts:
 PCV hose
 Intake air duct
 Air cleaner
 Purge (PCS) line
 Brake booster
 Brake booster hose
Go to step 2.
Repair or replace the damaged part(s), then
go to step 17.
2. Check for damage or looseness at the air duct in the air cleaner.
Go to step 3.
Reconnect or replace the air duct in the air
cleaner, then go to step 15.
3. Check for a dirty air cleaner element.
Replace the air cleaner element (see page
11-346), then go to step 15.
Go to step 4. 4. Turn the ignition switch to LOCK (0).
5. Turn the ignition switch to ON (II).
6. Check the MAF SENSOR in the DATA LIST with the
HDS.
Go to step 7.
Go to step 13.
7. Start the engine.
8. Vary the engine speed between 2,000 rpm and 3,000 rpm.
9. Check the MAF SENSOR in the DATA LIST with the HDS.
Go to step 10.
Go to step 13.
10. Hold the engine speed at 3,000 rpm without load (A/T in P or N, M/T in neutral) until the radiator fan
comes on, then let it idle.
11. Test-drive the vehicle for several minutes in the range of these recorded freeze data parameters:
 ENGINE S PEED
 VSS
 MAP SENSOR
 MAF SENSOR
12. Monitor the OBD STATUS for DTC P0101 in the DTCs MENU with the HDS.
Go to step 13.
If the screen indicates PASSED, intermittent
failure, the system is OK at this time. Check for
poor connections or loose terminals at the MAF
sensor/IAT sensor and the ECM/PCM. If the screen
indicates NOT COMPLETED, go to step 11 and
recheck.
Ar e t he par t s OK ?
Is it OK ?Is it dirty? Is t her e about 0.2 gm/ s or 0.5 V ?
Does t he r ead i ng change?
Does t he scr een i nd i cat e F AILE D?
08/08/21 14:15:37 61SNR030_110_0074
ProCarManuals.com
DYNOMITE -2009-

µµµ
µ
µ
µ
µ
µ
µ µ
µ
µ
µ
YES
NO
YES
NO YES
NO
YES
NO
11-114
PGM-FI System
DTC Troubleshooting (cont’d)
2. Check for vacuum leaks at these parts:
 PCV valve
 PCV hose
 EVAP canister purge valve
 Throttle body
 Intake manifold
 Brake booster
 Brake booster hose
 Intake air duct
Go to step 3.
Repair or replace the part(s) with leaks, then
go to step 7.
3. Start the engine. Hold the engine speed at 3,000 rpm without load (A/T in P or N, M/T in
neutral) until the radiator fan comes on, then let it
idle.
4. Check for these conditions:  Engine coolant temperature (ECT SENSOR 1)above70°C(158°F)
 A/T in N, M/T in neutral
 All electrical loads off
5. Monitor the ENGINE SPEED in the DATA LIST with the HDS, and hold the engine speed at 2,500 rpm.
Once the engine speed is met, hold the accelerator
pedal steady for more than 10 seconds.
Repeat step 5.
Go to step 6. 6. While holding the engine speed at 2,500 rpm, check
the MAF SENSOR in the DATA LIST with the HDS.
Check the engine valve clearances and adjust
them if needed; K20Z2 engine (see page 6-12),
K20Z3 engine (see page 6-14). If the valve
clearances are OK, replace the injectors (see page
11-219), then go to step 7.
Replace the MAF sensor/IAT sensor (see page
11-224), then go to step 7.
7. Turn the ignition switch to ON (II).
8. Reset the ECM/PCM with the HDS.
9. Do the ECM/PCM idle learn procedure (see page 11-310).
10. Start the engine. Hold the engine speed at 3,000 rpm without load (A/T in P or N, M/T in
neutral) until the radiator fan comes on, then let it
idle.
11. Test-drive under these conditions:  Engine coolant temperature (ECT SENSOR 1)above70°C(158°F)
 A/TinD,M/Tin4th
 Drive at a steady speed between 24 120 km/h (15 75 mph) for 15 minutes
NOTE: DTC P0171 and/or P0172 may take up to
80 minutes of test driving to set. Using the HDS,
monitor or the air fuel feed back average (AF FB
AVE). If the AF FB AVE stays within 0.80 1.25,
there is no problem at this time.
12. Check for Temporary DTCs or DTCs with the HDS.
Go to step 1.
Troubleshooting is complete. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.
Ar e t he par t s OK ?
Di d t he engi ne speed v ar y mor e t han 100 r pm f r om2,500 rpm? Is t her e about 6.0 8.6 ( K 20Z 2 engi ne) or 5.7
8.3(K20Z3engine)gm/s?
I s DT C P017 1 or P017 2 i nd i cat ed ?
08/08/21 14:17:24 61SNR030_110_0114
ProCarManuals.com
DYNOMITE -2009-
