2005 YAMAHA VX110 Service Manual

8-28
E
HULL
HOODSEAT AND HAND GRIP
SEAT AND HAND GRIP
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
SEAT AND HAND GRIP
REMOVALFollow the left “Step” for removal.
1 Seat assembly 1
2Bolt 2
3 Seat lock assembly 1
4 Nut/washer 4/4
5Bolt 4
6 Hand grip 1
7Bolt 1
10
11 10
12
8
4
2
3
9
7
5
6
1
6 × 40 mm
6.4 N • m (0.64 kgf • m, 4.6 ft • Ib)
2
6 × 30 mm
6.9 N • m (0.69 kgf • m, 5.0 ft • Ib)
6 × 23 mm
6.9 N • m (0.69 kgf • m, 5.0 ft • Ib)
15 N • m (1.5 kgf • m, 11 ft • Ib)
10 × 20 mm
26 N • m (2.6 kgf • m, 19 ft • Ib)
LT
271
LT
271
LT
271
ProCarManuals.com

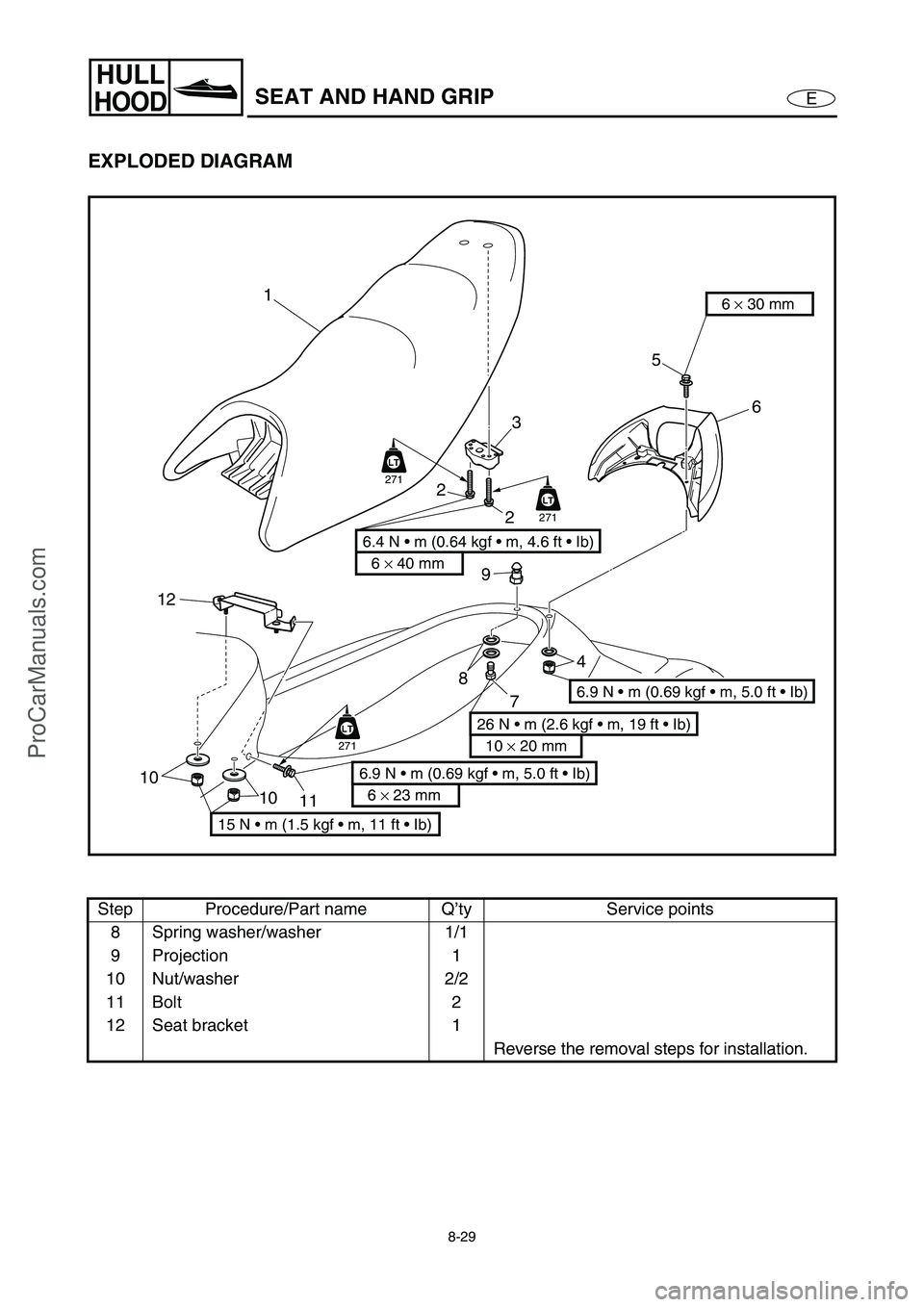

8-29
E
HULL
HOODSEAT AND HAND GRIP
EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
8 Spring washer/washer 1/1
9 Projection 1
10 Nut/washer 2/2
11 Bolt 2
12 Seat bracket 1
Reverse the removal steps for installation.
10
11 10
12
8
4
2
3
9
7
5
6
1
6 × 40 mm
6.4 N • m (0.64 kgf • m, 4.6 ft • Ib)
2
6 × 30 mm
6.9 N • m (0.69 kgf • m, 5.0 ft • Ib)
6 × 23 mm
6.9 N • m (0.69 kgf • m, 5.0 ft • Ib)
15 N • m (1.5 kgf • m, 11 ft • Ib)
10 × 20 mm
26 N • m (2.6 kgf • m, 19 ft • Ib)
LT
271
LT
271
LT
271
ProCarManuals.com

8-30
E
HULL
HOODSEAT AND HAND GRIP
SERVICE POINTS
Seat lock assembly inspection
1. Inspect:
Seat lock assembly
Damage/wear →
Replace.
ProCarManuals.com

8-31
E
HULL
HOODEXHAUST SYSTEM
EXHAUST SYSTEM
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
EXHAUST SYSTEM REMOVAL
Follow the left “Step” for removal.
Deck beam Refer to “SEAT AND HAND GRIP”.
Jet pump unit assembly Refer to “JET PUMP UNIT” in Chapter 6.
NOTE:
When removing the water lock and exhaust
joint, it is not necessary to remove the jet
pump unit.
1 Band 1
2 Joint clamp 1 1
3 Hose clamp 1 1
4 Water lock 1
3
1 2
6
7
9
85
4 14
13
15 1817
12
1116
10
F1K3.7 N • m (0.37 kgf • m, 2.7 ft • Ib)
5.4 N • m (0.54 kgf • m, 3.9 ft • Ib)
3.7 N • m (0.37 kgf • m, 2.7 ft • Ib)
3.7 N • m (0.37 kgf • m, 2.7 ft • Ib)
2nd 2.4 N • m (0.24 kgf • m, 1.7 ft • Ib) 1st 2.4 N • m (0.24 kgf • m, 1.7 ft • Ib)
2nd 2.4 N • m (0.24 kgf • m, 1.7 ft • Ib) 1st 2.4 N • m (0.24 kgf • m, 1.7 ft • Ib)
ProCarManuals.com

8-32
E
HULL
HOODEXHAUST SYSTEM
EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
5 Joint clamp 2 1
6 Joint 1
7 Joint clamp 3 1
8 Joint clamp 4 1
9 Joint 1
10 Exhaust joint 1
11 Nut/washer 6/6
12 Exhaust valve 1
13 Hose clamp 1 1
14 Rubber hose 1
3
1 2
6
7
9
85
4 14
13
15 1817
12
1116
10
F1K3.7 N • m (0.37 kgf • m, 2.7 ft • Ib)
5.4 N • m (0.54 kgf • m, 3.9 ft • Ib)
3.7 N • m (0.37 kgf • m, 2.7 ft • Ib)
3.7 N • m (0.37 kgf • m, 2.7 ft • Ib)
2nd 2.4 N • m (0.24 kgf • m, 1.7 ft • Ib) 1st 2.4 N • m (0.24 kgf • m, 1.7 ft • Ib)
2nd 2.4 N • m (0.24 kgf • m, 1.7 ft • Ib) 1st 2.4 N • m (0.24 kgf • m, 1.7 ft • Ib)
ProCarManuals.com

8-33
E
HULL
HOODEXHAUST SYSTEM
EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
15 Hose clamp 2 1
16 Water tank 1
17 Rubber hose 1
18 Plate 1
Reverse the removal steps for installation.
3
1 2
6
7
9
85
4 14
13
15 1817
12
1116
10
F1K3.7 N • m (0.37 kgf • m, 2.7 ft • Ib)
5.4 N • m (0.54 kgf • m, 3.9 ft • Ib)
3.7 N • m (0.37 kgf • m, 2.7 ft • Ib)
3.7 N • m (0.37 kgf • m, 2.7 ft • Ib)
2nd 2.4 N • m (0.24 kgf • m, 1.7 ft • Ib) 1st 2.4 N • m (0.24 kgf • m, 1.7 ft • Ib)
2nd 2.4 N • m (0.24 kgf • m, 1.7 ft • Ib) 1st 2.4 N • m (0.24 kgf • m, 1.7 ft • Ib)
ProCarManuals.com

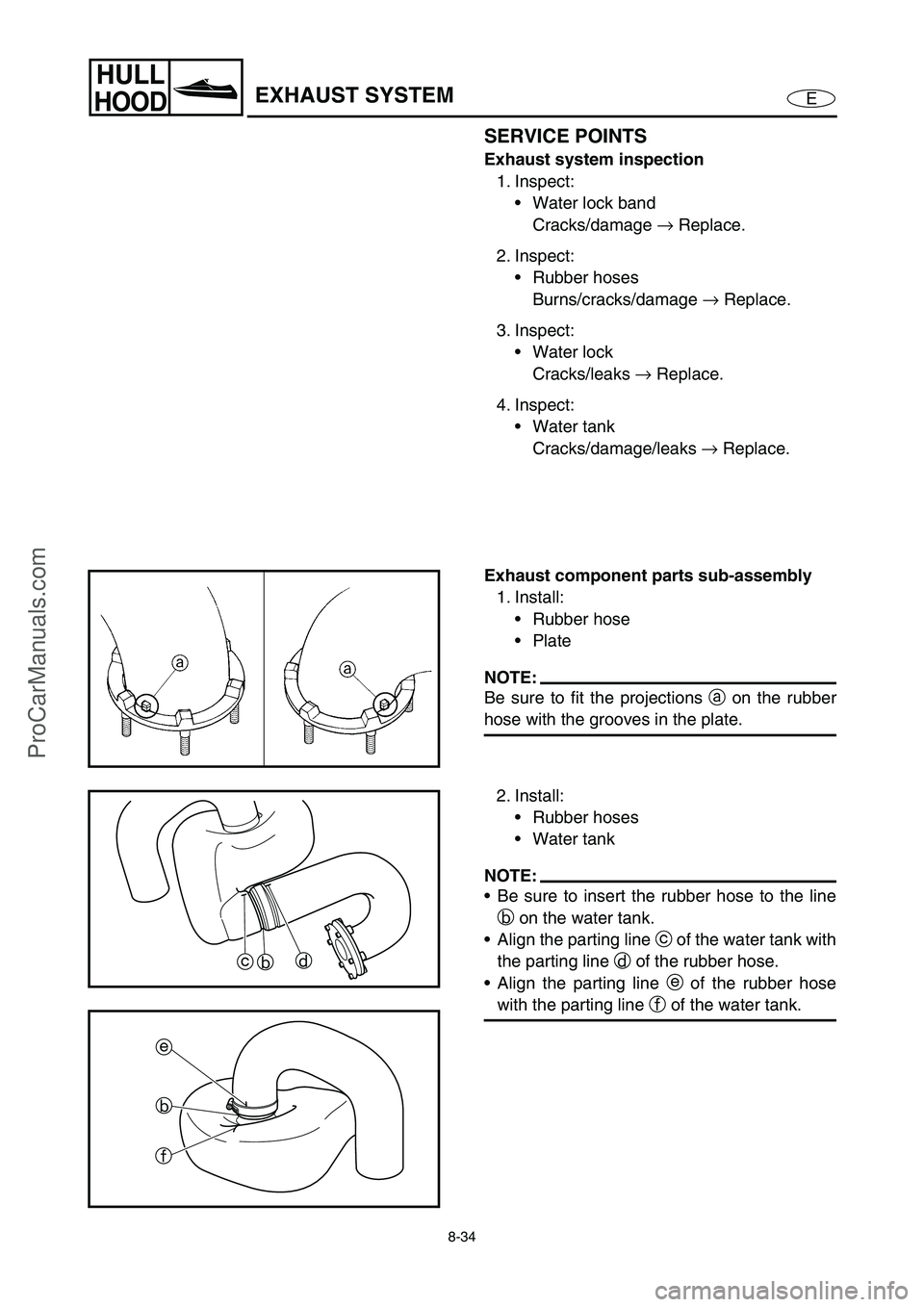

8-34
E
HULL
HOODEXHAUST SYSTEM
SERVICE POINTS
Exhaust system inspection
1. Inspect:
Water lock band
Cracks/damage →
Replace.
2. Inspect:
Rubber hoses
Burns/cracks/damage →
Replace.
3. Inspect:
Water lock
Cracks/leaks →
Replace.
4. Inspect:
Water tank
Cracks/damage/leaks →
Replace.
Exhaust component parts sub-assembly
1. Install:
Rubber hose
Plate
NOTE:
Be sure to fit the projections a
on the rubber
hose with the grooves in the plate.
2. Install:
Rubber hoses
Water tank
NOTE:
Be sure to insert the rubber hose to the line
b
on the water tank.
Align the parting line c
of the water tank with
the parting line d
of the rubber hose.
Align the parting line e
of the rubber hose
with the parting line f
of the water tank.
b cd
e
b
f
ProCarManuals.com

8-35
E
HULL
HOODEXHAUST SYSTEM
Exhaust system installation
1. Install:
Exhaust joint
NOTE:
Be sure to install the projections a
on the
exhaust pipe and exhaust joint into the slots b
in the joint.b
a a
