2005 TOYOTA PRIUS Owners Manual

49
CAUTION
Make sure the cap is installed se-
curely to prevent fuel spillage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.

50

51
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seatss 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Fold −down rear seat 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Head restraints 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Seat belts 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver and front passenger airbags 65
. . . . . . . . . . . . . . . . . . . . . . . .
SRS side airbags and curtain shield airbags 72
. . . . . . . . . . . . . . . . . . . .
Child restraint 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2– 2

52

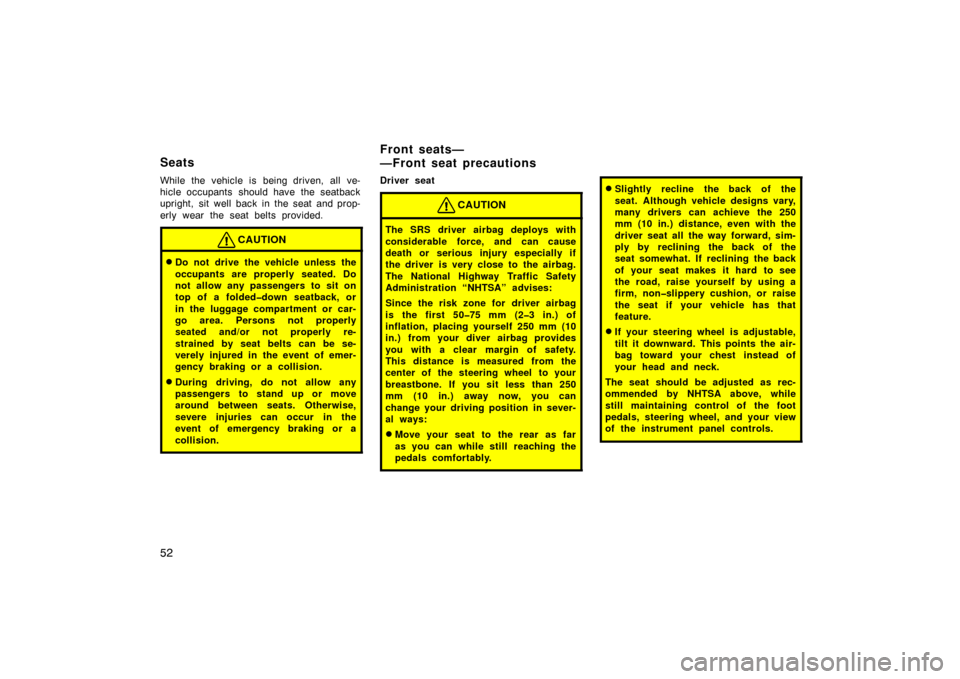

While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a foldeddown seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration “NHTSA” advises:
Since the risk zone for driver airbag
is the first 5075 mm (23 in.) of
inflation, placing yourself 250 mm (10
in.) from your diver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions

53

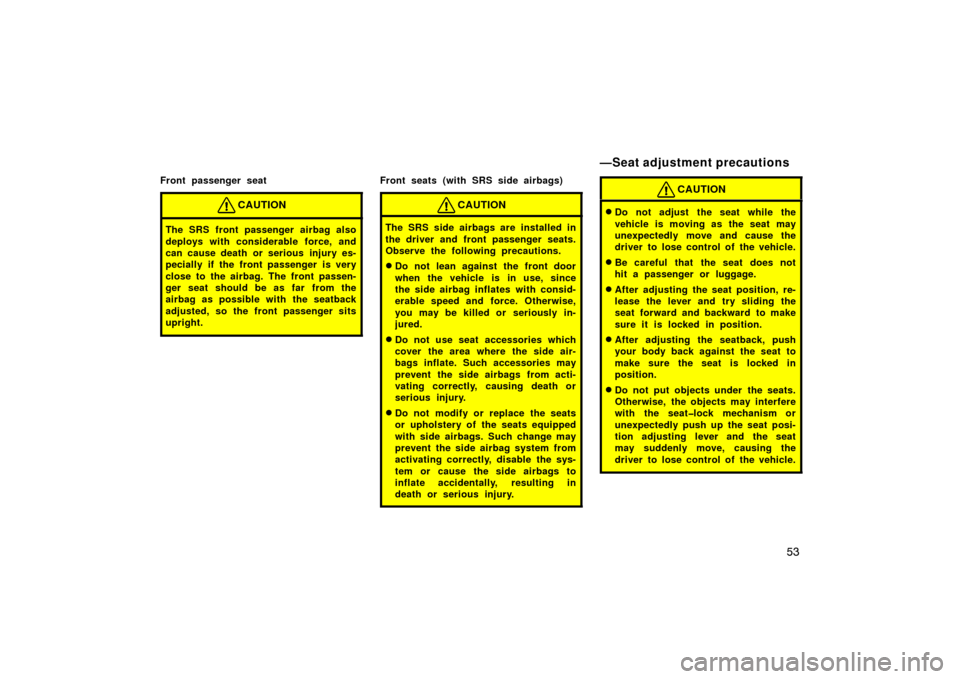

Front passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats equipped
with side airbags. Such change may
prevent the side airbag system from
activating correctly, disable the sys-
tem or cause the side airbags to
inflate accidentally, resulting in
death or serious injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
—Seat adjustment precautions

54
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise, your
hands or fingers may be caught
and injured.

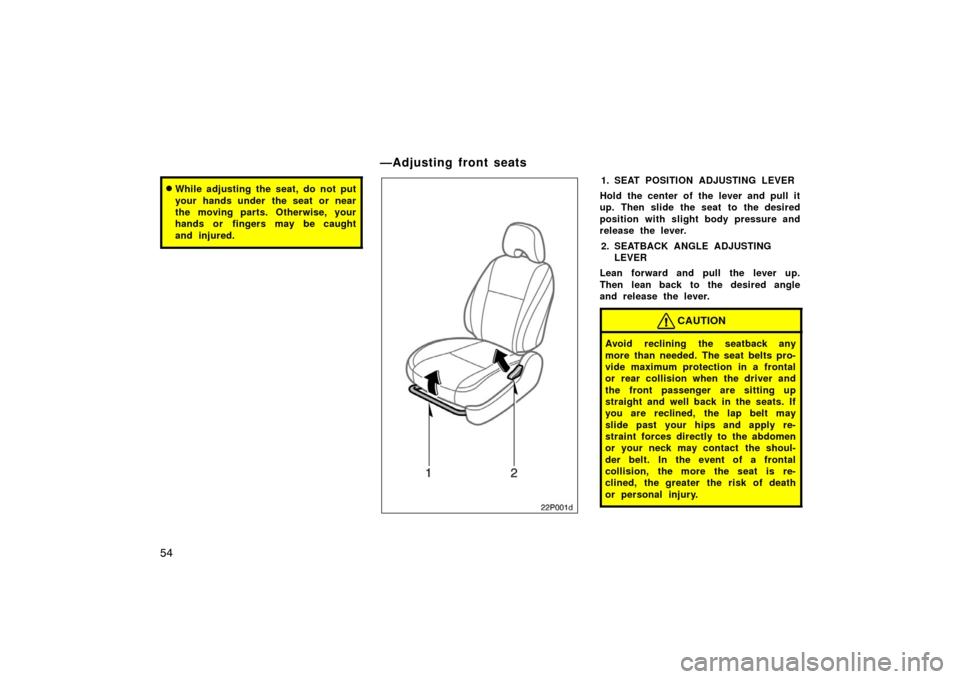

22p001d
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
—Adjusting front seats

55
22p226

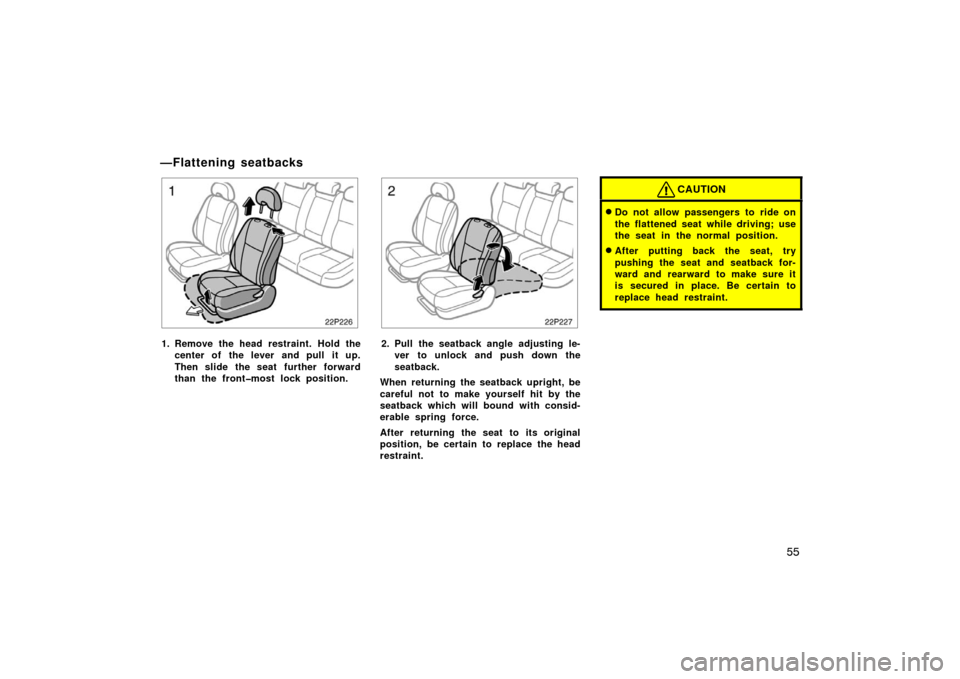

1. Remove the head restraint. Hold thecenter of the lever and pull it up.
Then slide the seat further forward
than the frontmost lock position.
22p227
2. Pull the seatback angle adjusting le-ver to unlock and push down the
seatback.
When returning the seatback upright, be
careful not to make yourself hit by the
seatback which will bound with consid-
erable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
CAUTION
Do not allow passengers to ride on
the flattened seat while driving; use
the seat in the normal position.
After putting back the seat, try
pushing the seat and seatback for-
ward and rearward to make sure it
is secured in place. Be certain to
replace head restraint.
—Flattening seatbacks

56

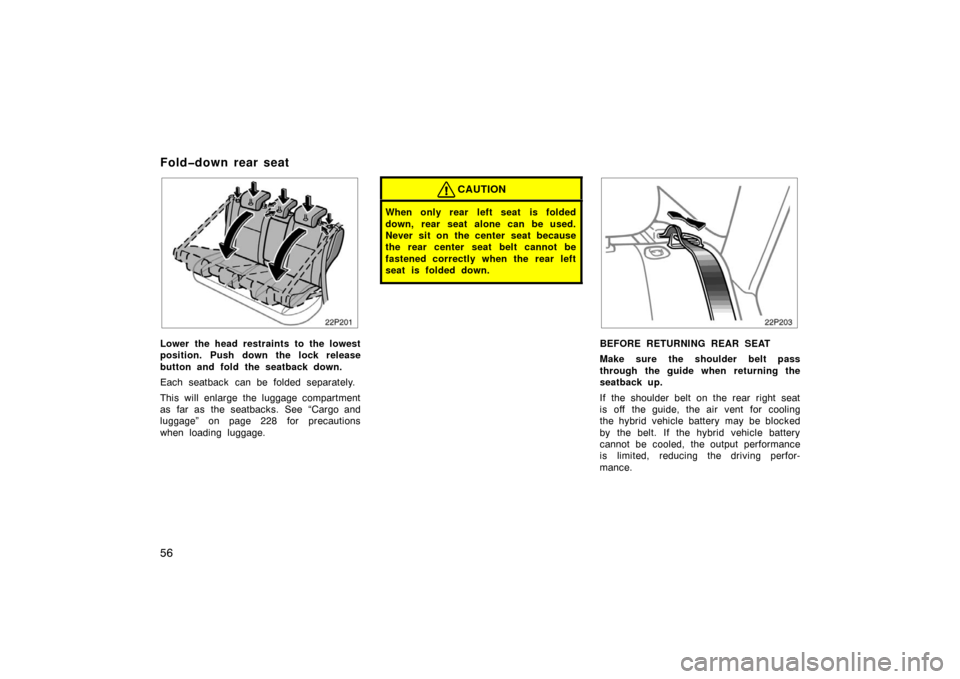

Lower the head restraints to the lowest
position. Push down the lock release
button and fold the seatback down.
Each seatback can be folded separately.
This will enlarge the luggage compartment
as far as the seatbacks. See “Cargo and
luggage” on page 228 for precautions
when loading luggage.
CAUTION
When only rear left seat is folded
down, rear seat alone can be used.
Never sit on the center seat because
the rear center seat belt cannot be
fastened correctly when the rear left
seat is folded down.
22p203
BEFORE RETURNING REAR SEAT
Make sure the shoulder belt pass
through the guide when returning the
seatback up.
If the shoulder belt on the rear right seat
is off the guide, the air vent for cooling
the hybrid vehicle battery may be blocked
by the belt. If the hybrid vehicle battery
cannot be cooled, the output performance
is limited, reducing the driving perfor-
mance.
Folddown rear seat
