2005 TOYOTA PRIUS Key light

3
1. Headlight and turn signal switches 102 . . . . . . . . . . . . . . . . . . . . . . . . .
2. Wiper and washer switches 109 . . . . . . .
3. “POWER” switch 131 . . . . . . . . . . . . . . . . .
4. Clock 192 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5. Multi −information display or
navigation system including
multi −information display
(For the navigation system,
see the separate “Navigation
System Owner ’s Manual”.) 146 . . . . . . . .
6. Emergency flasher switch 106 . . . . . . . . .
7. Trip meter reset button 115 . . . . . . . . . . .
8. Km/h or MPH button 116 . . . . . . . . . . . . .
9. Audio system 156 . . . . . . . . . . . . . . . . . . . .
10. Power outlet 192 . . . . . . . . . . . . . . . . . . . . .
11. “P” position switch 136 . . . . . . . . . . . . . . .
12. Electronic shift lever (R, N, D, B) 136 . . . . . . . . . . . . . . . . . . . . .
13. Key slot 130 . . . . . . . . . . . . . . . . . . . . . . . . .
14. Cruise control switch 142 . . . . . . . . . . . . .
15. Smart entry and start system cancel switch 33 . . . . . . . . . . . . . . . . . . . . .
16. Climate remote control switches 186 . . . . . . . . . . . . . . . . . . . . . . . . .
11p001h

13
Your vehicle is equipped with push but-
ton start system. The hybrid system
will start automatically by pressing the
“POWER” switch briefly with the brake
pedal depressed.
With smart function1. Carry the key with you.
2. Press the “POWER” switch briefly with the brake pedal depressed.
Without smart function
1. Insert the key.
2. Press the “POWER” switch briefly with the brake pedal depressed.
The “READY” light flashes and stays on.
Two beeps sound after a few seconds,
and the hybrid system will start. (If the
ambient temperature is low such as during
winter, it may take time until the “READY”
light comes on.) You cannot start your
vehicle when the brake pedal is not de-
pressed. (For details, see “How to start
the hybrid system—” on page 234.)
The engine may not start even with the
“READY” light on. Drive your vehicle with a smooth accel-
eration and deceleration.
While driving, energy is recovered
through the regenerative brake as the
vehicle decelerates. However, for more
efficient use, do not accelerate or de-
celerate your vehicle more than neces-
sary.
Avoid abrupt acceleration and decelera-
tion.
The remaining capacity of the hybrid
vehicle battery can be confirmed on
the energy monitor screen of the multi
−
information display. See “Information”
on page 150 for details. Gradual or
non− abrupt acceleration or deceleration
will more effectively use the benefits of
an electric motor without having to use
gasoline engine power. When parking, be sure to put the hy-
brid transaxle in “P”. While driving, use
the hybrid transaxle in “D”.
In “N”, the gasoline engine operates
but electricity cannot be generated. The
battery will be discharged requiring un-
necessary engine power to recharge.
The hybrid system automatically re-
charges the hybrid vehicle battery
when the remaining battery power is
reduced. However, the charging is not
available if the hybrid transaxle is “N”.
Starting your vehicle
For efficient use of your
vehicle

15
These high voltage parts or cables
consisting of an electromagnetic
shielding structure produce relatively
the same amount of electromagnetic
waves as conventional gasoline
fueled vehicles or home electric ap-
pliances.
As unwanted noise may occur in the
reception of mobile radios, contact
your Toyota dealer for installation or
removal.
Always keep your hybrid vehicle’s driv-
ing characteristics in mind.
CAUTION
The driver should pay full attention
around the vehicle especially when it
is driven only by the electric motor
(with the gasoline engine stopped).
People in the immediate area might
misjudge the hybrid vehicle move-
ment based on the absence of the
regular engine noise.
As the vehicle runs with both the gaso-
line engine and electric motor, you may
hear a motor sound coming from the
engine compartment.
When the hybrid system is started or
stopped, you may hear a sound coming
from the hybrid vehicle battery in the
luggage compartment. However, this
does not indicate any trouble.
If the “READY” light is on, you can
start even though the gasoline engine
may be off.
When you shift the shift lever to “B”
and release it to its original position
and your foot from the accelerator ped-
al, engine braking will be applied. How-
ever, during high speed driving you
may feel that deceleration by engine
braking is less than that of ordinary
vehicle.
Be sure to put the hybrid transaxle in
“P” when parking.
In “N”, the hybrid vehicle battery assembly
is not charged, even if the gasoline en-
gine is operating. You cannot run your
vehicle if the hybrid transaxle is left in “N”
for a long time because the hybrid vehicle
battery assembly will be discharged. When you leave your vehicle, apply the
parking brake to put the hybrid trans-
axle in “P” and be sure to carry the
key with you and lock all the doors.
If you leave the hybrid system in “ACC”
or “IG
−ON”, the hybrid system may not
start because the auxiliary battery will be
discharged.
CAUTION
When you leave your vehicle, be
sure to shut off the hybrid system.
Be sure to put the hybrid transaxle
in “P” because the vehicle can start
with the “READY” light on and the
engine stopped (no engine sound
and vibration). When the “READY”
light is on, if you leave your ve-
hicle in shift position other than
“P” and “N”, the vehicle will creep
and start abruptly with the accelera-
tor pedal being depressed by mis-
take. This may cause death or seri-
ous injury.

20
Keys
21p001a
1. Master keys with silver ornament (Ve-hicles equipped with smart entry and
start system)—These keys work in ev-
ery lock. Your Toyota dealer will need
one of them to make a new key with
a built −in transponder chip. Before you
use these keys, be sure to read “Smart
entry and start system” on page 24.
2. Master keys without silver ornament (Vehicles not equipped with smart entry
and start system)—These keys work in
every lock. Your Toyota dealer will
need one of them to make a new key
with a built −in transponder chip.
3. Mechanical keys (attached to the mas- ter key)—These key work for the driv-
er ’s door only.
21P112
USING A MECHANICAL KEY
When you use the mechanical key in-
cluded on the side of the key, slide the
lock knob in the arrow direction and take
out the key as shown. To put the key
back, slide the lock knob in the arrow
direction and replace the key. Be sure to
put the key back when not in use.
Since the doors can be locked without a
key, you should always carry a spare
master key in case you accidentally lock
your keys inside the vehicle.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
Do not affix any material that cuts
off electromagnetic waves (such as
a metal seal) on the key.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard or hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not keep the key together with
the products emitting electromag-
netic waves such as a cellular
phone.

21
21p005a
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
21p113
DEACTIVATION USING THE SMART
FUNCTION
The hybrid vehicle immobilizer system
is a shift prevention system. When you
enter the vehicle carrying a smart key
and press the “POWER” switch, the
electronic code in the key is automati-
cally checked to determine whether it
corresponds to the registered ID code
for the vehicle. If the ID code is veri-
fied, you can start the hybrid system.
21p007b
The system is automatically set when the
hybrid system is off and driver ’s door is
opened. The indicator light will start flash-
ing to show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 45.)
The indicator light does not start flash-
ing when the hybrid system is off and
driver ’s door is opened.
The indicator light flashes inconsistent-
ly.
Hybrid vehicle immobilizer
system

22
Carrying a smart key and pressing the
“POWER” switch automatically cancels the
system, which enables the hybrid system
to start. The indicator light will go off.
For your Toyota dealer to make you a
new key with built −in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
NOTICE
Do not modify, remove or disas-
semble the hybrid vehicle immobilizer
system. If any unauthorized changes
or modifications are made, proper op-
eration of the system cannot be guar-
anteed.
21p006a
DEACTIVATION USING THE KEY
The hybrid vehicle immobilizer system
is a theft prevention system. When you
insert the key in the key slot, the trans-
ponder chip in the key transmits an
electronic code to the vehicle. The hy-
brid system will start only when the
electronic code in the chip corresponds
to the registered ID code for the ve-
hicle.
21p007b
The system is automatically set when the
key is removed from the key slot. The
indicator light will start flashing to show
the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 45.)
The indicator light does not start flash-
ing when the key is removed from the
key slot.
The indicator light flashes inconsistent-
ly.

23
Inserting the registered key in the key slot
automatically cancels the system, which
enables the hybrid system to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
NOTICE
Do not modify, remove or disas-
semble the hybrid vehicle immobilizer
system. If any unauthorized changes
or modifications are made, proper op-
eration of the system cannot be guar-
anteed.

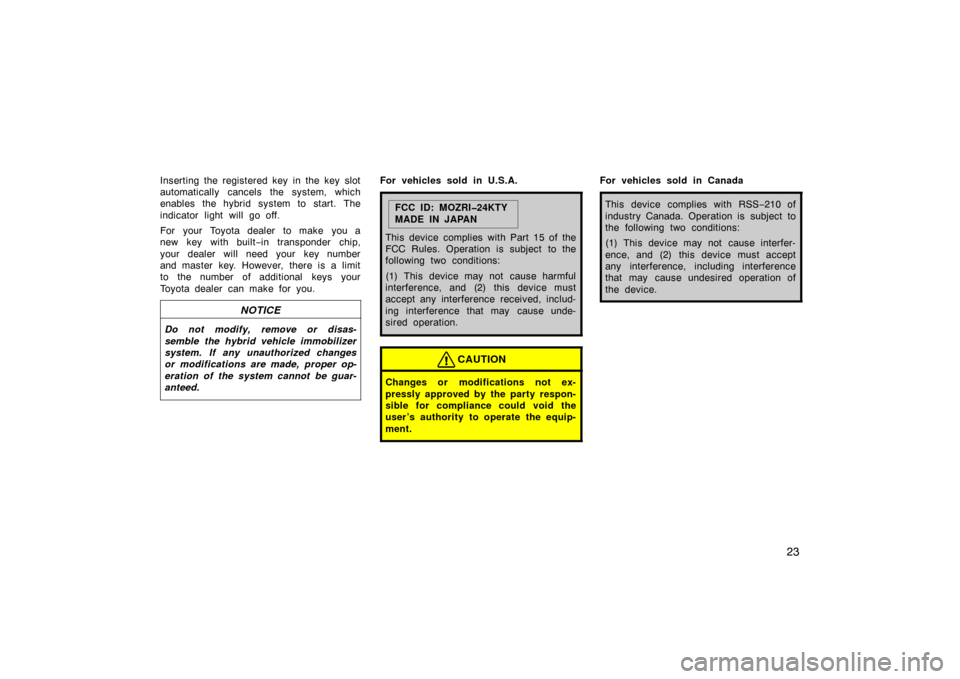

For vehicles sold in U.S.A.
FCC ID: MOZRI24KTY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS −210 of
industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

25

If you do not drive your vehicle,
store the smart key, keeping it at
least 5 m (16 ft.) away from the ve-
hicle.
ALARMS AND WARNING LIGHT
Your vehicle is equipped with alarms
inside and outside, as well as warning
light in the instrument cluster, that re-
mind you if there is a problem involv-
ing the smart entry and start system.
This warning light will come on when the
“IG
−ON” mode is enabled and will go off
after a few seconds.
If an alarm sounds or the warning light
comes on, be sure to check your ve-
hicle and smart key. (a) The hybrid system was not turned
off and the transaxle was in a posi-
tion other than “P”.
When the driver ’s door is opened with the
hybrid system in “ACC” or “IG −ON” and
with the transaxle in a position other than
“P”.
Inside alarm: Beeps continuously
Multiinformation display: Warning mes-
sage
Alarms will be turned off by any of the
following operations:Closing the driver ’s door
Pressing the “P” position switch
Turning on the hybrid system
Turning off the hybrid system
