2005 TOYOTA PRIUS Key light

11 8
If the indicator or buzzer comes on...Do this.
(g)Take vehicle to Toyota dealer immediately.
(h)Close all doors.
(i)Fill up tank.
(j)Replace engine oil
(k)Take vehicle to Toyota dealer. If red brake system warning light is also on, stop imme-
diately and contact Toyota dealer.
(l)Key reminder buzzerRemove key.
(m)P position reminder
buzzerPush the “P” position switch.
If any warning comes on, the hybrid system may not start by pushing the “POWER” switch. In that case, push it once again.

123
Hold down the button for at least 5 sec-
onds. The odometer indicates “000000”
and the light goes off.
If the system fails to reset, the light will
remain flashing.
(k) “VSC” warning light
This light warns that there is a problem
somewhere in the vehicle stability control
system.
The light will come on when the “IG−ON”
mode is enabled and will go off after the
“READY” light comes on.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the “IG −ON” mode is enabled.
The warning light remains on after the
“READY” light comes on.
The warning light comes on while you
are driving.
CAUTION
If the “VSC” warning light remains on
together with the red brake system
warning light, immediately stop your
vehicle at a safe place and contact
your Toyota dealer.
In this case, not only the vehicle sta-
bility control system will fail but also
the vehicle will become extremely un-
stable during braking.
(l) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key if you open the driver’s door when
the hybrid system is off and the key is
inserted into the key slot.
(m) Shift Position Reminder Buzzer
This buzzer will sound if the driver ’s door
is opened while the hybrid transaxle is in
“N”, “D” or “B”. CHECKING SERVICE REMINDER INDICA-
TORS (except the low fuel level indica-
tor light)
1. Apply the parking brake.
2. Open one of the doors. The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Press the “POWER” switch twice with- out pressing the brake pedal to select
the “IG −ON” mode. At this time, all the
bulbs are checked in self −diagnosis
mode.
All the service reminder indicators ex-
cept the open door warning light come
on. The yellow brake system, “ABS”
and “VSC” warning lights go off after
a few seconds.
There may be the case that the yellow
brake system, “ABS” and “VSC” warning
lights stay on for about 60 seconds after
the “IG −ON” mode is enabled. It is normal
if they go out after a while.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.

131
Do not pull out the key ring when
removing the key out of the key
slot.
Should you find anything unusual,
contact your Toyota dealer as soon as
possible.

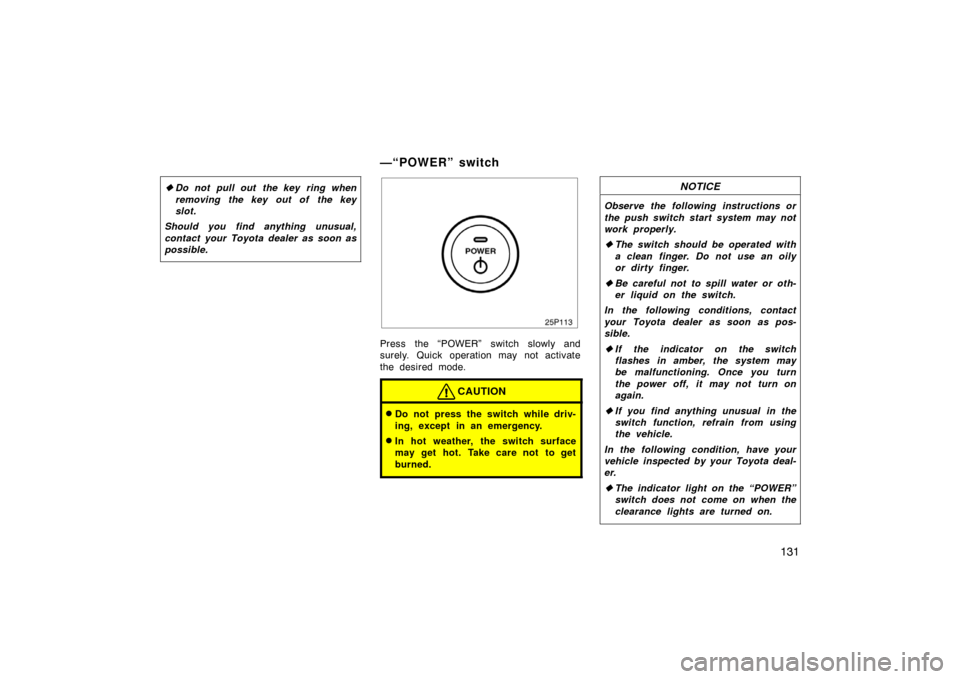

25p113
Press the “POWER” switch slowly and
surely. Quick operation may not activate
the desired mode.
CAUTION
Do not press the switch while driv-
ing, except in an emergency.
In hot weather, the switch surface
may get hot. Take care not to get
burned.
NOTICE
Observe the following instructions or
the push switch start system may not
work properly.
 The switch should be operated with
a clean finger. Do not use an oily
or dirty finger.
 Be careful not to spill water or oth-
er liquid on the switch.
In the following conditions, contact
your Toyota dealer as soon as pos-
sible.
 If the indicator on the switch
flashes in amber, the system may
be malfunctioning. Once you turn
the power off, it may not turn on
again.
 If you find anything unusual in the
switch function, refrain from using
the vehicle.
In the following condition, have your
vehicle inspected by your Toyota deal-
er.
 The indicator light on the “POWER”
switch does not come on when the
clearance lights are turned on.
—“POWER” switch

234
1. Check the area around the vehicle be-fore entering it.
2. Adjust seat position, seatback angle, head restraint height and steering
wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts.
When you get in the vehicle, check
whether the “READY” light is on or
not.
CAUTION
Your vehicle does not produce any
noise or vibration when the vehicle is
ready to be driven with the “READY”
light on. Move your foot carefully
from the brake pedal to the accelera-
tion pedal when driving.
1. Apply the parking brake firmly.
2. Turn off unnecessary lights and acces- sories.
3. Depress the brake pedal and hold it to the floor until driving off.
40p102a
Before starting the hybrid system, be sure
to follow the instructions in “(a) Before
starting the hybrid system”.
Normal starting procedure
Carry the key and press the “POWER”
switch briefly and firmly with the brake
pedal depressed. The “READY” light starts
blinking. After a few seconds, the blinking
“READY” light remains on and two beeps
sound. (If the ambient temperature is low,
such as during winter driving conditions,
it may take time until the “READY” light
is on.)
The engine may not start even with the
“READY” light on.
Before starting the hybrid
system How to start the hybrid
system— (a) Before starting
the hybrid system
( b ) Tu rn in g on th e hyb rid
system (Using the smart
function—on some models)

235
You may hear a motor sound in the en-
gine compartment when the brake pedal is
depressed with the hybrid system off.
When the hybrid system is started or
stopped, you may hear a sound coming
from the hybrid vehicle battery in the lug-
gage compartment. However, this does not
indicate any trouble.
If there is a problem somewhere in the
hybrid system, the hybrid system malfunc-
tion warning light will come on in place of
the “READY” light. If this happens, contact
your Toyota dealer.
CAUTION
Never start the hybrid system from
outside the vehicle, or an accident
may occur. Be sure to sit on the driv-
er seat, then start the system when
driving.
NOTICE
The hybrid system cannot be
started when the shift position is
“N”. Be sure to put it in “P” and
then start the system.
 If any warning light comes on (See
page 117 for details.) or the auxilia-
ry battery is disconnected, the hy-
brid system may not start by push-
ing the “POWER” switch. In that
case, push it once again. If the
“READY” light does not come on,
contact your Toyota dealer.
 When you start the hybrid system
at a lowered outside temperature, it
may take longer before the blinking
“READY” light changes to stay on.
40p002c
Before starting the hybrid system, be sure
to follow the instructions in “(a) Before
starting the hybrid system”.
Normal starting procedure
Insert the key and press the “POWER”
switch briefly and firmly with the brake
pedal depressed. The “READY” light starts
blinking. After a few seconds, the blinking
“READY” light remains on and two beeps
sound. (If the ambient temperature is low,
such as during winter driving conditions,
it may take time until the “READY” light
is on.)
The engine may not start even with the
“READY” light on.
(b) Turning on the hybrid
system (Using the key)

243

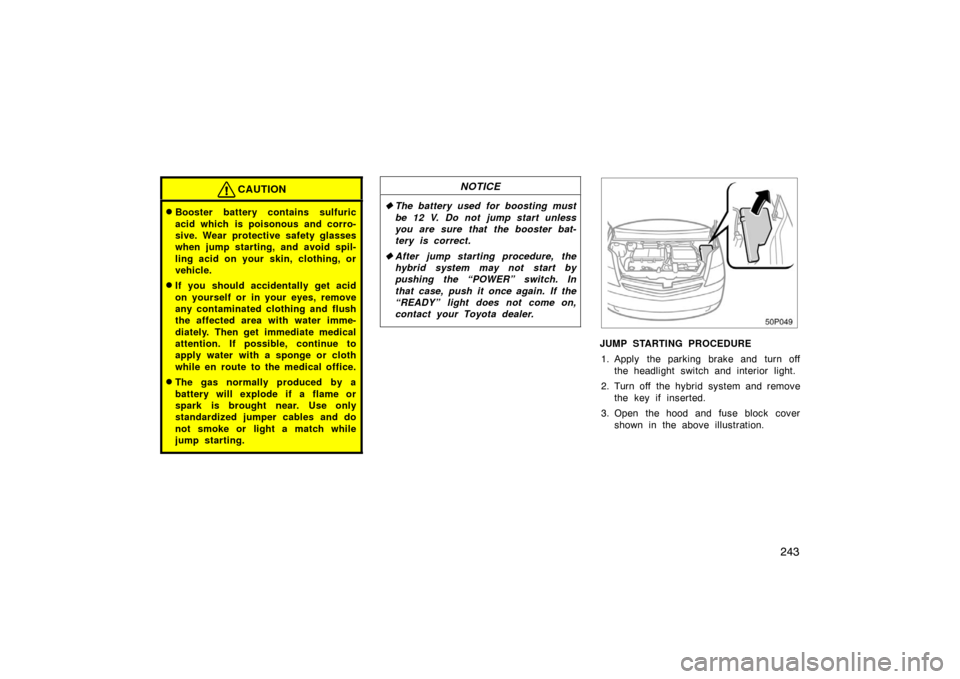

CAUTION
Booster battery contains sulfuric
acid which is poisonous and corro-
sive. Wear protective safety glasses
when jump starting, and avoid spil-
ling acid on your skin, clothing, or
vehicle.
If you should accidentally get acid
on yourself or in your eyes, remove
any contaminated clothing and flush
the affected area with water imme-
diately. Then get immediate medical
attention. If possible, continue to
apply water with a sponge or cloth
while en route to the medical office.
The gas normally produced by a
battery will explode if a flame or
spark is brought near. Use only
standardized jumper cables and do
not smoke or light a match while
jump starting.
NOTICE
The battery used for boosting must
be 12 V. Do not jump start unless
you are sure that the booster bat-
tery is correct.
 After jump starting procedure, the
hybrid system may not start by
pushing the “POWER” switch. In
that case, push it once again. If the
“READY” light does not come on,
contact your Toyota dealer.
50p049
JUMP STARTING PROCEDURE
1. Apply the parking brake and turn off the headlight switch and interior light.
2. Turn off the hybrid system and remove the key if inserted.
3. Open the hood and fuse block cover shown in the above illustration.

315
AUXILIARY BATTERY
Open voltage at 20C (68 F):
12.6 − 12.8 V Fully charged
12.2 − 12.4 V Half charged
11 . 5 − 11.9 V Discharged
[Voltage that is checked 20 minutes after
the key is removed with all the lights
turned off]
Charging rates: 3.5 A max.
HYBRID TRANSAXLE
Fluid capacity (drain and refill),
L (qt., Imp.qt.): 3.6 (3.8, 3.2)
Fluid type: “Toyota Genuine ATF WS” or
equivalent
Please contact your Toyota dealer for further
details. BRAKES
Minimum pedal clearance when depressed
with the force of 196 N (20 kgf, 44 lbf)
with the traction motor running, mm (in.):
101.0 (3.98)
Pedal free play, mm (in.): 1 − 4 (0.04 − 0.16)
Parking brake adjustment when depressed
with the force of 294 N (30 kgf, 66 lbf): 6 − 9 clicks
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Tires
Tire size and inflation pressure:
Tire size kPa (kgf/cm
2 or ba r, ps i )
Standard Front P185/65R15 86S
240 (2. 4, 35)
Rear
P185/65R15 86S 230 (2. 3, 33)
Spare T125/70D16 96M
420 (4. 2, 60)
Wheel size: Standard 15 x 6JJ
S par e 16 x 4T
Wheel nut torque, N·m (kgf·m,
ft·lbf): 103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires
or replacing wheels), see
“Checking tire inflation pres-
sure” through “Aluminum
wheel precautions”, page
291 through 298.
