Light bulbsBulbNo.WTy p e
Headlights
Discharge headlights
Halogen headlights
—
—35
60/55A
B
Front fog lights900651C
Parking lights—5D
Front turn signal
lights—21D
Rear turn signal lights—21D
Tail lights—5D
Back −up lights744021D
License plate lights—5D
Interior lights—8E
Personal lights—5D
Door courtesy lights—5D
Vanity lights—5E
Luggage compart-
ment light—5E
A: D2R Discharge bulbs
B: HB2 Halogen bulbs
C: HB4 Halogen bulbs
D: Wedge base bulbs
E: Double end bulbs
—Headlights
83p030
1. Open the hood. Remove the clips
and take out the cover.
Remove and install the clips as shown in
the following illustrations.
83p031
Removing clip
83p032
Installing clip

306
83p010a
2. RIGHTHAND HEADLIGHT ONLY: Re-move the clip and take out the air
cleaner inlet.
Remove and install the clip as shown in
the following illustrations.
83p011
Removing clip
83p012
Installing clip
83p013a
3. Unplug the connector. Turn the bulb cover counterclockwise and remove
it.
If the connector is tight, wiggle it.

307
83p014a

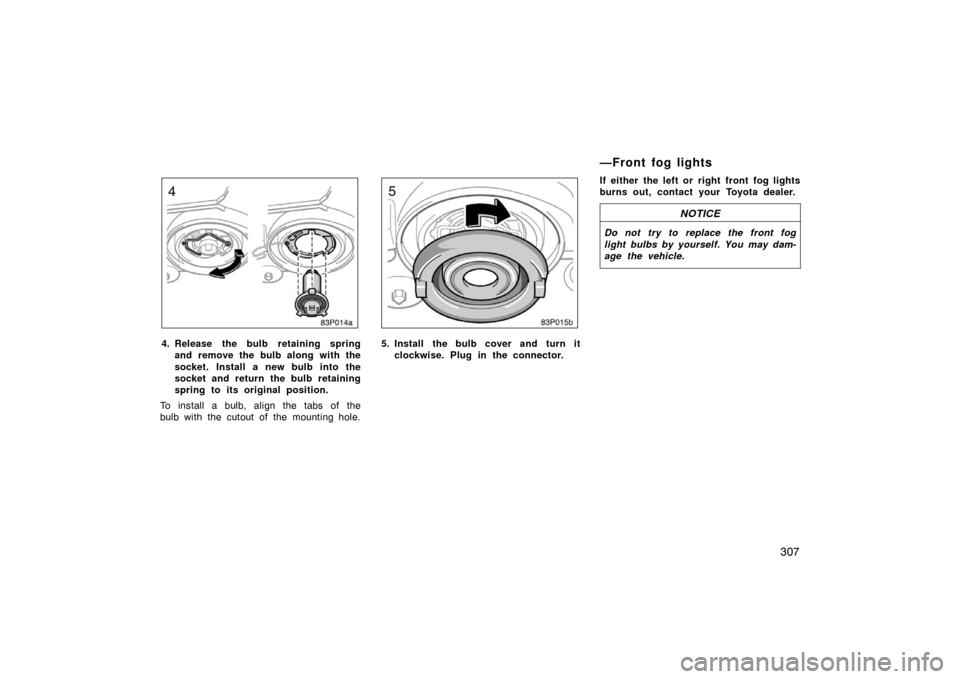

4. Release the bulb retaining springand remove the bulb along with the
socket. Install a new bulb into the
socket and return the bulb retaining
spring to its original position.
To install a bulb, align the tabs of the
bulb with the cutout of the mounting hole.
83p015b
5. Install the bulb cover and turn it clockwise. Plug in the connector. If either the left or right front fog lights
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.
—Front fog lights

308

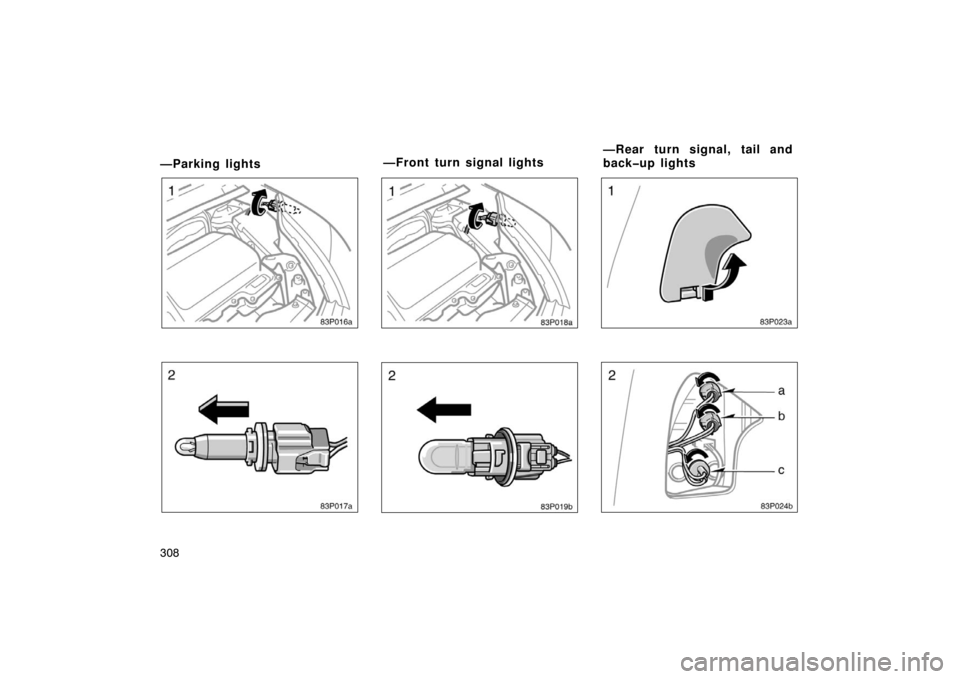

—Parking lights
83p016a
83p017a
83p018a
83p019b
83p023a
83p024b

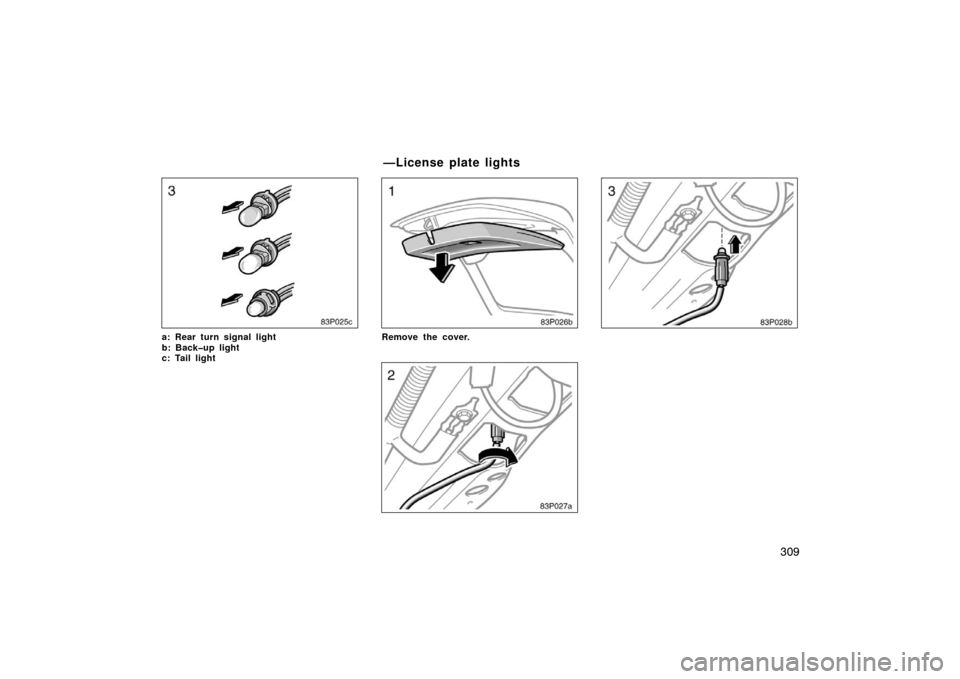

—Front turn signal lights—Rear turn signal, tail and
backup lights

309
83p025c
a: Rear turn signal light
b: Backup light
c: Tail light
83p026b
Remove the cover.
83p027a
83p028b
—License plate lights

310

311
SPECIFICATIONS
Dimensions and weight312
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Electric motor 312
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Enginee 312
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Fuel 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Hybrid vehicle battery 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Service specifications 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 315
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 9

312
Overall length mm (in.) 4445 (175.0)
Overall width mm (in.) 1725 (67.9)
Overall height mm (in.) 1500 (59.1)*
Wheelbase mm (in.) 2700 (106.3)
Front tread mm (in.) 1505 (59.3)
Rear tread mm (in.) 1480 (58.3)
Vehicle capacity weight
(occupants + luggage)kg (lb.) 385 (845)
*: Unladen vehicle
Electric motor
Type: Permanent magnet synchronous motor (water cooling)
Maximum output: 50/1200 − 1540 kW/rpm
Maximum torque: 400/0 − 1200 N·m/rpm Model: 1NZ
−FXE
Type: 4 −cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 75.0 x 84.7 (2.95 x 3.33)
Displacement, cm
3 (cu. in.):
1497 (91.4)
Dimensions and weight Engine
