2005 TOYOTA PRIUS Owners Manual

161
26p140a
TONE AND BALANCE
Touching the “SOUND” switch on the
screen displays the sound adjustment
screen.BASS “+” or “–”: Adjusts low−pitched
tones.
MID “+” or “–” (Type 2 only): Adjusts
mid −pitched tones.
TREB “+” or “–”: Adjusts high−pitched
tones.
“FRONT” or “REAR”: Adjusts sound bal-
ance between the front and rear speakers.
“L” or “R”: Adjusts sound balance be-
tween the left and right speakers.
“OK”: The previous screen returns. How good an audio program sounds to
you is largely determined by the mix of
the treble, mid−
range, and bass levels.
In fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, mid− range and bass.
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.

162
YOUR RADIO ANTENNA
To remove an antenna on the roof, care-
fully turn it counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure to remove it before driving
your Toyota through an automatic car
wash.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should be to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
YOUR COMPACT DISC PLAYER
When you insert a disc, gently push it in
with the label side up.
The discs set in the player are played
continuously, starting with disc number 1.
The disc number of the disc currently be-
ing played, the track number and the time
from the beginning of the program appear
on the display.
Type 2 only:
When play of one disc ends, the first
track of the following disc starts. When
play of the final disc ends, play of the
first disc starts again.
The player will skip any empty disc num-
ber.
NOTICE
Do not stack up two discs for in-
sertion, or it will cause damage the
compact disc player. Insert only one
compact disc into slot at a time.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.

163
(a) Listening to the radio
Push these buttons to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the dis-
play.Push and turn this knob to step up the
station band or to step down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to pre-
vent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion. In this case, “ST” disappears from
the display.
26p141a
(b) Presetting a station1. Tune in the desired station.
2. Touch one of the station selector switches (16) and hold it until a
beep is heard. This sets the station
to the switch and the frequency ap-
pears on the switch.
Each switch can store FM1, FM2 and AM.
To change the preset station to a different
one, follow the same procedure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.
Radio operation

164
(c) Selecting a station
Tune in the desired station using one of
the following methods.
Preset tuning: Touch the switch (1 −6) for
the station you want. The switch (1 −6) is
highlighted in green and station frequency
appears on the display.
Manual tuning: Turn the “TUNE” knob
briefly. Each time you turn the knob, the
radio will step up or down to another fre-
quency.
Seek tuning: Push the “SEEK TRACK”
button on either side. The radio will begin
seeking up or down for a station of the
nearest frequency and will stop on recep-
tion. Each time you push the button, the
stations will be searched out one after
another.
26p126
Scan tuning: Push the “SCAN” button or
touch the “SCAN” switch (AM mode only)
briefly. “SCAN” appears on the display.
The radio will find the next station up or
down the band, stay there for a few se-
conds, and then scan again. To select a
station, push the “SCAN” button a second
time.
Preset scan tuning: Push the “SCAN”
button or touch the “SCAN” switch (AM
mode only) and hold it until you hear a
beep. “P. SCAN” appears on the display.
The radio will tune in the next preset sta-
tion up or down the band, stay there for
a few seconds, and then move to the next
preset station. To select a station, push
the “SCAN” button a second time.
26p142a
(d) RDS (Radio Data System)
(1) Program type
Each time you touch the “TYPE ” or
“TYPE ” switch, the program type
changes as in the following:
ROCK
EASY LIS (Easy listening)
CLS JAZZ (Classical music and Jazz)
R&B (Rhythm and Blues)
INFORM (Information)
RELIGION
MISC
ALERT (Emergency message)

165
26p143a
When you touch the “TYPE
” or “TYPE
 ”, “TYPE SEEK” switch appears. Touch
the switch and the system starts to seek
the station in the relevant program type. (2) Traffic program:
A station that regularly broadcasts traf-
fic information is automatically located.
When you touch the “TRAF” switch,
“TRAF SEEK” appears on the display and
the radio will start seeking any traffic pro-
gram station.
If any traffic program station is not found,
“NOTHING” appears and the previous
mode returns.
If the traffic program station is found, the
name for traffic program station is dis-
played and “TRAF” is lit for a while until
traffic announcement is received.
26p144a
(3) Radio textIf the system receives a radio text from
RDS station, “MSG” appears on the dis-
play. Touch the “MSG” switch, and a text
message is displayed on the screen.

166
26p145b
In case a text message is not accepted
in a screen, you can touch the “MSG”
switch and hold it to display the rest of
the message.
When the system can show the station
name, “RDS” appears on the display.
Each time you touch the “MSG” switch,
indication on the display changes from the
band to the station name, a radio text in
this order. After six seconds passes, indi-
cation returns to the band.
26p127
(a) Playing a cassette tape
When you insert a cassette tape, the
exposed tape should face to the right.
The player will automatically start when
you insert a cassette tape. At this time,
“Tape” appears on the display.
If a metal or chrome equivalent cassette
tape is put in the cassette player, the
player will automatically recognize it and
“MTL” appears on the display.
To stop or eject the cassette tape, push
the “
” button.
26p146a
If a cassette is already in the slot, push
the “TAPE” button.
Dolby Noise Reduction* feature: If you
are listening to a tape that was recorded
with Dolby  B Noise Reduction, touch the
“
” switch. The “” switch will be
highlighted in green. Touch the switch
again to turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this switch on
or off according to the mode used for
recording the tape.
Cassette tape player operation
( Typ e 2 on ly)

167
* Dolby noise reduction manufactured un-
der license from Dolby Laboratories Li-
censing Corporation. “DOLBY” and the
double−D symbol
are trademarks of
Dolby Laboratories Licensing Corporation.
26p147a

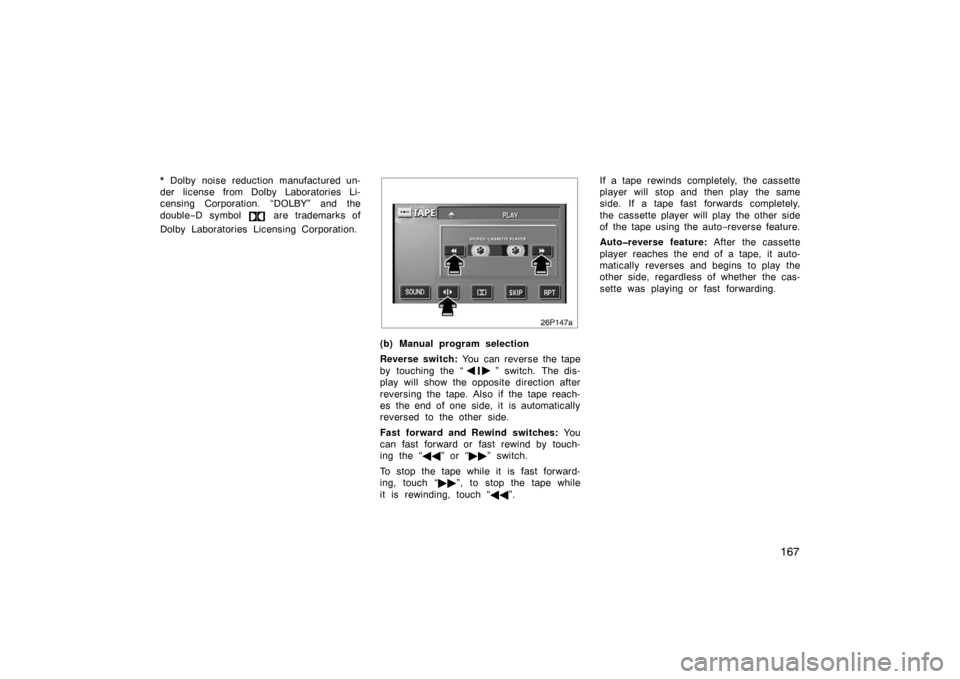

(b) Manual program selection
Reverse switch: You can reverse the tape
by touching the “
” switch. The dis-
play will show the opposite direction after
reversing the tape. Also if the tape reach-
es the end of one side, it is automatically
reversed to the other side.
Fast forward and Rewind switches: Yo u
can fast forward or fast rewind by touch-
ing the “ ” or “” switch.
To stop the tape while it is fast forward-
ing, touch “ ”, to stop the tape while
it is rewinding, touch “ ”. If a tape rewinds completely, the cassette
player will stop and then play the same
side. If a tape fast forwards completely,
the cassette player will play the other side
of the tape using the auto
−reverse feature.
Autoreverse feature: After the cassette
player reaches the end of a tape, it auto-
matically reverses and begins to play the
other side, regardless of whether the cas-
sette was playing or fast forwarding.

168
26p148a

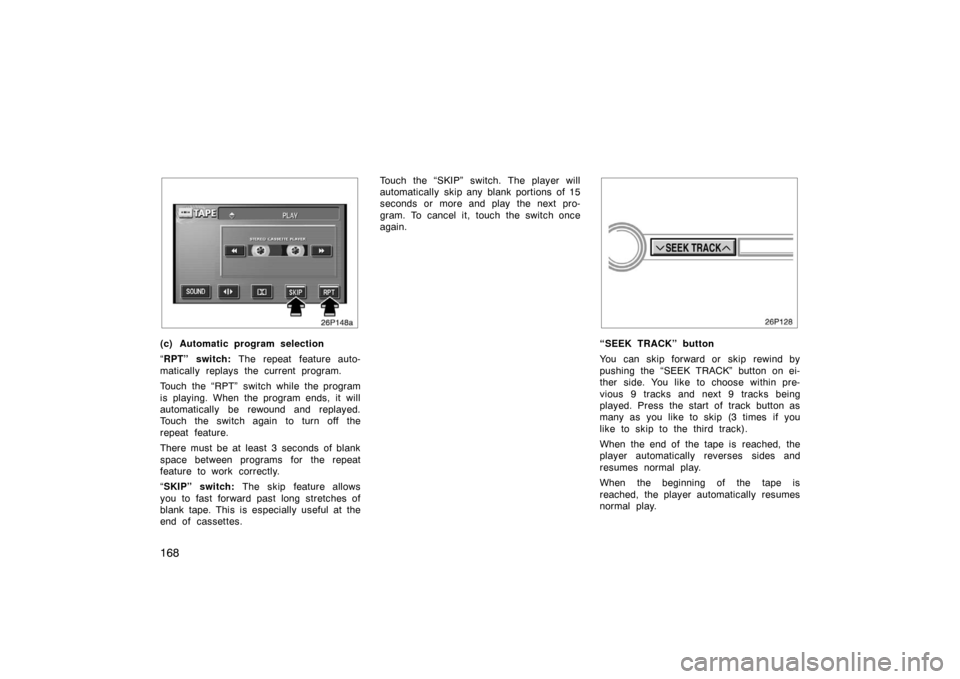

(c) Automatic program selection
“RPT” switch: The repeat feature auto-
matically replays the current program.
Touch the “RPT” switch while the program
is playing. When the program ends, it will
automatically be rewound and replayed.
Touch the switch again to turn off the
repeat feature.
There must be at least 3 seconds of blank
space between programs for the repeat
feature to work correctly.
“ SKIP” switch: The skip feature allows
you to fast forward past long stretches of
blank tape. This is especially useful at the
end of cassettes. Touch the “SKIP” switch. The player will
automatically skip any blank portions of 15
seconds or more and play the next pro-
gram. To cancel it, touch the switch once
again.“SEEK TRACK” button
You can skip forward or skip rewind by
pushing the “SEEK TRACK” button on ei-
ther side. You like to choose within pre-
vious 9 tracks and next 9 tracks being
played. Press the start of track button as
many as you like to skip (3 times if you
like to skip to the third track).
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
When the beginning of the tape is
reached, the player automatically resumes
normal play.
