The compact spare tire can be used
many times, if necessary. It has tread
life of up to 4800 km (3000 miles) de-
pending on road conditions and your
driving habits. When tread wear indi-
cators appear on the tire, replace the
tire.
See also the tire information on page
293 for details on the tread wear indi-
cators and other service information.
CAUTION

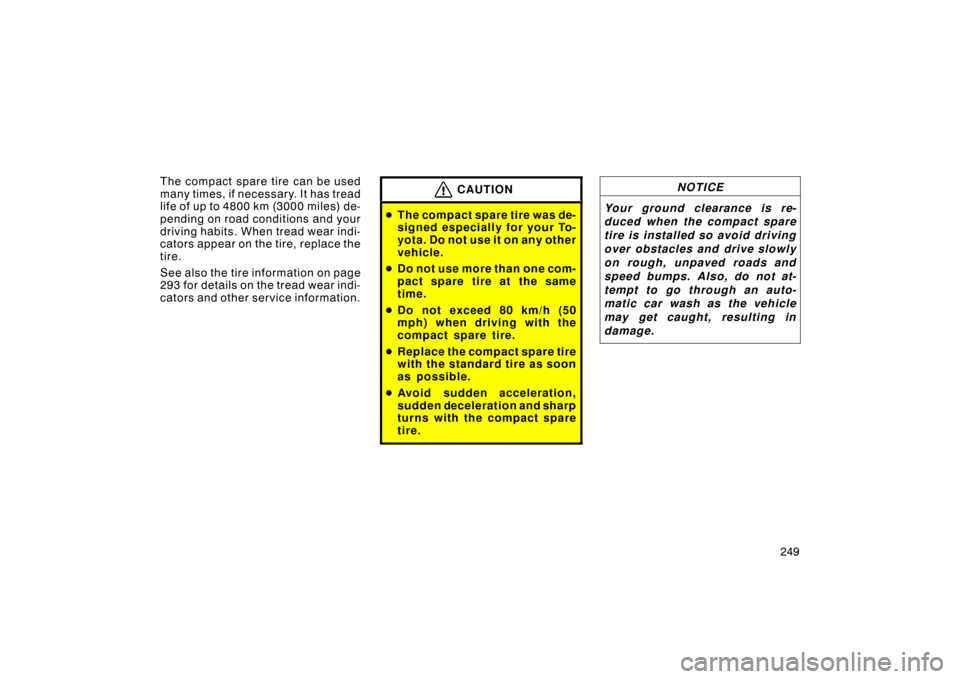

The compact spare tire was de-
signed especially for your To-
yota. Do not use it on any other
vehicle.
 Do not use more than one com-
pact spare tire at the same
time.
 Do not exceed 80 km/h (50
mph) when driving with the
compact spare tire.
 Replace the compact spare tire
with the standard tire as soon
as possible.
 Avoid sudden a cceleration,
sudden d eceleration and sharp
turns with the compact spare
tire.
NOTICE
Your ground clearance is re-
duced when the compact spare
tire is installed so avoid driving
over obstacles and drive slowly
on rough, unpaved roads and
speed bumps. Also, do not at-
tempt to go through an auto-
matic car wash as the vehicle
may get caught, resulting in
damage.

250
50p008c

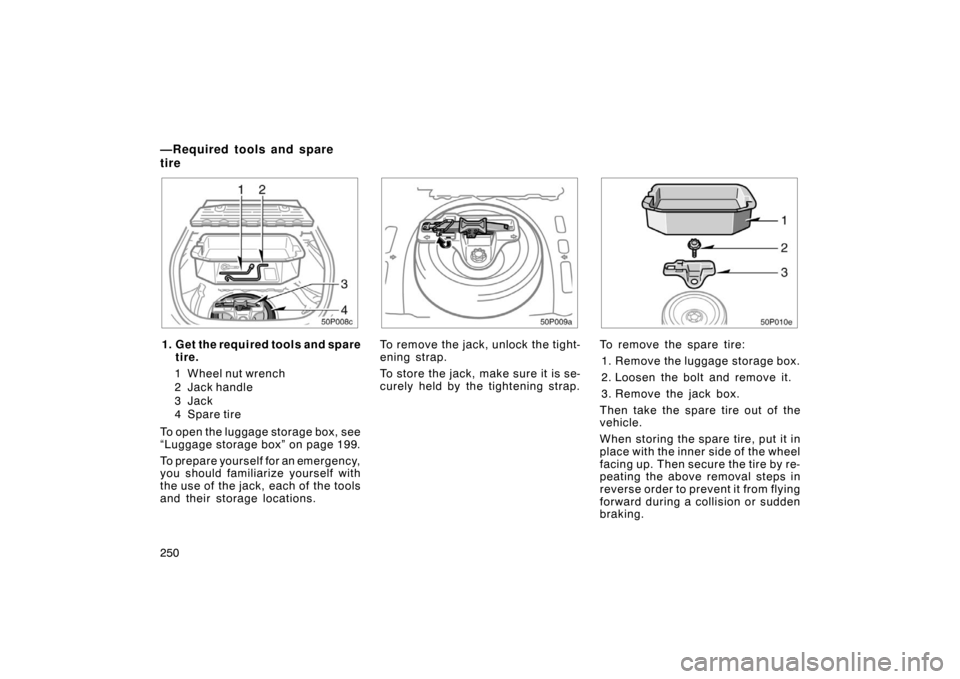

1. Get the required tools and sparetire.
1 Wheel nut wrench
2 Jack handle
3Jack
4 Spare tire
To open the luggage storage box, see
“Luggage storage box” on page 199.
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
50p009a
To remove the jack, unlock the tight-
ening strap.
To store the jack, make sure it is se-
curely held by the tightening strap.
50p010e
To remove the spare tire:
1. Remove the luggage storage box.
2. Loosen the bolt and remove it.
3. Remove the jack box.
Then take the spare tire out of the
vehicle.
When storing the spare tire, put it in
place with the inner side of the wheel
facing up. Then secure the tire by re-
peating the above removal steps in
reverse order to prevent it from flying
forward during a collision or sudden
braking.
—Required tools and spare
tire

251
When installing the jack box, align the
arrows on the jack
box with the ones
on the body.
50p011b
2. Block the wheel diagonally op-
posite the flat tire to keep the
vehicle from rolling when it is
jacked up.
When chocking the wheel, place a
wheel block in front of one of the front
wheels or behind one of the rear
wheels.
50p013d
3. Loosen all the wheel nuts.
Always loosen the wheel nuts before
raising the vehicle.
Turn the wheel nuts counterclockwise
to loosen them. To get maximum le-
verage, fit the wrench to the nut so
that the handle is on the right side,
as shown above. Grab the wrench
near the end of the handle and pull
up on the handle. Be careful that the
wrench does not slip off the nut.
Do not remove the nuts yet—just un-
screw them about one −half turn.
—Blocking the wheel —Loosening wheel nuts

252
CAUTION
Never use oil or grease on the
bolts or nuts. The nuts may loos-
en and the wheels may fall off,
which could cause a serious ac-
cident.
50p014e
4. Position the jack at the jackpoints as shown.
Make sure the jack is positioned on
a level and solid place.
50p015c
5. After making sure no one is in the vehicle, raise it high enough
so that the spare tire can be
installed.
Remember you will need more ground
clearance when putting on the spare
tire than when removing the flat tire.
To raise the vehicl e, insert the jack
handle into the jack (it is a loose fit)
and turn it clockwise. As the jack
touches the vehicle and begins to lift,
double −check that it is properly posi-
tioned.
—Positioning the jack —Raising your vehicle

253
CAUTION
Never get under the vehicle when
the vehicle is supported by the
jack alone.
50p016a

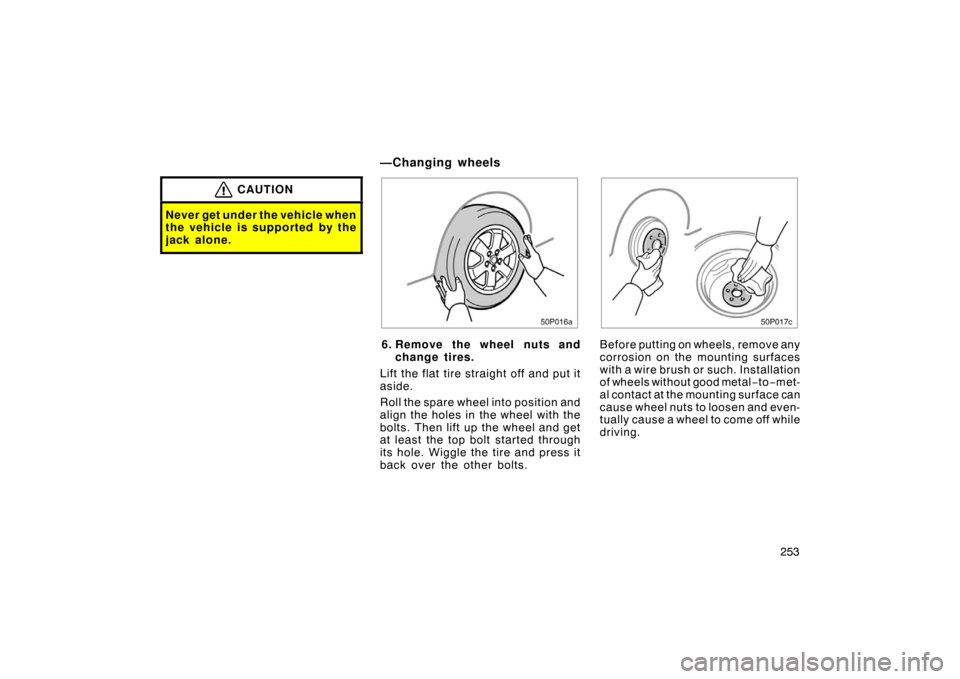

6. Remove the wheel nuts andchange tires.
Lift the flat tire straight off and put it
aside.
Roll the spare wheel into position and
align the holes in the wheel with the
bolts. Then lift up the wheel and get
at least the top bolt started through
its hole. Wiggle the tire and press it
back over the other bolts.
50p017c
Before putting on wheels, remove any
corrosion on the mounting surfaces
with a wire brush or such. Installation
of wheels without good metal− to−met-
al contact at the mounting surface can
cause wheel nuts to loosen and even-
tually cause a wheel to come off while
driving.
—Changing wheels

254
50p018c

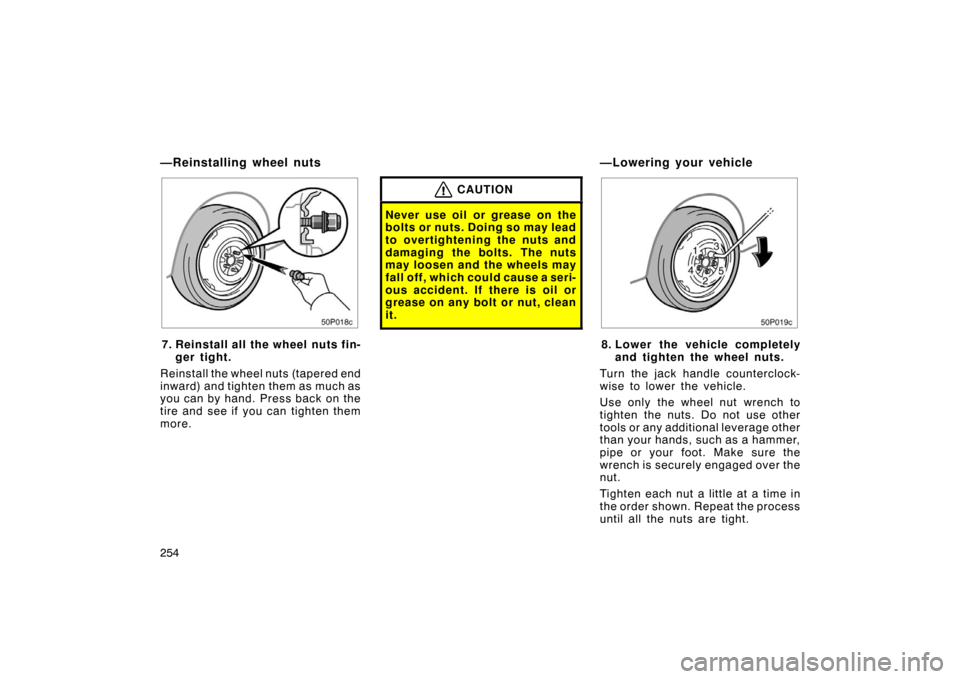

7. Reinstall all the wheel nuts fin-ger tight.
Reinstall the wheel nuts (tapered end
inward) and tighten them as much as
you can by hand. Press back on the
tire and see if you can tighten them
more.
CAUTION
Never use oil or grease on the
bolts or nuts. Doing so may lead
to overtightening the nuts and
damaging the bolts. The nuts
may loosen and the wheels may
fall off, which could cause a seri-
ous accident. If there is oil or
grease on any bolt or nut, clean
it.
50p019c
8. Lower the vehicle completely and tighten the wheel nuts.
Turn the jack handle counterclock-
wise to lower the vehicle.
Use only the wheel nut wrench to
tighten the nuts. Do not use other
tools or any additional leverage other
than your hands, such as a hammer,
pipe or your foot. Make sure the
wrench is securely engaged over the
nut.
Tighten each nut a little at a time in
the order shown. Repeat the process
until all the nuts are tight.
—Reinstalling wheel nuts —Lowering your vehicle

255

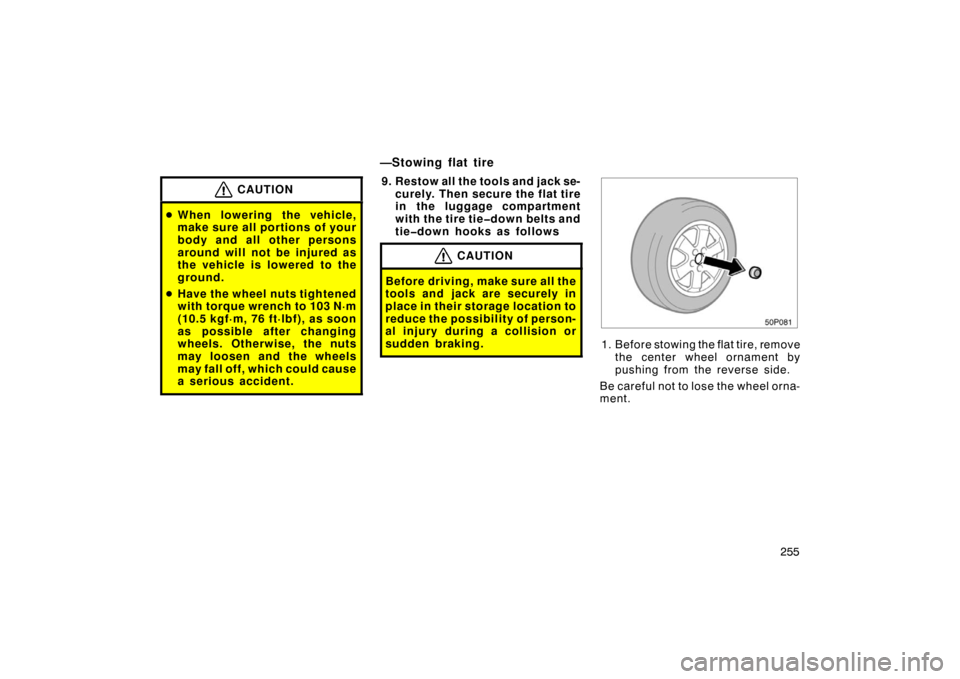

CAUTION
When lowering the vehicle,
make sure all portions of your
body and all other persons
around will not be injured as
the vehicle is lowered to the
ground.
 Have the wheel nuts tightened
with torque wrench to 103 N·m
(10.5 kgf·m, 76 ft·lbf), as soon
as possible after changing
wheels. Otherwise, the nuts
may loosen and the wheels
may fall off, which could cause
a serious accident.
9. Restow all the tools and jack se-
curely. Then secure the flat tire
in the luggage compartment
with the tire tiedown belts and
tiedown hooks as follows
CAUTION
Before driving, make sure all the
tools and jack are securely in
place in their storage location to
reduce the possibility of person-
al injury during a collision or
sudden braking.

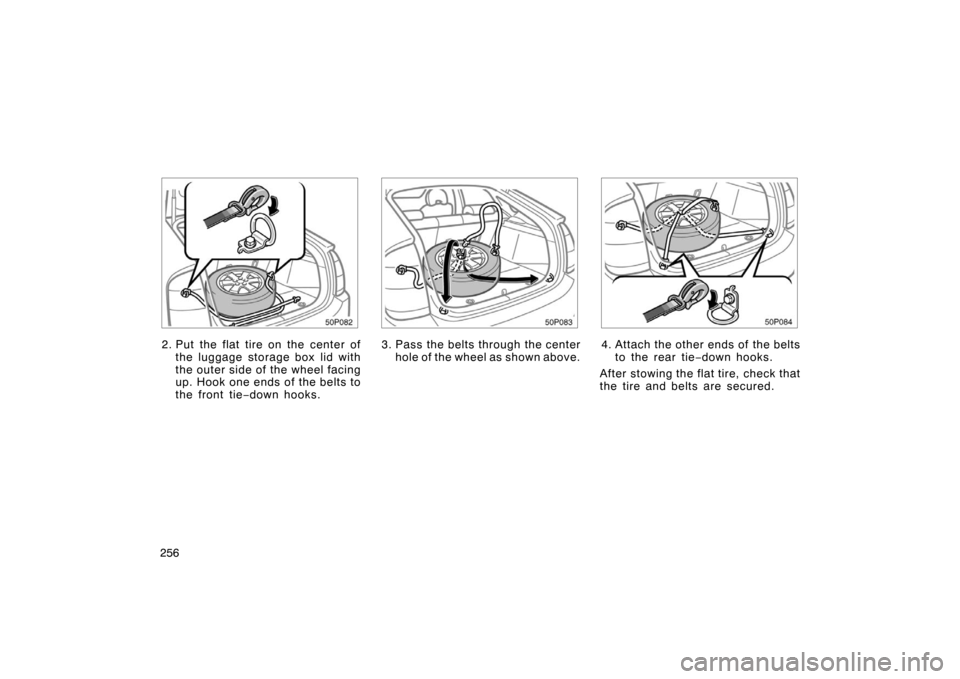

1. Before stowing the flat tire, removethe center wheel ornament by
pushing from the reverse side.
Be careful not to lose the wheel orna-
ment.
—Stowing flat tire

256
2. Put the flat tire on the center ofthe luggage storage box lid with
the outer side of the wheel facing
up. Hook one ends of the belts to
the front tie −down hooks.3. Pass the belts through the center
hole of the wheel as shown above.4. Attach the other ends of the beltsto the rear tie −down hooks.
After stowing the flat tire, check that
the tire and belts are secured.
