2005 TOYOTA AVENSIS fuel pressure

05±52
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

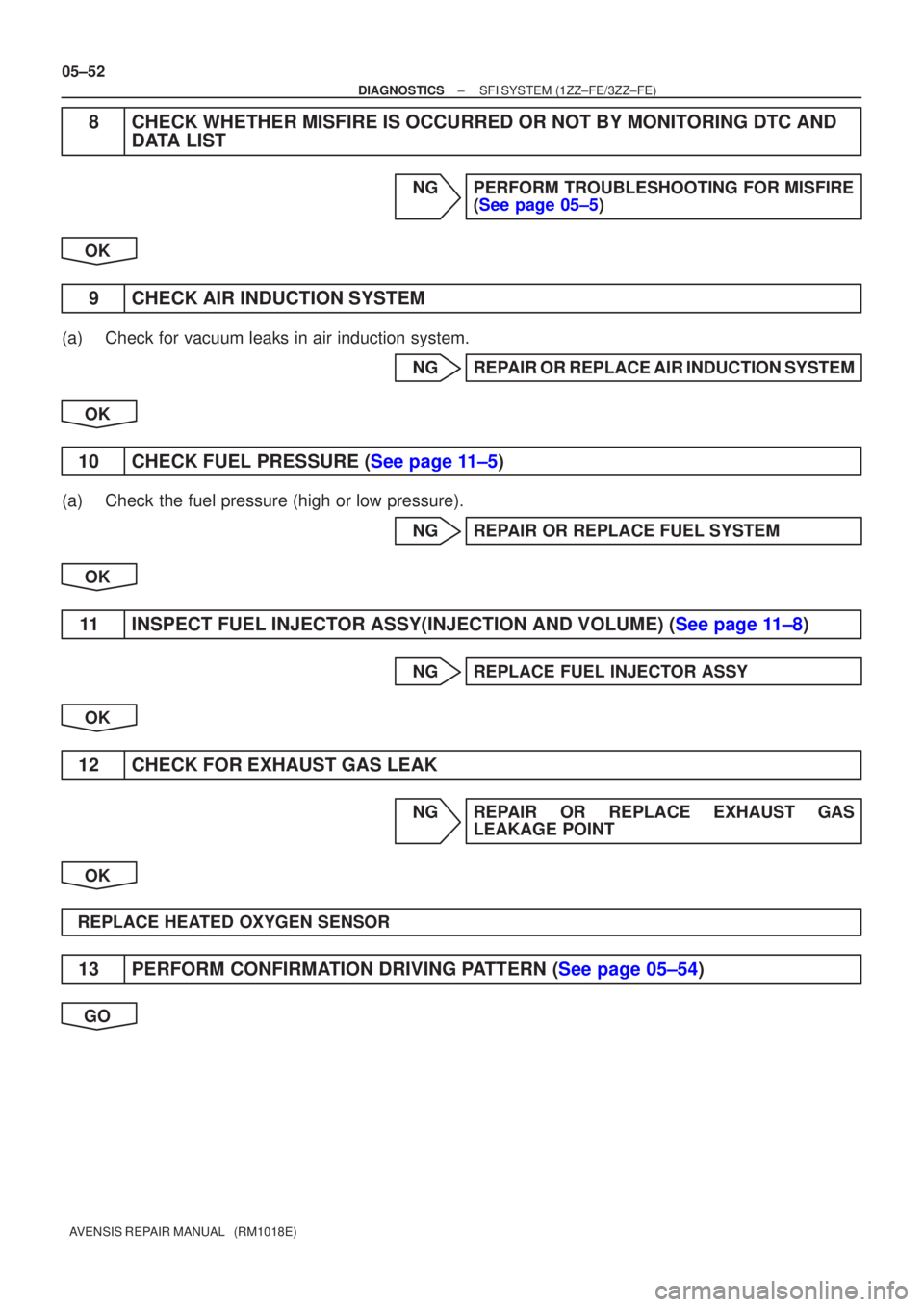

8CHECK WHETHER MISFIRE IS OCCURRED OR NOT BY MONITORING DTC AND DATA LIST
NGPERFORM TROUBLESHOOTING FOR MISFIRE
(See page 05±5)
OK
9CHECK AIR INDUCTION SYSTEM
(a)Check for vacuum leaks in air induction system. NGREPAIR OR REPLACE AIR INDUCTION SYSTEM
OK
10CHECK FUEL PRESSURE (See page 11±5)
(a)Check the fuel pressure (high or low pressure). NGREPAIR OR REPLACE FUEL SYSTEM
OK
11INSPECT FUEL INJECTOR ASSY(INJECTION AND VOLUME) (See page 11±8)
NGREPLACE FUEL INJECTOR ASSY
OK
12CHECK FOR EXHAUST GAS LEAK
NGREPAIR OR REPLACE EXHAUST GAS LEAKAGE POINT
OK
REPLACE HEATED OXYGEN SENSOR
13PERFORM CONFIRMATION DRIVING PATTERN (See page 05±54)
GO

A63991
ECM
C2
Camshaft Timing
Oil Control Valve
2
1
Y±B
W±G
OCV+
OCV±
15
14
E13
E13
05±112
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
DTCP1349VVT SYSTEM MALFUNCTION (BANK 1)
CIRCUIT DESCRIPTION
VVT system controls the intake valve timing to proper timing in response to\
driving condition.
The ECM controls the oil control valve (OCV) to make the intake valve timing properly, oil pressure regulated
by the OCV is supplied to the valiable valve timing (VVT) controller, and then the VVT controller changes
relative position between the camshaft and the crankshaft.
DTC No.DTC Detecting ConditionTrouble Area
P1349
Condition (a) or (b) continues with engine speed at 400 to
4,000 rpm after the engine is warmed up
(a)Valve timing does not change from the current valve timing
(b)Current valve timing is fixed
Valve timing

OCV

VVT controller assembly

ECM
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
Read freeze frame data using \f \b\f\f
 Freeze frame data records the engine conditions when
a malfunction is detected. When troubleshooting, it is useful for determi\
ning whether the vehicle was running
or stopped, the engine was warmed up or not, the air±fuel ratio was lea\
n or rich, etc. at the time of the mal-
function.
1CHECK VALVE TIMING (See page 14±49)
NGADJUST VALVE TIMING(See page 14±49)
OK
05C6F±01

+25 %
±12.5 %
More than 3.35 V
Less than 3.0 V
Case 1
Case 2
Case 3
Case 4
Output voltage of A/F sensor
(sensor 1)
Injection volume
Output voltage
Output voltage of heated oxygen
sensor (sensor 2)Mainly suspect
trouble area
OK
+25 %
±12.5 %
More than 3.35 V
Less than 3.0V
Injection volume
Output voltage
+25 %
±12.5 %
More than 0.55 V
Less than 0.4V
Injection volume
Output voltage
A/F sensor
(A/F sensor, heater, A/F sen-
sor circuit)
+25 %
±12.5 %
More than 0.55 V
Less than 0.4V
Injection volume
Output voltage
+25 %
±12.5 %
Injection volume
Output voltage
NG
+25 %
±12.5 %
Injection volume
Output voltage
NG
+25 %
±12.5 %
Injection volume
Output voltage
NG
+25 %
±12.5 %
Injection volume
Output voltage
NGExtremely rich or lean actual
air±fuel ratio
(Injector, fuel pressure, gas
leakage in exhaust system,
etc.) OK
OK
OK
No reaction
No reaction
No reaction No reaction


Heated oxygen sensor
(heated oxygen sensor,
heater, heated oxygen sensor
circuit) 05±214
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

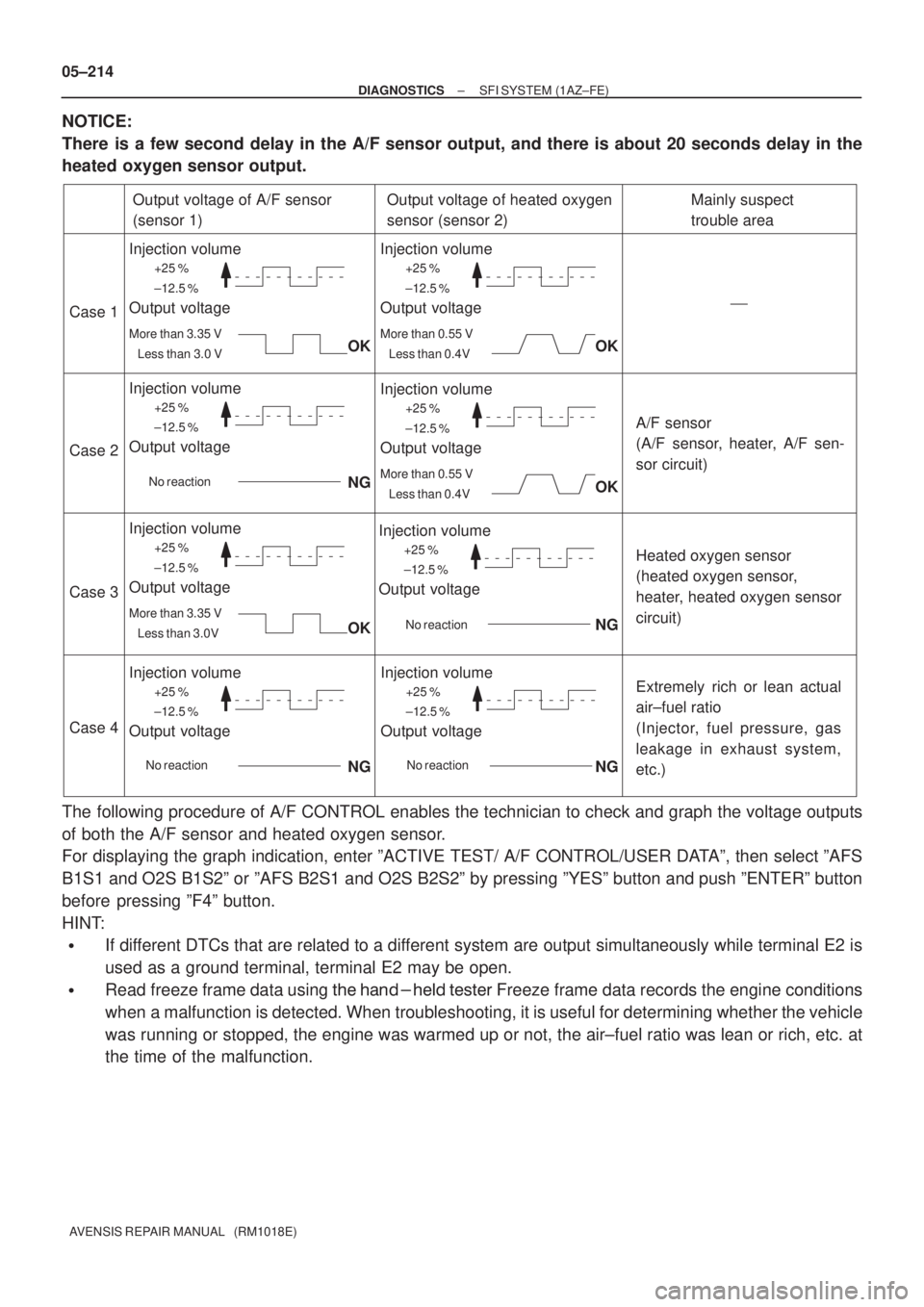

NOTICE:
There is a few second delay in the A/F sensor output, and there is about 20 seconds delay in the
heated oxygen sensor output.
The following procedure of A/F CONTROL enables the technician to check and graph the voltage outputs
of both the A/F sensor and heated oxygen sensor.
For displaying the graph indication, enter ºACTIVE TEST/ A/F CONTROL/USER DATAº, then select ºAFS
B1S1 and O2S B1S2º or ºAFS B2S1 and O2S B2S2º by pressing ºYESº button and push ºENTERº button
before pressing ºF4º button.
HINT:

If different DTCs that are related to a different system are output simultaneously while terminal E2 is
used as a ground terminal, terminal E2 may be open.

Read freeze frame data using
 Freeze frame data records the engine conditions
when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle
was running or stopped, the engine was warmed up or not, the air±fuel ratio was lean or rich, etc. at
the time of the malfunction.

A71007
MassAir Flow Meter Crankshaft Position Sensor
Actual Valve TimingCorrection Target Valve Timing
Feedback
Duty Control ECM
Camshaft Timing
Oil Control
Valve (OCV)
Vehicle Speed Signal Engine Coolant Temp. SensorThrottle Position Sensor
Camshaft Position Sensor
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
05±169
AVENSIS REPAIR MANUAL (RM1018E)

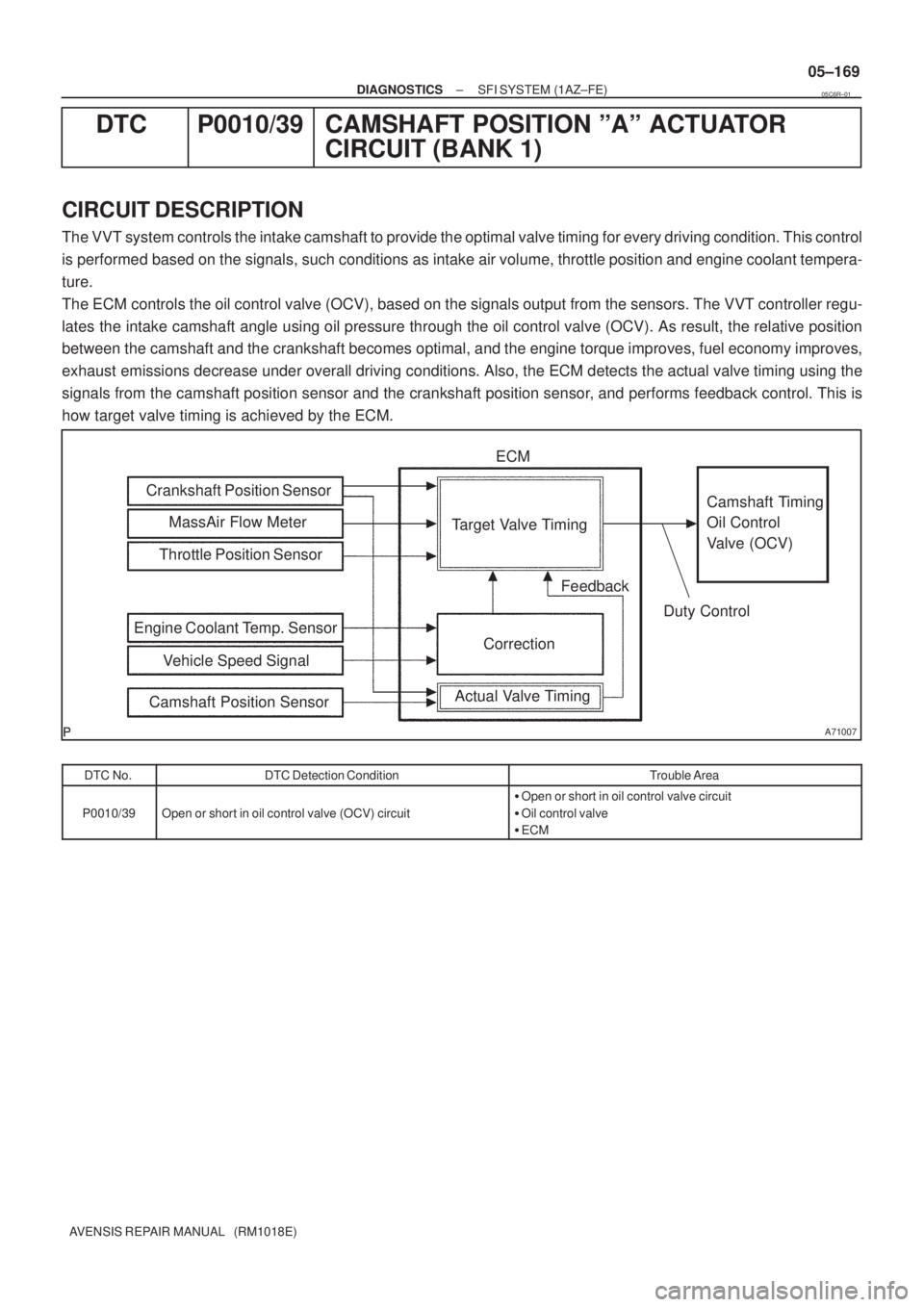

DTC P0010/39 CAMSHAFT POSITION ºAº ACTUATOR
CIRCUIT (BANK 1)
CIRCUIT DESCRIPTION
The VVT system controls the intake camshaft to provide the optimal valve timing for every driving condition. This control
is performed based on the signals, such conditions as intake air volume, throttle position and engine coolant tempera-
ture.
The ECM controls the oil control valve (OCV), based on the signals output from the sensors. The VVT controller regu-
lates the intake camshaft angle using oil pressure through the oil control valve (OCV). As result, the relative position
between the camshaft and the crankshaft becomes optimal, and the engine torque improves, fuel economy improves,
exhaust emissions decrease under overall driving conditions. Also, the ECM detects the actual valve timing using the
signals from the camshaft position sensor and the crankshaft position sensor, and performs feedback control. This is
how target valve timing is achieved by the ECM.
DTC No.DTC Detection ConditionTrouble Area
P0010/39Open or short in oil control valve (OCV) circuit

Open or short in oil control valve circuit

Oil control valve

ECM
05C6R±01

+25 %
±12.5 %
More than 3.35 V
Less than 3.0 V
Case 1
Case 2
Case 3
Case 4
Output voltage of A/F sensor
(sensor 1)
Injection volume
Output voltage
Output voltage of heated oxygen
sensor (sensor 2)Mainly suspect
trouble area
OK
+25 %
±12.5 %
More than 3.35 V
Less than 3.0V
Injection volume
Output voltage
+25 %
±12.5 %
More than 0.55 V
Less than 0.4V
Injection volume
Output voltage
A/F sensor
(A/F sensor, heater, A/F sen-
sor circuit)
+25 %
±12.5 %
More than 0.55 V
Less than 0.4V
Injection volume
Output voltage
+25 %
±12.5 %
Injection volume
Output voltage
NG
+25 %
±12.5 %
Injection volume
Output voltage
NG
+25 %
±12.5 %
Injection volume
Output voltage
NG
+25 %
±12.5 %
Injection volume
Output voltage
NGExtremely rich or lean actual
air±fuel ratio
(Injector, fuel pressure, gas
leakage in exhaust system,
etc.) OK
OK
OK
No reaction
No reaction
No reaction No reaction


Heated oxygen sensor
(heated oxygen sensor,
heater, heated oxygen sensor
circuit)
± DIAGNOSTICSSFI SYSTEM (1AZ±FE)
05±253
AVENSIS REPAIR MANUAL (RM1018E)

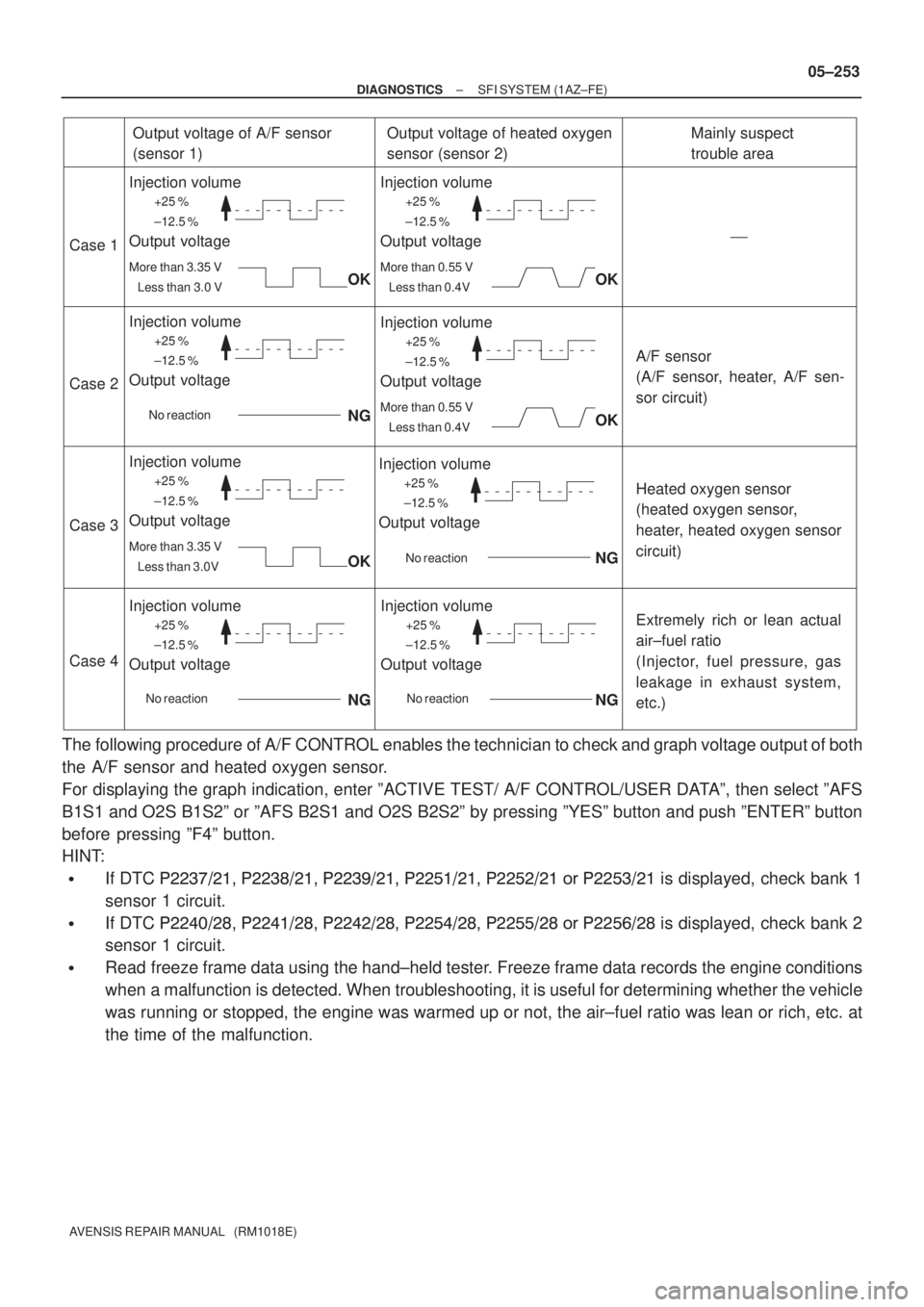

The following procedure of A/F CONTROL enables the technician to check and graph voltage output of both
the A/F sensor and heated oxygen sensor.
For displaying the graph indication, enter ºACTIVE TEST/ A/F CONTROL/USER DATAº, then select ºAFS
B1S1 and O2S B1S2º or ºAFS B2S1 and O2S B2S2º by pressing ºYESº button and push ºENTERº button
before pressing ºF4º button.
HINT:

If DTC  
        is displayed, check bank 1
sensor 1 circuit.

If DTC       
 is displayed, check bank 2
sensor 1 circuit.

Read freeze frame data using the hand±held tester. Freeze frame data records the engine conditions
when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle
was running or stopped, the engine was warmed up or not, the air±fuel ratio was lean or rich, etc. at
the time of the malfunction.

05CDV±01
A76858
Ignition Coil Assy
Camshaft Position Sensor VSV for EVAP
Combination Meter
DLC3
VSV for Intake Air Control ValveFuel Pump ECM
Knock Sensor Camshaft Timing Oil Control Valve
(OCV)
Injector
Crankshaft Position
Sensor
Park/Neutral Position Switch
(Only for A/T Models)Engine Coolant
Temperature Sensor
Mass Air Flow Meter
Throttle Body Assy
Accelerator Pedal Assy
Heated Oxygen Sensor
(Bank 2 Sensor 2)
Circuit Opening Relay
Heated Oxygen Sensor
(Bank 1 Sensor 2)
Heated Oxygen Sensor
(Bank 2 Sensor 1)
Heated Oxygen Sensor
(Bank 1 Sensor 1)
Manifold Absolute Pressure Sensor
Fuel Pump (For High Pressure)
Engine Room R/B No. 1Engine Room R/B No. 4Injector Driver (EDU)
Brake Booster
Pressure Sensor
Fuel Pressure Sensor
(For Low Pressure)
± DIAGNOSTICSSFI SYSTEM (1AZ±FSE)
05±317
AVENSIS REPAIR MANUAL (RM1018E)
LOCATION

05±310
±
DIAGNOSTICS SFI SYSTEM (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)


\f
*
1
CHK ENG

 \b
P0110
(05±347)Intake Air Temperature Circuit

Open or short in intake air temperature sensor circuit

Intake air temperature sensor (built in mass air flow meter)

ECM

P0112
(05±347)Intake Air Temperature Circuit
Low Input
Short in intake air temperature sensor circuit

Intake air temperature sensor (built in mass air flow meter)

ECM

P0113
(05±347)Intake Air Temperature Circuit
High Input
Open in intake air temperature sensor circuit

Intake air temperature sensor (built in mass air flow meter)

ECM

P0115
(05±351)Engine Coolant Temperature Cir-
cuit
Open or short in engine coolant temperature sensor circuit

Engine coolant temperature sensor

ECM

P0116
(05±355)Engine Coolant Temperature Cir-
cuit Range/Performance Prob-
lem
Cooling system

Engine coolant temperature sensor

Thermostat

P0117
(05±351)Engine Coolant Temperature Cir-
cuit Low Input
Short in engine coolant temperature sensor circuit

Engine coolant temperature sensor

ECM

P0118
(05±351)Engine Coolant Temperature Cir-
cuit High Input
Open in engine coolant temperature sensor circuit

Engine coolant temperature sensor

ECM

P0120
(05±356)Throttle/Pedal Position Sensor/
Switch ºAº Circuit
Throttle position sensor (built in throttle body)

ECM
P0121
(05±362)Throttle/Pedal Position Sensor/
Switch ºAº Circuit Range/Perfor-
mance Problem

Throttle position sensor (built in throttle body)
P0122
(05±356)Throttle/Pedal Position Sensor/
Switch ºAº Circuit Low Input

Throttle position sensor (built in throttle body)

VTA1 circuit short

VC circuit open

ECM

P0123
(05±356)Throttle/Pedal Position Sensor/
Switch ºAº Circuit High Input

Throttle position sensor (built in throttle body)

VTA1 circuit open

E2 circuit open

VC and VTA1 circuit are short±circuited

ECM

P0130 *3
(05±363)
Oxygen Sensor Circuit (Bank 1
Sensor 1)

Open or short in heated oxygen sensor circuit

Heated oxygen sensor

Heated oxygen sensor heater

EFI relay

Air induction system

Fuel pressure

Injector

ECM

P0133 *3
(05±374)
Oxygen Sensor Circuit Slow Re-
sponse (Bank 1 Sensor 1)

Open or short in heated oxygen sensor circuit

Heated oxygen sensor

Heated oxygen sensor heater

EFI relay

Air induction system

Fuel pressure

Injector

ECM


±
DIAGNOSTICS SFI SYSTEM (1AZ±FSE)
05±311
AVENSIS REPAIR MANUAL (RM1018E)


\f
*
1
CHK ENG

 \b
P0134
(05±381)Oxygen Sensor Circuit No Activ-
ity Detected (Bank 1 Sensor 1)

Open or short in heated oxygen sensor circuit

Heated oxygen sensor

Heated oxygen sensor heater

EFI relay

Air induction system

Fuel pressure

Injector

Gas leakage in exhaust system

PCV valve and hose

PCV hose connection

ECM

P0136 *3
(05±388)
Oxygen Sensor Circuit Malfunc-
tion (Bank 1 Sensor 2)

Open or short in heated oxygen sensor circuit

Heated oxygen sensor

Heated oxygen sensor heater

EFI relay

P0150 *3
(05±363)
Oxygen Sensor Circuit (Bank 2
Sensor 1)
Same as DTC No. P0130
P0153 *3
(05±374)
Oxygen Sensor Circuit Slow Re-
sponse (Bank 2 Sensor 1)
Same as DTC No. P0133
P0154
(05±381)Oxygen Sensor Circuit No Activ-
ity Detected (Bank 2 Sensor 1)
Same as DTC No. P0134
P0156 *3
(05±388)
Oxygen Sensor Circuit Malfunc-
tion (Bank 2 Sensor 2)
Same as DTC No. P0136
P0171 *3
(05±394)System too Lean (Bank 1)

Air induction system

Injector blockage

Mass air flow meter

Manifold absolute pressure sensor

Engine coolant temperature sensor

Fuel pressure

Gas leakage in exhaust system

Open or short in heated oxygen sensor (bank 1 sensor 1)
circuit

Heated oxygen sensor (bank 1 sensor 1)

Heated oxygen sensor heater (bank 1 sensor 1)

EFI relay

PCV valve and hose

PCV hose connection

ECM

P0172 *3
(05±394)System too Rich (Bank 1)

Injector leak, blockage

Mass air flow meter

Manifold absolute pressure sensor

Engine coolant temperature sensor

Ignition system

Fuel pressure

Gas leakage in exhaust system

Open or short in heated oxygen sensor (bank 1 sensor 1)
circuit

Heated oxygen sensor (bank 1 sensor 1)

ECM
