2005 TOYOTA AVENSIS service

170FU±01
A77281
17±8
±
LUBRICATION OIL PUMP ASSY(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
OIL PUMP ASSY(1AZ±FE)
REPLACEMENT
1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±15)
2.REMOVE FRONT WHEEL RH
3.REMOVE RADIATOR SUPPORT OPENING COVER
4.REMOVE ENGINE ROOM COVER SIDE
5.REMOVE ENGINE UNDER COVER RH
6.REMOVE ENGINE UNDER COVER LH
7.DRAIN ENGINE OIL
(a)Install a new gasket and drain plug after draining engine oil. Torque: 25 N
m (250 kgf
cm,18 ft
lbf)
8.REMOVE ENGINE COVER SUB±ASSY NO.1
(a)Remove 2 nuts and the engine cover No. 1.
9.REMOVE FAN AND GENERATOR V BELT (See page 14±105) SST 09249±63010
10.REMOVE GENERATOR ASSY (See page 19±20)
11.REMOVE EXHAUST PIPE ASSY FRONT (See page 15±7)
12.SEPARATE VANE PUMP ASSY (See page 14±139)
13.SEPARATE RETURN TUBE SUB±ASSY (See page 14±139)
14. SEPARATE COOLER REFRIGERANT SUCTION HOSE NO.1 (LHD(W/ AIR CONDITIONER) STEERING POSITION TYPE) (See page 14±139)
15. SEPARATE VANE PUMP OIL RESERVOIR ASSY
16.REMOVE OIL RESERVOIR BRACKET NO.1 (See page 14±139)
17. SEPARATE ENGINE WIRE
18. REMOVE ENGINE SERVICE COVER BRACKET RH (W/O AIR CONDITIONING)
(a) Remove a bolt and the engine service cover bracket RH.
19.REMOVE COOLER BRACKET (LHD(W/ AIR CONDITIONER) STEERING POSITION TYPE\
) (See
page 14±139)
20. REMOVE ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING POSITION TYPE)
(a) Remove a bolt and the engine service cover bracket RH.
21. REMOVE IGNITION COIL ASSY
(a) Remove 4 bolts and the ignition coils.
22.REMOVE CYLINDER HEAD COVER SUB±ASSY (See page 14±139)
23.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±139)
24.REMOVE ENGINE MOUNTING BRACKET NO.2 RH (See page 14±139)
25.REMOVE TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR (See page 14±139)

A77392Seal Packing6mm
A64641
17±10
±
LUBRICATION OIL PUMP ASSY(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
43.SET NO. 1 CYLINDER TO TDC/COMPRESSION (See page 14±139)
44. INSTALL CHAIN VIBRATION DAMPER NO.1 Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
45.INSTALL CHAIN SUB±ASSY (See page 14±139)
46. INSTALL TIMING CHAIN GUIDE Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
47.INSTALL CHAIN TENSIONER SLIPPER (See page 14±139)
48.INSTALL CRANKSHAFT POSITION SENSOR PLATE NO.1 (See page 14±139)
49.INSTALL TIMING CHAIN OR BELT COVER SUB±ASSY (See page 14±139)
50.INSTALL V±RIBBED BELT TENSIONER ASSY (See page 14±139)
51. INSTALL OIL PAN SUB±ASSY
NOTICE:

Remove any oil from the contact surface.

Install the oil pan within 3 minutes after applying seal
packing.

Do not start the engine within 2 hours after installing.
(a) Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surface of the cylinder
block and oil pan.
(b) Apply seal packing in the shape of bead (Diameter 3 to 4
mm (0.157 in.)) as shown in the illustration, and install the
oil pan.
Seal Packing: Part No. 08826 ± 00080 or equivalent
(c) Insert the oil pan with 12 bolts and 2 nuts. Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
52.INSTALL CRANKSHAFT POSITION SENSOR (See page 14±139)
53.INSTALL CRANKSHAFT PULLEY (See page 14±139) SST 09213±54015 (91651±60855), 09330±00021
54.INSTALL CHAIN TENSIONER ASSY NO.1 (See page 14±139)
55. INSTALL TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR Torque: 52 N
m (530 kgf
cm, 38 ft
lbf)
56.INSTALL ENGINE MOUNTING BRACKET NO.2 RH (See page 14±139)
57.INSTALL CYLINDER HEAD COVER SUB±ASSY (See page 14±139)
58. INSTALL ENGINE SERVICE COVER BRACKET RH (W/O AIR CONDITIONING) Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
59. INSTALL COOLER BRACKET (LHD(W/ AIR CONDITIONER) STEERING POSITION TYPE) Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
60. INSTALL ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING POSITION TYPE)
Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)

5100F±06
±
POWER STEERING POWER STEERING SYSTEM
51±1
AVENSIS REPAIR MANUAL (RM1018E)

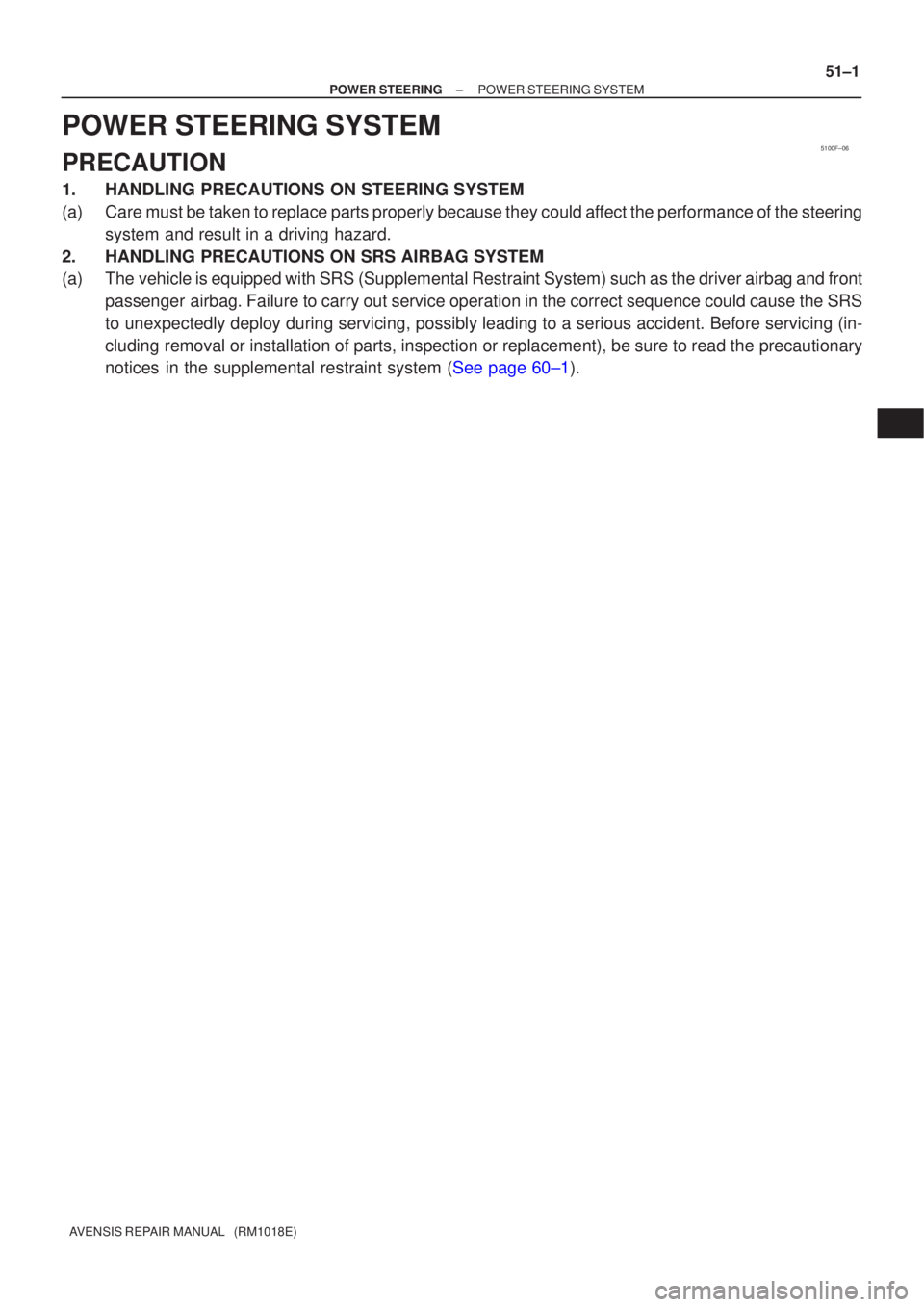

POWER STEERING SYSTEM
PRECAUTION
1. HANDLING PRECAUTIONS ON STEERING SYSTEM
(a) Care must be taken to replace parts properly because they could affect the performance of the steering
system and result in a driving hazard.
2. HANDLING PRECAUTIONS ON SRS AIRBAG SYSTEM
(a) The vehicle is equipped with SRS (Supplemental Restraint System) such as \
the driver airbag and front passenger airbag. Failure to carry out service operation in the correct sequence \
could cause the SRS
to unexpectedly deploy during servicing, possibly leading to a serious acc\
ident. Before servicing (in-
cluding removal or installation of parts, inspection or replacement), be sure \
to read the precautionary
notices in the supplemental restraint system (See page 60±1).

5000C±14
±
STEERING COLUMN STEERING SYSTEM
50±1
AVENSIS REPAIR MANUAL (RM1018E)
STEERING SYSTEM
PRECAUTION
1. HANDLING PRECAUTIONS ON STEERING SYSTEM
(a) Be careful to replace the parts properly because they could affect the performance of the steering sys-
tem and result in a driving hazard.
2. HANDLING PRECAUTIONS ON SRS AIRBAG SYSTEM
(a) The vehicle is equipped with SRS (Supplemental Restraint System) such as \
the driver airbag and front passenger airbag. Failure to carry out service operation in the correct sequence \
could cause the SRS
to unexpectedly deploy during servicing, possibly leading to a serious acc\
ident. Before servicing (in-
cluding removal or installation of parts, inspection or replacement), be sure \
to read the precautionary
notices in the supplemental restraint system (See page 60±1).
3. HANDLING PRECAUTIONS ON STEERING COLUMN
(a) Do not give an impact to the steering column assy, especially the motor and the torque sensor. If a great impact is given (dropping it to the floor, etc.), replace it with a new one.
(b) When removing the steering column assy, do not pull the harness.
(c) When having replaced the steering column assy and/or the ECU, calibrate the \
zero point of the steer- ing torque sensor.
(d) In the case of disconnecting a connector related to the power steering sys\
tem, turn the ignition switch ON, set the steering wheel in the straight±ahead position and turn th\
e ignition switch OFF before dis-
connecting the connector.
(e) In the case of connecting a connector related to the power steering system, make sure that the ignit\
ion switch is OFF at first. After connecting the connector, set the steering wheel assy in the straight±ahead
position, and then turn the ignition switch ON.
NOTICE:
Never turn on the ignition switch when the steering wheel assy is set in orde\
r than the straight±ahead
position.
(f) If the above operation is not done, the zero point of the steering torque \
sensor is shifted away from the proper position, making difference in the steering effort between right and left. If this happens, per-
form the zero point calibration of the steering torque sensor (See page 05±1042).

D30335
Inward
Outward

D30336
C70126
F45776
Service Bolt
± POWER STEERINGVANE PUMP ASSY (1CD±FTV)
51±25
AVENSIS REPAIR MANUAL (RM1018E)
(b) Coat 10 vane pump plates with power steering fluid.
(c) Install the vane pump plates with the round end facing
outward.
25. INSTALL VANE PUMP SHAFT SNAP RING
(a) Using a screwdriver and a snap ring expander, install a
new snap ring to the w/pulley shaft sub±assy.
26. INSTALL VANE PUMP HOUSING SUB±ASSY REAR
(a) Coat a new O±ring with power steering fluid and install it
onto the housing sub±assy rear.
(b) Align the straight pin of the housing sub±assy rear with
the dents of the cam ring, side plate front and housing
sub±assy front, and install the vane pump housing sub±
assy rear with the 4 bolts.
Torque: 22 N
m (224 kgf
cm, 16 ft
lbf)
27. INSPECT PRELOAD
(a) Check that the pump rotates smoothly without abnormal
noise.
(b) Temporarily install the service bolt.
Recommended service bolt:
Thread diameter: 10 mm (0.39 in.)
Thread pitch: 1.25 mm (0.0492 in.)
Bolt length: 50 mm (1.97 in.)
(c) Using a torque wrench, check the pump rotating torque.
Rotating torque:
0.27 N
m (2.8 kgf
cm, 2.4 ft
lbf) or less
If the rotating torque is not as specified, check the housing oil
seal.

D30335
Inward
Outward

D30336
C70126
C53369
Service Bolt
± POWER STEERINGVANE PUMP ASSY (AZ Series)
51±15
AVENSIS REPAIR MANUAL (RM1018E)
(b) Coat 10 vane pump plates with power steering fluid.
(c) Install the vane pump plates with the round end facing
outward.
28. INSTALL VANE PUMP SHAFT SNAP RING
(a) Using a screwdriver and a snap ring expander, install a
new snap ring to the w/pulley shaft sub±assy.
29. INSTALL VANE PUMP HOUSING SUB±ASSY REAR
(a) Coat a new O±ring with power steering fluid and install it
onto the housing sub±assy rear.
(b) Align the straight pin of the housing sub±assy rear with
the dents of the cam ring, side plate front and housing
sub±assy front, and install the vane pump housing sub±
assy rear with the 4 bolts.
Torque: 22 N
m (224 kgf
cm, 16 ft
lbf)
30. INSPECT PRELOAD
(a) Check that the pump rotates smoothly without abnormal
noise.
(b) Temporarily install the service bolt.
Recommended service bolt:
Thread diameter: 10 mm (0.39 in.)
Thread pitch: 1.25 mm (0.0492 in.)
Bolt length: 50 mm (1.97 in.)
(c) Using a torque wrench, check the pump rotating torque.
Rotating torque:
0.27 N
m (2.8 kgf
cm, 2.4 ft
lbf) or less
If the rotating torque is not as specified, check the housing oil
seal.
31. INSTALL POWER STEERING OIL PRESSURE SWITCH
(a) Coat a new O±ring with power steering fluid and install it to the oil pressure switch.
(b) Install the oil pressure switch onto the vane pump assy.
Torque: 21 N
m (214 kgf
cm, 15 ft
lbf)

550Z6±01
I35329
I35330
I35331
I35332
55±86
±
HEATER & AIR CONDITIONER W/PULLEY COMPRESSOR ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See page 55±38) SST 07110±58060 (07117±58080, 07117±58090, 07117±78050, 07117±88060, 07117±88070, 07117±88080)
2. DISCONNECT COOLER REFRIGERANT SUCTIONHOSE NO.1 (LHD STEERING POSITION TYPE)
(a) Remove the bolt and disconnect the cooler refrigerant suction hose No.1 from the suction servic valve.
(b) Remove the O±ring from the cooler refrigerant suction hose No.1.
NOTICE:
Seal the opening of the disconnected parts using vinyl tape
to prevent moisture and foreign matters from entering.
3. REMOVE SUCTION SERVIC VALVE (LHD STEERING
POSITION TYPE)
(a) Remove the 2 bolts and disconnect the suction service valve from the w/pulley compressor assy.
(b) Remove the O±ring from the suction service valve.
NOTICE:
Seal the opening of the disconnected parts using vinyl tape
to prevent moisture and foreign matters from entering.
4. DISCONNECT COOLER REFRIGERANT SUCTION
HOSE NO.1 (RHD STEERING POSITION TYPE)
(a) Remove the bolt and disconnect the cooler refrigerant suction hose No.1 from the w/pulley compressor assy.
(b) Remove the O±ring from the cooler refrigerant suction hose No.1.
NOTICE:
Seal the opening of the disconnected parts using vinyl tape
to prevent moisture and foreign matters from entering.
5. DISCONNECT COOLER REFRIGERANT DISCHARGE HOSE NO.1
(a) Remove the bolt and disconnect the cooler refrigerant
discharge hose No.1 from the w/pulley compressor assy.
(b) Remove the O±ring from the cooler refrigerant discharge hose No.1.
NOTICE:
Seal the opening of the disconnected parts using vinyl tape
to prevent moisture and foreign matters from entering.
6. REMOVE RADIATOR SUPPORT OPENING COVER
7. REMOVE ENGINE ROOM COVER SIDE
8. REMOVE ENGINE UNDER COVER RH
9. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 55±46)

I35333
I35333
(1)(2)
(3)
(4)
±
HEATER & AIR CONDITIONER W/PULLEY COMPRESSOR ASSY (1CD±FTV)
55±87
AVENSIS REPAIR MANUAL (RM1018E)
10. REMOVE W/PULLEY COMPRESSOR ASSY
(a) Disconnect the connector.
(b) Remove the 4 bolts and the w/pulley compressor assy.
11. INSPECT COMPRESSOR OIL
(a) When replacing the w/pulley compressor assy with a new one, after gradually \
removing the refrigerant gas from the service valve, drain the following amount of oil from the new w\
/pulley compressor assy
before installation.
Standard:
(Oil capacity inside new w/pulley compressor assy: 90 + 15 cc (3.0 + 0.5 fl. oz.) ) ± (Remaining
oil amount in the removed w/pulley compressor assy) = (Oil amount to be r\
emoved when replac-
ing)
NOTICE:

When checking the compressor oil level, observe the precautions on the cooler removal/inst\
al-
lation.

Since compressor oil remains in the pipes of the vehicle, if a new w/pulley c\
ompressor assy
is installed without removing some oil inside, the oil amount becomes ex\
cessive, preventing
heat exchange in the refrigerant cycle and causing refrigerant failure.

If the remaining oil in the removed w/pulley compressor assy is too smal\
l in volume, check for
oil leakage.

Be sure to use ND±OIL 8 for compressor oil.
12. INSTALL W/PULLEY COMPRESSOR ASSY
(a) Install the w/pulley compressor assy with the 4 bolts.Torque: 29 N
m (300 kgf
cm, 21 ft
lbf)
NOTICE:
Tighten the bolts in the order shown in the illustration to
install the w/pulley compressor assy.
(b) Connect the connector.
13. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 55±46)
14. ADJUST V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
(See page 55±46)
15. FULLY TIGHTEN V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1 (See page 55±46)
